According to the TOGAF Standard, Version 9.2, an architecture view is a representation of a system from the perspective of a related set of concerns1. It consists of one or more architecture models that demonstrate how the system addresses the stakeholder concerns1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1. It defines the perspective, scope, notation, and techniques for creating an architecture view of a system1.

Architects can present architecture views and viewpoints to stakeholders to extract hidden agendas, principles, and requirements that could impact the final Target Architecture, because23:

Architecture views and viewpoints help to communicate and visualize the architecture in a way that is meaningful and relevant to different stakeholders, addressing their specific interests and needs.

Architecture views and viewpoints help to elicit and validate the stakeholder concerns and requirements, ensuring that they are aligned with the business goals and objectives, and that they are consistent and feasible within the architecture context.

Architecture views and viewpoints help to identify and resolve any conflicts, gaps, or trade-offs among the stakeholder concerns and requirements, ensuring that they are balanced and prioritized in the architecture design and decision-making.

Architecture views and viewpoints help to demonstrate and verify the value and benefits of the architecture to the stakeholders, ensuring that they are satisfied and committed to the architecture outcome and governance.

1: The TOGAF Standard, Version 9.2, Chapter 22: Architecture Views, Viewpoints, and Stakeholders

2: The TOGAF Standard, Version 9.2, Chapter 4: Introduction to Part II, Section 4.2: What is an Architecture Framework?

3: The TOGAF Standard, Version 9.2, Chapter 31: Architectural Artifacts, Section 31.1: Basic Concepts

“Modeling these items would help the clarification process, and in particular would highlight any ambiguities or conflicts that involved trade-offs and/or prioritization… the architecture principles… likewise help clarify ambiguities or conflicts that involve trade-offs.” Open Group Publications

The chart illustrates an important TOGAF concept: ADM phases can operate concurrently or iteratively rather than strictly sequentially. The diagram shows Phase A activities occurring first, after which the architecture development phases (Business, Data, Application, and Technology Architectures) overlap in time. This overlap demonstrates how architecture development work may proceed in parallel as information becomes available, allowing architects to refine and coordinate the candidate architecture more efficiently.

TOGAF explicitly supports iteration and concurrency across ADM phases. While the phases are presented in a logical order, they are not intended to be executed in a rigid step-by-step sequence in all situations. Instead, architects may work across several phases simultaneously to address dependencies, refine requirements, and accelerate the development of the candidate architecture and roadmap.

Option A best reflects this principle because it acknowledges that phases may run together as part of an iterative architecture development process until a coherent candidate architecture is produced and validated. Option B is incorrect because TOGAF does not mandate the use of specific project management tools such as Gantt charts. Option C is incorrect because the ADM is not strictly sequential. Option D is incorrect because the duration of phases is not fixed in TOGAF.

Therefore, the chart illustrates the concept that ADM phases may be executed concurrently to develop and validate the candidate architecture.

Comprehensive and Detailed Explanation From documents:

In TOGAF, a Business Scenario is an ADM technique used to capture and structure business requirements in a way that directly informs the development and validation of architectures. It frames a specific business problem (or opportunity) and articulates the desired outcomes/objectives, along with the business and technical context, the involved actors and roles (human and system), and the measures of success. This makes option A correct because it concisely captures the essence of a Business Scenario: a well-defined business problem coupled with the outcomes the business seeks to achieve.

A good Business Scenario typically includes:

The business problem/opportunity and drivers.

The business and technical environment/context in which the problem exists.

The desired outcomes/objectives and measures of success (how success will be recognized).

Actors and roles (both human and system) and their interactions.

Capabilities and high-level requirements implied by the scenario.

Business Scenarios are especially valuable in Phase A: Architecture Vision to validate scope, objectives, and business value, and they continue to be used throughout Phases B–D to test and validate the target architectures and to maintain requirements traceability via Requirements Management. They promote shared understanding among stakeholders and provide a concrete basis for evaluating solution options and assessing architecture fitness-for-purpose.

Why the other options are incorrect:

B. A use-case for developing a business model. While Business Scenarios and use-cases are related, a Business Scenario is broader. It provides context, problem, objectives, and measures of success; use-cases are often derived from or complement Business Scenarios to specify interactions, but a Business Scenario is not merely a use-case.

C. A method to quantify readiness for change. This describes Business Transformation Readiness Assessment, a separate TOGAF technique used to gauge an organization’s readiness to execute change. It is not what TOGAF defines as a Business Scenario.

D. A technique to identify differences between a baseline and a target architecture. That is Gap Analysis, another distinct ADM technique used to determine what needs to change to move from the current state to the desired future state.

References (official TOGAF materials; no links):

The Open Group, TOGAF® Standard, Version 9.2, Part III: ADM Guidelines & Techniques — Business Scenarios; also Requirements Management, and Phase A: Architecture Vision (Part II) for where Business Scenarios are applied.

The Open Group, TOGAF® Series Guide: Business Scenarios — definition, structure, and usage of Business Scenarios across the ADM.

The Open Group, TOGAF® 9 Foundation Study Guide (latest edition) — coverage of Business Scenarios as an ADM technique and their relationship to use-cases.

The Open Group, TOGAF® 9 Certified Study Guide (latest edition) — contrasts with related techniques (Gap Analysis; Business Transformation Readiness Assessment) and explains use within Phase A and Requirements Management. ===========

Gap Analysis is a technique that compares the Baseline Architecture and the Target Architecture to identify the differences and gaps between them. The purpose of this technique is to determine the changes and additions that are required to achieve the desired future state of the architecture. One of the main aspects of Gap Analysis is to identify the functions that are missing or overlapping in the current and future architectures, and to plan how to address them. This helps to ensure that the architecture is complete, consistent, and aligned with the business objectives and requirements3

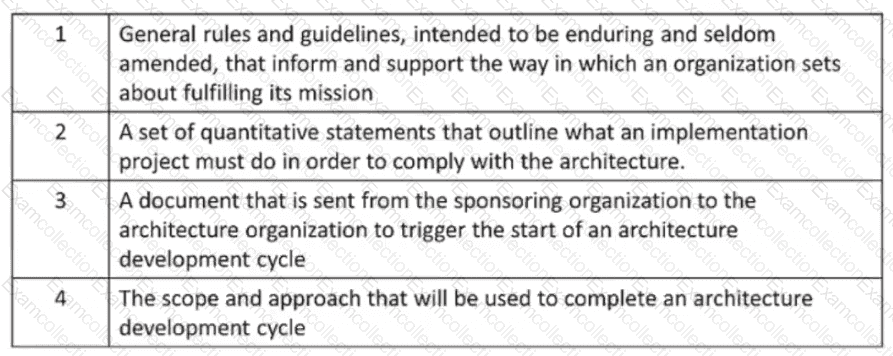

The Request for Architecture Work is a deliverable that is sent from the sponsor and triggers the start of an architecture development cycle. It defines the scope, budget, schedule, and deliverables for a specific architecture project. The Statement of Architecture Work is a deliverable that is produced by the architect and defines the approach and resources needed to complete an architecture project. It forms the basis of a contractual agreement between the sponsor and the architecture organization. The Architecture Principles are a deliverable that is produced by the architect and defines the general rules and guidelines for the architecture work. They reflect the business principles, business goals, and business drivers of the organization. The Architecture Requirements Specification is a deliverable that is produced by the architect and defines the requirements that govern the architecture work. It covers both functional and non-functional requirements as well as constraints and assumptions.

Comprehensive and Detailed Explanation

When defining the scope of an architecture, TOGAF identifies four dimensions that need to be considered:

Breadth – This dimension addresses the extent of the enterprise that will be impacted by the architecture. It answers the question: How much of the enterprise is covered? For example, does the scope include the entire enterprise, a business unit, a division, or just a single organizational function?

Depth – This refers to the level of detail to be covered. For instance, will the architecture describe high-level capabilities, or will it go into detailed system design?

Time Period – This defines the planning horizon of the architecture. It could be short-term (tactical), medium-term, or long-term (strategic).

Architecture Domains – This refers to which domains are covered: Business, Data, Application, and Technology. The scope may include all or just a subset of these domains.

Project Scope (sometimes discussed separately) – Focuses on which specific programs, portfolios, or projects will be impacted.

Among these, the dimension that specifically relates to the extent of the enterprise is Breadth.

Why the other options are incorrect

A. Architecture Domains: Refers to the domains covered (Business, Data, Application, Technology), not the extent of the enterprise.

B. Depth: Refers to the level of detail, not the enterprise extent.

C. Project: Refers to the program or initiative focus, not enterprise coverage.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — Preliminary Phase (scope considerations).

The Open Group, TOGAF® 9 Certified Study Guide — discussion of the dimensions of architecture scope (Breadth, Depth, Time Period, Architecture Domains).

This statement about Requirements Management is most correct because it reflects the central role of Requirements Management and stakeholder engagement in the ADM cycle. Requirements Management is not a step of all ADM Phases, but rather an ongoing process that ensures that all relevant requirements are elicited, analyzed, prioritized, and addressed throughout the architecture development and transition. Stakeholder engagement is also a continuous activity that involves identifying, communicating, and managing stakeholder expectations and concerns. Reference: The TOGAF® Standard | The Open Group Website, Section 3.1 Introduction to the ADM.

The Architecture Requirements Repository stores all the requirements that are output of the architecture development cycle, as well as the requirements that are input to the architecture development cycle1. The Architecture Requirements Repository includes the following types of requirements1:

•Stakeholder Requirements: These are the high-level requirements and expectations of the stakeholders, derived from the business drivers, goals, and objectives. They are captured and refined in the Architecture Vision phase and the Requirements Management phase.

•Architecture Requirements: These are the detailed requirements that specify what the architecture must do or deliver to meet the stakeholder requirements. They are derived and refined in the Business, Information Systems, and Technology Architecture phases.

•Implementation and Migration Requirements: These are the detailed requirements that specify what the implementation and migration projects must do or deliver to realize the architecture. They are derived and refined in the Opportunities and Solutions and Migration Planning phases.

The Architecture Requirements Repository is used to manage the architecture requirements throughout the architecture lifecycle, ensuring their traceability, consistency, and compliance1. The Architecture Board is the authority that reviews and approves the architecture requirements, as well as the architecture deliverables and artifacts, as part of the architecture governance process2.

The four dimensions used to scope an architecture are Breadth, Depth, Time Period, and Architecture Domains1, p. 8.

Breadth refers to the extent of the enterprise covered by the architecture, which can range from a specific business unit to the entire organization1, p. 8.

Depth refers to the level of detail and completeness of the architecture, which can vary depending on the purpose, scope, and stakeholders of the architecture1, p. 8.

Time Period refers to the temporal aspects of the architecture, such as the current state, the target state, and the transition plan1, p. 8.

Architecture Domains refers to the classification of the architecture into four domains: Business, Data, Application, and Technology1, p. 8.

These four dimensions help define the scope and boundaries of the architecture and ensure that it meets the needs and expectations of the stakeholders.

1: The Open Group (2018). The TOGAF® Standard, Version 9.2. 1
