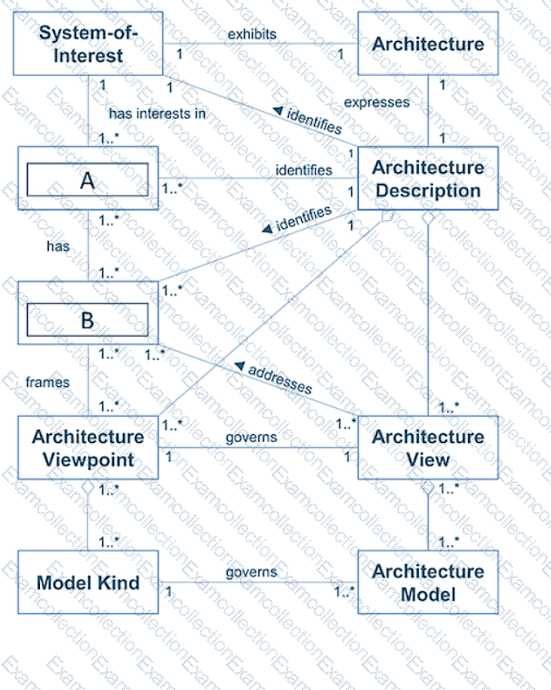

The image shows a diagram that illustrates the basic concepts of architecture description as defined by the ISO/IEC/IEEE 42010:2011 standard1, which is also adopted by the TOGAF standard2.

According to the ISO/IEC/IEEE 42010:2011 standard, an architecture description is a work product used to express an architecture, and it consists of one or more architecture views1.

An architecture view is a representation of a system from the perspective of a related set of concerns, and it conforms to an architecture viewpoint1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1.

Therefore, the correct answer is option A, which identifies the items labeled as “A” and “B” in the image as an architecture viewpoint and an architecture view, respectively. References:

1: ISO/IEC/IEEE 42010:2011 - Systems and software engineering — Architecture description1

2: TOGAF Standard, Version 9.2 - Part IV: Architecture Content Framework - 31. Architectural Artifacts2

Comprehensive and Detailed In-Depth Explanation from Expert in Enterprise Architecture, guiding in TOGAF and ArchiMate:

TOGAF adopts a formal risk management perspective aligned with widely accepted enterprise risk management practices. Within the ADM, risks are identified, analyzed, treated, and monitored throughout all phases, particularly during Architecture Governance and Implementation Governance.

TOGAF explicitly distinguishes between:

Initial Risk:The level of risk identified before any mitigation actions are applied. This represents the inherent exposure associated with an architecture decision, solution, or implementation approach.

Residual Risk:The level of risk that remains after mitigation measures have been applied. This residual risk must be explicitly accepted, monitored, or further treated by governance bodies.

Why Option D is correct:

TOGAF requires both Initial and Residual risks to be documented and monitored to ensure informed decision-making and effective governance throughout the ADM lifecycle.

Why the other options are incorrect:

A. Technical and Financial level: These are categories of risk, not the two monitoring levels defined by TOGAF.

B. Mitigated and Revised level: These terms are not used as formal risk levels in TOGAF.

C. Operational and Strategic level: These describe business risk domains, not TOGAF-defined monitoring levels.

Authoritative TOGAF References:

TOGAF Risk Management

TOGAF Architecture Governance

TOGAF ADM Guidelines and Techniques – Risk Management

============

According to the TOGAF Standard, 10th Edition, architecture governance is “the practice by which enterprise architectures and other architectures are managed and controlled at an enterprise-wide level” 1. Architecture governance ensures that the architecture development and implementation are aligned with the strategic objectives, principles, standards, and requirements of the enterprise, and that they deliver the expected value and outcomes. Architecture governance also involves establishing and maintaining the architecture framework, repository, board, contracts, and compliance reviews 1. The other options are not correct, as they are not the term used by the TOGAF Standard to describe the practice by which the enterprise architecture is managed and controlled at an enterprise-wide level. Corporate governance is “the system by which an organization is directed and controlled” 2, and it covers aspects such as leadership, strategy, performance, accountability, and ethics. IT governance is “the system by which the current and future use of IT is directed and controlled” 2, and it covers aspects such as IT strategy, policies, standards, and services. Technology governance is “the system by which the technology decisions and investments are directed and controlled” 3, and it covers aspects such as technology selection, acquisition, deployment, and maintenance. References: 1: TOGAF Standard, 10th Edition, Part VI: Architecture Governance, Chapter 44: Introduction. 2: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions. 3: TOGAF Series Guide: Using the TOGAF Framework to Define and Govern Service-Oriented Architectures, Part II: Using the TOGAF Framework to Define and Govern Service-Oriented Architectures, Chapter 5: Technology Governance.

Phase G: Implementation Governance provides architectural oversight of the implementation. It ensures that the implementation conforms to the Target Architecture using Architecture Contracts and governance frameworks.

Phase H: Architecture Change Management is about maintaining the architecture lifecycle and handling new requirements, not direct implementation oversight.

Preliminary Phase is about setting up the architecture capability.

Phase A is about developing the Architecture Vision.

When scoping an architecture in TOGAF, three key axes (dimensions) are used to frame the extent of the architecture work. The first is time period (how far into the future or over what timeframe to plan). The second is depth—how detailed or granular the architecture models will be (e.g., high level, mid level, very detailed). The third is breadth, which refers to which parts (domains, business units, functions) of the enterprise will be included, and which architecture domains (business, data, application, technology) will be in scope. This triple‐dimension model helps architects, stakeholders, and governance bodies understand how wide, deep, and forwardlooking the architecture effort will be. Thus “breadth, architecture domains” is the correct third dimension.

According to the TOGAF Standard, Version 9.2, an architecture view is a representation of a system from the perspective of a related set of concerns1. It consists of one or more architecture models that demonstrate how the system addresses the stakeholder concerns1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1. It defines the perspective, scope, notation, and techniques for creating an architecture view of a system1.

Architects can present architecture views and viewpoints to stakeholders to extract hidden agendas, principles, and requirements that could impact the final Target Architecture, because23:

Architecture views and viewpoints help to communicate and visualize the architecture in a way that is meaningful and relevant to different stakeholders, addressing their specific interests and needs.

Architecture views and viewpoints help to elicit and validate the stakeholder concerns and requirements, ensuring that they are aligned with the business goals and objectives, and that they are consistent and feasible within the architecture context.

Architecture views and viewpoints help to identify and resolve any conflicts, gaps, or trade-offs among the stakeholder concerns and requirements, ensuring that they are balanced and prioritized in the architecture design and decision-making.

Architecture views and viewpoints help to demonstrate and verify the value and benefits of the architecture to the stakeholders, ensuring that they are satisfied and committed to the architecture outcome and governance.

1: The TOGAF Standard, Version 9.2, Chapter 22: Architecture Views, Viewpoints, and Stakeholders

2: The TOGAF Standard, Version 9.2, Chapter 4: Introduction to Part II, Section 4.2: What is an Architecture Framework?

3: The TOGAF Standard, Version 9.2, Chapter 31: Architectural Artifacts, Section 31.1: Basic Concepts

Based on the illustration, the phase of the ADM labeled as item 2 is the Implementation Governance phase. This phase provides architectural oversight for the implementation. It ensures that the implementation project conforms to the architecture. It also provides a framework for monitoring and managing the implementation.

The Implementation Governance phase involves the following activities:

Finalizing the Architecture Roadmap and the supporting Implementation and Migration Plan

Assigning an Architecture Board to oversee the implementation

Establishing Architecture Contracts with the implementation partners

Reviewing and approving the implementation project plans and deliverables

Performing Architecture Compliance reviews to ensure alignment with the architecture

Performing Architecture Audit reviews to ensure quality and performance of the architecture

Resolving any architecture issues or change requests that arise during the implementation

Maintaining the architecture lifecycle and ensuring its continuity

The Implementation Governance phase is essential for ensuring that the architecture is realized as intended and that it delivers the expected business value and outcomes.

Implementation Governance

•Phase A: Architecture Vision

oDevelop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture

oDefine the scope and boundaries of the architecture engagement

oIdentify the key stakeholders and their concerns and expectations

oDefine the Architecture Vision statement and the Architecture Definition Document

oObtain approval and commitment from the sponsors and stakeholders

•Phase B: Business Architecture

oDevelop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals

oDefine the Baseline Business Architecture, if not available

oPerform a gap analysis between the Baseline and Target Business Architectures

oDefine candidate roadmap components for the Business Architecture

oResolve impacts across the Architecture Landscape

•Phase C: Information Systems Architecture

oDevelop the Target Data Architecture that enables the Business Architecture and the Architecture Vision

oDevelop the Target Application Architecture that supports the Business Architecture and the Architecture Vision

oDefine the Baseline Data and Application Architectures, if not available

oPerform a gap analysis between the Baseline and Target Data and Application Architectures

oDefine candidate roadmap components for the Information Systems Architecture

oResolve impacts across the Architecture Landscape

•Phase D: Technology Architecture

oDevelop the Target Technology Architecture that enables the Information Systems Architecture and the Architecture Vision

oDefine the Baseline Technology Architecture, if not available

oPerform a gap analysis between the Baseline and Target Technology Architectures

oIdentify candidate Architecture Roadmap components based upon gaps between the Baseline and Target Technology Architectures

oResolve impacts across the Architecture Landscape

Therefore, the correct matching of the objectives and the phases is:

•1C: Develop the Target Data Architecture that enables the Business Architecture and the Architecture Vision

•2B: Develop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals

•3A: Develop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture

•4D: Identify candidate Architecture Roadmap components based upon gaps between the Baseline and Target Technology Architectures
