Abstractions in a model are helpful because they can express or suppress detail as needed. This capability is essential in managing complexity in a model by focusing on the high-level, essential aspects of the system while omitting or simplifying the less critical details. This selective detail management aids in understanding and analyzing the system’s core functionality without getting overwhelmed by its intricacies. Abstractions facilitate clearer communication, more focused analysis, and more efficient system design by highlighting the most relevant aspects of the system in various contexts.

A key characteristic that should apply to any useful model, including those created with UML, is that it abstracts away irrelevant details. This abstraction is crucial for managing complexity by focusing on the essential aspects of the system that are relevant to the current perspective or analysis task. By removing unnecessary information, the model remains understandable and manageable, even as the underlying system grows in complexity. This principle helps maintain a clear and concise representation of the system, enabling stakeholders to focus on strategic decisions without being overwhelmed by details.

In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types. Option C shows a class with attributes of different types, but it does not define these types as basic types. Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML.

According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

In UML Use Case diagrams, there are specific relationships that are valid between actors and use cases, as well as between the use cases themselves:

Associationsbetween actors and use cases indicate that an actor participates in the use case. It is depicted as a solid line.

Includesare dependencies that specify that one use case (the base) includes the behavior of another use case (the included). It is depicted with a dashed arrow with the stereotype «include».

Extendsare dependencies where one use case (the extension) conditionally adds to the behavior of another use case (the base). It is depicted with a dashed arrow with the stereotype «extend».

Let's analyze the provided options:

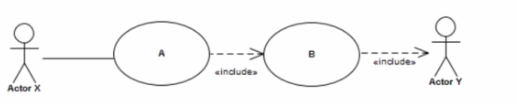

A) This diagram shows simple associations between actors and use cases, which is a valid relationship in UML use case diagrams.

B) This diagram attempts to use include relationships directly between actors and use cases, which is not correct. The «include» relationship is used between use cases, not between an actor and a use case.

C) This diagram shows a solid line arrow from one use case to another, which is not a recognized relationship in UML use case diagrams.

D) This diagram attempts to use extend relationships directly between actors and use cases, which is not correct. The «extend» relationship is used between use cases, not between an actor and a use case.

Therefore, the only diagram that contains only valid relationships according to UML standards is Option A.

In the context of the given scenario, the Use Case "Manage customer information" appears to be a general use case that encompasses the functionalities of adding, deleting, and updating customer information. The specific functionalities are represented by separate use cases, namely "Add new customer", "Delete customer", and "Update customer information".

In UML Use Case diagrams, the «include» relationship should be used when a use case implicitly requires the capabilities of another. However, when the use case is a higher-level description that can be further elaborated into more specific use cases, the «extend» relationship is more appropriate, but in the reverse direction as shown in Option B.

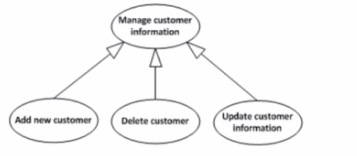

Option B correctly uses the generalization relationship which is not depicted by any arrows or lines but by a whole-part structure, indicating that the specific use cases are a part of the general "Manage customer information" use case.

Option A shows the "Manage customer information" use case extending the specific use cases, which is not correct given the context.

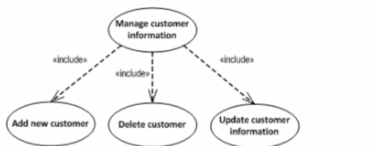

Option C incorrectly uses «include» relationships, implying that the "Manage customer information" use case always requires the included use cases.

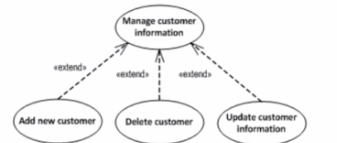

Option D has the «extend» relationships backward, which is not aligned with the scenario described.

Therefore, the correct answer is:

B. Option B

UML 2 Foundation concepts for activity diagrams, there are three valid action notations shown. Here's a breakdown of the elements and why answer D is the most accurate:

The diagram displays an activity diagram with a main flow and a fork followed by a join.

Main Flow: This starts with an action labeled "Fill Order".

Fork: The path splits into two branches after "Fill Order".

Branch 1: This branch leads to an action labeled "Print Paycheck".

Branch 2: This branch leads to an action labeled "Send Invoice".

Join: The two branches converge into a join element.

Following the Join: An action labeled "End" is present after the join.

Explanation for Valid Actions:

Fill Order: This clearly represents an action within the activity diagram.

Print Paycheck: This is another valid action on a separate branch.

Send Invoice: Similarly, this is an action on the other branch.

Explanation for Why Other Options are Incorrect:

A. 0: There are clearly multiple actions depicted in the diagram.

B. 1: There are more than one valid action shown.

C. 2: While there are actions before the fork, there's also a valid action ("End") after the join.

E. 4: Counting the join element as an action results in an overcount. Joins represent control flow elements to synchronize multiple paths, not actions themselves.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Actions https://www.omg.org/spec/UML/2.5.1/

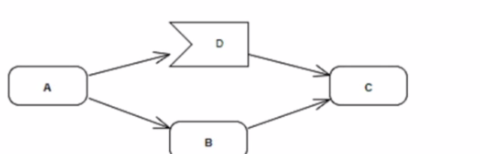

The diagram likely represents a UML activity diagram, which is used to model the workflow of a system. The correct answer is D because it reflects the behavior of decision nodes and concurrent flows in UML activity diagrams.

In UML, when an activity reaches a decision node (depicted as a diamond), it chooses one among several alternative flows. In this case, after the completion of action A, the flow must decide between B or D, but not both, which is a fundamental aspect of decision nodes in UML. This is supported by the UML 2.5 specification, which states that a decision node routes tokens to one of the available outgoing edges based on the conditions evaluated at runtime, ensuring that only one path is taken.

Furthermore, the UML specification explains that the notation for decision nodes and the semantics of token flows are such that they support the modeling of conditional and concurrent behaviors within an activity. This is essential for accurately capturing the logic of complex systems and their operations.

For a more in-depth understanding, you can refer to the UML 2.5.1 specification provided by the Object Management Group (OMG), which details the notation and semantics of activity diagrams, including decision nodes and flows. Additionally, studying the official OMG UML 2 Certification Guide can provide further clarification on these concepts.

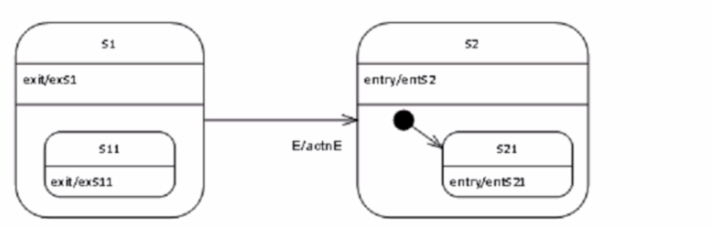

The image depicts a state machine with the following states:

S1

S11

S2

S21

The state machine transitions are labeled as follows:

gxSH - This triggers the transition from the initial state to S1.

E - This event triggers the transition from S11 to S21.

exS1 - This signifies exiting state S1.

exS11 - This signifies exiting state S11.

entS2 - This signifies entering state S2.

entS21 - This signifies entering state S21.

actnE - This indicates an action associated with the E event.

Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

actnE: The action associated with event E is executed.

exS11: The state machine exits state S11.

exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.

entS2: The state machine enters state S2.

entS21: The state machine enters the nested state S21.

Justification for excluding other options:

Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.

Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.

Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).

Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

In the given UML package diagram fragment, various elements are listed with stereotypes indicating their nature («class», «interface»). Stereotypes are used in UML to extend the vocabulary of UML in order to create new kinds of building blocks. They are typically enclosed in guillemets (« »).

The last element, 'six', does not have a stereotype indicating whether it's a class, interface, or some other kind of element. This lack of a stereotype leads to ambiguity about the nature of 'six'. Therefore, the fragment is considered invalid due to this omission.

All the other options do not constitute an error in the UML fragment: A) A list of elements is allowed in a package body. B) Visibility is not required for every element, especially within package diagrams. C) Interfaces are allowed in packages. D) Private elements are allowed in a package. E) Protected elements are also allowed in a package.

Therefore, the correct answer is:

F. Element six is missing its stereotype.

In UML 2, a structured class can have internal parts, which are depicted using 'parts' or 'roles' within the class diagram. These internal parts are used to show the composition of the class in terms of contained classes or components. In the context of the question, the structured class named 'System' contains two parts named 'Subsystem1' and 'Subsystem2'.

Option C is the equivalent definition of 'System' in terms of UML 2 notation for several reasons:

It represents the structured class 'System' with internal parts correctly labeled as 's1:Subsystem1' and 's2:Subsystem2-[ ]', which indicates the role names 's1' and 's2' followed by the class type 'Subsystem1' and 'Subsystem2' respectively. The notation '1..*' after 's2:Subsystem2-[ ]' suggests a multiplicity, meaning that there can be one or many instances of 'Subsystem2' associated with 'System'.

The compartmentalization within the structured class is indicative of the composition of the 'System', showing that 'Subsystem1' and 'Subsystem2' are integral parts of the 'System'.

The notation conforms to the standard UML 2 representation for composite structures, as described in the UML 2 Superstructure Specification, where a class can be broken down into its constituent parts within the class rectangle.

This information is verified against the UML 2 Superstructure Specification, which is the authoritative source for UML notation and semantics. Particularly, this aligns with section 9.3.5 on Composite Structures Diagrams, which details the graphical notation for parts and roles within a structured class.
