A valuable model in UML and systems design is characterized by its usefulness rather than its complexity or how "correct" it is in an engineering sense. A model's primary objective is to effectively communicate the key aspects of a system or process, and simplicity often enhances this communication by making the model easier to understand and use. The value of a model thus comes from its ability to facilitate decision-making, problem-solving, and understanding among stakeholders. This perspective aligns with the principle of Occam's Razor in modeling, which suggests that simpler solutions are preferable when all other factors are equal. In UML, a model that provides clear insights with minimal complexity is considered more valuable because it is accessible to a wider audience and can be more readily applied to solve real-world problems.

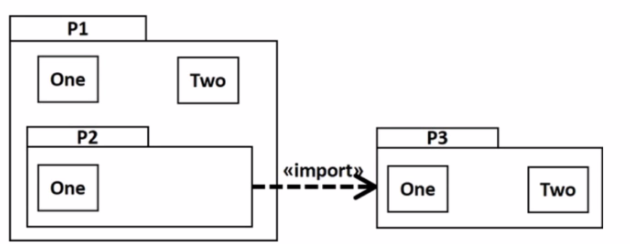

In UML, the<<import>>relationship indicates that the namespace of the target element (in this case,P3) is added to the namespace of the source (in this case,P2). However, it's important to distinguish between different types of imports. There are two types of import relationships:

Public Import: IfP2were to importP3publicly (using<<import>>), then all public members ofP3would become accessible toP2as if they were part ofP2.

Private Import: IfP2were to importP3privately (using<<access>>), then the public members ofP3are only accessible withinP2and not to elements that useP2.

Given the diagram, it seems thatP2is importingP3(the nature of the import, public or private, is not explicitly mentioned). Assuming it is a public import and considering thatP2itself is withinP1, which is the higher-level package, thenP1has visibility over its own contents as well as any elements imported intoP2.

ElementOneinP3has the same name asOneinP1, and typically in UML, when an element is imported into a namespace where an element with the same name exists, the imported element is not accessible without a qualified name to avoid ambiguity. However, sinceP2is withinP1, it could be argued thatOneinP3, when imported, would effectively "merge" withOneinP1, thereby makingOnevisible insideP2without a qualified name due to its presence in the higher-level packageP1.

Therefore, the correct answer is:

B. One

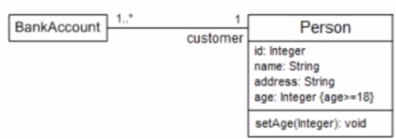

In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint{age >= 18}in thePersonclass diagram indicates a condition that must hold true for the instances of thePersonclass whenever they are used in the context of aBankAccount. This constraint is an invariant of thePersonclass that specifies the rule for the attributeage.

Now, let's consider the provided options and explain why option B is correct:

A. The preferred age to open a bank account is 18 years old or older – This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

B. Only customers who are 18 years old or older can open a bank account – This is the correct statement. The{age >= 18}constraint next to theageattribute of thePersonclass signifies that any instance ofPersonassociated with aBankAccountmust be at least 18 years old. SincePersonis connected toBankAccountwith the role namecustomer, this implies that only persons who are at least 18 can be customers of a bank account.

C. The age condition should only hold when the setAge(Integer) function is called – This statement is incorrect because the constraint{age >= 18}is not a condition that applies only when thesetAgeoperation is invoked. Instead, it is a class invariant that must always hold true for any instance ofPerson.

D. An object of Customer with age set to 18 or greater will raise an exception – This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception.

The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

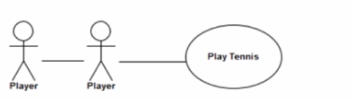

In UML use case diagrams, when specifying the number of actors involved in a use case, a multiplicity marker can be used. The multiplicity marker is a number placed near the actor symbol that denotes how many instances of the actor are involved in the use case.

Option C correctly uses a multiplicity marker of '2' next to the actor 'Player', which indicates that exactly two instances of 'Player' are involved in the "Play Tennis" use case.

Here is a brief explanation of why the other options are incorrect:

A) Option A shows two separate 'Player' actors involved in "Play Tennis" without a multiplicity marker, implying possibly different kinds of players, but does not specify that exactly two instances are required. B) Option B shows two 'Player' actors involved in "Play Tennis" without a multiplicity marker, also not specifying the exact number of instances required. D) Option D uses a multiplicity marker, but it is incorrectly placed near the 'Play Tennis' use case instead of the 'Player' actor, which does not follow UML notation for indicating actor multiplicity.

Therefore, the correct answer is:

C. Option C

The sequence diagram provided shows two messages being sent:m2()andm1(). The vertical placement of messages on a sequence diagram typically indicates the order of message passing; however, if there is no horizontal line connecting the lifelines or an explicit ordering constraint provided, it suggests that the messages are asynchronous and there is no specified order between them.

In this diagram, there is no horizontal line connecting the lifelines foro2ando3, nor is there any other notation that would imply a strict ordering. This means that the messagesm2()andm1()can occur in any order, and the interaction is still considered valid.

Therefore, the correct answer is:

C. An execution of InteractionF can be valid no matter the order in which o2 and o3 receive their respective messages.

The dashed arrow with an open arrowhead in the UML diagram represents a dependency relationship. In UML, a dependency is a relationship that signifies that one element, or set of elements, requires another element (or set of elements) for its specification or implementation. This means that changes to the target element(s) (the element(s) that the arrow points to) may cause changes to the source element(s).

The statement "One or more of the elements in Package G depends on one or more of the elements in Package F" correctly describes the nature of a dependency relationship in UML. It indicates that there is at least one element in Package G that requires some element(s) from Package F. This does not necessarily imply that all elements from Package G depend on all elements from Package F.

Therefore, the correct answer is:

C. One or more of the elements in Package G depends on one or more of the elements in Package F.

In the context of a UML (Unified Modeling Language) model, the class named 'Employee' represents a template for all entities that are classified as employees within the business enterprise model. Therefore, the correct answer is:

B. The set of all employees of the company

The term 'Employee' in the class diagram is a UML Class, which is defined as a description of a set of objects that share the same attributes, operations, relationships, and semantics (UML 2.5 specification, section 9.2). A class in UML is a blueprint from which individual objects (instances of the class) are created. It is not a representation of any single employee, an anonymous employee, or a diagram of an employee, but rather the conceptual model that defines the properties and behaviors of all employee instances in the domain being modeled.

In UML, the aggregation kind 'composite' is one of the two types of aggregation, shared and composite. Composite aggregation, also known as composition, implies that the composed objects do not have a separate lifecycle from the owner object and are parts of the whole. This is in contrast to shared aggregation (aggregation), where the parts can be shared with different owners and have their own lifecycle.

Let's look at the options:

A. Composite aggregation implies ownership and is related to, but not equivalent to namespace containment. Namespace containment is more about the scope for named elements rather than lifecycle management.

B. While it's true that instances of the composed object's type are often associated only with the composite object, the key aspect of composite aggregation is not just the exclusive context but the lifecycle dependency, which is not captured in this option.

C. This option is correct because, in UML, composite aggregation (composition) implies that the parts are existentially dependent on the whole. When the composite (whole) object is destroyed, so are all of its parts, indicating a strong lifecycle dependency between the composite object and its composed parts.

D. This option describes a relationship more akin to set theory than UML composition. In UML, composite aggregation doesn't deal with subsets and unions in the context of set theory.

Thus, the most accurate answer, according to the UML specification regarding composite aggregation, isC: When the Property's composite object ceases to exist, all of its composed objects also cease to exist.

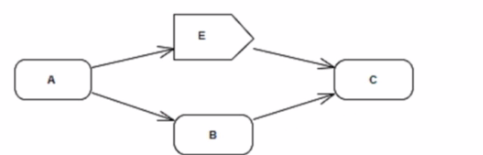

The execution starts from activity A (as there's no incoming transition).

From A, there's only one outgoing transition leading to activity E.

Following the transition from E, the flow reaches activity C.

There are no further outgoing transitions from C, signifying the end of the valid trace.

Explanation of Why Other Options are Incorrect:

A. E waits for an Event: The diagram doesn't show an explicit wait event associated with activity E. While an event might trigger the initial start of the activity A, the provided trace (A, E, C) focuses on the control flow between the activities themselves.

B. E is always executed faster than B: There's no basis to establish a timing relationship between E and B based solely on the structure of the diagram. The order of execution is A, E, C, but their relative speeds cannot be determined from this information.

D. C waits for tokens on both incoming edges: Activity C has two incoming transitions, but the concept of waiting for tokens on both edges simultaneously doesn't apply here. Since the flow reaches C from activity E, only the transition from E provides the token needed to enable C's execution.

Trace vs. Path

It's important to distinguish between trace and path in an activity diagram:

Trace: A specific sequence of activity executions along a feasible path.

Path: A possible route through the activity diagram, which may or may not be a valid trace depending on the presence of decisions or loops.

In this case, the answer focuses on the valid trace A, E, C, which represents a confirmed sequence of activity executions based on the transitions in the diagram.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF
