The Address Resolution Protocol (ARP) is a fundamental protocol used in IP networking to map a device's IP address to its corresponding Media Access Control (MAC) address. This mapping is essential for enabling communication within a local network segment.

How ARP Works:

ARP Request:

When a device (Host A) needs to communicate with another device (Host B) on the same local network, it checks its ARP cache to see if it already has Host B's MAC address corresponding to its IP address.

If the MAC address is not in the cache, Host A broadcasts an ARP request packet to all devices on the local network. This packet includes Host B's IP address and requests the MAC address associated with that IP.

ARP Reply:

Upon receiving the ARP request, the device with the matching IP address (Host B) responds with an ARP reply. This reply is sent directly to Host A and contains Host B's MAC address.

Updating ARP Cache:

Host A receives the ARP reply and updates its ARP cache with the new IP-to-MAC address mapping. This cached information allows for efficient communication without the need for repeated ARP requests.

Key Functions of ARP:

IP to MAC Address Resolution:

ARP's primary function is to resolve IP addresses to MAC addresses, enabling devices to locate each other on the same local network segment.

Facilitating Data Link Layer Communication:

By providing the necessary MAC address, ARP allows data packets to be correctly addressed and transmitted over the network's data link layer.

Clarifications on Other Options:

Option B: Discover directly connected neighbors

This function is typically performed by protocols like the Neighbor Discovery Protocol (NDP) in IPv6 or by network discovery tools, not by ARP.

Option C: Build and maintain switch MAC tables

Switches build and maintain MAC address tables by observing the source MAC addresses of incoming frames, a process independent of ARP.

Option D: Resolve host name

Resolving hostnames to IP addresses is the function of the Domain Name System (DNS), not ARP.

References:

Understanding ARP (Address Resolution Protocol)

How ARP Works

In the Spanning Tree Protocol (STP), the root bridge is the central reference point for all spanning tree calculations. The election of the root bridge is determined by the bridge ID (BID), which comprises two components:

Bridge Priority:

A configurable value ranging from 0 to 65,535, in increments of 4,096. The default priority is typically 32,768.

MAC Address:

The unique hardware address of the switch.

Root Bridge Election Process:

Lowest Bridge ID Selection:

STP elects the switch with the lowest bridge ID as the root bridge. The bridge ID is determined by combining the bridge priority and the MAC address.

Priority Comparison:

Switches first compare the bridge priority values. The switch with the lowest priority value is favored.

MAC Address Comparison:

If multiple switches share the same priority value, the switch with the lowest MAC address becomes the root bridge.

Example:

Switch A:

Priority: 32,768

MAC Address: 00:1A:2B:3C:4D:5E

Switch B:

Priority: 32,768

MAC Address: 00:1A:2B:3C:4D:5F

In this scenario, both switches have the same priority. Therefore, STP compares the MAC addresses, and Switch A, with the lower MAC address, is elected as the root bridge.

Key Points:

Enabling root guard on a device does not influence its election as the root bridge; instead, it prevents designated ports from becoming root ports.

The device with the lowest bridge ID (combination of priority and MAC address) is elected as the root bridge.

A lower bridge priority value increases the likelihood of a switch becoming the root bridge.

References:

Root Bridge Election in Spanning Tree Protocol

Spanning Tree Protocol – Part 3: Bridge ID, Priority, System ID

Sources

In RUCKUS ICX switches, assigning an interface to an OSPF (Open Shortest Path First) area involves configuring the interface with the appropriate OSPF area command. The correct command to assign an interface to a specific OSPF area is:

ip ospf area

For example, to assign an interface to area 0, you would enter interface configuration mode for the desired interface and execute:

ip ospf area 0

This command associates the interface with OSPF area 0, enabling OSPF routing on that interface within the specified area.

It's important to note that OSPF areas are logical groupings of networks and routers within an OSPF domain. Assigning interfaces to the correct OSPF areas is essential for efficient routing and network segmentation.

For comprehensive guidance on OSPF configuration, including assigning interfaces to areas, refer to the RUCKUS FastIron Configuration Guide.

The Internet Group Management Protocol (IGMP) is used by IPv4 hosts and adjacent routers to establish multicast group memberships. Different versions of IGMP provide varying capabilities for managing these memberships.

IGMPv2 introduced the ability for hosts to send "leave group" messages when they wish to unsubscribe from a multicast group. This feature allows for more efficient management of multicast group memberships by enabling routers to promptly stop forwarding multicast traffic to subnets where there are no interested receivers.

When a host leaves a multicast group in an IGMPv2-enabled network, the following process occurs:

Leave Message Sent: The host sends an IGMP leave message to the all-routers multicast address (224.0.0.2).

Query by Router: Upon receiving the leave message, the router sends a group-specific query to determine if there are any remaining members of the multicast group on the local subnet.

Group Membership Determination: If no hosts respond to the query within a specified time, the router concludes that there are no remaining members and ceases forwarding multicast traffic for that group to the subnet.

This mechanism reduces unnecessary multicast traffic and optimizes network performance.

In contrast, IGMPv1 does not have a leave group message; routers must rely on a timeout period to determine the absence of group members, leading to increased leave latency.

For more detailed information on IGMPv2 and its leave group mechanism, refer to the Cisco documentation on IGMP.

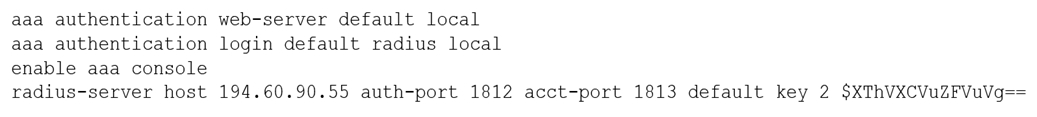

Understanding the Configuration:

The command aaa authentication login default radius local specifies that the switch will attempt RADIUS authentication first. If the RADIUS server is unavailable, it will fallback to the local username/password.

If the RADIUS server is operational, the local credentials will not be accepted, even over the console port.

Why Can't the Technician Log In?

The local username/password will only work if the RADIUS server is unreachable. In this scenario, the RADIUS server is functional, so the switch continues to authenticate through it and does not fall back to the local credentials.

This behavior is by design, as dictated by the configuration.

Solution:

If access to the console port using local credentials is a critical requirement, consider adjusting the configuration to prioritize local credentials. For example, use:

aaa authentication login default local radius

This configuration ensures that local credentials are tried first, with RADIUS as a secondary option.

References:

ICX Switch Command Reference Guide (AAA Configuration Section): RUCKUS Support

RUCKUS ICX switches are designed to store multiple software images simultaneously, allowing network administrators to manage firmware versions effectively. The maximum number of software images that can be stored on an ICX switch is three.

Image Storage Structure:

Primary Image:

The main firmware image that the switch loads during the boot process.

Secondary Image:

An alternative firmware image that can be used for redundancy or testing purposes.

Tertiary (or Additional) Image:

A third firmware image slot available for further flexibility in image management.

Managing Software Images:

Viewing Stored Images:

To display the software images stored on the switch, use the following command:

sql

Copy code

show flash

This command lists all firmware images present in the switch's flash memory.

Setting Boot Preferences:

To specify which image the switch should load on the next reboot, use:

sql

Copy code

boot system flash primary

Replace primary with secondary or tertiary as needed.

Upgrading Firmware:

When upgrading the switch firmware, you can upload the new image to any of the available slots (primary, secondary, or tertiary) without overwriting existing images, providing a fallback option if needed.

Best Practices:

Maintain Multiple Images:

Keeping multiple firmware images allows for quick recovery in case of issues with the current running image.

Regular Updates:

Ensure that the stored images are up-to-date to maintain security and feature enhancements.

Consistent Configuration:

After uploading a new image, verify that the switch configuration is compatible with the firmware version to prevent potential issues.

References:
