Why Do Supermicro Systems Use Grooves for Alignment?

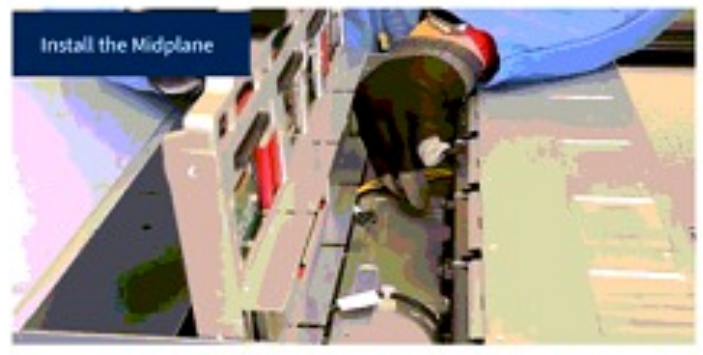

InSupermicro MI300X systems, themidplane bracket is aligned using built-in grooves in the chassis.

Ensures Perfect Alignment

The midplane mustline up perfectlywith power, PCIe, and data connections.

Grooves act as physical guides, ensuringprecise placementwithout guesswork.

Prevents Installation Errors

Without grooves, technicians mightinstall the midplane slightly misaligned, leading toconnection failures.

Ensures PCIe and MCIO lanes align correctly, preventing signal loss.

Supports a Tool-Free Installation

Grooves allowdrop-in installation, reducingmanual adjustments.

Minimizes risk of flexing or damaging the midplane PCB.

Why Other Options Are Incorrect?

A (Guide stickers in the chassis)→ Stickersmay be present for labeling but do not physically align the midplane.

C (Arrows in the chassis)→ Arrows arevisual indicators only, not physical alignment tools.

D (Velcro in the chassis)→ Velcro isnot used in midplane installation.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Hardware Guideexplicitly states thatgrooves in the chassis help with midplane bracket alignment.

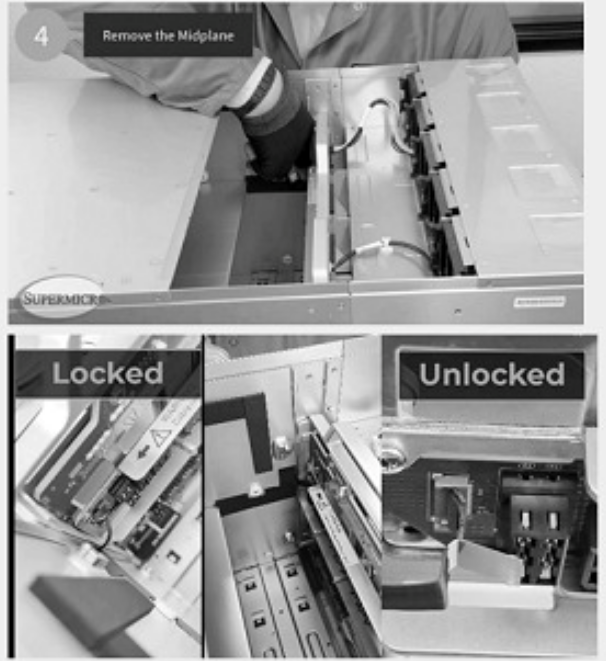

To remove themidplane bracketin theAS-8125GS-TNMR2 system, you must remove4 screws total(2 on each side of the chassis).

Why 4 screws?

The midplane bracket is secured by 2 screws per sideto maintain its structural integrity.

Loosening all 4 screws allows safe removal without excessive force.

Forcing the bracket without removing the screws risks damaging the mounting points.

Incorrect Answers Explained:

A (2 screws total)→ Not enough, as screws on both sides must be removed.

C (8 screws total)→ More than necessary;only 4 screws hold the midplane bracket.

D (6 screws total)→ Incorrect count;only 2 screws per side are required.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thattwo screws on each side (4 total) must be removed to release the midplane bracket.

Thepower cableis the only cable that isnot a data cablewhen connecting an AOM card to the motherboard.

Cable Functionality Breakdown:

A (Power Cable) → NOT a data cable

Supplies electrical powerto the AOM card.

Doesnot transmit databetween components.

B (MCIO Cables) → Data cables

These cablestransmit high-speed NVMe data.

C (JNCIS1) → Data cable

This interface is used formanagement and communication.

D (SAS Cable) → Data cable

Used fordata storage connections.

Official Documentation Reference:

Supermicro AOM Expansion Module Guidestates that thepower cable is the only non-data cablein AOM installations.

Why Must the Motherboard Tray Be Aligned With the Grooves?

TheSupermicro MI300X chassisis designed withbuilt-in alignment groovesthat helpprecisely position the motherboard tray.

If the tray is notaligned properly:

ThePCIe slots and mounting points will not line up correctly.

Thebackplane connections may be misaligned, leading to system boot errors.

Improper installation can block airflow, leading to potential overheating issues.

Step-by-Step Proper Reinstallation Process:

✅Step 1:Identify thealignment grooveson the chassis.✅Step 2:Slowly slide the motherboard tray into place, ensuring it follows the grooves.✅Step 3:Verify that the tray sitsflushwith the chassis.✅Step 4:Secure the tray with screws only after confirming proper alignment.

Why Other Options Are Incorrect?

B (Shake the tray to confirm fit)→ Shaking the traycan loosen connectors and potentially damage components.

C (Screw in randomly before aligning)→ If screws are installedbefore alignment, it can causeuneven seating and difficulty in securing other components.

D (Tilt the motherboard tray at an angle)→ The tray should be insertedstraight into the grooves, not at an angle.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Installation Guideconfirms thatthe motherboard tray must be aligned with the chassis grooves before securing it.

Theflap door mechanismis a protective feature inSupermicro MI300X systemsdesigned tosecure ribbon cable connections.

How to open it correctly?

Press down on the top of the flap door→ This disengages the locking mechanism.

The flap door will "pop open" safelywithout damaging the ribbon cable.

Forcing the flap without pressing down properly may break the connector.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Maintenance Manualprovidesspecific instructionsonpressing down the flap door before opening it.

Why Does the Support Bar Have 6 Screws?

Thesupport bar at the rear of the motherboard trayis designed to:

Provide additional structural stability

Prevent vibration-related failures

Ensure proper alignment of PCIe slots and backplane connectors

It is secured using6 screws, arranged as:

3 screws on the left side

3 screws on the right side

Correct Removal Procedure:

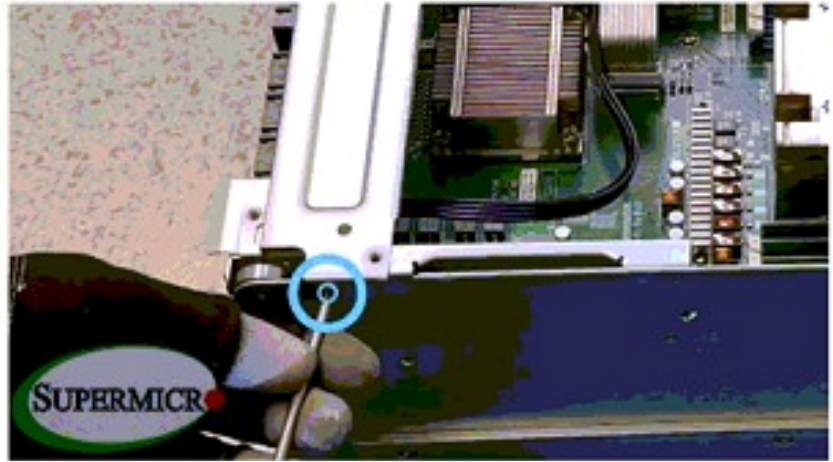

✅Step 1:Identify thesix screws securing the support bar.✅Step 2:Loosen themevenly from both sidesto prevent stress on the chassis.✅Step 3:Carefully remove the support bar without twisting it.

Why Other Options Are Incorrect?

B (24 screws)→ Excessively high number; no component in this section has 24 screws.

C (12 screws)→ Incorrect count; only6 screwsare present.

D (6 screws but uneven distribution)→ There are3 screws per side, not 1 on one side and 5 on the other.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Disassembly Guideconfirmsthe support bar is secured with 6 screws (3 on each side).

Components Located on Top of the Motherboard in Supermicro MI300X Systems

Fans and Fan Shrouds (Option A)

These are installedabove the motherboardtodirect airflow over the components.

Fan shrouds help focus airflow, ensuringefficient cooling of CPUs and GPUs.

Support Bar and AOM Brackets (Option B)

Thesupport bar reinforces the motherboard tray, preventing flexing.

AOM bracketshold optionalnetworking or RAID expansion modules.

Heatsinks and CPUs (Option C)

Large heatsinks are mounted on top of the CPUsto dissipate heat.

These ensureoptimal thermal managementof high-performanceAMD MI300X GPUs and processors.

Why Option D (DIMM Modules) is Incorrect?

❌DIMM modules (memory sticks) are installed in slots beside the CPU, but they arenot physically above the motherboardin a way that they could be considered a top-mounted component.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 System Overviewconfirms thatfans, heatsinks, AOM brackets, and support bars are mounted on top of the motherboard.

Why is the Purple 5V Power Connector Critical?

InSupermicro MI300X systems, thepurple 5V power connectorisresponsible for delivering stable low-voltage powerto specific components.

Consequences of Incorrect Power Connector Placement:

🚨1. System Failure or Non-Booting State

If the5V power connector is plugged into the wrong port, the systemmay not receive proper voltage, leading to failure.

âš¡2. Component Damage

Overvoltage or incorrect voltage levelsmayfry sensitive system components(e.g., NVMe controllers, PCIe devices).

🔥3. Risk of Short Circuit

Plugging the power cable into an incorrect portmay cause short circuits, leading topermanent hardware damage.

Proper Connection Steps:

✅Step 1:Identify thepurple 5V connectoron the PSU and NVMe backplane.✅Step 2:Match it with the correct5V porton the system board.✅Step 3:Ensure asecure and firm connectionbefore powering the system back on.

Why is False Incorrect?

IfFalse were correct, it would imply thatincorrectly plugging the power connector has no consequences, which iswrong.

Supermicroexplicitly warns against incorrect power connectionsdue topotential damage risks.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Electrical Guidestates thatincorrect power connections can lead to irreversible hardware failure.

Why Secure One End of the PCIe Tray First?

TheSupermicro MI300X chassis is designed for modular tray installation, meaningsecuring one end firstensures:

Proper alignment of PCIe slots and connectors

Stable mountingto prevent unwanted movement

Prevention of unnecessary strain on installed expansion cards

What Happens If Both Ends Are Handled at the Same Time?

ThePCIe tray may shift out of alignment, making it difficult to properly install other components.

Misalignment can cause:

PCIe devices to not seat properly

Power or data cables to be obstructed

Increased risk of mechanical damage during reinstallation

Step-by-Step Correct Installation Process:

✅Step 1:Align the PCIe tray with its designated mounting slots.✅Step 2:Secure screws onone end firstto hold the tray in place.✅Step 3:Adjust the other end and ensureproper seatingbefore fully tightening all screws.✅Step 4:Reconnect all PCIe cables and verify system connectivity.

Why Other Options Are Incorrect?

B (Cables getting in the way)→ While cable management is important, the main issue istray movement, not cable obstruction.

C (Tray will not function)→ The tray will functiononce properly seated, butincorrect installation can lead to PCIe misalignment.

D (Tray will break)→ The tray is designed for durability; it will not break unlessexcessive force is applied.

Official Documentation Reference:

Supermicro AS-8125GS-TNMR2 Service Guideconfirms thattrays must be secured at one end first to ensure proper alignment.
