Time Gain Compensation (TGC), also known as Depth Gain Compensation (DGC), is used to adjust the amplification of ultrasound signals based on their depth. As ultrasound waves travel deeper into the tissue, they become weaker due to attenuation. TGC compensates for this attenuation by progressively increasing the gain for deeper echoes, ensuring that structures at different depths appear with similar brightness on the ultrasound image. This function is critical for creating a uniform image and accurately visualizing deeper anatomical structures.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Damping material is applied to the back of the piezoelectric crystal to absorb energy and shorten the pulse duration. Shorter pulse durations reduce spatial pulse length, which directly improves axial resolution by enabling better separation of structures along the beam path.

According to sonography instrumentation reference:

“Greater transducer damping results in shorter pulse duration and improved axial resolution but reduces sensitivity.”

Therefore, the correct answer is D: Improved axial resolution.

Overall gain in ultrasound refers to the amplification of all the received echo signals. Increasing the overall gain amplifies the signals, making the entire image brighter. Conversely, decreasing the overall gain reduces the signal amplification, resulting in a darker image. Overall gain adjustment affects the entire image uniformly, unlike time gain compensation (TGC), which adjusts the gain at different depths independently.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution refers to the system's ability to accurately track moving structures over time (i.e., frame rate). Temporal resolution improves when:

The number of focal zones is reduced (fewer focal zones = faster frame rate).

The imaging depth is reduced (shallower depth = faster frame rate).

According to sonography instrumentation references:

“Fewer focal zones and shallow imaging depth optimize temporal resolution by decreasing the time required for each frame, resulting in a higher frame rate.”

Therefore, the correct answer is C: Fewer focal zones and shallower depth.

55

Which region of this image from a sector phantom is evaluating the dead zone?

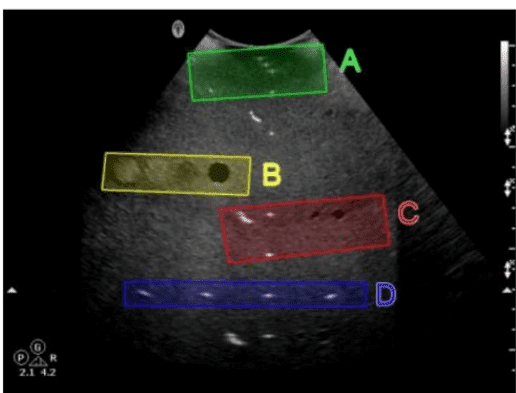

A close-up of a ultrasound Description automatically generated

A. Region A

B. Region B

C. Region C

D. Region D

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

The dead zone in ultrasound refers to the shallow area immediately beneath the transducer where no useful data can be collected due to the transducer's ring-down and the time required for the system to switch from transmit to receive mode.

In a sector phantom image, the area closest to the transducer (superficial portion) is used to evaluate the dead zone. In this image, Region A is located at the top of the image, closest to the transducer surface.

According to sonography instrumentation reference:

“The dead zone is assessed by evaluating the area immediately beneath the transducer. This area is used to test the system's near-field performance and transducer surface integrity.”

Therefore, the correct answer is A: Region A.

—

The purpose of using a spectral Doppler wall filter is to eliminate lower velocity signals. Wall filters are designed to remove low-frequency Doppler shifts caused by the motion of the vessel walls or surrounding tissues, which are generally of no diagnostic value. By eliminating these lower velocity signals, the wall filter helps to clean up the Doppler signal and reduce clutter, allowing for a clearer and more accurate display of blood flow velocities.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Spectral Doppler aliasing occurs when the Doppler frequency shift exceeds the Nyquist limit. The Doppler shift is proportional to the cosine of the Doppler angle. Increasing the Doppler angle (moving closer to 90 degrees) reduces the cosine value, thus reducing the Doppler shift frequency and helping to avoid aliasing.

According to sonography instrumentation reference:

“Increasing the Doppler angle reduces the Doppler shift frequency, thus decreasing the likelihood of aliasing in spectral Doppler.”

Therefore, the correct answer is A: Increase Doppler angle.

—

Comprehensive and Detailed Explanation From Exact Extract:

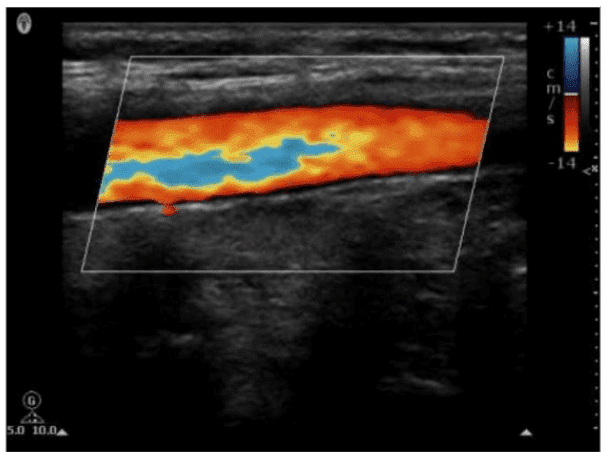

Aliasing occurs in pulsed-wave Doppler imaging when the Doppler shift frequency exceeds the Nyquist limit (which is half the pulse repetition frequency, PRF). This results in a wrap-around of the Doppler signal, which appears as a reversal of flow direction (aliasing artifact).

According to standard Principles and Instrumentation references in sonography:

“To eliminate aliasing, the Doppler PRF (scale) should be increased. Increasing the PRF raises the Nyquist limit and therefore allows for higher measurable velocities without aliasing.”

The correct adjustment to correct this aliasing artifact isC: Increase the Doppler pulse repetition frequency. This effectively increases the Nyquist limit and resolves the wrap-around aliasing appearance.

Options A and B (adjusting the spectral Doppler gain) would only change the appearance of the Doppler waveform (i.e., its amplitude and brightness) but would not affect aliasing. Option D (decreasing the PRF) would actually worsen the aliasing by lowering the Nyquist limit.

Therefore, the correct choice is toincrease the Doppler PRF.

Color flow Doppler imaging displays the mean Doppler frequency shift, which represents the average velocity of blood flow within a sample volume. The ultrasound system uses autocorrelation to process Doppler signals and compute the mean frequency shift. This provides a color-coded map of blood flow velocities, allowing for visualization of flow direction and speed. The mean Doppler frequency is displayed as different colors, with each color representing a range of velocities.

Comprehensive and Detailed Explanation From Exact Extract:

As frequency increases, attenuation (energy loss due to absorption, scattering, and reflection) also increases. This limits penetration but improves resolution for superficial structures.

According to sonography instrumentation reference:

“Attenuation increases directly with frequency, limiting penetration but enhancing resolution in superficial imaging.”

Therefore, the correct answer is C: Attenuation.

—

When sound waves encounter a smooth, flat surface, the primary interaction is reflection. This means the sound waves bounce back towards the transducer, producing echoes that are used to create the ultrasound image. Reflection is most effective when the surface is smooth and perpendicular to the sound beam, allowing for the maximum return of sound waves to the transducer.

ARDMS Sonography Principles and Instrumentation guidelines

Zagzebski, J. A. (1996). Essentials of Ultrasound Physics.
