UiPath UiPath-ADPv1 - UiPath (ADPv1) Automation Developer Professional Exam(2023.10)

The Alerts panel in UiPath is a feature designed to notify users about different types of alerts or events that occur within the UiPath ecosystem, especially within the Orchestrator. These can range from job failures, trigger notifications, to queue item alerts.

The best description of the Alerts panel, considering typical functionality within such systems, would be:

B. A panel that displays summaries of the alerts you subscribed to, received as error reports every ten minutes, or as daily reports.

This option suggests that the Alerts panel provides a curated view of alerts based on subscriptions, which can be configured for error reports at specified intervals or for aggregate daily reports, making it a more proactive and user-specific feature.

The other options either describe a panel with too broad a scope (A), suggest real-time alerting without the context of user subscriptions (C), or limit the display to only the most severe alerts without mention of subscription or reporting features (D).

When you close a remote debugging connection while a debugging execution is in progress, the execution is stopped gracefully on the remote robot and the connection is closed. This means that the robot will finish the current activity and then stop the execution, without throwing any exception or error. This is the recommended way to end a remote debugging session, as it ensures that the robot is in a consistent state and ready for the next execution. References: [Remote Debugging]

A background process is a type of automation that can run in parallel with one foreground process on the same robot, without requiring user interaction. A foreground process is a type of automation that requires user interaction and runs on the visible desktop. A background process can transition to foreground by using the Use Foreground activity, which moves the current background process into the foreground, executing all the activities it contains. After the execution is complete, the process is moved back into the background.

The other options are not activities that can be used to transition a background process to foreground. Option B, Activate, is an activity that activates a specified UI element by bringing it to the foreground. Option C, Maximize Window, is an activity that maximizes a specified window. Option D, Set Focus, is an activity that sets the keyboard focus to a specified UI element.

The default URL of the OCR server that runs the Computer Vision service is https://cv.uipath.com/. The Computer Vision service is a cloud-based service that provides OCR and AI capabilities for UiPath automation projects. The service can be accessed by using the Computer Vision activities in UiPath Studio, such as CV Screen Scope, CV Click, CV Type Into, and more. The service requires an API key and a URL to connect to the OCR server. The default URL is https://cv.uipath.com/, but it can be changed to a custom URL if the developer has a self-hosted OCR server. The API key can be obtained from the UiPath Automation Cloud portal or from the UiPath Marketplace. References: [About Computer Vision], [Computer Vision Activities]

In UiPath, the Flow Switch activity is commonly used within flowcharts. Its default TypeArgument property is set to Int32, which means it is primarily used to handle integer-based decision branching.

Test Explorer is a panel that shows information relevant to test automation in UiPath Studio. You can use Test Explorer and its sub-panels to perform various actions, such as1:

Export test results: You can export the test results shown in the Test Results panel to a JSON or HTML file, which can be used for further analysis or reporting.

Group tests together: You can group tests together based on different criteria, such as test type, test status, test suite, etc. This helps you organize and filter the tests in the Test Explorer panel.

Analyze activity coverage: You can analyze the activity coverage of your test cases by using the Activity Coverage panel, which shows the percentage of activities that have been executed during the test run. You can also filter the activities by covered or uncovered in the Designer panel.

The other options are not actions that can be done in Test Explorer, because they either involve features that are not part of Test Explorer, or they are not related to test automation. For example:

Option A is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

Option B is incorrect, because Test Explorer does not have a feature to perform debugging, but only to run or retry tests. Debugging can be done by using the Debug tab in Studio, which allows you to set breakpoints, inspect variables, and step through the workflow.

Option D is incorrect, because Test Explorer does not have a feature to export test data, but only test results. Test data can be generated or managed by using other activities, such as Generate Test Data or Test Data Queue.

The Check App State activity is specifically designed for UI synchronization. It checks the state of a UI element, ensuring that subsequent actions are performed when the UI element is in the desired state.

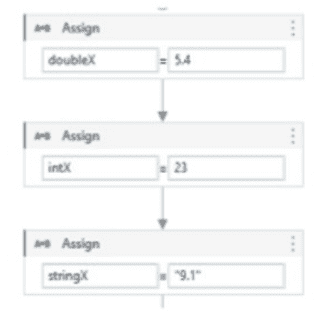

The conditional statement attempts to convert all variables to Double and then adds them up to compare against 38.30. However, the string "9.1" cannot be directly converted to a Double with CDbl because it is not in a correct format that can be recognized as a number (it might be due to the fact that it's a string with a comma instead of a period for a decimal point, depending on the culture settings of the system). This will cause a runtime error during the execution of the conditional statement.References:

Microsoft Visual Basic Guide: Type Conversion Functions

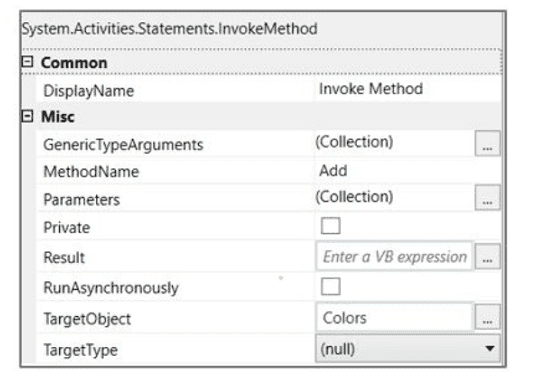

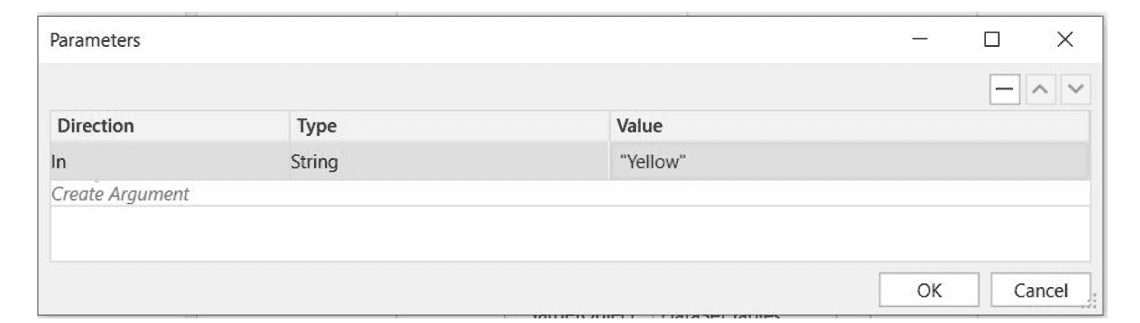

Based on the exhibits provided, the developer has set up an Invoke Method activity to add an item to the "Colors" list variable. The list is initially declared with two items "Red" and "Green". The Invoke Method activity is configured to add the string "Yellow" to this list.

The properties of the Invoke Method activity indicate that the method 'Add' will be called on the target object 'Colors' with the parameter "Yellow". This means the string "Yellow" will be added to the end of the list.

The outcome of executing this Invoke Method activity will be:

D. Colors will contain items in the following order: "Red", "Green", "Yellow".

This is because items in a List in .NET are added in sequence, and the "Add" method appends the new item to the end of the list.
