UiPath UiPath-ADPv1 - UiPath Automation Developer Professional Exam (2024.10) (ADPv1)

In UiPath Studio, you can use DateTime and TimeSpan variables to store and manipulate date and time values. A DateTime variable represents a specific point in time, such as the current date and time, or a date in the past or future. A TimeSpan variable represents a time interval, such as one hour, two days, or three weeks.

To show what hour was 12 hours prior to the date from the variable, you can use the AddHours method on the DateTime variable and pass a negative value. For example, if you have a DateTime variable called CurrentDate that stores a date and time value, you can write:

CurrentDate.AddHours(-12).Hour

This expression returns an integer value that is the hour component of the DateTime value that is 12 hours before the CurrentDate value. For example, if CurrentDate is 2024-02-08 10:51:49, then the expression returns 22.

The other options are not correct expressions for showing what hour was 12 hours prior to the date from the variable. Option A is invalid, because the DateTime class does not have an AddHours method. Option C is incorrect, because the DateTime variable does not have a SubtractHours method. Option D is incorrect, because the DateTime class does not have a SubtractHours method.

In UiPath, the Flow Switch activity is commonly used within flowcharts. Its default TypeArgument property is set to Int32, which means it is primarily used to handle integer-based decision branching.

To use UI Automation activities in a scenario where the destination remote computer is reached by jumping through multiple RDP connections, the following prerequisites are required:

Machine A - install the RDP extension. This extension enables the robot to generate native selectors over RDP connections and interact with the UI elements on the remote machines.

Machine B - install the RDP extension and the RemoteRuntime.msi. The RDP extension allows the robot to connect to Machine C from Machine B, while the RemoteRuntime component enables the communication between the robot and the UI elements on Machine B.

Machine C - install the RemoteRuntime.msi. This component enables the communication between the robot and the UI elements on Machine C, where the automation must be performed. References: [Remote Runtime Architecture], [Multiple RDP Connections] , [UiPath Extension for Microsoft Remote Desktop and Apps]

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject” " like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’ " will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

UiPath Data Serviceoffers acentralized, secure, and persistent data storage solution, natively integrated across UiPath products like Studio and Orchestrator. It enables developers todefine and manage entities and relationships, and use them across processes — ideal for workflows requiringdata consistency and accessibility across multiple systems.

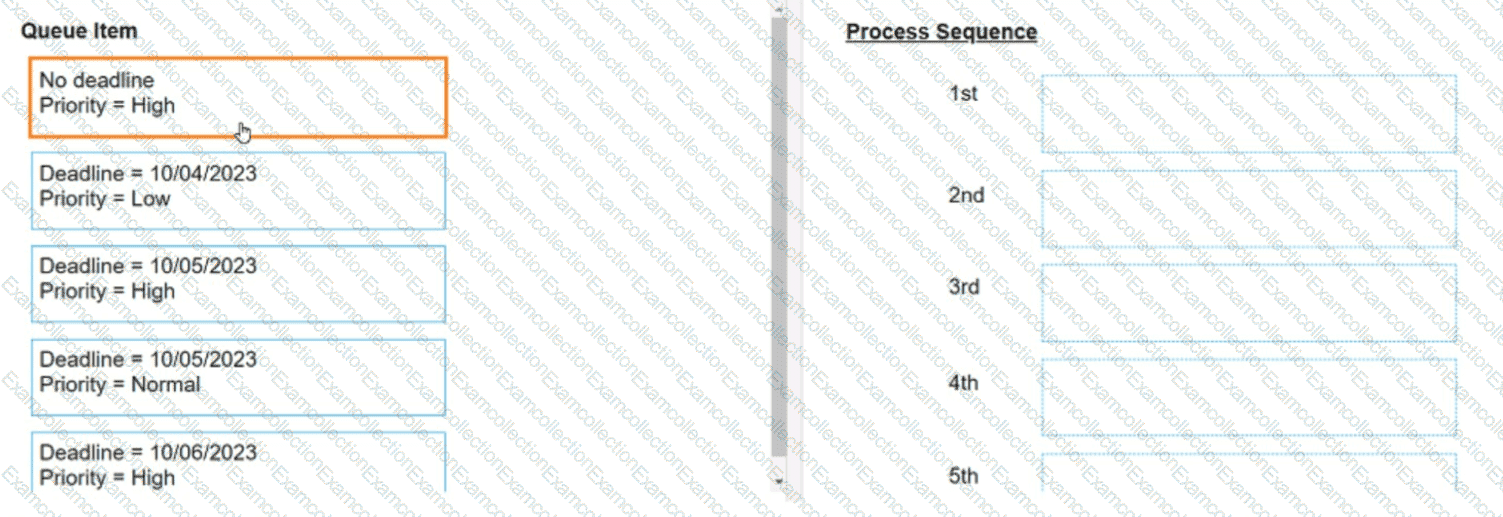

The processing sequence for queue items in UiPath Orchestrator is determined primarily by the deadline and priority of each item. Items with an earlier deadline are processed first. If multiple items have the same deadline, then priority determines the order: High, Normal, then Low.

Following this logic, the processing sequence would be:

1st: Deadline = 10/04/2023 Priority = LowSince this is the only item with the deadline of the current day (assuming today is 10/04/2023), it should be processed first regardless of its priority.

2nd: No deadline Priority = HighAlthough this item has no deadline, its high priority places it next in the sequence after items with a deadline for the current day.

3rd: Deadline = 10/05/2023 Priority = HighThis item is next due to its combination of an imminent deadline and high priority.

4th: Deadline = 10/05/2023 Priority = NormalThis item has the same deadline as the third but a lower priority, so it comes next.

5th: Deadline = 10/06/2023 Priority = HighThis item, while high priority, has the latest deadline, so it is processed last.

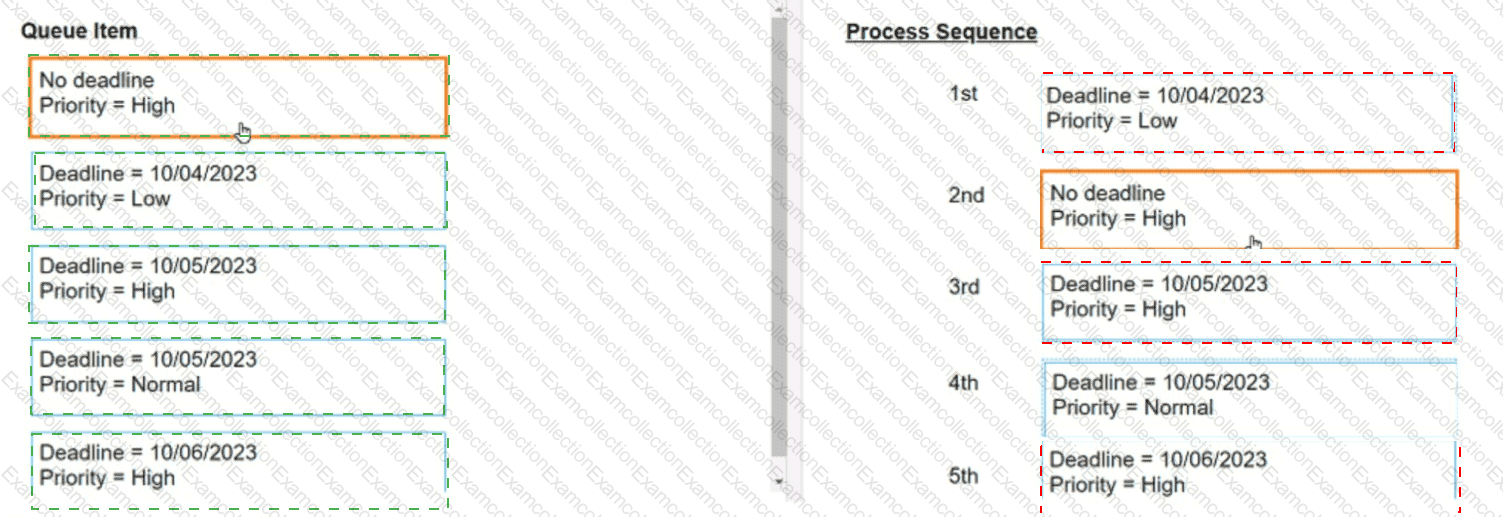

So the order would be:

1st: Deadline = 10/04/2023 Priority = Low2nd: No deadline Priority = High3rd: Deadline = 10/05/2023 Priority = High4th: Deadline = 10/05/2023 Priority = Normal5th: Deadline = 10/06/2023 Priority = High

The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The activity has the following properties:

•Common

oDisplayName: The display name of the activity1.

•File

oFileName: The path of the PDF file you want to extract a range of pages from. This field supports only strings and String variables1.

oOutputFileName: The name you want to use for the file that is generated from the extracted range of pages. This field supports only strings and String variables1.

oPassword: The password of the PDF file, if necessary. This field supports only strings and String variables1.

•Input

oRange: The range of pages that you want to retrieve. You can specify a single page (e.g. “7”), a range of pages (e.g. “7-12”), or a complex range, (e.g. “2-5, 7, 15-End” or “All”). Only string variables and strings are supported. By default, this field is cleared1.

•Misc

oPrivate: If selected, the values of variables and arguments are no longer logged at Verbose level1.

The statement that correctly describes this activity is B. Range argument accepts complex range values or “All”. This statement is true because the Range property allows you to specify the pages that you want to extract from the PDF file using different formats, such as single pages, ranges, or complex ranges1. You can also use the keyword “All” to extract all the pages from the PDF file1.

The other statements are incorrect because:

•A. Password-protected PDF files cannot be processed with this activity. This statement is false because the activity has a Password property that allows you to enter the password of the PDF file, if necessary1. This enables the activity to process password-protected PDF files1.

•C. OutputFileName argument is optional. This statement is false because the OutputFileName property is required for the activity to work1. This property specifies the name of the file that is generated from the extracted range of pages1. If this property is not provided, the activity will throw an exception1.

•D. PageCount argument outputs the number of extracted pages. This statement is false because the activity does not have a PageCount argument1. The activity does not output the number of extracted pages, but only the new PDF file that contains the extracted pages1.

Custom log fields are additional fields that can be added to the Robot Execution Logs using the Add Log Fields activity1. The REFramework is a template for creating robust and scalable automation projects that uses the State Machine workflow type2. The REFramework leverages the custom log fields feature to include more information about each transaction in the log messages, such as the transaction number, the transaction item, the business process name, etc. This helps to improve the reporting and troubleshooting capabilities of the automation project, as the custom log fields can be easily viewed and filtered in the Output panel, the Orchestrator Logs page, or any external logging tool3.

Option A is incorrect, because custom log fields are not used to automatically retry failed transactions, but rather to provide more details about them. The REFramework uses the Retry Scope activity and the Set Transaction Status activity to handle the retry mechanism for failed transactions4. Option B is incorrect, because custom log fields are not used to store sensitive information, but rather to enhance the log messages. Storing sensitive information like credentials and personal data of users in the logfields is not recommended, as it may pose a security risk. Option C is incorrect, because custom log fields are not used to define the variable types for transactions, but rather to add more data about them. The REFramework uses the TransactionItem argument to store the transaction data, which can be of any type, such as QueueItem, DataRow, String, etc.

In the REFramework, best practices suggest storing sensitive information like email account credentials in an Orchestrator Credential asset. This asset is then referenced in the Config.xlsx file, specifically in the Assets sheet, ensuring secure and centralized management of credentials.

In the BDD (Behavioral-Driven Development) template structure, the " Setup " part of a test case supports the Surround with mock feature. This section is used to set up the testing environment, including mock configurations.
