UiPath UiPath-SAIv1 - UiPath Certified Professional Specialized AI Professional v1.0

Supervised learning is one of the most popular and widely used machine learning approaches. It involves providing the algorithm with labeled input/output pairs, which serve as examples of the desired behavior or outcome. The algorithm then learns a function that can generalize from these examples and make predictions for new, unseen data. Supervised learning can be used for tasks such as classification, regression, and anomaly detection. Some common supervised learning algorithms are linear regression, logistic regression, decision trees, support vector machines, and neural networks.

References:

UiPath AI Fabric - Machine Learning Concepts

UiPath Document Understanding - Machine Learning Models

UiPath Communications Mining - Overview

The OOB labeling template is a predefined template that you can use to label your text data for entity recognition models. The template comes with some preset labels and text components, but you can also add your own labels using the General UI or the Advanced Editor. When you add an entity label, you need to fill in the following information:

Name: the name of the new label. This is how the label will appear in the labeling tool and in the exported data.

Input to be labeled: the text component that you want to label. You can choose from the existing text components in the template, such as Date, From, To, CC, and Text, or you can add your own text components using the Advanced Editor. The text component determines the scope of the text that can be labeled with the entity label.

Attribute name: the name of the attribute that you want to extract from the text. You can use this to create attributes such as customer name, city name, telephone number, and so on. You can add more than one attribute for the same label by clicking on + Add new.

Shortcut: the hotkey that you want to assign to the label. You can use this to label the text faster by using the keyboard. Only single letters or digits are supported.

Color: the color that you want to assign to the label. You can use this to distinguish the label from the others visually.

References: AI Center - Managing Data Labels, Data Labeling for Text - Public Preview

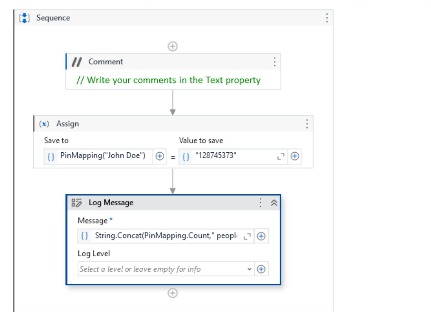

The most likely cause of the error is that the dictionary was not initialized. In UiPath, a dictionary must be initialized before assigning values to its keys. If you attempt to add a key-value pair to a dictionary that has not been initialized, you will encounter a runtime error.

The correct initialization can be done as follows:

PinMapping = New Dictionary(Of String, String)

Explanation of Other Options:

A. PinMapping["John Doe"]: This is the correct syntax for accessing or assigning a value to a dictionary key. There is no issue with this syntax.

B. The "John Doe" key not present: While it is true that the key might not exist, this specific error would occur only during a Get operation, not an assignment.

D. PinMapping<"John Doe">: This is incorrect syntax for working with dictionaries in UiPath.

In UiPath Communications Mining, importing a taxonomy should be done before starting model training. The taxonomy, which includes labels and categories, defines how the data will be classified and structured during the training process. It is essential to have a well-defined taxonomy to ensure accurate predictions and classifications. Importing the taxonomy before training allows the model to learn from it, enhancing its performance. Changes to the taxonomy can be made later, but the initial import is crucial at the start of the training phase to guide the model effectively.

(Source: UiPath Docs on Communications Mining)

The Document Object Model (DOM) is a data representation of the objects that comprise the structure and content of a document on the web1. In the context of Document Understanding, the DOM is a JSON object that is generated by the Digitize Document activity, which uses the UiPath Document OCR engine to extract the text and layout information from the input document2. The DOM contains the following properties for each document3:

name: The name of the document file.

contentType: The MIME type of the document file, such as application/pdf or image/jpeg.

textLength: The number of characters in the document text.

pages: An array of objects, each representing a page in the document. Each page object has the following properties:

pageNumber: The number of the page, starting from 1.

rotation: The angle of rotation of the page, in degrees. A positive value indicates clockwise rotation, and a negative value indicates counterclockwise rotation.

language: The language code of the page, such as en or fr.

content: An array of objects, each representing a word or a line in the page. Each content object has the following properties:

type: The type of the content, either word or line.

text: The text of the content.

boundingBox: An array of four numbers, representing the coordinates of the top-left and bottom-right corners of the content, in the format [x1, y1, x2, y2]. The coordinates are relative to the page, with the origin at the top-left corner, and the unit is pixel.

confidence: A number between 0 and 1, indicating the confidence level of the OCR engine in recognizing the content.

The DOM can be used as an input for other activities in the Document Understanding framework, such as Classify Document Scope, Data Extraction Scope, or Export Extraction Results. The DOM can also be manipulated using programming code, such as JavaScript or Python, to perform custom operations on the document data.

References:

1: Introduction to the DOM - Web APIs | MDN 2: Digitize Document 3: Document Object Model

For the described requirements:

ApplyOcrOnPdf set to Auto ensures OCR is applied only when needed.

DegreeOfParallelism set to -1 uses all available logical processors for maximum parallelism.

As a best practice, Subject Matter Experts (SMEs) should perform the data labeling in UiPath Communications Mining or Document Understanding projects. SMEs have the in-depth knowledge of the specific content and context, which ensures that the data is labeled correctly and meaningfully for training machine learning models. Their expertise is essential for accurate taxonomy and data preparation

To ensure the model is trained effectively, UiPath recommends that regular fields be labeled on at least 10 different pages in Data Manager before exporting the labeled documents to AI Center. This helps in providing enough variation and examples for the model to learn from and generalize effectively.
