The correct answers are A, B, and D . For large-scale Versa Secure SD-WAN onboarding, common configuration is reusable through templates and grouping. A device template , also known as a post-staging template, provides the common base configuration that is applied to multiple VOS branch appliances. Versa documentation repeatedly shows configuration tasks being performed under Templates > Device Templates , where an organization is selected and the post-staging template is opened in Appliance view for common configuration.

A device group is also shared by multiple appliances because it groups devices that should receive the same template associations and common service behavior. This is the proper way to profile many branches with similar deployment requirements. Service templates are also shared objects. They are used to apply service-specific configurations, such as SD-WAN traffic steering, application steering, QoS, security, or other common services, across devices. Versa SD-WAN design documentation explains that application-steering templates automate business-intent policies and simplify management by combining application classification, forwarding-class mapping, and SD-WAN policy logic in a reusable template.

A workflow device is device-specific, and device bind data contains site-specific values such as interface addressing, gateways, VLANs, and other per-branch parameters. Therefore, those are not the shared configuration objects.

The correct answers are A and C . Versa supports upgrading deployed VOS branch devices either directly on the VOS appliance or centrally through Versa Director. The Director-based method is performed from the Administration > Appliances area: Versa documentation says to select one or more Controller nodes or VOS devices, click the Upgrade Selected Appliances icon, choose the software image package, and proceed with the appliance upgrade. The same upgrade procedure is referenced for remaining VOS branch devices, including the option to upgrade branches individually or all at once.

A CLI-based upgrade using a software .bin package is also a valid operational method when the image is copied to the device and installed locally, particularly for controlled or recovery-style maintenance. Option B is not the best answer for already deployed branch upgrades because the Preferred Software Version field applies to zero-touch provisioning; Versa states that during ZTP, Director upgrades a branch to the preferred version if applicable. That setting influences onboarding behavior, not the normal upgrade workflow for already deployed branches. Option D is incorrect because System > Director Upgrade is used to upgrade the Versa Director node itself, not VOS branch appliances.

The correct answers are A and D . A Versa stateful firewall primarily enforces security by tracking connection state and matching packet/session information such as source, destination, zones, services, protocol, and L3/L4 attributes. Versa’s CLI configuration guide shows stateful firewall access-policy match options for source and destination addresses, services, IP version, IP flags, DSCP, TTL, and also optional application and URL-category match fields when enhanced services are available.

A Versa NGFW extends this inspection model by adding deeper Layer 7 and UTM capabilities, such as IDS/IPS, antivirus, URL filtering, file or data filtering, and application-aware enforcement. Versa’s SD-WAN design guide specifically describes internet security using the Versa next-generation firewall with unified threat management features, including IDS/IPS and antivirus inspection for DIA traffic. Licensing is also a valid distinction: Versa’s SD-WAN licensing overview describes NGFW features as part of solution tiers, so the availability of advanced security functions depends on the licensed tier or subscription

The correct answer is A . Versa branch troubleshooting documentation states that the provider organization should have MP-BGP configured for SD-WAN deployments so that notifications for all relevant branch events are delivered to the Versa Director node. This is significant during onboarding because branch lifecycle events, such as branch-connect and branch-disconnect, help Director determine where the branch is in the staging process and whether the next configuration push should occur.

MP-BGP does not replace IKE or IPsec. The branch still establishes IKE/IPsec to the staging server or Controller depending on the staging phase. MP-BGP also has nothing to do with URL filtering category updates. While BGP can be used in LAN or WAN routing designs, the specific issue described here concerns provider-organization SD-WAN control-plane event delivery.

Therefore, if branch lifecycle events are not appearing properly, validating provider-organization MP-BGP configuration is part of the correct troubleshooting workflow, especially in addition to checking data-path and IPsec connectivity.

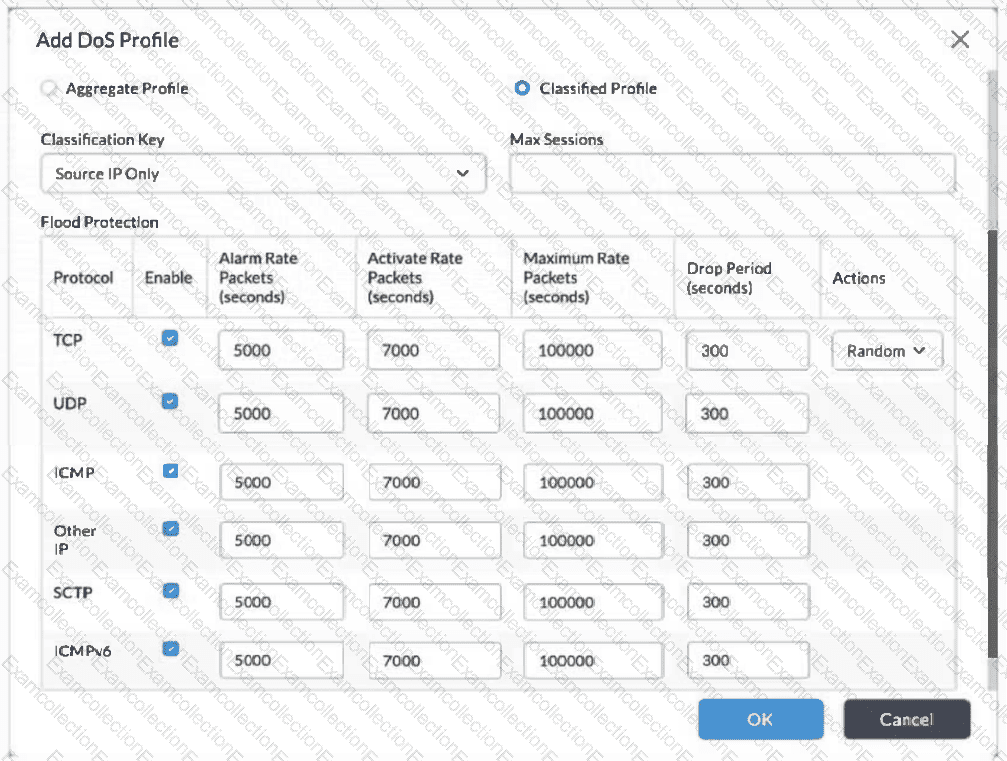

The correct answer is B . The DoS profile in the exhibit is a Classified Profile using Source IP Only as the classification key. For TCP flood protection, the profile is enabled and shows an Alarm Rate of 5000 packets per second , an Activate Rate of 7000 packets per second , a Maximum Rate of 100000 packets per second , a Drop Period of 300 seconds , and an action of Random . This means the first threshold, 5000 pps, is used to trigger alarm behavior, while the second threshold, 7000 pps, activates the configured mitigation action. Since the selected action is Random , packets are randomly dropped when the TCP rate reaches the activate threshold.

Versa documentation shows that DoS policies can match traffic using source, destination, service, application, schedule, IP version, DSCP, and other conditions, and that a DoS policy can set either an aggregate or classified DoS profile. It also documents that DoS policies support enforcement actions and logging through LEF profiles for DoS events. Therefore, 7000 pps does not merely generate an alarm, and it does not mean complete dropping. Complete dropping is not selected in the exhibit.

Comprehensive and Detailed 150 to 250 words of Explanation From Versa Networks SDWAN Topics:

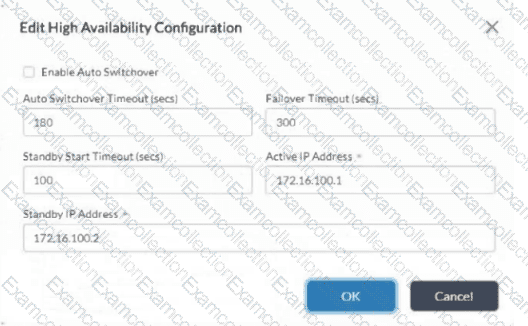

The correct answers are B and D . In the exhibit, Enable Auto Switchover is not selected. However, the Failover Timeout value is configured as 300 seconds . Versa Director HA documentation states that the Failover Timeout is the timeout period before the standby Director node can promote itself to become the active Director node. Therefore, if the active or primary Director fails, the backup Director can automatically assume the active role after the failover condition and timeout are met.

The important distinction is that Auto Switchover controls revertive behavior after recovery, not the initial standby takeover during failure. Versa documentation explains that Director HA is non-revertive by default. This means that when the designated master or primary Director comes back online after recovery, it is not automatically promoted back to active unless automatic switchover is enabled. To make the designated active Director automatically reclaim the active state after recovery, Enable Auto Switchover must be selected and the Auto Switchover Timeout must expire.

The correct answer is A . Versa CGNAT troubleshooting documentation includes per-pool and resource counters that show allocation behavior and failures. The counters include values such as bindings allocated, bindings freed, allocation failures, out-of-address errors, and out-of-ports errors. It also shows that CGNAT source-port resources are divided and distributed to worker threads by Versa RFD/RFM, and that allocated source-port ranges can be viewed using show rfm table src-port allocated.

If out-of-ports errors increase while out-of-address errors remain zero, the pool still has usable translated IP addresses, but the available port resource for NAT bindings is exhausted. This commonly occurs when too many concurrent sessions share a limited public IP or source-port range. The corrective action would be to expand the NAT resource, add more public translated IPs, adjust port allocation, or reduce excessive session usage.

A missing NAT IP pool would more likely produce out-of-address problems. A wrong zone match might prevent translation entirely, and OSPF in the LAN VR is unrelated to CGNAT port-resource exhaustion.

The correct answers are A and B . In the exhibit, the LAN interface shows a fixed VLAN ID value of 100 . Because this value is directly configured in the template rather than represented as a per-device variable, every branch that uses this template will receive the same LAN VLAN ID. This supports option A. Versa configuration examples show that VLAN-tagged interfaces are created by defining logical units with a vlan-id, and organizations then use those tagged interfaces for traffic identification and routing services.

For the MPLS WAN network , the VLAN ID field is shown as a variable or bind-data style value rather than a fixed number. This allows each branch device to receive a different MPLS VLAN ID during onboarding, depending on the branch-specific values supplied in the workflow or device bind data. Therefore, branches can have separate VLAN IDs on the MPLS WAN transport, which supports option B. Versa SD-WAN troubleshooting output also shows WAN interfaces as logical VNI subinterfaces, such as vni-0/1.0 and vni-0/2.0, mapped to SD-WAN transport networks like INET and MPLS.

Option C is incorrect because an INET interface can be untagged, commonly represented with VLAN ID 0. Option D is incorrect because the MPLS VLAN field is intentionally parameterized, not incorrectly configured.
