Which two statements are true about Access Gateway N_Port failover? (Choose two.)

A.

It changes the F_Port to N_Port mapping in the event of an F_Port link failure.

B.

It changes the F_Port to N_Port mapping in the event of an N_Port link failure.

C.

It changes the N_Port FC address to match the F_Port address to allow non-disruptive failover.

D.

It changes the F_Port FC address based on the new N_Port.

You must restrict which storage arrays can connect to your Gen 5 fabric.

Which security policy satisfies this requirement?

A.

FCS

B.

DCC

C.

SCC

D.

IPFILTER

Which action is performed by an Access Gateway (AG) during the N_Port login process?

A.

N_Ports perform the PLOGI command and the acceptance sequence with the fabric.

B.

FDISC is used by the host to discover the AG.

C.

FLOGI from the AG connected host is converted to FDISC by the AG.

D.

FDISC is used by the AG device to discover the attached fabric.

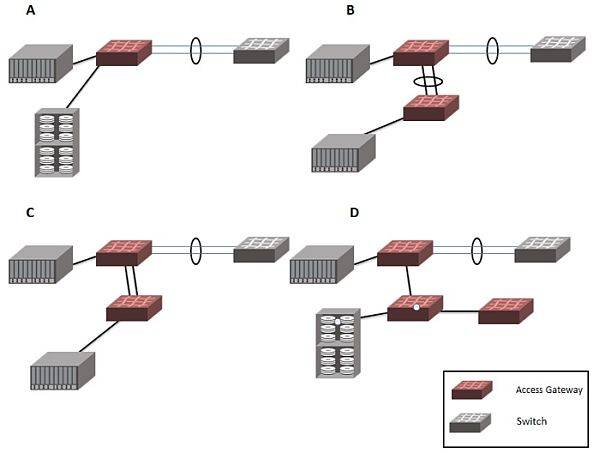

Refer to the exhibit.

Referring to the exhibit, which two Access Gateway topologies are valid? (Choose two.)

A.

A

B.

B

C.

C

D.

D

You want to monitor traffic between a virtual host and a specified LUN. Additionally, you want to have the switch send an e-mail to the administrator if the transmit bandwidth exceeds a certain threshold.

Which two steps will accomplish this task? (Choose two.)

A.

Create a bidirectional flow between the host and storage and specify the LUN number.

B.

Create a unidirectional flow between the host and storage and specify the LUN number.

C.

Configure e-mail alerts in Flow Vision.

D.

Configure e-mail alerts in MAPS.

You have a server with several virtual hosts using NPIV and you want to monitor traffic from all the virtual hosts.

Which statement will satisfy this requirement?

A.

Create a bidirectional flow with the server port as the ingrport parameter and use flow learning.

B.

Create a bidirectional flow with the server port as the egrport parameter and use flow learning.

C.

Create a unidirectional flow with the server port as the ingrport parameter and use flow learning.

D.

Create a unidirectional flow with the server port as the egrport parameter and use flow learning.

You have recently upgraded to Fabric OS v7.2. You want to migrate to MAPS while retaining your custom Fabric Watch thresholds.

Which statement will meet this requirement?

A.

Configure Fabric Watch to use custom settings, enable MAPS, convert Fabric Watch thresholds to MAPS policies.

B.

Enable MAPS, convert Fabric Watch thresholds to MAPS policies.

C.

Convert Fabric Watch thresholds to MAPS polices, enable MAPS.

D.

Configure Fabric Watch to use default settings, enable MAPS, convert Fabric Watch thresholds to MAPS policies.
