Oracle 1z0-591 - Oracle Business Intelligence Foundation Suite 11g Essentials

Level-based Hierarchy

Level-based hierarchy is the first type of hierarchy in OBIEE.

Consists of an ordered set of two or more levels. For example, a Time hierarchy might have three levels for Year, Quarter, and Month. Level-based hierarchies can also contain parent-child relationships.

Dimension hierarchy levels allow :

* to perform aggregate navigation,

* to configure level-based measure calculations,

* users from Dashboard and Answers to drill down from one parent to a child level.

Special type of level-based dimension are supported:

* Unbalanced (or ragged) and Skip-level hierarchy

* time dimension to provides special functionality for modeling time series data.

NQSConfig.ini is the main configuration file of Bi Server and contains a lot of parameters.

The parameters in the Query Result Cache Section provide configuration information for Oracle BI Server caching. The query cache is enabled by default. After deciding on a strategy for flushing outdated entries, you should configure the cache storage parameters in Fusion Middleware Control and in the NQSConfig.INI file.

OBIEE - Grain (Level of summarization)

Grain definition in the context of OBIEE.

The following list describes the different grains in navigating a query:

* Aggregation grain. The grain of the aggregate source of from a level based metrics

* Query grain. The grain of the request.

* Time Series grain. The grain at which the time series function aggregation is requested.

* Storage grain. The query in the example can be computed from daily sales or from monthly sales, or from quarterly sales.

Note:

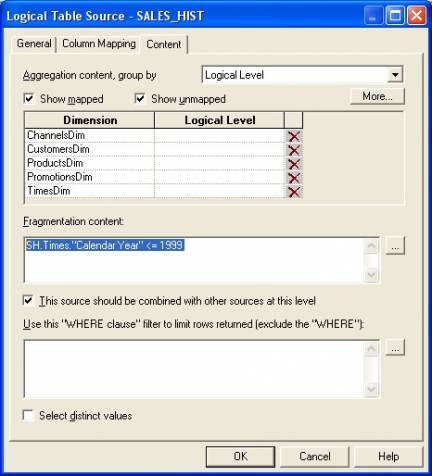

The aggregation grain is defined in the content tab of the logical table source.

When the query grain match the aggregation grain of a logical table source, this one is used to create the physical query.

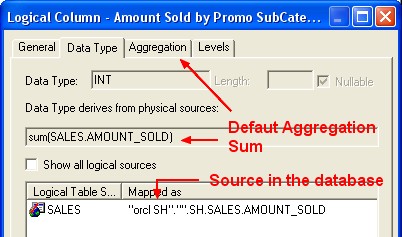

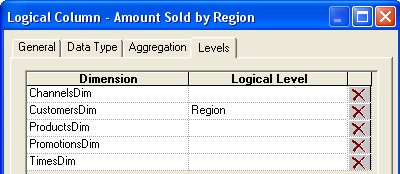

Note: A level-based measure is a column whose values are always calculated to a specific level of aggregation.

The calculation of this measure is independent of the query grain and used always the aggregation grain of the logical column.

Level-based measures allow :

* to return data at multiple levels of aggregation (the query grain and the level-based column grain) with one single query

* to create share measures (percentage), that are calculated by taking some measure and dividing it by a level-based measure. For example, you can divide salesperson revenue by regional revenue to calculate the share of the regional revenue each salesperson generates.

The Oracle BI Presentation Services Administration page provides the Manage Map Data link. This link displays the Manage Map Data page, where you can manage the logical and display versions of the data from various physical data sources. This defines the layers that content designers use when creating map views. The data that is available for managing maps and data is stored in Oracle Database as part of MapViewer.

Using this page, you provide:

* (A) Logical names to prevent any existing BI column mappings and map analyses from breaking because of changes to the physical data or to the data source.

* Display names so that the geographic data is meaningful to end users.

Note: Administering Maps Using Administration Pages

For (C) –layers, see 3-7 below.

For (D) –import images, see 11-12 below.

To administer maps using Administration pages:

Sign in to Oracle Business Intelligence.

In the global header, click Administration.

Click the Manage Map Data link to display the Manage Map Data page.

Click the Layers tab.

Click the Import Layers button to display the Import Layers dialog.

In the dialog, select the connection and the layers that are needed for zooming and drilling. (This tab is not prepopulated by other selections on the Administration pages. You can use any layers or images with any map.)

Click OK when you have finished selecting layers that are appropriate for the subject area with which you are working.

Back on the Layers tab, select a layer, then click the Edit Layer button to display the Edit Layer dialog in which you associate layers with attribute columns so that you can display BI data in the map view.

Click OK when you have finished editing the layer.

You use this tab to associate layers with BI data. If you use the City column in multiple subject areas, then you must associate it with a layer for each subject area.

Click the Background Maps tab, then click the Import Background Maps button to display the Import Background Maps dialog.

In the dialog, select the connection and the main maps to use.

The connection that you select for the main map can be different from the connection for the layers or images.

Click OK when you have finished selecting main maps.

Back on the Background Maps tab, select a map, then click the Edit Background Map button to display the Edit Background Map dialog in which you name the map and specify the order of layers and their zoom levels.

Click OK when you have finished editing the map.

Optionally, click the Images tab, then click the Import Images button to display the Import Images dialog. You can import images if you plan to use them as a format on maps.

In the dialog, select the connection and the images to use.

Click OK when you have finished selecting images.

Click Back when you have finished working with the Administration page. Your changes are saved automatically.

Note: The Administration tool is used to manage OBIEE server and have some capabilities to automate some repetitive tasks and principally his embedded tools.

Oracle Business Intelligence Administration Tool is available only for Windows operating systems.

The Administration Tool is a Windows application that allows the BI Server administrator to create and edit repositories.

Repositories can be edited with the administration tool in either online or offline mode.

The Administration Tool also includes a session manager and a cache manager which are available in online mode. The Cache Manager displays what queries have been cached and how frequently they have been accessed. You can also select and delete items

If security attributes conflict, a user or group is granted the least restrictive security attribute.

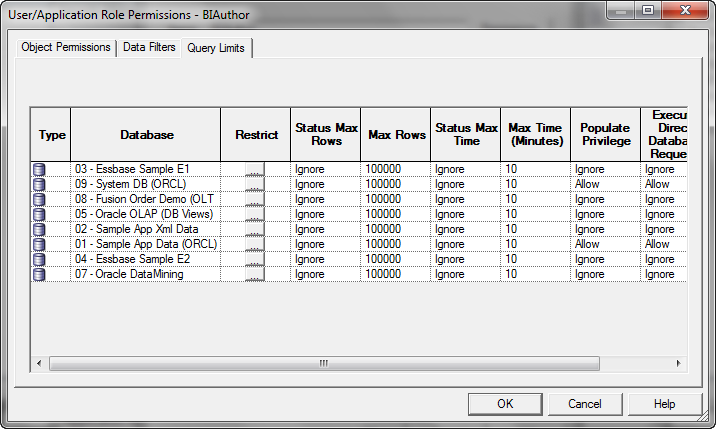

Query environment can be managed by setting query limits (governors) in the Repository (RPD) for particular Application Roles. You should always set query limits for particular application roles rather than for individual users.

Steps:

1. Login to Repository using OBIEE Admin Tool

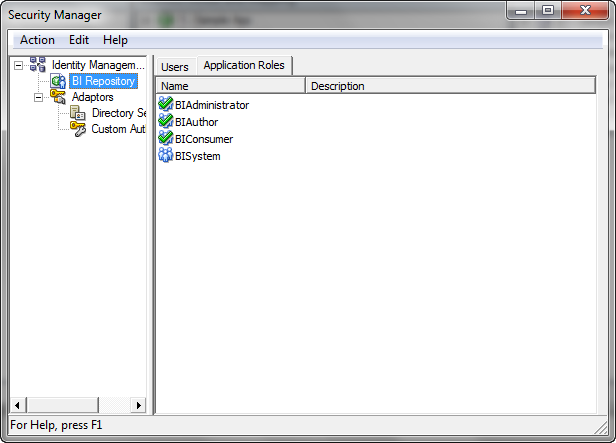

2. Navigate to Manage > Identity

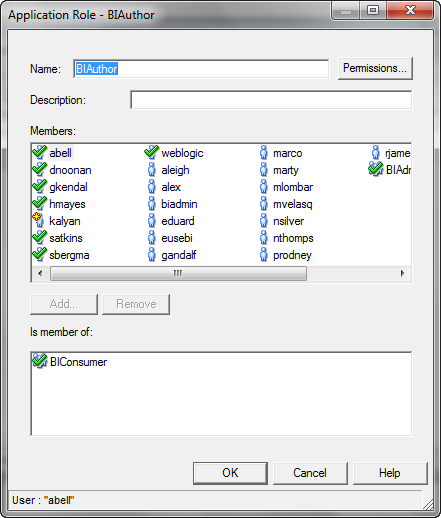

3. Go to Application Role tab, choose the role and double click on it to open.

4. Click on Permissions tab

5. Set the Query Limits. You can limit queries by the number of rows received, by maximum run time, and by restricting to particular time periods. You can also allow or disallow direct database requests or the Populate privilege.
