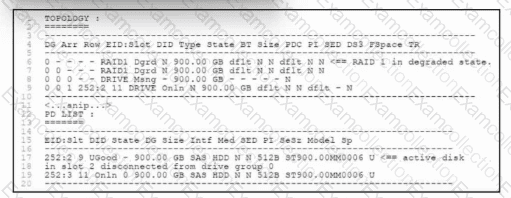

From the RAID controller output:

TheRAID1virtual drive is shown as“Dgrd” (degraded)with a note:“RAID 1 in degraded state.”

In thePD LIST, one disk (slot 2) is marked“UGood – active disk in slot 2 disconnected from drive group 0”, while the other (slot 3) is“Onln 0”(online and part of drive group 0).

This means:

In aRAID 1mirror, onlyone diskmay fail while the array remains available.

Here,one disk has failed/disconnected, the other is still online → the array isdegraded but operational.

Therefore:

B. One RAID 1 disk failed– correct.

C. The node is still functional– correct; RAID1 can tolerate a single disk failure.

The other options are incorrect:

A and Esuggest two disk failures, which is not indicated.

Dwould be true only if both disks failed; with one disk still online, the node continues to function, though in a degraded state.

Comprehensive and Detailed Explanation From Cisco SP Cloud Network Infrastructure Security Knowledge

Cloud security compliance frameworks (such as ISO 27001, PCI-DSS, GDPR, SOC 2, HIPAA) require:

Evidence of security events

Retention of logs for audit periods

Ability to generate compliance reports

Traceability and accountability

Incident investigation support

Effective log management enables:

Centralized collection of application, network, and system logs

Storage of logs for mandated retention periods

Generation ofaudit-ready reports

Documentation required for compliance assessments

Demonstration that monitoring and security controls are active and functioning

Therefore, the role of log management in regulatory compliance is primarily aboutdocumentation, traceability, auditing, and reporting, which aligns only with Option A.

The other options do not directly serve regulatory compliance requirements:

Brelates to resource optimization, not compliance.

Crefers to interoperability, which is unrelated to regulatory auditing.

Dimproves security but does not directly address compliance documentation.

NETCONF rules state:

A user cannot terminatetheir own active session.

Attempting to kill the same session returnsinvalid-valueerror.

The session continues running normally.

Thus:

No logout

No termination

No configuration impact

Therefore,Ais correct.

Comprehensive and Detailed Explanation From Cisco SP Core Optimization Knowledge

Cisco IOS supportsBGP Multipathfor installing multiple equal-cost BGP routes (both iBGP and eBGP) into the routing table. The correct global BGP command syntax to set the number of allowable parallel BGP paths is:

maximum-paths

For BGP specifically, the form is:

maximum-paths bgp

This enables the router to install up to the specified number of equal-cost BGP routes (iBGP and eBGP) into the RIB and then potentially into the FIB.

Setting:

maximum-paths bgp 6

allowssixparallel ECMP paths learned via BGP—this matches the requirement in the question.

Why the other options are incorrect

B. multipath eibgp 6Not a valid Cisco IOS command.

C. maximum paths bgp routers 6Invalid syntax.

D. maximum-paths eibgp 6The correct keyword isbgp, noteibgp.Cisco does not use “eibgp” in this context; IOS supports BGP multipath across iBGP/eBGP automatically when configured under maximum-paths bgp.

In a BGP EVPN VXLAN multi-homing design, Ethernet Segment Identifiers (ESIs) are used to represent a set of links from one or more leaf switches to the same downstream device (such as a CE, firewall, or aggregation switch). By default, when multiple leafs share the same ESI, the EVPN design supportsall-activeredundancy, where all participating leafs can forward traffic for that Ethernet segment simultaneously.

However, some use cases—like connecting to devices that do not support multipath forwarding or for strict active/standby redundancy—requiresingle-activemulti-homing. In single-active mode, only one leaf in the Ethernet segment forwards traffic at any time; the other leaf(s) act as standby and only take over if the active node fails. This behavior is explicitly controlled in the EVPN Ethernet-segment configuration.

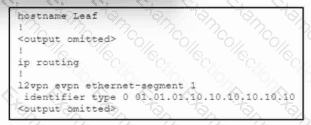

On Cisco platforms for EVPN VXLAN fabrics, this is configured under thel2vpn evpn ethernet-segmentstanza using the command:

l2vpn evpn ethernet-segment 1

identifier type 0 01.01.01.10.10.10.10.10.10.10

redundancy single-active

identifier type 0 ... defines the ESI for the multi-homed connection.

redundancy single-active specifies that only one leaf in that ESI is allowed to be active at a time, thus enablingdual-homing with single-active redundancy.

The other options do not relate to Ethernet-segment redundancy mode:

B. default-gateway advertiseis used in EVPN anycast gateway configurations to advertise the default gateway MAC/IP, not for ESI redundancy.

C. replication-type staticis associated with multicast or ingress replication behavior for VXLAN VTEPs, not Ethernet-segment redundancy.

D. vlan configuration 101is a VLAN configuration context command and has no effect on EVPN ESI redundancy.

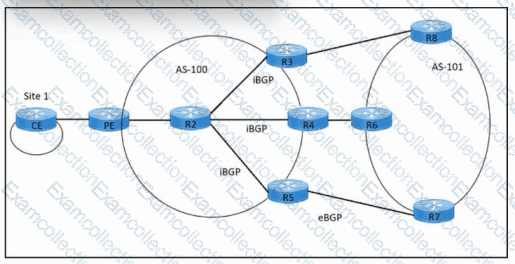

In the diagram, thePE and R2, R3, R4, R5belong toAS 100. The PE router runs BGP processAS 100, so its BGP configuration must start with:

router bgp 100

To performiBGP multipath load sharingacross three equal-cost internal BGP paths, BGP must be instructed to keep and use multiple iBGP paths in the routing table. This is done with:

router bgp 100

maximum-paths ibgp 3

maximum-paths ibgp 3 tells BGP to install up tothreeiBGP paths to the same prefix, enabling CEF to load-share across those paths.

router bgp 100 is required because the PE is inAS 100, not 101.

Other options:

ip load-sharing per-destination affects CEF behavior but does not enable BGP iBGP multipath by itself and is not specific to three iBGP paths.

ip load-sharing ibgp 3 is not a valid IOS BGP command.

router bgp 101 would configure the wrong AS and break the iBGP relationships shown in AS-100.

Thus, the correct commands on the PE to achieve iBGP multipath load sharing over the three internal paths aremaximum-paths ibgp 3androuter bgp 100, corresponding toA and E.

Comprehensive and Detailed Explanation From Exact Extract from my knowledge of Designing and Implementing Cisco Service Provider Cloud Network Infrastructure Outlines without Any External URL or Links:

Cisco+ Hybrid Cloud is Cisco’s as-a-service consumption model that offers pay-as-you-go infrastructure. For ahybrid workplace, the focus is on giving users secure desktop environments from anywhere, with the ability torapidly deployandscale up or downbased on the number of users or partners.

Cisco+Hybrid Cloud for Virtual Desktop Infrastructure (VDI)specifically delivers desktop and app workspaces as an on-demand service. It allows partners to consume desktops elastically, paying for capacity as needed and scaling the underlying compute, storage, and networking without rebuilding the environment.

Bare Metal Compute and Virtualization offers flexible infrastructure but are aimed at app/workload hosting rather than user desktop workspaces.

Service Provider Networking addresses network services, not end-user hybrid workplace desktops.Therefore, for a pay-as-you-go, rapidly deployable, elastic solution in a hybrid workplace,Cisco+ Hybrid Cloud for Virtual Desktop Infrastructureis the correct choice.

Comprehensive and Detailed Explanation Based on Designing and Implementing Cisco Service Provider Cloud Network Infrastructure Knowledge

When connectingcarrier-neutral facilities (CNFs)ordata centerswithin the same metropolitan area, service providers typically usehigh-bandwidth, low-latency optical transport methods. The most appropriate and commonly deployed interconnection technology is:

DWDM (Dense Wavelength Division Multiplexing) ring, which provides:

High capacity (10G, 40G, 100G, 400G)

Low latency

Redundancy through ring or mesh topologies

Multi-wavelength multiplexing for cost efficiency

Carrier-grade reliability for metro interconnect services

This aligns with cloud interconnect and metro transport design used in service provider environments.

Evaluation of the Options

A. OSPF backbone area adjacency

This is a routing protocol adjacency, not a physical connection method. It requires a transport link underneath but does not represent the physical interconnect itself.

B. Private wireless connection

Not suitable for CNF or metro DC interconnect because it lacks the bandwidth, reliability, and deterministic performance required for large-scale carrier-grade interconnects.

C. DWDM ring

This is the correct method. DWDM-based metro fiber rings are the standard for connecting carrier-neutral facilities in the same metro region.

D. CAT6e connection

This is limited to short-distance copper Ethernet (tens of meters). It is not used for metro-scale interconnects or between CNFs.

Comprehensive and Detailed Explanation (Cisco NFVI / Virtualization Knowledge)

SR-IOV (Single Root I/O Virtualization)allows a VM to access the network interface hardwaredirectly, without going through the hypervisor’s virtual switch.

This is achieved by:

Assigning Virtual Functions (VFs) directly to VMs

Allowing high-performance, low-latency packet I/O

Bypassing the hypervisor datapath

Therefore, SR-IOV doesnotbypass the guest OS; it bypasses thehypervisor I/O virtualization layer, delivering near-native performance.

Thus the correct answer isC.
