Cisco 300-610 - Designing Cisco Data Center Infrastructure (DCID)

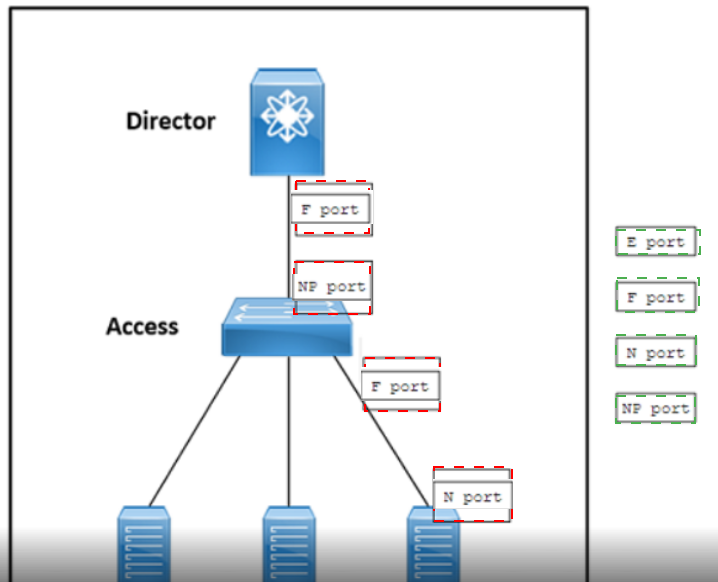

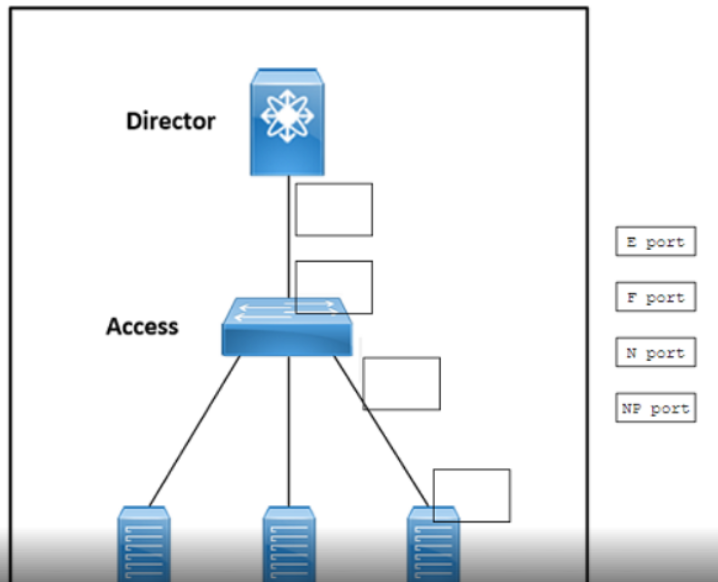

Refer to the exhibit.

An engineer must deploy a SAN that meets these criteria:

•The upstream director switch must be configured to minimize the number of issued domain IDs

•The access switch must aggregate multiple locally connected ports not a single uplink that shares the same domain ID as the upstream switch.

Drag and drop the port types from the right onto the boxes on the left to create a SAN topology that meets these requirements Not all port types are used Port types are used more than once

A customer connects a high-speed Fibre Channel storage array to a Cisco MDS 9000 Series Switch using an 8 Gbps interface.

Which action guarantees line rate traffic processing on the interface?

A customer is implementing a business continuity solution for the current data centers The new location must mitigate the impact of a disaster in any existing data centers by providing an acceptable level of service The solution must support

•fully segregated Layer 2 and 3 fault domains

•low or no human intervention for service restoration

•medium to high RPCVRTO for a subset of applications

•asynchronous storage replication for application data

Which disaster recovery solution must the customer select to meet these requirements?

An engineer is expanding an existing ISCSI environment and must choose an addressing scheme. When checking one of the devices, the engineer discovers this target device naming used

{prefix}. 2019-01.com.acme.123:00. ftd0cb21.bcb389458389

Which addressing scheme was used in the environment?

A network architect needs secure access to the organization’s perimeter routers and firewalls. The administrator must access network devices from a remote location that is reachable from the WAN cloud Which action meets these requirements?

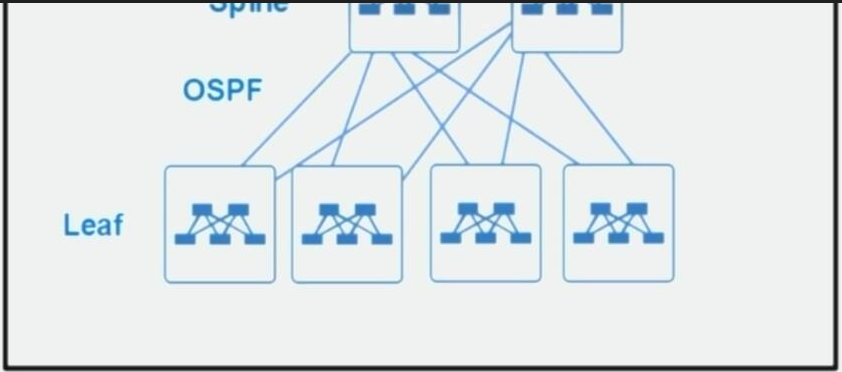

Refer to the exhibit.

Fiber links are provisioned directly between the spine and leaf switches in the given LAN topology A/30 prefix has been configured over each fiber link to provide underlay connectivity for a VXLAN network. The network-engineering team must update the network configuration to provide the shortest possible convergence time if a fiber link is cut. Which action must the team take to meet the requirement?

Refer to the exhibit. A Cisco engineer is configuring a customer scenario with 2 x MDS 9000 switches 24 x UCS B200M6 blade servers. UCS 64S4 Fabric Interconnect in end-host mode and 3 x UCS 5108 server chassis with 2408 Fabric Extenders The engineer installs 6 x SQL Server 2019 on all blades and then notices that there are read and write latencies What is the best way to balance the utilization across the shared ports?

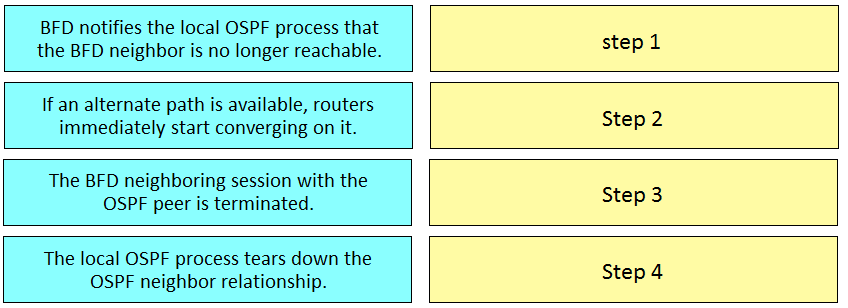

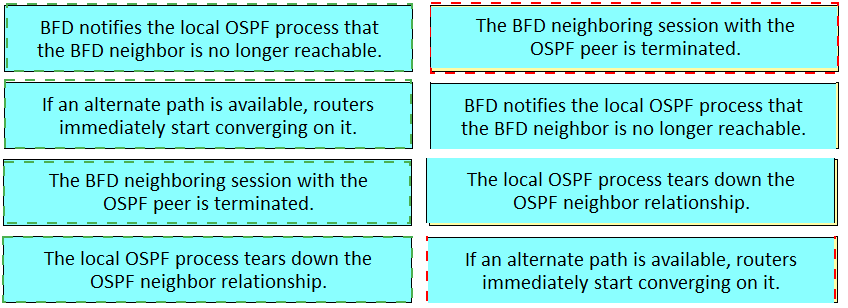

A failure occurs on the network between two BFD and OSPF neighbors. Drag and drop the protocol actions from the left into the correct order on the right.

An engineer is operating data center environment that hosts data-intensive financial applications. The applications are mostly processing HTTP/HTTPS data with large data segments, which results in a CPU contention due to the significant network processing.

Which set of the Ethernet adapter policies must be selected to resolve the issue?

A Cisco UCS instance has four interfaces on a UCS VIC. Where on the fabric interconnect does each interface terminate?
