Total 119 questions

An engineer configures Cisco ACI Multi-Site and must specify the control plane TEP IP for spines. Which statement describes control plane TEP IP in this situation?

A.

The unique IP address is defined on each spine node that belongs to a fabric and is used to establish MP-BGP EVPN and VPNv4 adjacencies with the spine nodes in remote sites.

B.

The unique IP address is defined on each spine node that belongs to a fabric and is used to establish VXLAN adjacencies with the spine nodes in remote sites.

C.

The common anycast address is shared by all the spine nodes in the same site and is used to perform headend replication for BUM traffic.

D.

The common anycast address is shared by all the spine nodes at the same site and is used lo source and receive unicast VXLAN data plane traffic.

A customer plans to deploy a Cisco ACI Multi-Pod deployment. Which two features must be implemented on the IPN switches?

A.

• Enable BIDIR-PIM.

• Configure a minimum multicast range of/15.

B.

• Enable BIDIR-PIM.

• Configure a maximum multicast range of/23.

C.

• Configure PIM anycast RP.

• Configure a minimum multicast range of 123.

D.

• Configure PIM anycast RP.

• Configure a maximum multicast range of /15.

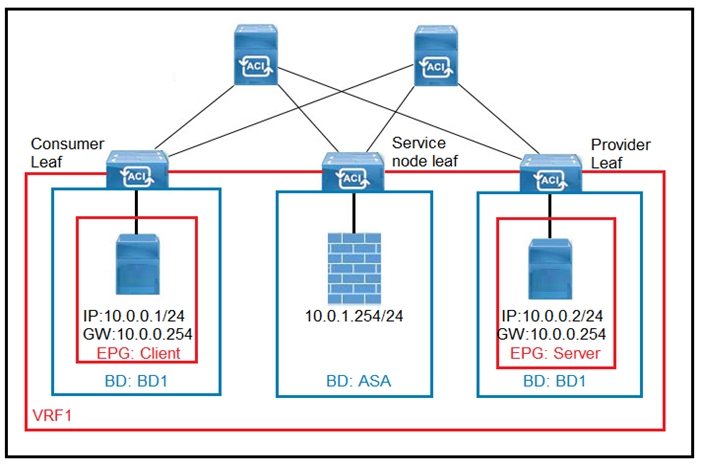

Refer to the exhibit.

What must be configured in the service graph to redirect HTTP traffic between the EPG client and EPG server to go through the Cisco ASA firewall?

A.

contract filter to allow ARP and HTTP

B.

precise filter to allow only HTTP traffic

C.

contract with no filter

D.

permit-all contract filter

How is multicast traffic managed in a Cisco ACI fabric?

A.

FTag trees are rooted at the spine nodes. Cisco APIC determines the roots.

B.

FTag trees are rooted at the leaf nodes. Cisco APIC determines the roots.

C.

FTag trees are rooted at the leaf nodes. The roots must be configured manually.

D.

FTag trees are rooted at the spine nodes. The roots must be configured manually.

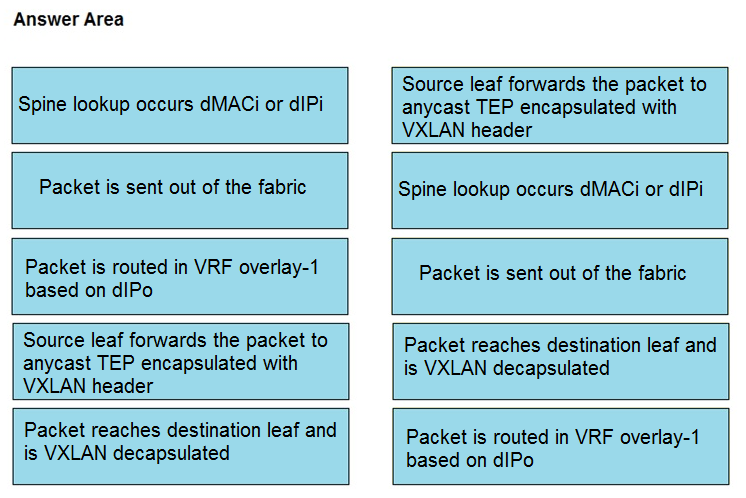

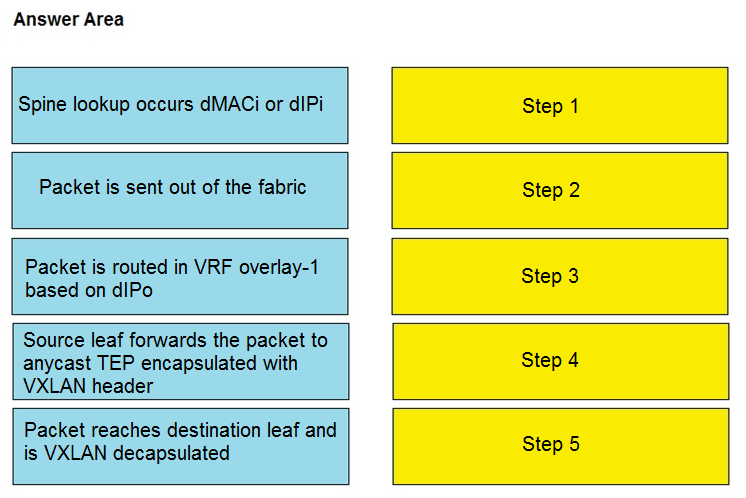

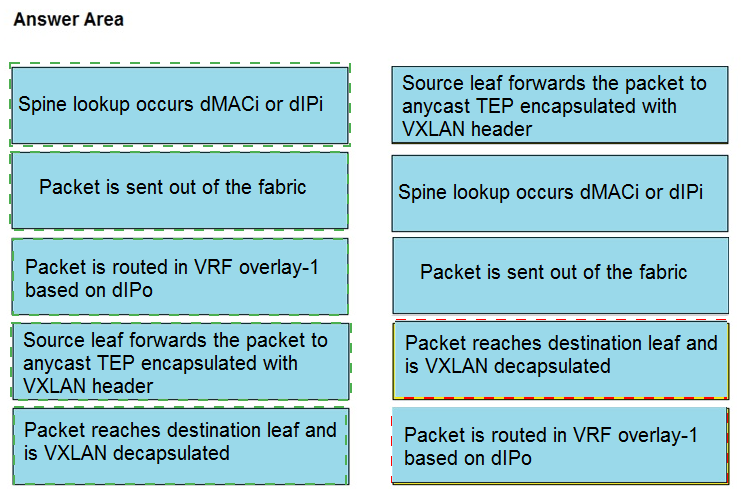

A leaf receives unicast traffic that is destined to an unknown source, and spine proxy is enabled in the corresponding bridge domain. Drag and drop the Cisco ACI forwarding operations from the left into the order the operation occurs on the right.
