Cisco 300-720 - Securing Email with Cisco Email Security Appliance (300-720 SESA)

SenderBase Reputation Filtering is a feature that allows Cisco ESA to reject or throttle connections from email servers based on their reputation score, which is calculated by Talos using sensor information from various sources.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 6-2.

Web reputation score is a feature that allows Cisco ESA to evaluate the reputation of URLs in messages based on real-time data from Talos intelligence and apply appropriate actions, such as block, quarantine, or deliver.

To ensure that Cisco ESA evaluates the web reputation score before permitting this email, the administrator should use two criteria to create a content filter or message filter that matches this email and applies an action of “check web reputation”:

Sender matches test1.com, which means that the sender’s domain name is test1.com.

Email body contains a URL, which means that the message body has one or more URLs in it.

The other options are not valid criteria to ensure that Cisco ESA evaluates the web reputation score before permitting this email, because they do not match this email or they are not relevant to web reputation score.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 8-3 and page 8-7.

When CRES (Cisco Registered Envelope Service) is unavailable, Cisco ESA will requeue the message and attempt to resend it later, until the maximum number of retries or the maximum age of the message is reached. The message will not be sent in clear text, dropped, or encrypted by another appliance.

References: User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway, page 12-8.

Outbreak Filters can take the action of rewriting URLs to redirect traffic to potentially harmful websites through a web security proxy. This allows the Cisco Secure Email Gateway to scan the content of the websites and block or warn the user if they are malicious or undesirable. This action can stop small-scale and nonviral attacks, such as phishing scams and malware distribution sites, that may not be detected by other filters. References: [Cisco Secure Email Gateway Administrator Guide - Configuring Outbreak Filters]

Relay is the connection behavior that must be selected to properly process the messages. Relay allows Cisco ESA to accept messages from the specified source and deliver them to the intended destination, without applying any content or reputation filters.

To configure a mail flow policy with relay connection behavior on Cisco ESA, the administrator can follow these steps:

Select Mail Policies > Mail Flow Policies and click Add Policy.

Enter a name and description for the mail flow policy, such as Exchange Outbound.

Under Connection Behavior, select Relay.

Click Submit.

The other options are not valid connection behaviors to properly process the messages, because they either reject, delay, or accept the messages with content or reputation filters applied.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 6-2 and page 6-3.

Custom policy is a type of DLP policy template that must be used to create a policy that meets this requirement. Custom policy allows the administrator to define their own criteria for detecting sensitive or confidential data in messages, such as keywords, regular expressions, file types, etc.

To create a custom DLP policy on Cisco ESA, the administrator can follow these steps:

Select Mail Policies > DLP Policy Manager and click Add Policy.

Enter a name and description for the DLP policy, such as Patent Protection.

Under Policy Template, select Custom Policy.

Click Submit.

Under Content Matching Criteria, click Add Criteria.

Choose a matching type, such as Keyword or Regular Expression, and enter a value that matches the proprietary patent documents, such as “patent number” or “\d{4}/\d{6}”.

Click Submit.

The other options are not valid types of DLP policy templates to create a policy that meets this requirement, because they are predefined templates that do not match the proprietary patent documents.

References: [User Guide for AsyncOS 15.0 for Cisco Secure Email Gateway], page 9-3 and page 9-5.

Public/Private keypair. A public/private keypair is a pair of cryptographic keys that are used to generate and verify digital signatures. The private key is used to sign the email message, while the public key is used to verify the signature. The public key is published in a DNS record, while the private key is stored on the Cisco Secure Email Gateway appliance[1, p. 2].

Domain signing profile. A domain signing profile is a configuration that specifies the domain and selector to use for signing outgoing messages, as well as the signing algorithm, canonicalization method, and header fields to include in the signature. You can create multiple domain signing profiles for different domains or subdomains[1, p. 3].

The other options are not valid because:

A. DMARC verification profile is not a component for utilizing a digital signature in outgoing emails. It is a component for verifying the authenticity of incoming emails based on SPF and DKIM results[2, p. 1].

B. SPF record is not a component for utilizing a digital signature in outgoing emails. It is a component for validating the sender IP address of incoming emails based on a list of authorized IP addresses published in a DNS record[3, p. 1].

E. PKI certificate is not a component for utilizing a digital signature in outgoing emails. It is a component for encrypting and decrypting email messages based on a certificate authority that issues and validates certificates[4, p. 1].

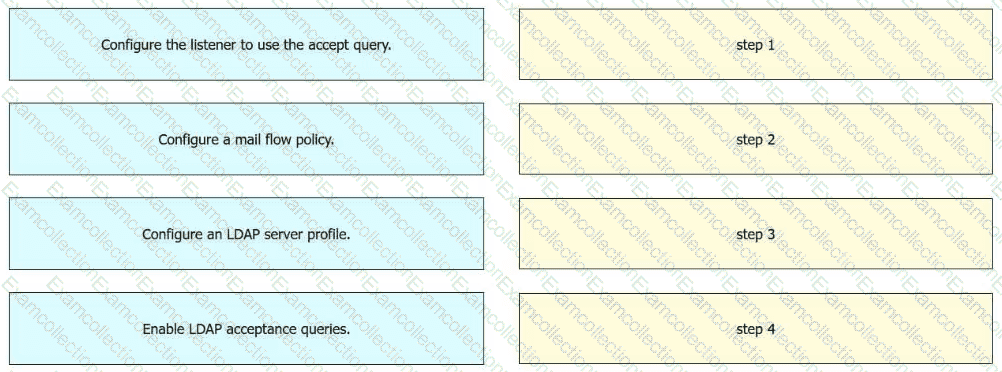

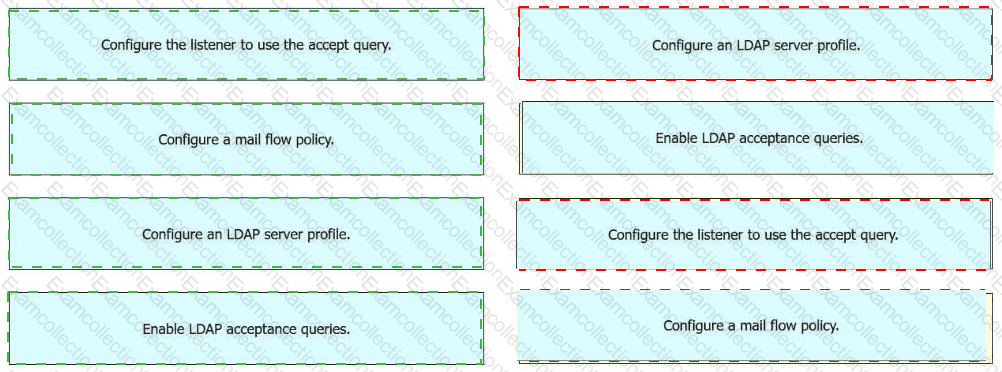

To enable LDAP recipient verification on a Cisco Secure Email Gateway appliance, you need to configure the LDAP query on a listener and configure LDAP server profiles. The LDAP query specifies the criteria for matching recipient addresses against an LDAP directory. The LDAP server profile defines the connection settings and authentication credentials for accessing an LDAP server2. References = User Guide for AsyncOS 12.0 for Cisco Email Security Appliances - GD (General Deployment) - Configuring LDAP Queries [Cisco Secure Email Gateway] - Cisco

According to the [Cisco Secure Email User Guide], Non-Viral threat detection is a feature of Outbreak Filters that detects and blocks email messages that contain non-viral threats such as phishing, fraud, or social engineering[1, p. 25]. To use this feature, you need to enable either AntiSpam or Intelligent Multi-Scan on your Cisco Secure Email Gateway, as these features provide the necessary scanning and filtering capabilities for Non-Viral threat detection[1, p. 26].

The other options are not valid because:

A. Non-Viral threat detection does not require Antivirus or AMP enablement to properly function. Antivirus and AMP are features that detect and block email messages that contain viral threats such as malware or ransomware[1, p. 27-28].

B. The Outbreak Filters option Graymail Header does not affect Non-Viral threat detection. Graymail Header is an option that allows you to add a header to email messages that are classified as graymail, which are messages that are not spam but may be unwanted by some recipients, such as newsletters or promotions[1, p. 25].

D. The Outbreak Filters option URL Rewriting does not affect Non-Viral threat detection. URL Rewriting is an option that allows you to rewrite the URLs in email messages to point to a Cisco proxy server, which can scan the URLs for malicious content and redirect the users to a warning page if needed[1, p. 25].

Large file attachments will be sent as a securedoc attachment. This means that the recipient will receive an encrypted message with a securedoc.html attachment that contains a link to download the large file from the Cisco Secure Email Encryption Service portal[2, p. 9].

This feature can only be enabled if the Read from Message feature is enabled. The Read from Message feature allows you to encrypt messages based on keywords or phrases in the subject or body of the message. You need to enable this feature before you can enable the large file attachments feature[2, p. 8].

The other options are not valid because:

A. Large file attachments can be sent using both the websafe portal and the Cisco Secure Email Add-In. The websafe portal allows you to compose and send encrypted messages from any web browser, while the Cisco Secure Email Add-In allows you to encrypt messages from your email client such as Outlook[2, p. 6-7].

B. This feature allows users to send up to 100MB of attachments in a secure email, not 50MB[2, p. 9].

D. Large file attachments can be sent using both the websafe portal and the Cisco Secure Email Add-In. The websafe portal allows you to compose and send encrypted messages from any web browser, while the Cisco Secure Email Add-In allows you to encrypt messages from your email client such as Outlook[2, p. 6-7].
