An LTM Specialist needs to load balance an application using an LTM device to meet the requirements:

The application servers do NOT Support SSL, but client access to the application should be secured.

Multiple requests from the same client should be sent to the same pool member.

All pool members will have roughly the same processing power, and traffic should be distributed evenly.

The LTM device is NOT the pool members' default gateway.

which configuration should the LTM Specialist.

A.

a performance 14 virtual server with a SNAT and cookie persistence

B.

a performance L4 virtual server with a Client SSL profile and Source Address persistence

C.

A performance L4 virtual server with a SNAT, HTTP profile. Server SSL profile, and cookie persistence

D.

A standard virtual server with a SNAT, HTTP profile Server SSL profile, and cookie persistence

E.

A standard virtual server with a SNAT, HTTP profile, Client profile, andd cookie persistance.

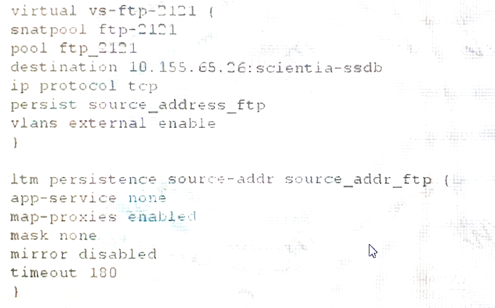

An LTM Specialist is experiencing issues in a failover event. Certain long-lasting FTP event. Certain long-lasting FTP connections using a single node pool are forced to reconnect. The bigip.conf extract is shown:

What does the LTM Specialist need to change in the configuration to avoid this issue?

A.

snatpool

B.

persistence mirroring

C.

connection mirroring

D.

ftp profile

An HTTP monitor is created and assigned to a pool with the following non-default configuration:

Interval: 7 seconds

Timeout: 22 seconds

Reverse: Yes

Send String: GET/status.html HTTP/1.1/r/nHost:test.example.com/r/nConnector:Close Receive String: Up

The HTTP server sends the following response:

What is the resulting pool status?

A.

Unavailable (Enabled)

Available (Enabled)

B.

Offline (Enabled)

C.

Unknown (Disabled)

What should an LTM Specialist configure on an LTM device to send AVR notification emails?

A.

Email notification to be sent via iControl from the LTM device

B.

Syslog on the LTM device to send to an SMTP server

C.

Custom SNMP traps on the LTM device for AVR notifications

D.

Email notification to be sent via SMTP from the LTM device
