Cisco 350-501 - Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR)

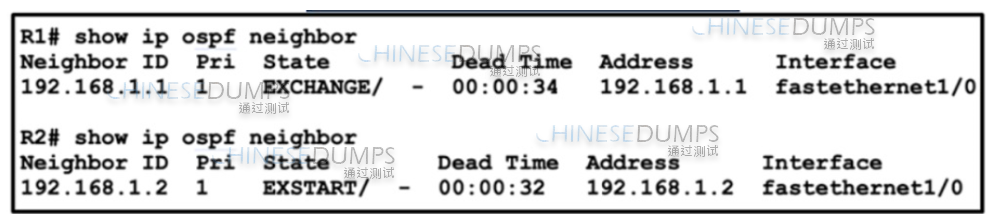

When OSPF routers establish adjacency, they must agree on the MTU size on the connecting interface. If the MTUs do not match, the routers will not form an OSPF adjacency, and the link between them will not come up. Therefore, configuring the MTUs on the interfaces to match is essential for the OSPF network to function correctly.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR)

 Both Chef and Puppet are configuration management platforms that aim to configure and manage servers and other IT infrastructure. They operate in the same infrastructure management space and share several similarities:

Use a master-client architecture: Chef functions with a master-client architecture, where the server runs on the master machine, and the client runs as an agent on every client machine. Similarly, Puppet follows a similar setup.

Manage devices or nodes to be configured: Both Chef and Puppet manage the configuration of devices or nodes within an infrastructure.

Leverage a pull model: Both tools use a pull model, where the configuration is pulled from a central server to the managed nodes.

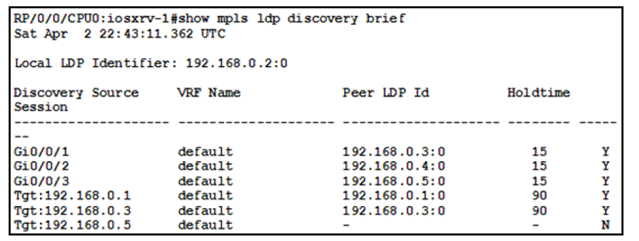

LDP session protection capability is a feature that maintains LDP bindings when a link fails, using LDP Targeted Hellos to protect LDP sessions. Without the specific exhibit, it’s not possible to determine which router has LDP session protection enabled but session hold up is not active.

References: Information about MPLS LDP Session Protection can be found in Cisco documentation, such as the Cisco IOS MPLS Configuration Guide.

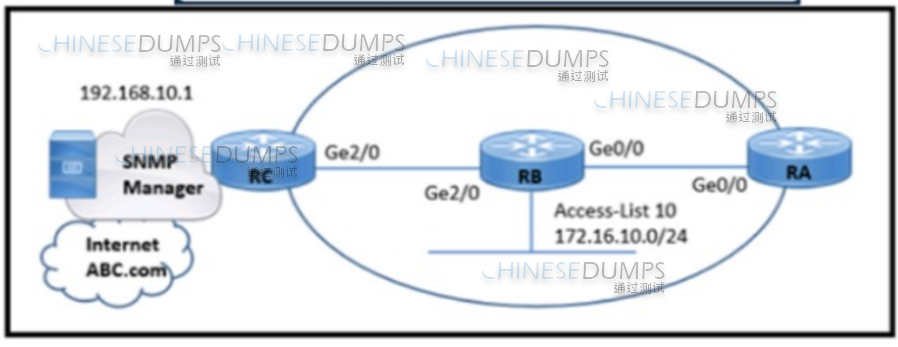

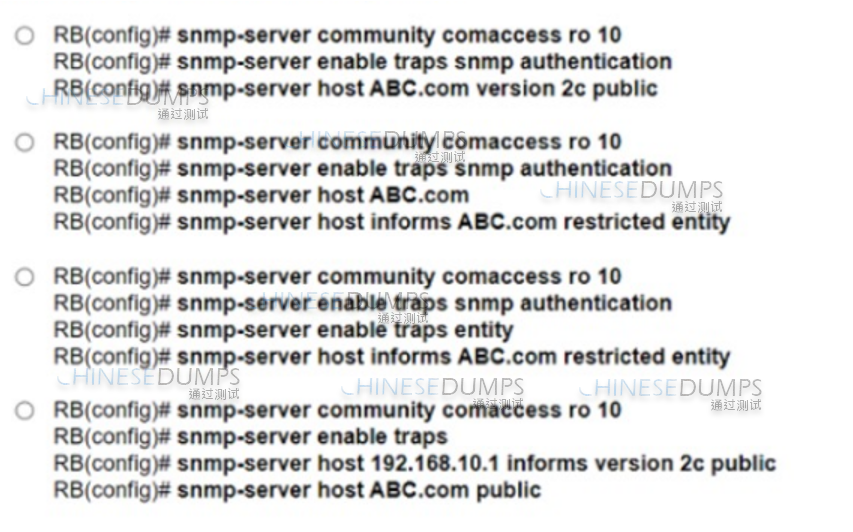

Option B is the correct answer because it meets all the given requirements. The configuration “snmp-server community comaccess ro 10” allows read-only access for all objects to members of Access-List 10 that use the comaccess community string. The “snmp-server host ABC.com informs version 2c public” command ensures SNMP authentication failure traps are sent to SNMPv2c and then to the host using SNMPv2c with the public community string.

 A prefix segment identifier (PSID) is a unique identifier used in Segment Routing (SR) networks. It is locally significant within a specific SR domain. Each PSID corresponds to a specific segment (such as a node or an adjacency) in the SR domain. PSIDs are used to create segment lists that define the path a packet should follow through the network. Unlike globally unique identifiers, PSIDs are only meaningful within the context of a single SR domain.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) v1.0

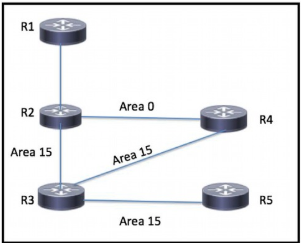

 In the given scenario, to ensure that area 15 traffic from R5 to R1 prefers the route through R4, a multiarea adjacency should be implemented on the link between R2 and R4. The cost can be manipulated to make this path preferred. Multiarea adjacency allows OSPF routers to form adjacencies with routers in other areas, enabling more direct routing of traffic. By adjusting the cost of this adjacency, traffic can be directed preferentially through specific paths.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) study guide or course materials available on Cisco’s official website or learning network store.
