VMware 3V0-25.25 - Advanced VMware Cloud Foundation 9.0 Networking

the administrator should click theTier-1 DR iconlocated within theEdge Node.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:In aVMware Cloud Foundation (VCF)environment, North-South traffic flows through a hierarchical routing structure composed ofTier-0andTier-1 Gateways. Each gateway is further divided into aDistributed Router (DR)component, which runs as a kernel module on all Transport Nodes (ESXi and Edges), and aService Router (SR), which provides centralized services and resides on the Edge Nodes.

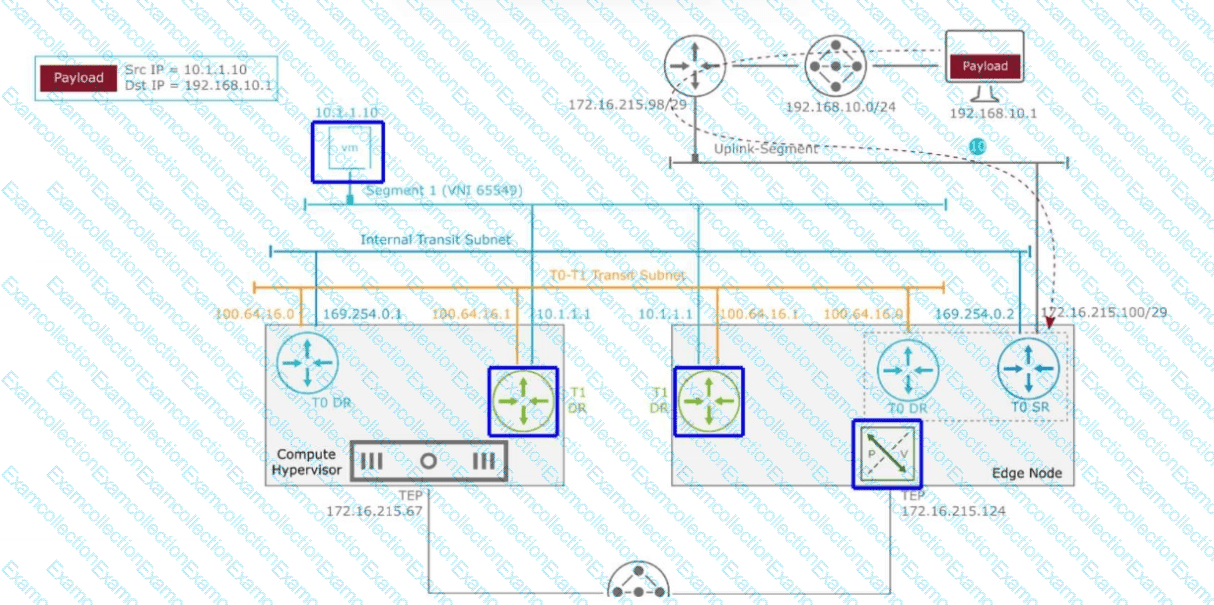

According to the packet walk logic for an incoming (North-to-South) packet, once the traffic arrives from the physical router at theTier-0 Service Router (SR)on the Edge Node, it must be routed toward the destination virtual machine (10.1.1.10). In a multi-tier NSX architecture, the Tier-0 SR identifies that the destination subnet belongs to a connectedTier-1 Gateway. The communication between the Tier-0 and Tier-1 gateways occurs over an internal transit subnet, often referred to as theRouter Link(in this diagram, represented by the 100.64.16.0/31 subnet).

The "Next Hop" for the packet currently residing at the Tier-0 SR on the Edge Node is theTier-1 Distributed Router (DR)instance located on that same Edge Node. This is because the Edge Node participates as a Transport Node in the overlay and maintains local instances of all Distributed Routers to ensure efficient path processing. After the packet is processed by the local Tier-1 DR on the Edge Node, it determines that the destination VM is residing on a remote host (Compute Hypervisor). Only then is the packet encapsulated in aGeneveheader and sent via theTunnel Endpoints (TEP)from the Edge Node (172.16.215.124) to the Compute Hypervisor (172.16.215.67). Therefore, the Tier-1 DR on the Edge Node is the immediate logical next step in the routing pipeline before any host-to-host encapsulation occurs.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a VMware Cloud Foundation (VCF) environment, troubleshooting packet loss requires tools that can provide visibility into both the logical and physical paths of a packet. When dealing specifically withVLAN segments(as opposed to Overlay segments), the traffic does not leave the host encapsulated in Geneve; instead, it is tagged with a standard 802.1Q header.

Traceflowis the primary diagnostic tool within NSX for identifying where a packet is being dropped. It allows an administrator to inject a synthetic packet into the data plane from a source (such as a VM vNIC) to a destination. The tool then reports back every "observation point" along the path, including switching, routing, and firewalling. If a packet is dropped by a Distributed Firewall (DFW) rule or a physical misconfiguration that wasn't caught initially, Traceflow will explicitly state at which stage the packet was lost.

Packet Captureis the second essential tool. NSX provides a robust, distributed packet capture utility that can be executed from the NSX Manager CLI or UI. This tool allows administrators to capture traffic at various points, such as the vNIC, the switch port, or the physical uplink (vmnic) of the ESXi Transport Node. By comparing captures from different points, an administrator can determine if a packet is reaching the virtual switch but failing to exit the physical NIC, or if return traffic is reaching the host but not the VM.

Options likeFlow MonitoringandLive Floware excellent for observing traffic patterns and session statistics (IPFIX), but they are less effective for pinpointing the exact cause of "packet loss" compared to the granular, packet-level analysis provided by Traceflow and Packet Capture.Activity Monitoringis typically used for endpoint introspection and user-level activity, which is irrelevant to Layer 2/3 packet loss troubleshooting.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), the lifecycle of the NSX Manager cluster is strictly managed bySDDC Manager. During the initial deployment of a Management Domain or the creation of a new Workload Domain (if using a separate NSX instance), the administrator selects a "Form Factor" (Small, Medium, Large, or Extra Large) based on the expected scale of the environment.

As of current VCF versions (including 5.x), theForm Factoris a parameter defined during the deployment workflow that determines the resource reservations (CPU/RAM) and the disk partitioning of the appliance OVA. Unlike a standard virtual machine where you might simply adjust the vCPU and RAM settings in vCenter, the NSX Manager appliance is an opinionated system. Changing resources manually through vCenter (Option C) is not supported and can lead to stability issues or "Out of Sync" errors within SDDC Manager, as the database and internal services are tuned for the specific size selected at install.

There is currently no supported "in-place" upgrade or downgrade for the form factor of an existing NSX Manager node via the UI or API (Option B). To change the size, the administrator mustredeploythe manager nodes. In a VCF context, this often involves using SDDC Manager to delete the cluster or manually replacing nodes one by one—essentially deploying a new node of the correct size, joining it to the management cluster, syncing the data, and then removing the old, oversized node.

VCF Operations(formerly vRealize Operations) can provide "Right-sizing"recommendations(Option D), but it cannot execute the physical resizing of an NSX Manager appliance within the VCF framework. Therefore, the manual or orchestrated redeployment of the nodes is the only verified method to change the appliance footprint.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theVMware Cloud Foundation (VCF) 9.0andNSX VPCarchitecture, theTransit Gateway (TGW)is the central routing element that interconnects VPCs to each other and to the provider's infrastructure (Tier-0 or VRF gateways). It acts as the "Project-level" gateway that aggregates North-South traffic.

To control the visibility of routes within a specific VPC, the administrator must utilizeRoute Filteringat the VPC's boundary. When a VPC is attached to a Transit Gateway, a logical interface is created. To prevent the data center's internal prefixes (such as management networks or other tenant subnets) from being seen by the VPC while still providing a path to the internet, a prefix list or route map should be applied to theVPC Transit Gateway. This policy will explicitly "Deny" specific internal CIDR ranges while "Permitting" the $0.0.0.0/0$ default route advertisement from the provider.

Applying the policy at theTier-1 gateway(Option B) is technically similar but in the VPC model, the "Tier-1" is often an obscured or automated component of the VPC itself; the Transit Gateway is the designed administrative point for inter-project and North-South policy enforcement. Applying it at theprovider Tier-0 neighbor(Option D) would be too global, affecting all VPCs or projects connected to that Tier-0, rather than the "new VPC" specifically. Therefore, the Transit Gateway provides the necessary granular control for multi-tenant isolation and routing optimization as per the VCF 9.0 networking model.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the architectural framework ofVMware Cloud Foundation (VCF) 9.0, the deployment and lifecycle management of infrastructure components have transitioned into a unified "Fleet Management" model. While previous versions of VCF (like 4.x or 5.x) relied exclusively on the SDDC Manager UI for the deployment of NSX Edge Clusters, VCF 9.0 centralizes these operations withinVCF Operations(integrated with the functionality formerly known as Aria Operations).

To initiate the deployment of an NSX Edge Cluster for a workload domain, the administrator uses theVCF Operations Fleet Manager. This interface provides a centralized orchestration point for the entire VCF "fleet." When the deployment is triggered here, the system automates the selection of the underlying ESXi hosts, the configuration of the Virtual Distributed Switch (VDS) trunks, and the instantiation of the Edge VM appliances. This ensures that the deployment adheres strictly to theVMware Validated Solutions (VVS)guidelines and is consistent across all domains.

Option A is incorrect because theVCF Installer(Cloud Builder) is used for the initial "Day 0" bring-up of the Management Domain, not for post-deployment additions to workload domains. Option C and D are incorrect asvCenterand theVAMIdo not possess the multi-component awareness or the SDDC-level automation required to configure NSX Edge Clusters in a VCF context. By usingFleet Manager, VCF ensures that the new Edge cluster is automatically integrated into the SDDC Manager’s inventory and lifecycle management workflows, maintaining a "single source of truth" for the entire private cloud environment.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

NSX Federation, a core component of large-scale VCF deployments across multiple sites or "fleets," introduces a hierarchical management model where aGlobal Manager (GM)orchestrates security policies and networking objects across multipleLocal Managers (LMs).

To ensure stability and compatibility in the communication between the Global Manager and the Local Managers, VMware documentation specifies strictversion parityrequirements. When onboarding a site into a Federation, the Local Manager at that site must be running thesame NSX version and buildas the other sites in the Federation and must be compatible with the Global Manager’s version. Discrepancies in versions can lead to synchronization failures, as the API schemas and internal database structures for Global Objects (like Global Segments or Groups) may differ between builds.

While Federation allows for geographic and administrative separation, the underlying software-defined networking stack must be synchronized. Option A is incorrect; in fact, VTEP/TEP VLANs and IP poolsshouldbe unique to each site to avoid IP conflicts in the transport network, though they must have Layer 3 reachability to one another. Option B is incorrect; unique BGP AS numbers are often preferred for multi-site routing to prevent loops. Option C is also incorrect, as Federation is specifically designed to link different VCF instances (sites) together into a single manageable entity.

In aVCF 5.x or 9.0context, the SDDC Manager helps maintain this requirement by ensuring that the "Bill of Materials" (BOM) is consistent across sites intended for Federation. Before the GM can successfully register and "push" configuration to an LM, the handshake process validates the build version to prevent the corruption of the global intended state.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), the protection of theNSX Managerconfiguration is paramount, as it contains the state of the entire software-defined network, including firewall rules, logical switches, and routing topologies. To meet strict compliance requirements for real-time or change-based protection, NSX offers specific automated backup triggers.

Within theNSX Manager UI(under System > Lifecycle > Backup & Restore), an administrator can configure the backup behavior. While a time-based schedule (e.g., daily at 2:00 AM) is common, it does not satisfy the requirement for backups "anytime a change is made." To accomplish this, the administrator must enable the"Backup on Configuration Change"toggle within the backup scheduling configuration.

When this feature is enabled, the NSX Manager monitors its own management database (DS) for write operations. Once a configuration change is detected (such as adding a segment or modifying a DFW rule), the system initiates an automated backup process. This ensures that the backup repository always contains a near-instantaneous reflection of the current network state, minimizing data loss in the event of a cluster failure.

Option B is incorrect because this feature is not enabled by default; it requires an external SFTP/FTP server to be configured first. Option C (Cron jobs) is an unsupported manual workaround that bypasses the SDDC-native management tools. Option A is redundant as the functionality is built directly into the NSX backup engine. Consequently, the verified method for compliance is to use thenative recurring backup schedule with the "Detect Configuration Change" option enabled.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the advanced networking architecture ofVMware Cloud Foundation (VCF) 9.0and the evolution ofNSX VPCs, the control of route propagation is managed through the relationship between the consumer (the VPC) and the provider (the Tier-0 or Tier-1 Gateway). When a VPC is created, it is logically connected to the provider's infrastructure via aTransit Gateway(or a Provider-side logical router acting as a transit point).

To control the flow of routing information—specifically to prevent the data center's physical network from learning about internal VPC subnets (prefixes) while ensuring the VPC can still reach the outside world via a default route—the routing policy must be applied at the point of intersection. TheTransit Gatewayserves as this demarcation point. By applying a route filter or prefix list on the Transit Gateway, the administrator can explicitly deny the advertisement of internal VPC prefixes "upstream" to the provider's BGP process. Simultaneously, the provider can still inject or "advertise" a default route ($0.0.0.0/0$) "downstream" into the VPC.

Applying the policy on theVPC Gateway Firewall(Option D) would impact the data plane (blocking traffic) but would not prevent the routing table from being populated. TheBGP peer template(Option C) is too broad, as it would likely affect all VPCs connected to that provider, rather than just the "new VPC" in question. Thedefault route advertiser(Option A) only controls the egress of the default route, not the suppression of internal prefixes. Therefore, the Transit Gateway is the verified location for granular route control in a multi-tenant VCF VPC environment.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)architecture, theTier-0 Gatewayis the primary point of integration between the virtualized network and the physical world. When dealing with multiple upstream routers (multi-homing), administrators must influence the BGP path selection process to ensure traffic follows the desired path and avoids suboptimal routing or asymmetric flows.

AS-Path Prependis a common technique used to influenceinbound traffic(traffic coming from the physical network into the NSX environment). By repeating its own Autonomous System (AS) number multiple times in the BGP advertisement, the Tier-0 Gateway makes a specific path look "longer" and therefore less desirable to the upstream physical routers. Since BGP prefers the shortest AS-Path, the routers will favor the alternate link that does not have the prepended AS numbers. This is a critical tool in VCF designs to ensure that a primary link is utilized unless a failure occurs.

MED (Multi-Exit Discriminator)is an attribute that suggests to an adjacent external AS which path to take among multiple entry points to the same AS. Like AS-Path Prepend, it influences inbound traffic. A lower MED value is preferred over a higher one. In a VCF environment with multiple Edge Nodes or multiple Tier-0 uplinks, setting different MED values allows the administrator to prioritize specific entry points for traffic entering the SDDC.

BFD (Bidirectional Forwarding Detection)is not a BGP attribute; it is a detection protocol used to provide fast failure detection of the link between BGP neighbors. While it triggers faster convergence, it does not influence path selection based on attributes.Costis an OSPF attribute, not a native BGP attribute. Therefore, in the context of NSX Tier-0 BGP configuration, AS-Path Prepend and MED are the verified methods for path manipulation.

===========
