ARDMS AB-Abdomen - Abdomen Sonography Examination

Pancreas divisum occurs when the dorsal and ventral pancreatic ducts fail to fuse during embryologic development. This results in most pancreatic secretions draining through the minor papilla via the dorsal duct (duct of Santorini).

According to Rumack’s Diagnostic Ultrasound:

“In pancreas divisum, the dorsal and ventral pancreatic ducts fail to fuse, resulting in separate drainage systems.”

A ultrasound image of a person's body AI-generated content may be incorrect.

The origin of the superior mesenteric artery (SMA)

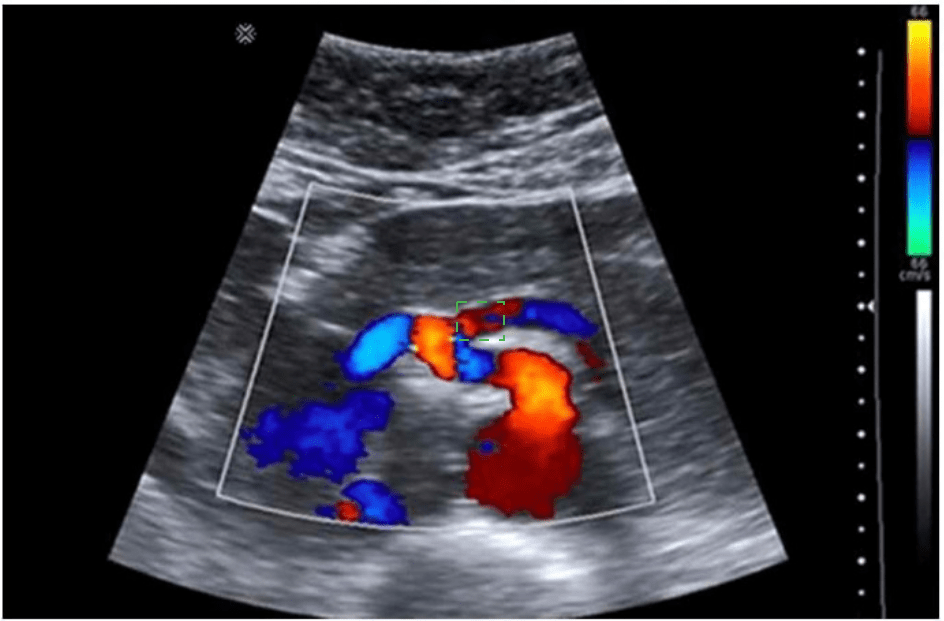

The image provided is a color Doppler ultrasound scan of the abdominal aorta and its major branches. In the center of the image, just anterior to the aorta, we see the superior mesenteric artery (SMA) arising in the sagittal plane. This is the critical area for Doppler sampling in a patient with symptoms suggestive of mesenteric ischemia.

Severe postprandial pain in a young woman may be a manifestation of median arcuate ligament syndrome (MALS) or chronic mesenteric ischemia. Both of these conditions are assessed via Doppler sampling of mesenteric vessels, specifically:

The origin and proximal segment of the SMA

The celiac artery (especially for MALS)

Doppler waveform analysis should assess:

Peak systolic velocity (PSV): >275 cm/s suggests ≥70% SMA stenosis

Angle correction should be aligned properly

Sampling must be performed at the narrowest origin point (as shown in the image)

This type of Doppler interrogation is typically done in both fasting and postprandial states to evaluate changes in flow and symptom correlation.

Why this area?

The SMA is anterior to the aorta and travels inferiorly into the mesentery.

The site shown in the image is ideal for measuring PSV and evaluating for stenosis or extrinsic compression.

De Quervain thyroiditis (subacute granulomatous thyroiditis) is often triggered by a viral infection. Patients may present with painful thyroid enlargement, elevated inflammatory markers, and transient hyperthyroidism. Hashimoto’s and Graves' diseases are autoimmune in nature.

According to Braverman’s The Thyroid:

“Subacute (De Quervain) thyroiditis typically follows a viral upper respiratory tract infection and is characterized by thyroid pain and transient thyrotoxicosis.”

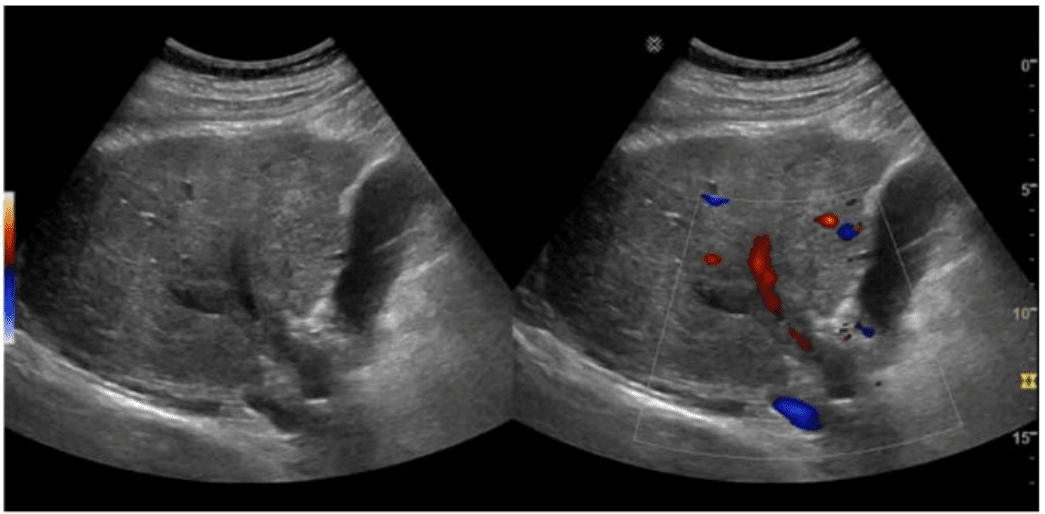

The sonographic images depict an acute thrombotic process involving the portal venous system. The absence of cavernous transformation in the setting of portal vein thrombus indicates that the process is acute. In chronic portal vein thrombosis, collateral vessels form in the porta hepatis to bypass the obstruction, a process known as cavernous transformation.

Sonographic features suggesting acute portal vein thrombosis:

Echogenic thrombus within the portal vein lumen

Absence of flow on color Doppler

Enlarged portal vein diameter early in the process

No evidence of cavernous transformation (i.e., no serpiginous collateral vessels at porta hepatis)

Cavernous transformation is a hallmark of chronic portal vein thrombosis and takes weeks to months to develop. Therefore, its absence on ultrasound supports an acute diagnosis.

Differentiation from other options:

A. Free fluid: Non-specific and may or may not be present in hepatic vascular thrombosis.

B. Ductal dilatation: Related to biliary obstruction, not portal or hepatic venous thrombosis.

C. Hepatic vein thrombosis: Seen in Budd-Chiari syndrome, which affects hepatic outflow, not portal inflow.

The tunica albuginea is the dense fibrous capsule that directly surrounds the testicular parenchyma. The tunica vaginalis is a serous covering surrounding the testis externally, and the dartos fascia and pampiniform plexus are part of the scrotal wall and spermatic cord, respectively.

According to Rumack’s Diagnostic Ultrasound:

“The tunica albuginea is the fibrous capsule surrounding the testis and forming septa within the gland.”

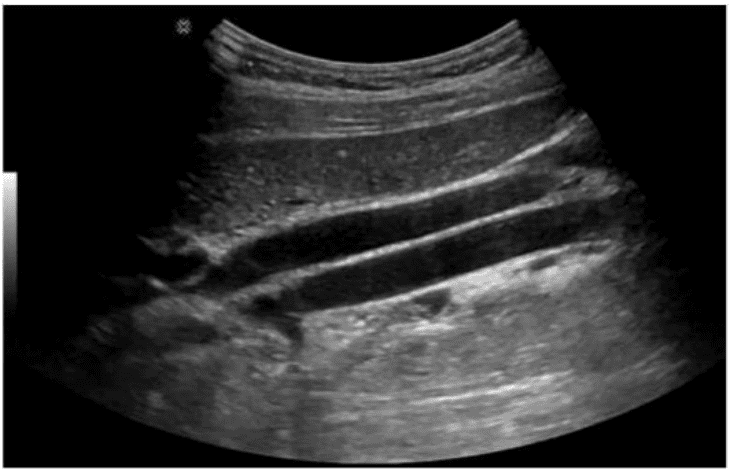

The ultrasound image provided shows the liver and diaphragm imaged in a coronal plane with characteristic rib shadows and costophrenic angles. The orientation of the image and the structures visualized suggest that the transducer is placed in the right mid-axillary line, with the sound beam directed coronally — this is a classic right coronal scanning approach.

Key features supporting this:

The liver appears superiorly in the image.

Multiple echogenic lines (representing the ribs) run obliquely, casting acoustic shadows.

The diaphragm and adjacent lung base are seen clearly, which is commonly imaged through the right intercostal spaces in a coronal plane.

Comparison of answer choices:

A. Anterior: Would show a more transverse view of the liver and not typically image the diaphragm and lung this way.

B. Posterior: Not used for upper abdominal scanning due to shadowing from the spine and posterior ribs.

C. Left coronal: Would show the spleen and left kidney — not the liver as seen here.

D. Right coronal — Correct. This image was obtained using the right coronal (intercostal) approach through the right flank.

Nutcracker syndrome results from compression of the left renal vein between the superior mesenteric artery (SMA) and the aorta. This can cause hematuria, flank pain, and pelvic congestion due to impaired venous drainage.

According to Zwiebel’s Introduction to Vascular Ultrasound:

“In nutcracker syndrome, the left renal vein is compressed between the aorta and SMA, resulting in venous hypertension.”

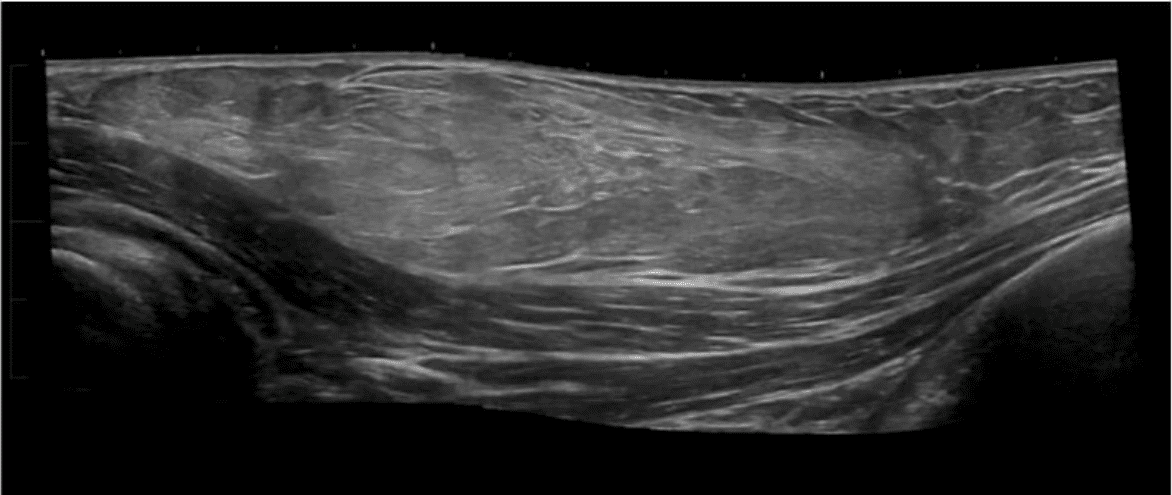

The ultrasound image shows disruption of the normal fibrillar echotexture of a muscle or tendon, consistent with a soft tissue injury such as a muscle or tendon tear. There is likely hypoechoic fluid consistent with a hematoma or edema, which commonly results from blunt or direct trauma.

This image is typical of a traumatic injury (e.g., partial or complete tendon rupture or muscle strain/tear). These findings are frequently encountered in athletic injuries or blunt force trauma and correlate strongly with the clinical history of trauma.

Key sonographic features suggestive of trauma:

Discontinuity or heterogeneity of normal striated muscle or tendon pattern

Hypoechoic or anechoic area representing hematoma or fluid collection

Retraction of muscle or tendon ends (in full-thickness tears)

Surrounding soft tissue edema

Differentiation from other options:

B. Focal pain: While pain may be a symptom, trauma is the more definitive and primary clinical indication for the findings shown.

C. Palpable abnormality: May suggest a mass or cystic lesion (e.g., lipoma, abscess), not typically the appearance shown here.

D. Decreased range of motion: May be present secondarily, but not the most consistent or primary clinical indication in this case.

Alpha-fetoprotein (AFP) is commonly elevated in patients with hepatocellular carcinoma (hepatoma), particularly in those with underlying cirrhosis or chronic hepatitis B/C. AFP is not typically elevated in adenomas, cholangiocarcinoma, or FNH.

According to Rumack’s Diagnostic Ultrasound:

“Serum AFP levels are elevated in 50–70% of patients with hepatocellular carcinoma.”

A varicocele is an abnormal dilatation of the pampiniform plexus veins, usually seen on the left side due to the perpendicular insertion of the left testicular vein into the left renal vein, making it more susceptible to elevated venous pressure. Sonographically, varicoceles appear as multiple serpiginous anechoic tubular structures that show venous flow on color Doppler, often accentuated with Valsalva maneuver.

Hydrocele (A) is a fluid collection surrounding the testis.

Hematocele (C) is blood within the tunica vaginalis.

Spermatocele (D) is a cystic lesion arising from the epididymis.

Reference Extracts:

Dogra VS, Bhatt S. "Sonographic evaluation of testicular varicoceles." Journal of Ultrasound in Medicine. 2004;23(6): 829-838.

Rumack CM, Wilson SR, Charboneau JW, Levine D. Diagnostic Ultrasound. 5th ed. Elsevier, 2017.

—
