ARDMS AB-Abdomen - Abdomen Sonography Examination

The tunica albuginea is a dense fibrous capsule surrounding the testis. Discontinuity of the tunica albuginea on ultrasound is diagnostic of testicular rupture — a urologic emergency that requires immediate surgical repair to preserve testicular function and viability. Early surgical intervention within 72 hours has a high success rate for testicular salvage (up to 90%).

Intratesticular hematoma (A) may be managed conservatively if the tunica albuginea is intact.

Heterogeneity of the parenchyma (C) indicates injury but not necessarily rupture.

Increased vascularity (D) may be seen with inflammation or reperfusion but does not mandate surgery unless rupture is present.

Reference Extracts:

Dogra VS, Bhatt S. "Acute painful scrotum: ultrasound evaluation." Radiologic Clinics of North America. 2004; 42(2):349-363.

Middleton WD, Kurtz AB, Hertzberg BS.Ultrasound: The Requisites. 3rd ed. Elsevier, 2015.

—

Chronic rejection presents sonographically as cortical thinning, decreased renal size, and increased echogenicity of the renal sinus fat. Acute rejection typically causes an enlarged, edematous kidney with increased parenchymal echogenicity but preserved size early on.

According to Zwiebel’s Introduction to Vascular Ultrasound:

“In chronic rejection, the allograft becomes smaller with cortical thinning, increased echogenicity, and prominence of the central sinus fat.”

Adrenal adenomas are the most common adrenal tumors in adults. They are often discovered incidentally (adrenal incidentalomas) and are usually nonfunctioning, though some may secrete cortisol or aldosterone. Neuroblastoma is common in children, pheochromocytomas are rarer catecholamine-producing tumors, and adrenal cortical carcinoma is malignant but much less common than adenomas.

According to Rumack’s Diagnostic Ultrasound:

“Adrenal adenomas are the most common adrenal masses in adults, frequently identified incidentally on imaging studies.”

In biliary obstruction (such as at the ampulla of Vater), dilation begins proximally and progresses peripherally. The intrahepatic peripheral bile ducts are the last to dilate because backpressure takes time to propagate. Early dilation is typically seen in the common bile duct and common hepatic duct.

According to Rumack’s Diagnostic Ultrasound:

“The intrahepatic peripheral bile ducts dilate last in the setting of progressive biliary obstruction.”

In the presence of a nonocclusive thrombus, Doppler waveform above the thrombus typically shows dampened flow with loss of normal respiratory phasicity due to partial venous outflow obstruction. Complete absence of flow is typically seen with occlusive thrombus.

According to Zwiebel’s Introduction to Vascular Ultrasound:

“Partial obstruction produces dampened and continuous flow patterns superior to a nonocclusive thrombus.”

The main pancreatic duct (duct of Wirsung) runs through the central portion of the pancreas, medial and slightly posterior to the superior mesenteric vein (SMV). It converges with the common bile duct near the ampulla of Vater.

According to Moore’s Clinically Oriented Anatomy:

“The main pancreatic duct runs centrally within the gland and lies medial to the superior mesenteric vein.”

The Duct of Santorini is the accessory pancreatic duct that drains the superior portion of the pancreatic head into the minor duodenal papilla. The main pancreatic duct (Duct of Wirsung) drains into the major papilla, often joining the common bile duct at the Ampulla of Vater.

According to Moore’s Clinically Oriented Anatomy:

“The accessory pancreatic duct (Duct of Santorini) may be present and drains into the minor duodenal papilla.”

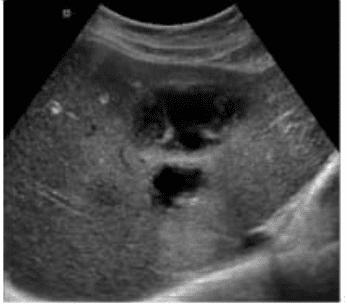

The sonographic image shows a complex fluid collection within the liver parenchyma, with internal echoes and possibly septations, consistent with an abscess. In the clinical context of post-procedural fever following a liver biopsy, a liver abscess is the most likely diagnosis.

A liver abscess appears on ultrasound as a hypoechoic or complex fluid collection that may contain internal debris, septations, or gas (which may produce reverberation artifacts). These features distinguish it from other post-procedural complications.

A cyst (Option A) typically appears as an anechoic, well-defined lesion with posterior acoustic enhancement and no internal debris—this does not match the image or clinical setting.

A biloma (Option B) is a bile collection that can appear similar to a cyst or fluid collection but typically occurs due to bile leak; however, fever and internal complexity on ultrasound more strongly suggest abscess.

A hematoma (Option D) may also appear complex but usually presents with pain and not fever unless secondarily infected. Over time, hematomas evolve in appearance but lack septations and gas unless superinfected.

The inferior vena cava (IVC) is formed by the confluence of the right and left common iliac veins at the level of approximately L5. The hepatic veins drain into the IVC superiorly but do not form it. The superior mesenteric and splenic veins join to form the portal vein, not the IVC.

According to Moore’s Clinically Oriented Anatomy:

“The IVC begins at the level of L5 by the union of the right and left common iliac veins.”

Transitional cell carcinoma (TCC) typically presents as a non-mobile, polypoidal, focal intraluminal mass projecting from the bladder wall. Mobility of the lesion helps differentiate TCC from blood clots or debris.

According to Rumack’s Diagnostic Ultrasound:

“Bladder TCC most often appears as a non-mobile, polypoid mass attached to the bladder wall.”
