Appian ACD301 - Appian Certified Lead Developer

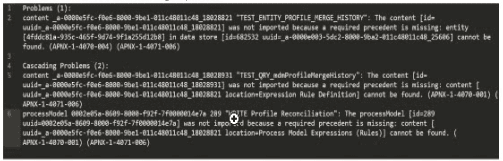

The error log provided indicates issues during the package import into the target environment, with multiple objects failing to import due to missing precedents. The key error messages highlight specific UUIDs associated with objects that cannot be resolved. The first error listed states:

"‘TEST_ENTITY_PROFILE_MERGE_HISTORY’: The content [id=uuid-a-0000m5fc-f0e6-8000-9b01-011c48011c48, 18028821] was not imported because a required precedent is missing: entity [uuid=a-0000m5fc-f0e6-8000-9b01-011c48011c48, 18028821] cannot be found..."

According to Appian’s Package Deployment Best Practices, when importing a package, the first step in troubleshooting is to identify the root cause of the failure. The initial error in the log points to an entity object with a UUID ending in 18028821, which failed to import due to a missing precedent. This suggests that the object itself or one of its dependencies (e.g., a data store or related entity) is either missing from the package or not present in the target environment.

Option A (Check whether the object (UUID ending in 18028821) is included in this package): This is the correct first action. Since the first error references this UUID, verifying its inclusion in the package is the logical starting point. If it’s missing, the package export from the source environment was incomplete. If it’s included but still fails, the precedent issue (e.g., a missing data store) needs further investigation.

Option B (Check whether the object (UUID ending in 7t00000i4e7a) is included in this package): This appears to be a typo or corrupted UUID (likely intended as something like "7t000014e7a" or similar), and it’s not referenced in the primary error. It’s mentioned later in the log but is not the first issue to address.

Option C (Check whether the object (UUID ending in 25606) is included in this package): This UUID is associated with a data store error later in the log, but it’s not the first reported issue.

Option D (Check whether the object (UUID ending in 18028931) is included in this package): This UUID is mentioned in a subsequent error related to a process model or expression rule, but it’s not the initial failure point.

Appian recommends addressing errors in the order they appear in the log to systematically resolve dependencies. Thus, starting with the object ending in 18028821 is the priority.

Comprehensive and Detailed In-Depth Explanation:

In Appian, when creating a Web API, parameters passed in the URL (e.g., query parameters) are accessed within the Web API expression using the httpRequest object. The URL https://exampleappiancloud.com/suite/webapi/user_management/users?username=john.smith includes a query parameter username with the value john.smith. Appian’s Web API documentation specifies how to handle such parameters in the expression rule associated with the Web API.

Option D (httpRequest.queryParameters.username):This is the correct syntax. The httpRequest.queryParameters object contains all query parameters from the URL. Since username is a single query parameter, you access it directly as httpRequest.queryParameters.username. This returns the value john.smith as a text string, which can then be used in the Web API logic (e.g., to query a user record). Appian’s expression language treats query parameters as key-value pairs under queryParameters, making this the standard approach.

Option A (httpRequest.queryParameters.users.username):This is incorrect. The users part suggests a nested structure (e.g., users as a parameter containing a username subfield), which does not match the URL. The URL only defines username as a top-level query parameter, not a nested object.

Option B (httpRequest.users.username):This is invalid. The httpRequest object does not have a direct users property. Query parameters are accessed via queryParameters, and there’s no indication of a users object in the URL or Appian’s Web API model.

Option C (httpRequest.formData.username):This is incorrect. The httpRequest.formData object is used for parameters passed in the body of a POST or PUT request (e.g., form submissions), not for query parameters in a GET request URL. Since the username is part of the query string (?username=john.smith), formData does not apply.

The correct syntax leverages Appian’s standard handling of query parameters, ensuring the Web API can process the username value effectively.

Comprehensive and Detailed In-Depth Explanation:

Data volume testing ensures an Appian application performs efficiently under realistic data loads, especially when interacting with external databases like MySQL. As an Appian Lead Developer with administrative access, the focus is on scalability, performance, and iterative validation. The two key considerations are:

Option C (The amount of data that needs to be populated should be determined by the project sponsor and the stakeholders based on their estimation):Determining the appropriate data volume is critical to simulate real-world usage. Appian’s Performance Testing Best Practices recommend collaborating with stakeholders (e.g., project sponsors, business analysts) to define expected data sizes based on production scenarios. This ensures the test reflects actual requirements—like peak transaction volumes or record counts—rather than arbitrary guesses. For example, if the application will handle 1 million records in production, stakeholders must specify this to guide test data preparation.

Option D (Testing with the correct amount of data should be in the definition of done as part of each sprint):Appian’s Agile Development Guide emphasizes incorporating performance testing (including data volume) into the Definition of Done (DoD) for each sprint. This ensures that features are validated under realistic conditions iteratively, preventing late-stage performance issues. With admin access, you can query/write to MySQL and assess query performance or write latency with the specified data volume, aligning with Appian’s recommendation to “test early and often.”

Option A (Data from previous tests needs to remain in the testing environment prior to loading prepopulated data): This is impractical and risky. Retaining old test data can skew results, introduce inconsistencies, or violate data integrity (e.g., duplicate keys in MySQL). Best practices advocate for a clean, controlled environment with fresh, prepopulated data per test cycle.

Option B (Large datasets must be loaded via Appian processes): While Appian processes can load data, this is not a requirement. With database admin access, you can use SQL scripts or tools like MySQL Workbench for faster, more efficient data population, bypassing Appian process overhead. Appian documentation notes this as a preferred method for large datasets.

Option E (Data model changes must wait until towards the end of the project): Delaying data model changes contradicts Agile principles and Appian’s iterative design approach. Changes should occur as needed throughout development to adapt to testing insights, not be deferred.
