Linux Foundation CKS - Certified Kubernetes Security Specialist (CKS)

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

API server:

Ensure the --authorization-mode argument includes RBAC

Turn on Role Based Access Control.Role Based Access Control (RBAC) allows fine-grained control over the operations that different entities can perform on different objects in the cluster. It is recommended to use the RBAC authorization mode.

Fix - BuildtimeKubernetesapiVersion: v1

kind: Pod

metadata:

creationTimestamp: null

labels:

component: kube-apiserver

tier: control-plane

name: kube-apiserver

namespace: kube-system

spec:

containers:

- command:

+ - kube-apiserver

+ - --authorization-mode=RBAC,Node

image: gcr.io/google_containers/kube-apiserver-amd64:v1.6.0

livenessProbe:

failureThreshold: 8

httpGet:

host: 127.0.0.1

path: /healthz

port: 6443

scheme: HTTPS

initialDelaySeconds: 15

timeoutSeconds: 15

name: kube-apiserver-should-pass

resources:

requests:

cpu: 250m

volumeMounts:

- mountPath: /etc/kubernetes/

name: k8s

readOnly: true

- mountPath: /etc/ssl/certs

name: certs

- mountPath: /etc/pki

name: pki

hostNetwork: true

volumes:

- hostPath:

path: /etc/kubernetes

name: k8s

- hostPath:

path: /etc/ssl/certs

name: certs

- hostPath:

path: /etc/pki

name: pki

Ensure the --authorization-mode argument includes Node

Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kube-apiserver.yaml on the master node and set the --authorization-mode parameter to a value that includes Node.

--authorization-mode=Node,RBAC

Audit:

/bin/ps -ef | grep kube-apiserver | grep -v grep

Expected result:

'Node,RBAC' has 'Node'

Ensure that the --profiling argument is set to false

Remediation: Edit the API server pod specification file /etc/kubernetes/manifests/kube-apiserver.yaml on the master node and set the below parameter.

--profiling=false

Audit:

/bin/ps -ef | grep kube-apiserver | grep -v grep

Expected result:

'false' is equal to 'false'

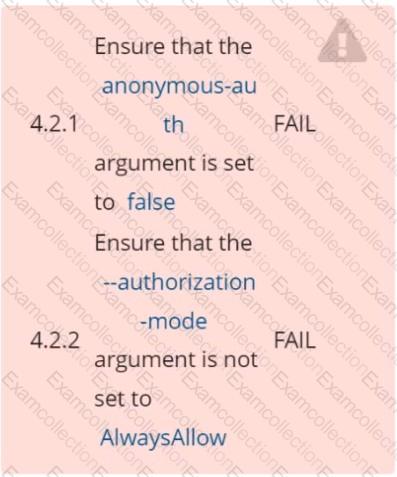

Fix all of the following violations that were found against the Kubelet:-

Ensure the --anonymous-auth argument is set to false.

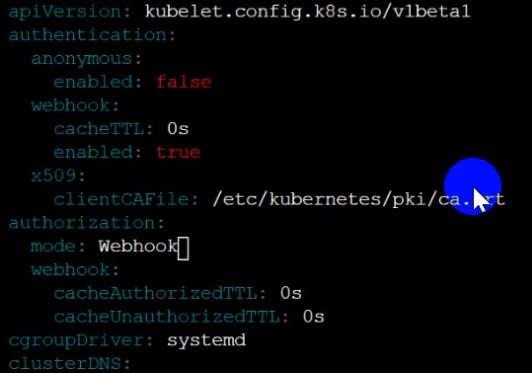

Remediation: If using a Kubelet config file, edit the file to set authentication: anonymous: enabled to false. If using executable arguments, edit the kubelet service file /etc/systemd/system/kubelet.service.d/10-kubeadm.conf on each worker node and set the below parameter in KUBELET_SYSTEM_PODS_ARGS variable.

--anonymous-auth=false

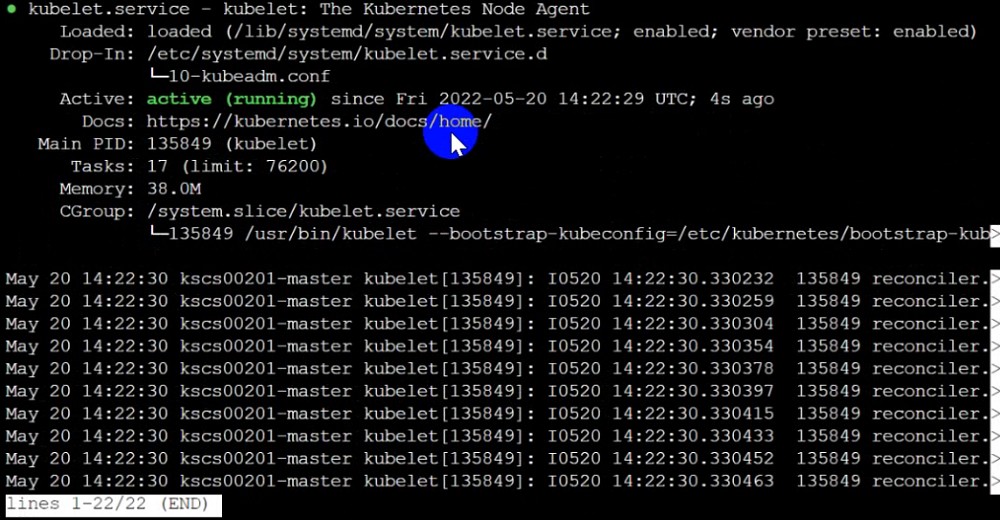

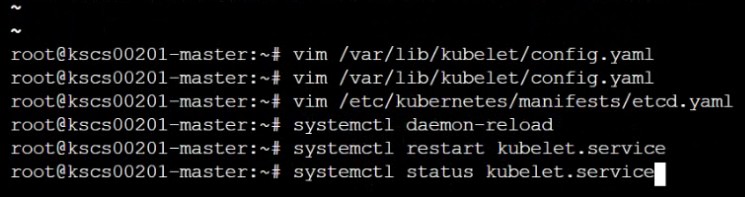

Based on your system, restart the kubelet service. For example:

systemctl daemon-reload

systemctl restart kubelet.service

Audit:

/bin/ps -fC kubelet

Audit Config:

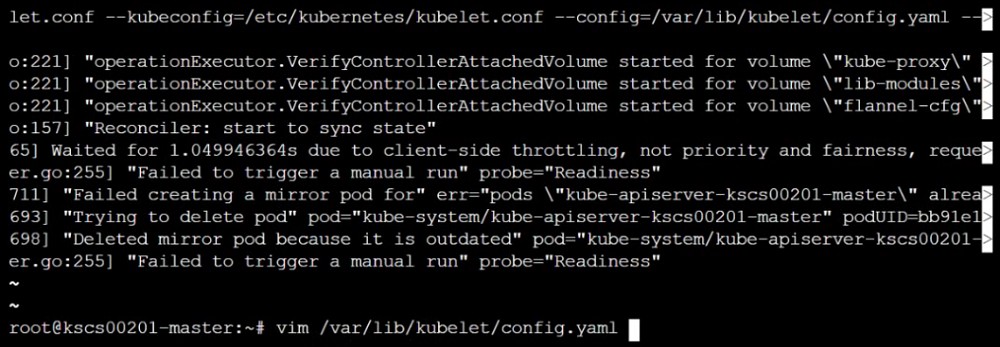

/bin/cat /var/lib/kubelet/config.yaml

Expected result:

'false' is equal to 'false'

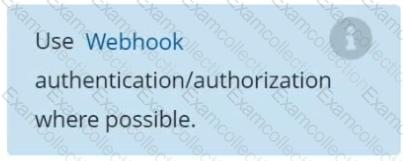

2) Ensure that the --authorization-mode argument is set to Webhook.

Audit

docker inspect kubelet | jq -e '.[0].Args[] | match("--authorization-mode=Webhook").string'

Returned Value: --authorization-mode=Webhook

Fix all of the following violations that were found against the ETCD:-

      a. Ensure that the --auto-tls argument is not set to true

Do not use self-signed certificates for TLS. etcd is a highly-available key value store used by Kubernetes deployments for persistent storage of all of its REST API objects. These objects are sensitive in nature and should not be available to unauthenticated clients. You should enable the client authentication via valid certificates to secure the access to the etcd service.

Fix - BuildtimeKubernetesapiVersion: v1

kind: Pod

metadata:

annotations:

scheduler.alpha.kubernetes.io/critical-pod: ""

creationTimestamp: null

labels:

component: etcd

tier: control-plane

name: etcd

namespace: kube-system

spec:

containers:

- command:

+ - etcd

+ - --auto-tls=true

image: k8s.gcr.io/etcd-amd64:3.2.18

imagePullPolicy: IfNotPresent

livenessProbe:

exec:

command:

- /bin/sh

- -ec

- ETCDCTL_API=3 etcdctl --endpoints=https://[192.168.22.9]:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt

--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt --key=/etc/kubernetes/pki/etcd/healthcheck-client.key

get foo

failureThreshold: 8

initialDelaySeconds: 15

timeoutSeconds: 15

name: etcd-should-fail

resources: {}

volumeMounts:

- mountPath: /var/lib/etcd

name: etcd-data

- mountPath: /etc/kubernetes/pki/etcd

name: etcd-certs

hostNetwork: true

priorityClassName: system-cluster-critical

volumes:

- hostPath:

path: /var/lib/etcd

type: DirectoryOrCreate

name: etcd-data

- hostPath:

path: /etc/kubernetes/pki/etcd

type: DirectoryOrCreate

name: etcd-certs

status: {}

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

Text Description automatically generated

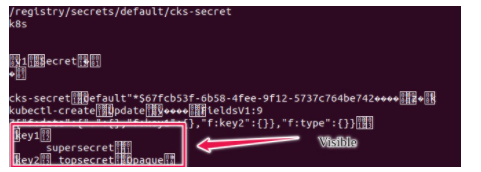

ETCD secret encryption can be verified with the help of etcdctl command line utility.

ETCD secrets are stored at the path /registry/secrets/$namespace/$secret on the master node.

The below command can be used to verify if the particular ETCD secret is encrypted or not.

# ETCDCTL_API=3 etcdctl get /registry/secrets/default/secret1 [...] | hexdump -C
