EMC D-ISM-FN-23 - Dell Information Storage and Management Foundations 2023 Exam

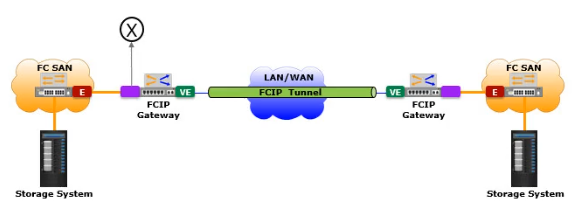

In the context of FCIP (Fibre Channel over IP) tunnel configurations, a VE_port (Virtual E_port) is used to create a virtual link between two switches over an IP network. This virtual link allows for the extension of Fibre Channel fabrics across geographically dispersed locations. The VE_port functions similarly to an E_port but operates over an IP network, enabling the transport of Fibre Channel frames over long distances.References: Dell Information Storage and Management V5, FCIP Tunnel Configuration,Dell Certification Resource

DRAM (Dynamic Random-Access Memory) offers the highest I/O performance due to its extremely low latency and high-speed access capabilities.

SCM (Storage Class Memory) follows DRAM, providing high performance but with slightly higher latency than DRAM.

SSDs (Solid State Drives) come next, offering fast access times but slower than SCM and DRAM.

SATA (Serial ATA) drives are the slowest among these options, as they typically use mechanical components (in the case of HDDs) and have lower data transfer rates compared to SSDs.

References: Dell Information Storage and Management V5 documents Dell Technologies Info Hub​(Dell Technologies Info Hub)

Incremental backups offer the advantage of significantly reducing the storage capacity needed for backups compared to cumulative backups. Incremental backups only capture and store the data that has changed since the last backup, which minimizes the amount of data stored. This is more efficient than cumulative backups, which capture all changes since the last full backup, leading to larger storage requirements.

References:

Dell Information Storage and Management V5 course materials, section on backup methods

Dell EMC documentation on incremental and cumulative backups

A hypervisor is a layer of software that runs directly on top of a physical server and provides a virtualization layer. It allows multiple virtual machines (VMs) to run on the same physical hardware, sharing the underlying resources such as CPU, memory, and storage. The hypervisor isolates the VMs from each other and provides a virtual machine monitor (VMM) that manages the virtual machines' access to physical resources. The VMM is responsible for managing the VMs' creation, configuration, and removal, as well as their access to the physical resources of the host system. T

The Dell EMC ViPR Controller is a software-defined storage (SDS) platform that abstracts, pools, and automates a data center’s physical storage infrastructure. It provides a unified storage management platform that simplifies storage provisioning, improves utilization, and automates storage workflows. ViPR Controller supports heterogeneous storage environments, making it a versatile solution for modern data centers.References: Dell Information Storage and Management V5, Software-Defined Storage Solutions,Dell Certification Resource

VM hardening involves changing the default settings of virtual machines (VMs) to improve security. This process includes disabling unnecessary services, applying patches, and configuring security policies to protect against vulnerabilities and attacks.

References: Dell EMC ISM V5 Module 10, "Security and Virtualization," discusses the importance of VM hardening and specific practices.

Graphical user interface, application Description automatically generated

The controller in an intelligent storage system is responsible for various management functions, including replication and storage management. It acts as the brain of the storage system, coordinating data storage, retrieval, and replication processes to ensure data availability and integrity. Controllers manage both hardware components (such as disks and solid-state drives) and software functions (like data deduplication, compression, and RAID configuration). By managing replication, the controller ensures that data copies are maintained across different storage arrays or locations, providing redundancy and facilitating disaster recovery.

References:

Dell EMC Information Storage and Management V5 Course, Module 4: Intelligent Storage Systems.

Dell EMC ISM V5 Student Guide, Page 78-79.

A Denial of Service (DoS) attack is an attempt to make a machine or network resource unavailable to its intended users by temporarily or indefinitely disrupting services of a host connected to the Internet. DoS attacks typically flood a network with excessive requests, overwhelming the network and preventing legitimate users from accessing IT resources or services. This type of attack does not compromise user accounts, hijack privileges, or duplicate user credentials, but it does effectively deny service to legitimate users.

References:

Dell EMC Information Storage and Management V5 documentation.
