EMC DES-5221 - Specialist Implementation Engineer Data Center Networking Exam

EMC DES-5221 Premium Access     Download Demo
Page: 2 / 2
Total 60 questions

What is the default PIM-SSM IP range?

A.

224.0.0.0/4

B.

224.0.0.0/24

C.

232.0.0.0/8

D.

232.0.0.0/4

How are multiple hardware based ACLs filtered?

A.

NTP

B.

DHCP

C.

NPU

D.

IP

When installing OS10 on a switch from a USB drive, what format is used for the file system?

A.

HFS+

B.

FAT32

C.

NTFS

D.

HFS

When implementing QoS on a 10Gb connection, 6Gb is required by the customer. What QoS level best fits the requirement while keeping resource use to a minimum?

A.

Differentiated service

B.

Guaranteed service

C.

FIFO

D.

Best-effort service

A customer reports they can no longer access their services and a network administrator has been assigned to investigate. A UFD disabled error status appears on all ports. What caused the issue?

A.

Spanning tree Loop-guard was implemented on the uplink-state group.

B.

One of the upstream interfaces is an uplink-state group went down.

C.

There was no issue; this is normal behavior.

D.

Both a port channel and its members were assigned to an uplink-state group.

From which range can a network administrator choose when setting the RSTP priority value?

A.

1-6400

B.

0-61440

C.

0-614400

D.

1-64

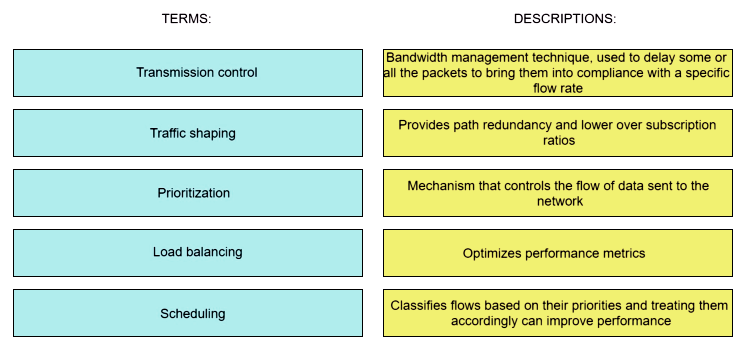

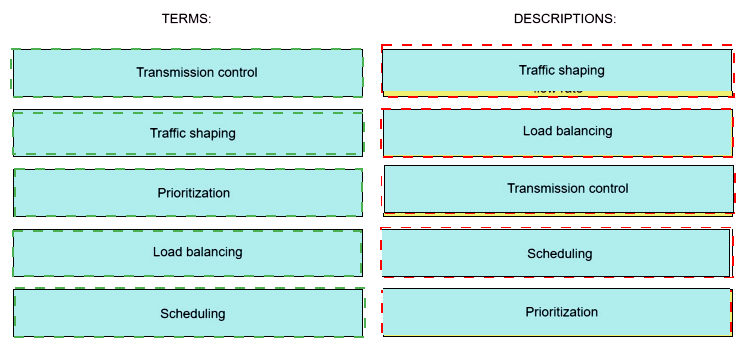

Match the QoS terms to their descriptions.

What is required to enable ECMP in BGP?

A.

OSPF must install equal cost paths in the routing table for BGP to use ECMP.

B.

Maximum-paths and multipath-relax commands.

C.

Sub-interfaces must be configured on the physical interface running BGP.

D.

ECMP is not possible in BGP.
