EMC DES-5221 - Specialist Implementation Engineer Data Center Networking Exam

EMC DES-5221 Premium Access     Download Demo
Page: 1 / 2
Total 60 questions

How are ACLs processed?

A.

LIFO

B.

FIFO

C.

Randomly

D.

Sequentially

Which commands are required to properly configure an OS10 switch to run OSPF on eth1/1/3 and to add network 144.254.1.0/30 to OSPF area 0?

A.

OS10(config)# interface ethernet 1/1/3 OS10(conf-if-eth1/1/3)# no shutdown OS10(conf-if-eth1/1/3)# no switchport

OS10(conf-if-eth1/1/3)# ip address 144.254.1.2/30 OS10(conf-if-eth1/1/3)# ip ospf 1 area 0.0.0.0

OS10(config)# router ospf1

B.

OS10(config)# router ospf 1

OS10(config-router-ospf-1)# router-id 1.1.1.1 OS10(config)# interface ethernet 1/1/3 OS10(conf-if-eth1/1/3)# no shutdown OS10(conf-if-eth1/1/3)# no switchport OS10(conf-if-eth1/1/3)# ip ospf 1 area 0.0.0.0

C.

OS10(config)# interface ethernet 1/1/3 OS10(conf-if-eth1/1/3)# no shutdown

OS10(conf-if-eth1/1/3)# ip address 144.254.1.2/30 OS10(conf-if-eth1/1/3)# no switchport

OS10(conf-if-eth1/1/3)# ip ospf 1 area 0.0.0.0 OS10(config)# router ospf 1

D.

OS10(config)# interface ethernet 1/1/3 OS10(conf-if-eth1/1/3)# no shutdown

OS10(conf-if-eth1/1/3)# ip address 144.254.1.2/30 OS10(conf-if-eth1/1/3)# no switchport

OS10(conf-if-eth1/1/3)# ip ospf 1 area 0.0.0.0 OS10(conf-if-eth1/1/3)# router ospf 1

The network administrator wants to configure RADIUS authentication for VTY access, and for console access to use the local configuration. Which two commands should be used to achieve this goal?

A.

aaa authentication login vty group radius aaa authentication login console local

B.

aaa authentication login default group radius aaa authentication login console local

C.

aaa authentication login vty radius

aaa authentication login console group local

D.

aaa authentication login default group radius aaa authentication login console group local

A network administrator is designing a Layer 2 topology and requires separate spanning-tree roots to avoid having a given port blocked for all instances. Which spanning-tree protocols will meet this need?

A.

STP & RSTP

B.

RSTP-PV & MSTP

C.

STP & RSTP-PV

D.

RSTP & MSTP

Which configuration supports tagged frames on VLAN 20 and untagged frames on VLAN 5?

A.

interface ethernet 1/1/9

switchport trunk mode allowed vlan 20 switchport access mode vlan 5 no shutdown

B.

interface ethernet 1/1/9 switchport trunk allowed vlan 20 switchport access vlan 5 switchport mode trunk

C.

interface ethernet 1/1/9

switchport trunk mode allowed vlan 20 switchport access vlan 5 no shutdown

D.

interface ethernet 1/1/9 switchport mode trunk switchport trunk allowed vlan 20 switchport access vlan 5

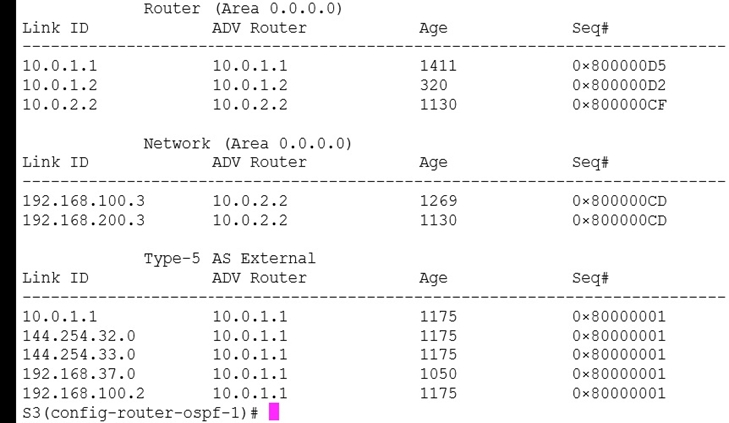

Refer to the exhibit.

The output shown is from which command?

A.

S3(config-router-ospf-1)# show ip ospf database

B.

S3(config-router-ospf-1)# show ip ospf topology

C.

S3(config-router-ospf-1)# show ip ospf lsa

D.

S3(config-router-ospf-1)# show ip ospf statistics

When using Policy Based Routing what is a valid matching criterion?

A.

802.1Q VLAN ID

B.

Destination TCP port number

C.

AAA security credentials

D.

Source hostname

When configuring VRRP in tandem with VLT, what is the default VRRP mode?

A.

active-active

B.

primary-standby

C.

active-standby

D.

master-backup

What is the valid range of VLAN IDs for Dell EMC Networking OS10 switches?

A.

1-4096

B.

1-4093

C.

0-4092

D.

0-4095

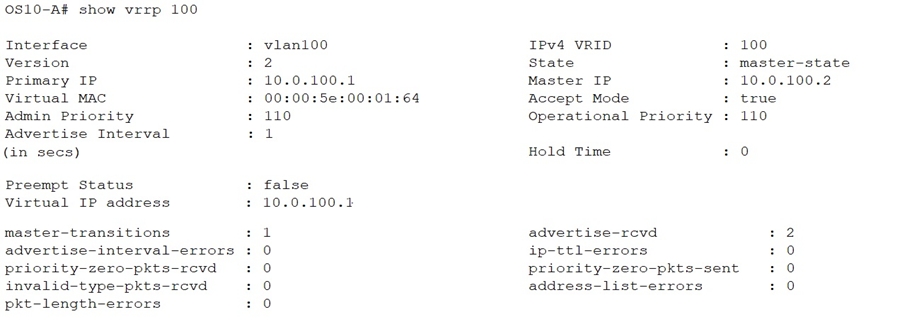

Refer to the exhibit.

What is the VRRP state of OS10-A after a router with a default VRRP admin priority with VRID100 comes online?

A.

master-state

B.

standby-state

C.

backup-state

D.

primary-state
