F5 F5CAB2 - BIG-IP Administration Data Plane Concepts (F5CAB2) exam

Redundant BIG-IP systems (HA pairs) must maintain constant communication to monitor the health of the peer and synchr15onize states.16

Heartbeats: By default, even with a serial cable, th17e BIG-IP systems exchange "heartbeat" packets over the network to determine if the peer is still alive.

Network Failover: This involves the exchange of UDP packets (typically on port 1026) at regular intervals.

Device Service Clustering (DSC): Modern BIG-IP versions use the Central Management (cm) infrastructure to communicate configuration status and sync status constantly.

Clarification on others: Port lockdown does affect HA communication if misconfigured (A is false). Mirroring uses separate channels (B is false). Mirroring is never sent over the serial cable because it requires high bandwidth (D is false).

The configuration shown matches a Performance Layer 4 virtual server because it is explicitly using a FastL4 profile:

The screenshot shows Protocol: TCP and Protocol Profile (Client): fastL4.In BIG-IP data plane terms, FastL4 is the hallmark of a Performance (Layer 4) virtual server, designed to process connections at Layer 4 with minimal overhead (high throughput/low latency) compared to full proxy L7 processing.

The screenshot also shows HTTP Profile (Client): None (and HTTP server profile effectively not in use).A Standard virtual server commonly uses full-proxy features and frequently includes L7 profiles (like HTTP) when doing HTTP-aware load balancing, header manipulation, cookie persistence, etc. In contrast, a Performance L4 virtual server typically does not use an HTTP profile because it is not doing HTTP-aware (Layer 7) processing.

It is not a Forwarding IP virtual server:A Forwarding (IP) virtual server is used to route/forward packets (often without load balancing to pool members in the same way as Standard/Performance VS) and is selected by choosing a forwarding type. The presence of a TCP protocol with a FastL4 client profile aligns with a Layer 4 load-balancing style virtual server, not a packet-forwarding virtual server type.

Conclusion: Because the configuration is TCP-based and explicitly uses fastL4 with no HTTP profile, the expected BIG-IP virtual server type is Performance Layer 4 (Option C).

In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.

By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.

To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:

`tm.macmasqaddr_per_vlan = true`

When this feature is enabled:

BIG-IP derives a unique MAC address per VLAN

The base MAC address configured on the traffic group remains the first four octets

The last two octets are replaced with the VLAN ID expressed in hexadecimal

The VLAN ID is encoded in network byte order (high byte first, low byte second)

### VLAN ID Conversion:

VLAN ID: 1501 (decimal)

Convert to hexadecimal:

1501₁₀ = 0x05DD

High byte: 05

Low byte: DD

### Resulting MAC Address:

Base MAC: `02:12:34:56:00:00`

Per-VLAN substitution → last two bytes = `05:DD`

Final MAC address:

`02:12:34:56:05:dd`

### Why the Other Options Are Incorrect:

A (01:15) – Incorrect hexadecimal conversion of 1501

B (dd:05) – Byte order reversed (little-endian, not used by BIG-IP)

D (15:01) – Uses decimal values instead of hexadecimal

### Key BIG-IP HA Concept Reinforced:

Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.

According to F5 BIG-IP documentation regarding High Availability and MAC Masquerade behavior, the system allows for more granular control over Layer 2 addresses during failover events.

Standard MAC Masquerade: By default, when a traffic group is assigned a MAC masquerade address (like 02:12:34:56:00:00), the BIG-IP system uses that exact MAC address for all traffic associated with that traffic group across all VLANs. This ensures that upstream switches do not need to relearn ARP entries for the Virtual IP, but it can cause issues in environments where multiple VLANs share the same physical infrastructure or monitoring tools that flag identical MACs across segments.

Per-VLAN MAC Masquerade: When the system database variable tm.macmasqaddr_per_vlan is set to true, the BIG-IP system calculates a unique MAC address for each VLAN. It does this by taking the base MAC masquerade address configured in the traffic group and adding the VLAN ID (tag) to it.

Calculation Logic:

Base MAC: 02:12:34:56:00:00

VLAN ID: 1501

To find the suffix, the VLAN ID is converted from decimal to hexadecimal:

$1501$ in decimal = 05DD in hex.

The system then applies this offset to the last two octets of the base MAC address.

00:00 + 05:DD = 05:DD.

Result: The final MAC address for VLAN 1501 becomes 02:12:34:56:05:dd.

This ensures that every VLAN has a unique Layer 2 identity while still reaping the benefits of "gratuitous ARP-less" failover provided by MAC masquerading.

In BIG-IP LTM, a pool member state directly affects how traffic is handled at the data plane level. When a pool member is manually disabled, BIG-IP changes the member’s availability state to disabled, which has specific and predictable traffic-handling consequences.

According to BIG-IP Administration Data Plane Concepts:

A disabled pool member:

Does not accept new connections

Continues to process existing non-persistent connections until they naturally close

Is removed from load-balancing decisions, including persistence lookups

Most importantly for this question:

Persistent connections (such as those created using source-address persistence, cookie persistence, or SSL persistence) are not honored for a disabled pool member

BIG-IP will not send new persistent traffic to a disabled member, even if persistence records exist

Therefore, when a pool member is manually disabled, it stops processing persistent connections, while allowing existing non-persistent flows to drain gracefully.

Why the Other Options Are Incorrect:

B – Persistent connections are not honored for a disabled pool member

C – Existing connections are not immediately terminated when a pool member is disabled

D – Only the disabled pool member stops accepting new connections, not all pool members

Key Data Plane Concept Reinforced:

Manually disabling a pool member is a graceful administrative action that prevents new and persistent traffic from reaching the member while allowing existing connections to complete, which is critical for maintenance and troubleshooting scenarios.

===========

With Least Connections (member), BIG-IP attempts to send new connections to the pool member with the fewest current connections. In a perfectly “stateless” scenario (no affinity), this often trends toward a fairly even distribution over time.

However, persistence overrides load balancing:

When a persistence profile is applied, BIG-IP will continue sending a client (or client group) to the same pool member based on the persistence record (cookie / source address / SSL session ID, etc.).

This means even if another pool member has fewer connections, BIG-IP may still select the persisted member to honor session affinity.

The result can be uneven active connection counts, even though the configured load balancing method is Least Connections.

Why the other options are not the best cause:

A. Priority Group Activation is disabledPriority Group Activation only affects selection when priority groups are configured; disabling it does not inherently create uneven distribution under Least Connections.

B. SSL Profile Server is appliedA server-side SSL profile affects encryption to pool members, but it does not by itself cause skewed selection across pool members. (Skew could happen indirectly if members have different performance/latency, but that’s not the primary, expected exam answer.)

D. Incorrect load balancing methodLeast Connections is a valid method and does not itself explain unevenness unless something is overriding it (like persistence) or pool members are not all eligible.

Conclusion:

A persistence profile is the most common and expected reason that active connections become unevenly distributed, because persistence takes precedence over the Least Connections load-balancing decision.

In BIG-IP architecture, link aggregation and redundancy at Layer 2 are implemented using Trunks, not virtual servers or pools.

According to BIG-IP Administration Data Plane Concepts:

Interfaces are the physical network ports on the BIG-IP device

A Trunk is a logical grouping of multiple interfaces

Trunks can be configured to use LACP (Link Aggregation Control Protocol) to:

Provide link redundancy

Increase aggregate bandwidth

Allow automatic detection of link failures

VLANs are then assigned to the trunk, not directly to individual interfaces, once aggregation is in place

Correct Design for the Scenario:

To connect BIG-IP to two upstream switches with LACP:

One physical interface from BIG-IP connects to Switch A

Another physical interface from BIG-IP connects to Switch B

Both interfaces are placed into the same trunk

LACP is enabled on the trunk and on the switches

This configuration allows:

Traffic to continue flowing if one interface or switch fails

Proper LACP negotiation between BIG-IP and the upstream switches

Clean separation of responsibilities (Layer 2 handled by trunking, Layer 4–7 by virtual servers)

Why Option D Is Correct:

A Trunk containing an interface connected to each switch is exactly how BIG-IP implements LACP-based interface binding

The trunk handles link state, load distribution, and failover at the data plane

Why the Other Options Are Incorrect:

A & B – Virtual servers operate at Layers 4–7 and have nothing to do with physical link aggregation or LACP

C – VLAN IDs and MAC addresses are not configured inside a trunk definition; trunks aggregate interfaces, and VLANs are applied to trunks

Key Data Plane Concept Reinforced:

On BIG-IP systems, LACP is always configured on a Trunk, which aggregates physical interfaces to provide Layer 2 resiliency and bandwidth aggregation. Virtual servers and pools are not involved in physical interface binding.

===========

For BIG-IP to send or receive traffic on a VLAN, that VLAN must be bound to a physical interface or a trunk. Creating a VLAN object and a Self IP alone is not sufficient to establish data-plane connectivity.

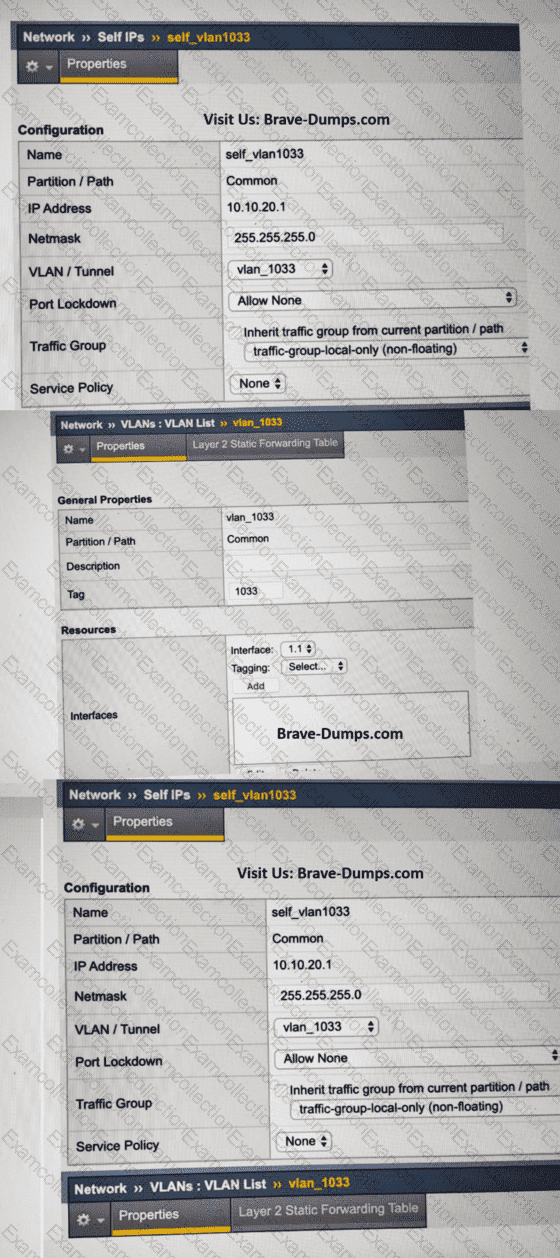

From the exhibit:

The VLAN (vlan_1033) exists and has a tag defined.

A Self IP is configured and associated with the VLAN.

However, traffic cannot reach servers on that VLAN.

This indicates a Layer 2 connectivity issue, not a Layer 3 or HA issue.

Why assigning a physical interface fixes the problem:

BIG-IP VLANs do not carry traffic unless they are explicitly attached to:

A physical interface (e.g., 1.1), or

A trunk

Without an interface assignment, the VLAN is effectively isolated and cannot transmit or receive frames, making servers unreachable regardless of correct IP addressing.

Why the other options are incorrect:

A. Set Port Lockdown to Allow AllPort Lockdown controls which services can be accessed on the Self IP (management-plane access), not whether BIG-IP can reach servers on that VLAN.

B. Change Auto Last Hop to enabledAuto Last Hop affects return traffic routing for asymmetric paths. It does not fix missing Layer 2 connectivity.

D. Create a Floating Self IP addressFloating Self IPs are used for HA failover. They do not resolve reachability issues on a single device when the VLAN itself is not connected to an interface.

Conclusion:

The servers are unreachable because the VLAN has no physical interface assigned. To restore connectivity, the BIG-IP Administrator must assign a physical interface (or trunk) to the VLAN, enabling Layer 2 traffic flow.
