Fortinet FCP_FAZ_AN-7.4 - FCP - FortiAnalyzer 7.4 Analyst

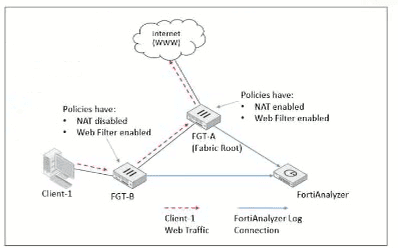

The topology shows a Security Fabric setup involving FortiGate devices (FGT-A and FGT-B) and a FortiAnalyzer for centralized logging. Let’s break down the logging and traffic flow behavior:

Traffic Flow Analysis:

Client-1 initiates web traffic directed to the internet, which is routed through FGT-B and then FGT-A before reaching the internet. This is indicated by the direction of the red-dashed arrow from Client-1 through FGT-B to FGT-A.

Policy and NAT Settings:

On FGT-B, NAT is disabled, meaning it will pass the traffic through without altering the source IP. This device has a Web Filter enabled with a policy to log violations only.

On FGT-A, NAT is enabled, and a Web Filter profile is also applied. Like FGT-B, it logs only violations for web filtering.

Logging Behavior:

Since both FortiGate devices have logging enabled for traffic and web filtering, they can create logs if conditions are met.

FGT-B will log all traffic, as per its configuration, and will also create web filter logs if it detects a violation, as the web filter profile is applied. Because NAT is disabled on FGT-B, it processes the traffic but doesn’t perform any address translation, allowing it to see the original source IP of Client-1.

FGT-A, as the Security Fabric root, will handle NAT and forward the traffic to the internet. However, in this case, the question is focused on where the traffic and web filter logs would be generated first, particularly by FGT-B.

Option Analysis:

Option A - Only FGT-B will create traffic logs: This is incorrect because FGT-B can create both traffic logs and web filter logs if it detects a violation.

Option B - FGT-B will see the MAC address of FGT-A and notify FGT-A to log: This is not how logging works in this setup. Each FortiGate logs independently based on configured policies.

Option C - FGT-B will create traffic logs and will create web filter logs if it detects a violation: This is correct, as FGT-B has logging enabled and will log traffic and web filter violations.

Option D - Only FGT-A will create web filter logs if it detects a violation: This is incorrect, as FGT-B can also log web filter violations independently.

Conclusion:

Correct Answer: C. FGT-B will create traffic logs and will create web filter logs if it detects a violation.

FGT-B is responsible for logging the traffic from Client-1 and will generate web filter logs if there is a policy violation, as configured.

When a generated report does not contain the expected information even though the logs are confirmed to be present, it typically indicates an issue with the report's configuration. There are a few common reasons this might happen:

Option A - Check the Time Frame Covered by the Report:

Reports are generated based on a specific time frame. If the report’s time frame does not cover the period when the relevant logs were collected, those logs won’t appear in the report output. Verifying and adjusting the time frame is essential to ensure the report includes all relevant data.

Conclusion: Correct.

Option B - Disable Auto-Cache:

Auto-cache is designed to improve report generation speed by using cached data. Disabling auto-cache would typically only be relevant if the report is pulling outdated data from cache, but it doesn’t directly affect whether specific logs are included in a report.

Conclusion: Incorrect.

Option C - Increase the Report Utilization Quota:

The report utilization quota is related to the resource limits for generating reports. It does not directly influence whether certain data appears in a report. Increasing this quota would help only if there are resource issues preventing the report from completing, not if specific logs are missing from the report.

Conclusion: Incorrect.

Option D - Test the Dataset:

Datasets determine which logs and data fields are pulled into the report. If a dataset is configured incorrectly or does not include the required log fields, it could lead to missing information. Testing the dataset allows you to verify that it’s correctly configured and pulling the expected data.

Conclusion: Correct.

Conclusion:

Correct Answer: A. Check the time frame covered by the report and D. Test the dataset.

These steps directly address the issues that could lead to missing information in a report when logs are available but not displayed.

When a new playbook is created on FortiAnalyzer, the system requires some time to parse and validate the playbook before it can be executed. Parsing involves checking the playbook's structure, ensuring that all syntax and logic are correct, and preparing the playbook for execution within FortiAnalyzer’s automation engine. This initial parsing step is necessary for FortiAnalyzer to load the playbook into its operational environment correctly.

Here’s why the other options are incorrect:

Option A: FortiAnalyzer needs that time to parse the new playbook

This is correct. The delay is due to the parsing and setup process required to prepare the new playbook for execution. FortiAnalyzer’s automation engine checks for any issues or dependencies within the playbook, ensuring that it can run without errors.

Option B: FortiAnalyzer needs that time to debug the new playbook

This is incorrect. Debugging is not an automatic process that FortiAnalyzer undertakes after playbook creation. Debugging, if necessary, is a manual task performed by the administrator if there are issues with the playbook execution.

Option C: FortiAnalyzer needs that time to back up the current playbooks

This is incorrect. FortiAnalyzer does not automatically back up playbooks every time a new one is created. Backups of configuration and playbooks are typically scheduled as part of routine maintenance and are not triggered by playbook creation.

Option D: FortiAnalyzer needs that time to ensure there are no other playbooks running

This is incorrect. FortiAnalyzer can manage multiple playbooks running simultaneously, so it does not require waiting for other playbooks to finish before initiating a new one. The waiting time specifically relates to the parsing process of the newly created playbook.
