Fortinet FCP_FAZ_AN-7.4 - FCP - FortiAnalyzer 7.4 Analyst

In FortiAnalyzer, when a playbook is run, each task’s status impacts the overall playbook status. Here’s what happens based on task outcomes:

Status When All Tasks Succeed:

If all tasks finish successfully, the playbook status is marked as Success.

Status When Some Tasks Fail:

If one or more tasks in the playbook fail, but others succeed, the playbook status generally changes to Attention required. This status indicates that the playbook completed execution but requires review due to one or more tasks failing.

This is different from a complete Failed status, which is used if the playbook cannot proceed due to a critical error in an early task, often one that upstream tasks depend on.

Option Analysis:

A. Attention required: This is correct as the playbook has completed, but with partial success and a task requiring review.

B. Upstream_failed: This status is used if a task cannot run because a prerequisite or "upstream" task failed. Since four out of five tasks completed, this is not the case here.

C. Failed: This status would imply that the playbook completely failed, which does not match the scenario where only one task out of five failed.

D. Success: This status would apply if all tasks had completed successfully, which is not the case here.

Conclusion:

Correct Answer: A. Attention required

The playbook status reflects that it completed, but an error occurred in one of the tasks, prompting the administrator to review the failed task.

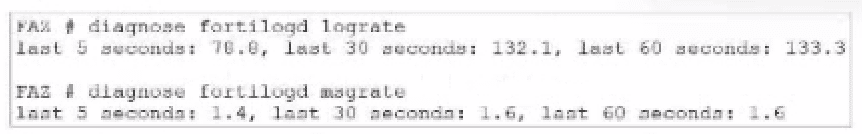

In this output, we see two diagnostic commands executed on a FortiAnalyzer device:

diagnose fortilogd lograte: This command shows the rate at which logs are being processed by the FortiAnalyzer in terms of log entries per second.

diagnose fortilogd msgrate: This command displays the message rate, or the rate at which individual messages are being processed.

The values provided in the exhibit output show:

Log rate (lograte): Consistently high, showing values such as 70.0, 132.1, and 133.3 logs per second over different time intervals.

Message rate (msgrate): Lower values, around 1.4 to 1.6 messages per second.

Explanation

Interpretation of log rate vs. message rate: In FortiAnalyzer, the log rate typically refers to the rate of logs being stored or indexed, while the message rate refers to individual messages within these logs. Given that a single log entry can contain multiple messages, it's common to see a lower message rate relative to the log rate.

Understanding normal operation: In this case, the message rate being lower than the log rate is expected and typical behavior. This discrepancy can arise because each log entry may bundle multiple related messages, reducing the message rate relative to the log rate.

Conclusion

Correct Answer: A. The message rate being lower than the log rate is normal.

This aligns with the normal operational behavior of FortiAnalyzer in processing logs and messages.

There is no indication that both logs and messages are nearly finished indexing, as that would typically show diminishing rates toward zero, which is not the case here. Additionally, there’s no information in this output about specific ADOMs or a comparison between traffic logs and event logs. Thus, options B, C, and D are incorrect.

FortiAnalyzer manages and stores various types of logs, including local logs, across different ADOMs (Administrative Domains). Each type of log serves specific purposes, with some logs being ADOM-specific and others providing system-wide information.

Option A - Local Logs Not Supported in FortiView:

Local logs are indeed supported in FortiView. FortiView provides visibility and analytics for different log types across the system, including local logs, allowing users to view and analyze data efficiently.

Conclusion: Incorrect.

Option B - Playbook Logs for All ADOMs in the Root ADOM:

FortiAnalyzer allows centralized viewing of playbook logs across all ADOMs from the root ADOM. This feature provides an overarching view of playbook executions, facilitating easier monitoring and management for administrators.

Conclusion: Correct.

Option C - Event Logs vs. Application Logs:

Event Logs provide information about system-wide events, such as login attempts, configuration changes, and other critical activities that impact the overall system. These logs apply across the FortiAnalyzer instance.

Application Logs are more specific to individual ADOMs, capturing details that pertain to ADOM-specific applications and configurations.

Conclusion: Correct.

Option D - Event Logs Only in Root ADOM:

Event logs are available across different ADOMs, not exclusively in the root ADOM. They capture system-wide events, but they can be accessed within specific ADOM contexts as needed.

Conclusion: Incorrect.

Conclusion:

Correct Answer: B. You can view playbook logs for all ADOMs in the root ADOM and C. Event logs show system-wide information, whereas application logs are ADOM specific.

These answers correctly describe the characteristics and visibility of local logs within FortiAnalyzer.

In FortiAnalyzer, event handlers can be configured to trigger specific notifications when an event matches defined criteria. These notifications are designed to alert administrators in real time about critical events.

Option B - Send SNMP Trap:

FortiAnalyzer supports sending SNMP traps as one of the notification methods when an event matches an event handler. This allows integration with SNMP-enabled network management systems, which can then trigger further alerts or actions based on the trap received.

Conclusion: Correct.

Option C - Send SMS Notification:

FortiAnalyzer also supports SMS notifications, enabling alerts to be sent via SMS to predefined recipients. This method is useful for administrators who require immediate alerts but may not have access to email or other notification systems at all times.

Conclusion: Correct.

Option A - Send Alert through Fabric Connectors:

While Fabric Connectors allow FortiAnalyzer to interact with other parts of the Security Fabric, they are primarily used for data sharing and automation rather than directly for sending alerts or notifications.

Conclusion: Incorrect.

Option D - Send Alert through FortiSIEM MEA:

FortiSIEM integration allows for data sharing and further analysis within the Fortinet ecosystem, but it does not directly act as a notification method from FortiAnalyzer itself.

Conclusion: Incorrect.

Conclusion:

Correct Answer: B. Send SNMP trap and C. Send SMS notification

These options represent valid notification methods for FortiAnalyzer’s event handler configuration.

Enabling auto-cache in FortiAnalyzer reports is designed to improve the efficiency and speed of report generation by leveraging cached data. Let’s analyze each option to determine which effects are correct.

Option A - The Generation Time for Reports is Decreased:

When auto-cache is enabled, FortiAnalyzer can use previously cached data instead of reprocessing all log data from scratch each time a report is generated. This results in faster report generation times, especially for recurring reports that use similar datasets.

Conclusion: Correct.

Option B - Hard-Cache Data is Automatically Updated When New Logs are Received:

Enabling auto-cache does not immediately update the cache with every new log received. Instead, the cache is updated when reports are generated, based on the existing logs up to that point. Therefore, auto-cache does not constantly refresh with each incoming log, which would be inefficient.

Conclusion: Incorrect.

Option C - FortiAnalyzer Local Cache is Used to Store Generated Reports:

Auto-cache utilizes FortiAnalyzer’s local cache to store data used in reports, reducing the need to retrieve and process logs repeatedly. This cached data can be reused for subsequent report generation, enhancing performance.

Conclusion: Correct.

Option D - The Size of Newly Generated Reports is Optimized to Conserve Disk Space:

Auto-cache does not directly impact the size of the report files themselves. It focuses on performance optimization through cached data for faster access, but it does not compress or optimize the storage size of the generated report.

Conclusion: Incorrect.

Conclusion:

Correct Answer: A. The generation time for reports is decreased and C. FortiAnalyzer local cache is used to store generated reports.

Enabling auto-cache helps reduce report generation time by using locally cached data and optimizes report processing, though it does not impact report size or continuously update with each new log.

In FortiAnalyzer, archive logs refer to logs that have been compressed and stored to save space. This process involves compressing the raw log files into the .gz format, which is a common compression format used in Fortinet systems for archived data. Archiving is essential in FortiAnalyzer to optimize storage and manage long-term retention of logs without impacting performance.

Let’s examine each option for clarity:

Option A: Logs that are indexed and stored in the SQL database

This is incorrect. While some logs are indexed and stored in an SQL database for quick access and searchability, these are not classified as archive logs. Archived logs are typically moved out of the database and compressed.

Option B: Logs a FortiAnalyzer administrator can access in FortiView

This is incorrect because FortiView primarily accesses logs that are active and indexed, not archived logs. Archived logs are stored for long-term retention but are not readily available for immediate analysis in FortiView.

Option C: Logs compressed and saved in files with the .gz extension

This is correct. Archive logs on FortiAnalyzer are stored in compressed .gz files to reduce space usage. This archived format is used for logs that are no longer immediately needed in the SQL database but are retained for historical or compliance purposes.

Option D: Logs previously collected from devices that are offline

This is incorrect. Although archived logs may include data from devices that are no longer online, this is not a defining characteristic of archive logs.

In FortiAnalyzer’s SQL query syntax, the typical order for querying the database follows the standard SQL format, which is:

SELECT FROM

GROUP BY

Option D correctly follows this structure:

SELECT devid FROM $log: This specifies that the query is selecting the devid column from the $log table.

WHERE 'user' = ': This part of the query is intended to filter results based on a condition involving the user column. Although there appears to be a minor typographical issue (possibly missing the user value after =), it structurally adheres to the correct SQL order.

GROUP BY devid: This groups the results by devid, which is correctly positioned at the end of the query.

Let’s briefly examine why the other options are incorrect:

Option A: SELECT devid FROM $log GROUP BY devid WHERE 'user', 'users1'

This is incorrect because the GROUP BY clause appears before the WHERE clause, which is out of order in SQL syntax.

Option B: SELECT FROM $log WHERE devid 'user', USER1' GROUP BY devid

This is incorrect because it lacks a column in the SELECT statement and the WHERE clause syntax is malformed.

Option C: SELCT devid WHERE 'user' - 'USER1' FROM $log GROUP BY devid

This is incorrect because the SELECT keyword is misspelled as SELCT, and the WHERE condition syntax is invalid.

[: FortiAnalyzer documentation for SQL queries indicates that the standard SQL order should be followed when querying logs in FortiAnalyzer. Queries should follow the format SELECT ... FROM ... WHERE ... GROUP BY ..., as demonstrated in option D​., ]

×
