Fortinet FCP_FMG_AD-7.4 - FCP - FortiManager 7.4 Administrator

When you move a device to a new ADOM, the shared policy packages do not transfer automatically. You would need to manually configure or assign the necessary policy packages in the new ADOM.

This command is used to retrieve the current running configuration from the specified FortiGate device and updates the FortiManager's device database accordingly.

Even with Super_User rights, the ability to approve workflow sessions typically requires membership in a specific workflow approval group. If Trainer is not part of this group, they will not be able to approve the workflow session.

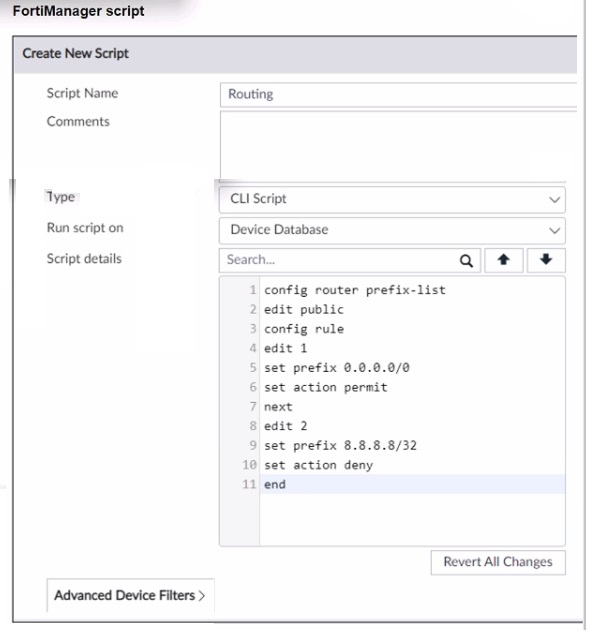

If the script is run using the "Device Database" option on FortiManager, the following occurs:

A.You must install these changes on a managed device using the Install Wizard.

Running the script on the Device Database updates only the configuration in the FortiManager's database, not on the actual FortiGate device. To apply the changes, you need to use the Install Wizard to push these configurations to the managed device.

D.The device Config Status is tagged as Modified.

After running the script on the Device Database, FortiManager tags the device's configuration status as "Modified," indicating that there are pending changes that have not yet been installed on the device.

Options B and C are incorrect because:

Bsuggests a new revision history is created, but this only happens when changes are actually installed on the managed device.

Cimplies the script is directly executed on the FortiGate, which is not the case when using the Device Database option.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Scripting and Configuration Management.

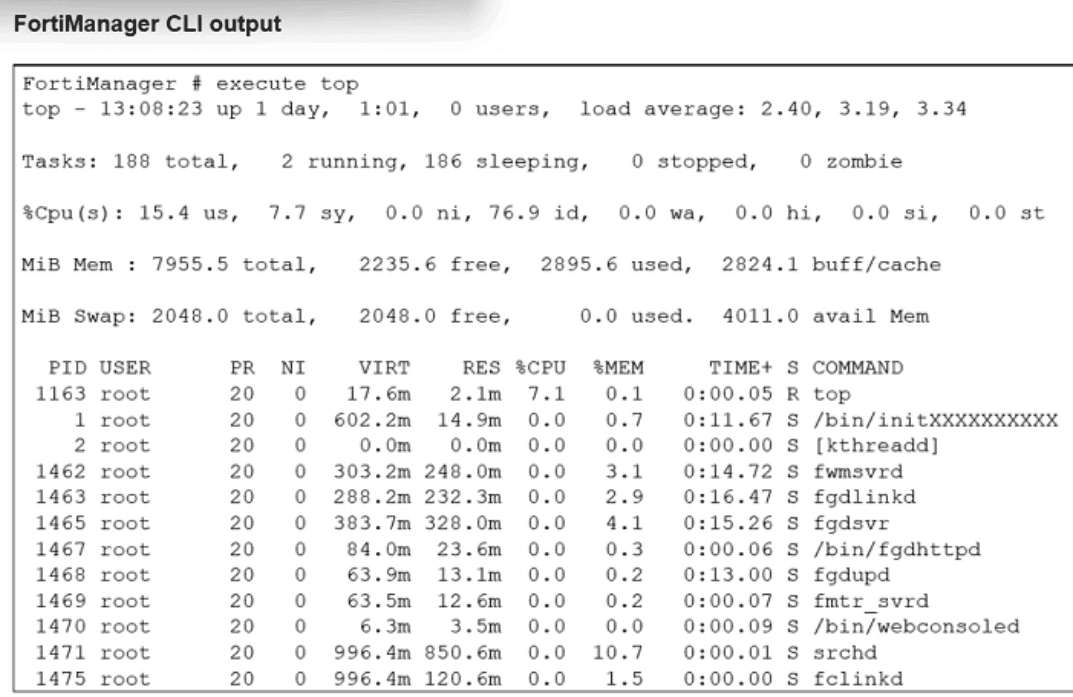

In the exhibit, the FortiManager CLI output displays the results of thetopcommand, which shows system processes, CPU usage, and memory (RAM) usage. We are specifically looking for the process responsible for downloading theweb and email filter databasesfrom the public FortiGuard servers. This process is typically handled by thefgdlinkdprocess.

Key information from the output:

Thefgdlinkdprocess is listed with aPID of 1463.

The%MEMcolumn shows that this process is using2.9%of the available RAM.

Evaluation of Options:

A. 2.9: This iscorrect. Thefgdlinkdprocess, which handles the web and email filter database downloads, is using2.9%of the available memory, as indicated in the%MEMcolumn.

B. 3.1: This is incorrect. The3.1%memory usage belongs to thefwmsvrdprocess, not the fgdlinkd process.

C. 1.5: This is incorrect. The1.5%memory usage belongs to thefclinkdprocess, not the fgdlinkd process.

D. 4.1: This is incorrect. The4.1%memory usage belongs to thefgdsvrprocess, not the fgdlinkd process.

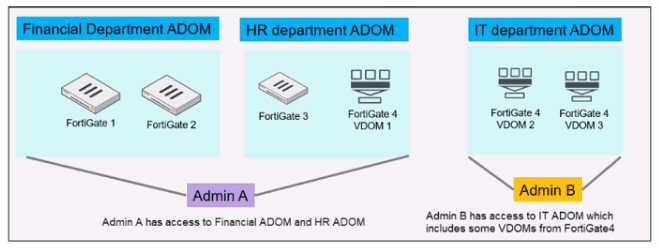

Based on the exhibit, the FortiManager administrator is setting up three ADOMs (Administrative Domains) that correspond to different departments (Financial, HR, and IT). Each ADOM has specific FortiGate devices or VDOMs (Virtual Domains) assigned to it, with different administrators managing the ADOMs.

Explanation of Options:

A. The FortiManager administrator must set the ADOM device mode to Advanced.

This istrue. In FortiManager, when there areVDOMs(Virtual Domains) involved, you must set the ADOM toAdvanced modeto manage VDOMs properly. The IT department ADOM includes different VDOMs from FortiGate 4 (VDOM 2 and VDOM 3), which means the ADOM mode must be inAdvancedto support managing VDOMs separately from other ADOMs.

B. Policies and objects databases can be shared between the Financial and HR ADOMs.

This isfalse. By default, ADOMs are separate, and policies and objects cannot be shared between them unless they are specifically designed to do so. The exhibit shows distinct ADOMs for each department, implying no direct sharing of policies and objects between Financial and HR ADOMs.

C. An administrator with the super user profile can access all the VDOMs.

This istrue. A FortiManager administrator with thesuper userprofile hasfull accessto all ADOMs and VDOMs, regardless of how access is restricted for individual administrators. In this case, an admin with the super user profile could access Financial, HR, and IT ADOMs, including all the VDOMs from FortiGate 4.

D. The administrator must configure FortiManager in workspace normal mode.

This isfalse. There is no requirement mentioned in the exhibit or scenario that mandates usingworkspace normal mode. Workspace mode is more related to how configuration changes are managed (locking, editing, etc.), but it doesn’t affect the creation or access control of ADOMs.

Conclusion:

Ais correct becauseAdvanced modeis necessary for managing VDOMs within ADOMs.

Cis correct because asuper usercan access all VDOMs and ADOMs without restrictions.
