HP HPE3-U01 - Aruba Certified Network Technician Exam (ACNT)

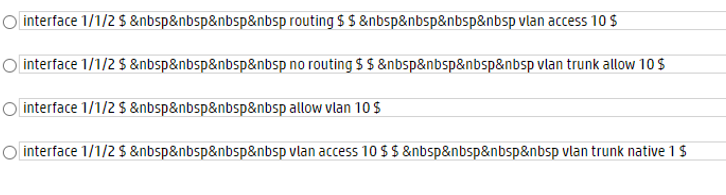

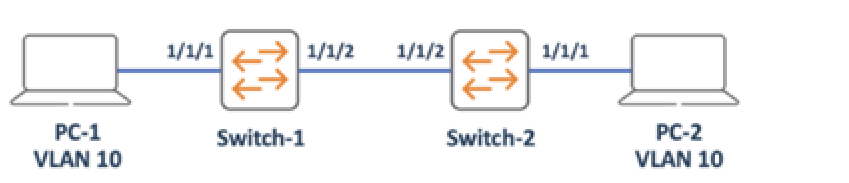

In order to allow inter-PC communication in the same broadcast domain, both switches need to have the same VLAN configured on the ports that connect to the PCs and the trunk port that connects to each other. Option B shows the correct configuration for both switches, as follows:

On Switch-1, interface 0/1 is configured as an access port on VLAN 10, which matches the VLAN of PC-1. Interface 0/2 is configured as a trunk port, which allows VLAN 10 traffic to pass through to Switch-2.

On Switch-2, interface 0/1 is configured as an access port on VLAN 10, which matches the VLAN of PC-2. Interface 0/2 is also configured as a trunk port, which allows VLAN 10 traffic to pass through from Switch-1.

Option A is incorrect because it does not configure the trunk port on Switch-2, which prevents VLAN 10 traffic from reaching Switch-1. Option C is incorrect because it configures the trunk port on Switch-1 with the wrong encapsulation mode (ISL instead of dot1q), which causes a mismatch with Switch-2. Option D is incorrect because it configures the access ports on Switch-2 with the wrong VLAN (20 instead of 10), which isolates PC-2 from PC-1.

References:

1: Layer 2 VLAN Configuration on a Cisco Switch (with Example) - Networks Training 2: VLAN Configuration Commands Step by Step Explained - Computer Networking Notes 3: How To Configure VLANs On the Catalyst Switches - Cisco Community 4: Configure VLAN on Cisco Switch Using Cisco Packet Tracer - TECHNIG

The subnet mask 255.255.252.0 is equivalent to the CIDR notation /22, which means that 22 bits are used for the network prefix and 10 bits are used for the host part. To calculate the number of addresses that this subnet mask provides, we can use the formula2n−2, wherenis the number of bits in the host part. In this case,n=10, so the number of addresses is210−2=1024−2=1022. The subtraction of 2 is because the first and the last addresses are reserved for the network identifier and the broadcast address, respectively. Therefore, the subnet mask 255.255.252.0 provides 1022 usable addresses for hosts, plus 2 reserved addresses, for a total of 1024 addresses.References:IP Subnet Calculator,How many host addresses are available on the network … - ITExamAnswers

Full-duplex is a switchport feature that allows simultaneous transmission and reception of data on a link, without causing collisions. Collisions occur when two devices try to send data at the same time on a shared medium, such as a half-duplex link or a hub. Full-duplex eliminates the need for collision detection and avoidance mechanisms, such as CSMA/CD, and increases the effective bandwidth of the link. Full-duplex requires both ends of the link to support and be configured for full-duplex mode. If one end is configured for full-duplex and the other for half-duplex, the result is a duplex mismatch, which causes performance issues and errors. Auto speed is a switchport feature that allows the switch to negotiate the speed of the link with the connected device, such as 10 Mbps, 100 Mbps, or 1000 Mbps. VLANs are logical groups of devices that share the same broadcast domain, regardless of their physical location or connection. VLANs can reduce collisions by segmenting the network and limiting the scope of broadcasts. However, VLANs alone do not prevent collisions on a link, as they depend on the duplex mode of the switchport. Half-duplex is a switchport feature that allows only one direction of data transmission at a time on a link, either sending or receiving. Half-duplex requires collision detection and avoidance mechanisms, such as CSMA/CD, to coordinate the access to the shared medium. Half-duplex reduces the effective bandwidth of the link by half, as only one device can use the link at a time. Half-duplex can cause collisions if two devices try to send data at the same time on the same link. References:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

Aruba Documentation Portal

switch port collisions - Cisco Community

Why is a switch port a collision domain? - Cisco Community

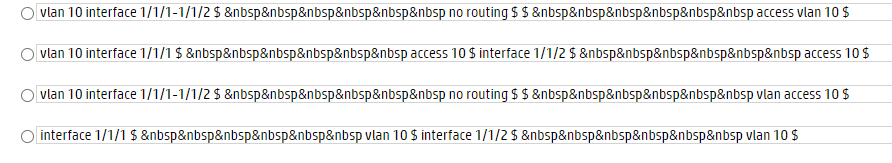

To configure interfaces 1/1/1 and 1/1/2 as VLAN 10 access ports in ArubaOS-CX switches, the following commands are required:

switch(config)# vlan 10

switch(config-vlan-10)# name VLAN10

switch(config-vlan-10)# exit

switch(config)# interface 1/1/1

switch(config-if)# no shutdown

switch(config-if)# vlan access 10

switch(config-if)# exit

switch(config)# interface 1/1/2

switch(config-if)# no shutdown

switch(config-if)# vlan access 10

switch(config-if)# exit

Option B shows the correct syntax and sequence of commands to create VLAN 10, assign a name to it, and configure the interfaces as access ports in that VLAN. Option A is incorrect because it uses the wrong keyword vlan-id instead of vlan access. Option C is incorrect because it does not create VLAN 10 before assigning the interfaces to it. Option D is incorrect because it uses the wrong keyword vlan mode instead of vlan access. References: ArubaOS-CX 10.05 Fundamentals Guide 6200 Switch Series, Configuring VLANs on AOS-CX - Aruba

The digits in the ArubaOS-CX switch interface numbering represent the member, slot, and port numbers of the physical ports and their corresponding logical software interfaces. The format is member / slot / port, where:

Member: Member number of the switch in a Virtual Switching Framework (VSF) stack. Range: 1 to 8. The primary switch is always member 1. VSF is a technology that allows multiple switches to operate as a single logical device, providing high availability, scalability, and simplified management.

Slot: Slot number of the module on the switch chassis. Range: 1 to 6. The 6400 Switch Series has six slots for line cards, while the 8320, 8325, and 8400 Switch Series have four slots for line cards and two slots for management modules.

Port: Port number of the interface on the module. Range: 1 to 48 for 1G/10G ports, 1 to 32 for 25G ports, and 1 to 8 for 40G/100G ports.

For example, interface 1/1/1 refers to the first port on the first module of the first switch in a VSF stack.

References:

Identifying switch ports and interfaces

ArubaOS-CX 10.05 Command-Line Interface Guide 6200 Switch Series

ArubaOS-CX 10.04 Virtual Switching Extension (VSX) Guide

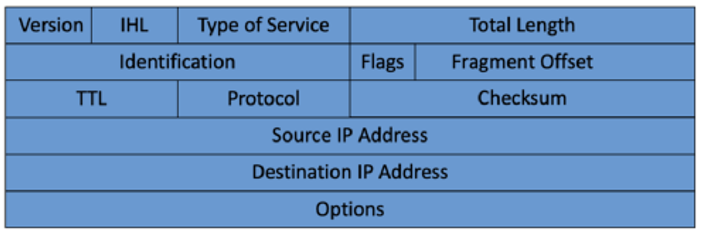

 The header in the exhibit belongs to the Internet Protocol version 4 (IPv4), which is the most widely used protocol for routing and delivering packets across networks. IPv4 is a connectionless and unreliable protocol that operates at the network layer of the OSI model. The IPv4 header consists of 20 bytes (160 bits) of fixed fields and up to 40 bytes (320 bits) of optional fields. The fixed fields include:

Version: 4 bits that indicate the version of the IP protocol, which is 4 for IPv4.

IHL (Internet Header Length): 4 bits that indicate the length of the IP header in 32-bit words, which is 5 for the minimum header size of 20 bytes.

Type of Service: 8 bits that indicate the quality of service (QoS) parameters for the packet, such as precedence, delay, throughput, and reliability.

Total Length: 16 bits that indicate the total length of the IP packet in bytes, including the header and the data.The maximum value is 65535 bytes.

Identification: 16 bits that identify the packet for fragmentation and reassembly purposes.

Flags: 3 bits that control the fragmentation of the packet. The first bit is reserved and must be zero. The second bit is the Don’t Fragment (DF) bit, which indicates whether the packet can be fragmented or not. The third bit is the More Fragments (MF) bit, which indicates whether the packet is the last fragment or not.

Fragment Offset: 13 bits that indicate the position of the fragment in the original packet, measured in units of 8 bytes.

TTL (Time To Live): 8 bits that indicate the maximum number of hops that the packet can traverse before being discarded. The TTL is decremented by one at each hop, and the packet is dropped if the TTL reaches zero.

Protocol: 8 bits that indicate the protocol of the data carried in the packet, such as TCP, UDP, ICMP, etc. The protocol numbers are defined in the List of IP protocol numbers.

Header Checksum: 16 bits that provide error detection for the IP header. The checksum is calculated by adding the 16-bit words of the header and taking the one’s complement of the result.The checksum is recomputed and verified at each hop.

Source IP Address: 32 bits that indicate the IP address of the sender of the packet.

Destination IP Address: 32 bits that indicate the IP address of the receiver of the packet.

Options: Variable-length field that contains optional information for the IP packet, such as security, routing, timestamp, etc. The options are padded with zeros to make the header length a multiple of 32 bits.

The IPv4 header can be distinguished from other protocol headers by the value of the Version field, which is 4 for IPv4. Other protocol headers have different values for the Version field or do not have a Version field at all. For example, the IPv6 header has a Version field of 6, the UDP header does not have a Version field, the Ethernet header has a Type field instead of a Version field, and the TCP header has a Data Offset field instead of a Version field. References:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

Aruba Documentation Portal

Introduction and IPv4 Datagram Header - GeeksforGeeks

Protocol header - Oxford Reference

List of IP protocol numbers - Wikipedia

The management plane is the logical path of all traffic related to the management of the device. Examples of protocols processed in the management plane are Simple Network Management Protocol (SNMP), Telnet, HTTP, Secure HTTP (HTTPS), and SSH. These management protocols are used for monitoring and for command-line interface (CLI) access12. Therefore, HTTPS and SSH are protocols that operate on the management plane, while the other options are not. TCP is a transport layer protocol that provides reliable data delivery for various applications, but it is not specific to the management plane3. ARP is a network layer protocol that resolves IP addresses to MAC addresses, but it is not used for device management4. STP is a data link layer protocol that prevents loops in switched networks, but it is not related to the management plane5. References: 1: Management Plane Protection - Cisco 2: Planes of Operation > IP Routing on Cisco IOS, IOS XE, and IOS XR: How … 3: [Transmission Control Protocol - Wikipedia] 4: [Address Resolution Protocol - Wikipedia] 5: [Spanning Tree Protocol - Wikipedia] : https://en.wikipedia.org/wiki/Transmission_Control_Protocol : https://en.wikipedia.org/wiki/Address_Resolution_Protocol : https://en.wikipedia.org/wiki/Spanning_Tree_Protocol

The Wi-Fi Alliance is an organization that promotes interoperability among WLAN device manufacturers. The Wi-Fi Alliance is an important organization for the advancement of wireless LAN (WLAN) technology. It develops certification programs and technologies that deliver quality Wi-Fi experiences. Members have completed more than 80,000 certifications. Through industry-developed comprehensive testing, Wi-Fi Alliance certification programs ensure that Wi-Fi products from multiple manufacturers work well together. These certification programs are foundational to the rapid adoption and proliferation of Wi-Fi products in home, office, and public access locations around the world and underpin the success of Wi-Fi technology proliferation. Only Wi-Fi CERTIFIED™ products have been tested to deliver interoperability with the latest technologies, and industry-standard security protections. The Wi-Fi CERTIFIED logo gives consumersconfidence that the Wi-Fi devices purchased deliver a positive user experience, regardless of brand. For retailers, vendors, and service providers, the Wi-Fi CERTIFIED seal of approval means consistent performance and better user experience. A company must be a member of Wi-Fi Alliance ® and achieve certification to use the Wi-Fi CERTIFIED logo and Wi-Fi CERTIFIED certification marks. The Wi-Fi Alliance certification programs cover the following categories: Connectivity, Security, Mobility, Coexistence, and Performance123. References: Certification | Wi-Fi Alliance, Programs | Wi-Fi Alliance, Aruba Certified Network Technician Exam HPE3-U01 Actual Questions, Why Wi-Fi Certification Really Matters | Aruba Blogs

Role Based controls are a feature of Aruba Central that allows you to assign different access privileges and policies to different groups of users on a WLAN network. You can set the Role Based controls in the Security section of the Aruba Central WLAN configuration Wizard. In this section, you can configure the following parameters:

Authentication Type: The method of verifying the identity of users who connect to the WLAN network. You can choose from several options, such as WPA2-Enterprise, WPA2-Personal, Captive Portal, MAC Authentication, or Open.

Authentication Server: The server that performs the authentication process for the users. You can select an existing server from the list, or create a new one by clicking the + icon. You can also configure the server settings, such as IP address, port, shared secret, and timeout.

User Role Assignment: The method of assigning user roles to the authenticated users. You can choose from several options, such as Default Role, Role Derivation, or Server Group Role. A user role is a set of firewall policies and VLAN settings that define the access privileges and restrictions for a group of users.

Default User Role: The user role that is assigned to the users by default, if no other role assignment method is selected. You can select an existing user role from the list, or create a new one by clicking the + icon. You can also configure the user role settings, such as firewall policies, VLAN ID, and bandwidth limit.
