HP HPE6-A84 - Aruba Certified Network Security Expert Written Exam

AppRF and WebCC are features that allow the MCs to classify and control application traffic and web content based on predefined or custom categories 12. These features are required to meet the scenario requirements of denying access to all high-risk websites and denying access to the WLAN for a period of time if they send any SSH or Telnet traffic.

To enable AppRF and WebCC, you need to check the following settings:

On the global level, you need to enable AppRF and WebCC under Configuration > Services > AppRF and Configuration > Services > WebCC, respectively 12.

On the role level, you need to enable AppRF and WebCC under Configuration > Security > Access Control > Roles > medical-mobile > AppRF and Configuration > Security > Access Control > Roles > medical-mobile > WebCC, respectively 12.

You also need to make sure that the MCs have valid licenses for AppRF and WebCC, which are included in the ArubaOS PEFNG license 3.

A custom NAE script is a Python script that defines the monitors, the alert-trigger logic, and the remedial actions for an NAE agent. A monitor is a URI that specifies the data source and the data type that the NAE agent should collect and analyze. For example, to monitor the ARP inspection statistics on a VLAN, the monitor URI would be something like this:

where is the ID of the VLAN to be monitored.

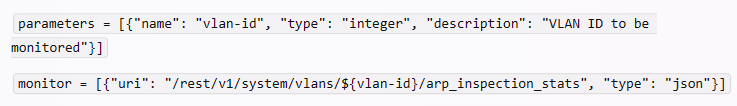

To allow the admins to select the correct VLAN ID for the agent to monitor when they create the agent, you need to define a VLAN ID parameter in the NAE script. A parameter is a variable that can be set by the user when creating or modifying an agent. A parameter can be referenced in other parts of the script by using the syntax ${parameter-name}. For example, to define a VLAN ID parameter and reference it in the monitor URI, you would write something like this:

This way, when the admins create or modify the agent, they can enter the VLAN ID that they want to monitor, and the NAE script will use that value in the monitor URI.

You can find more information about how to write custom NAE scripts and use parameters in the NAE Scripting Guide

An authentication source is a configuration element in CPPM that defines how to connect to an external identity provider and retrieve user or device information . CPPM supports various types of authentication sources, such as Active Directory, LDAP, SQL, Kerberos, and HTTP .

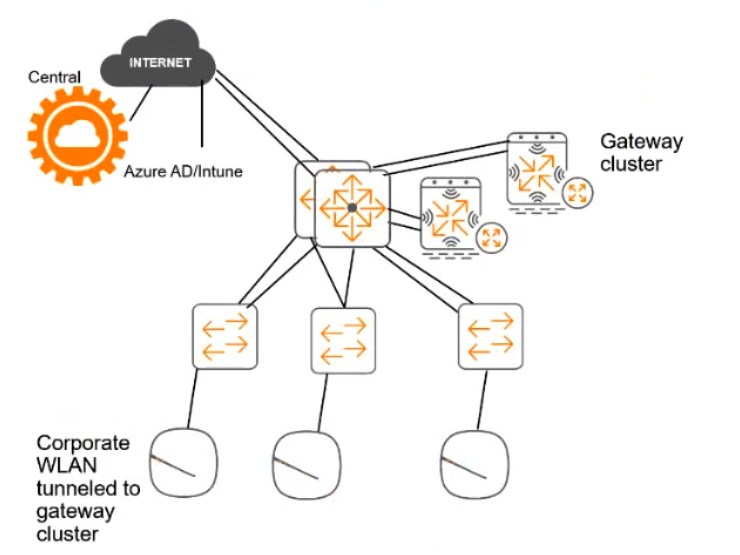

To authenticate wireless and wired clients to Azure AD, you need to set up an authentication source as HTTP type, referencing Azure AD’s FQDN . This type of authentication source allows CPPM to use REST API calls to communicate with Azure AD and validate the user or device credentials . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

To use information collected by Intune to make access control decisions, you need to set up another authentication source as HTTP type, referencing the Intune extension . This type of authentication source allows CPPM to use REST API calls to communicate with Intune and retrieve the device compliance status . You also need to configure the OAuth 2.0 settings for the authentication source, such as the client ID, client secret, token URL, and resource URL .

This is because a parameter is a variable that can be defined and modified by the user or the script, and can be used to customize the behavior and output of the NAE script. A parameter can be referred to by using the syntax self ^ramsfname], where ramsfname is the name of the parameter.

By defining a parameter for the RADIUS server, you can make the NAE script more flexible and adaptable to different scenarios and switches. The parameter can be set to a default value, such as cp.acnsxtest.local, but it can also be changed by the user or the script based on the network conditions and requirements. For example, the user can select a different hostname or IP address for the monitored RADIUS server when they create an agent from the script, or the script can automatically detect and update the parameter based on the switch configuration. This way, the NAE script can monitor statistics from any RADIUS server defined on the switch without hard-coding the server name or IP address in the monitor URI.

A. Use this variable, %{radius-ipV when defining the monitor URI in the NAE agent script. This is not a valid recommendation because %{radius-ipV is not a valid variable in NAE scripts. Variables in NAE scripts are prefixed with self ^ramsfname], not with %. Moreover, radius-ipV is not a predefined variable that contains the RADIUS server name or IP address, but rather a generic term that could refer to any IP version.

C. Use a callback action to collect the name of any RADIUS servers defined on the switch at the time the agent is created. This is not a bad recommendation, but it is not as good as defining a parameter. A callback action is a feature that allows an NAE script to execute a command on the switch and collect its output for further processing or display. A callback action can be used to collect the name of any RADIUS servers defined on the switch by executing a command such as show radius-server or show running-config radius-server and parsing its output. However, a callback action might not be as fast or reliable as using a parameter, as it depends on the availability and responsiveness of the switch and its CLI.

D. Make the script editable so that admins can edit it on demand when they are creating scripts. This is not a good recommendation because making the script editable exposes it to potential errors or modifications that could affect its functionality or performance. Making the script editable also requires more effort and expertise from the admins, who might not be familiar with NAE scripting syntax or logic. Moreover, making the script editable does not future proof it, as it does not allow for dynamic changes or updates based on network conditions or requirements.

10of30

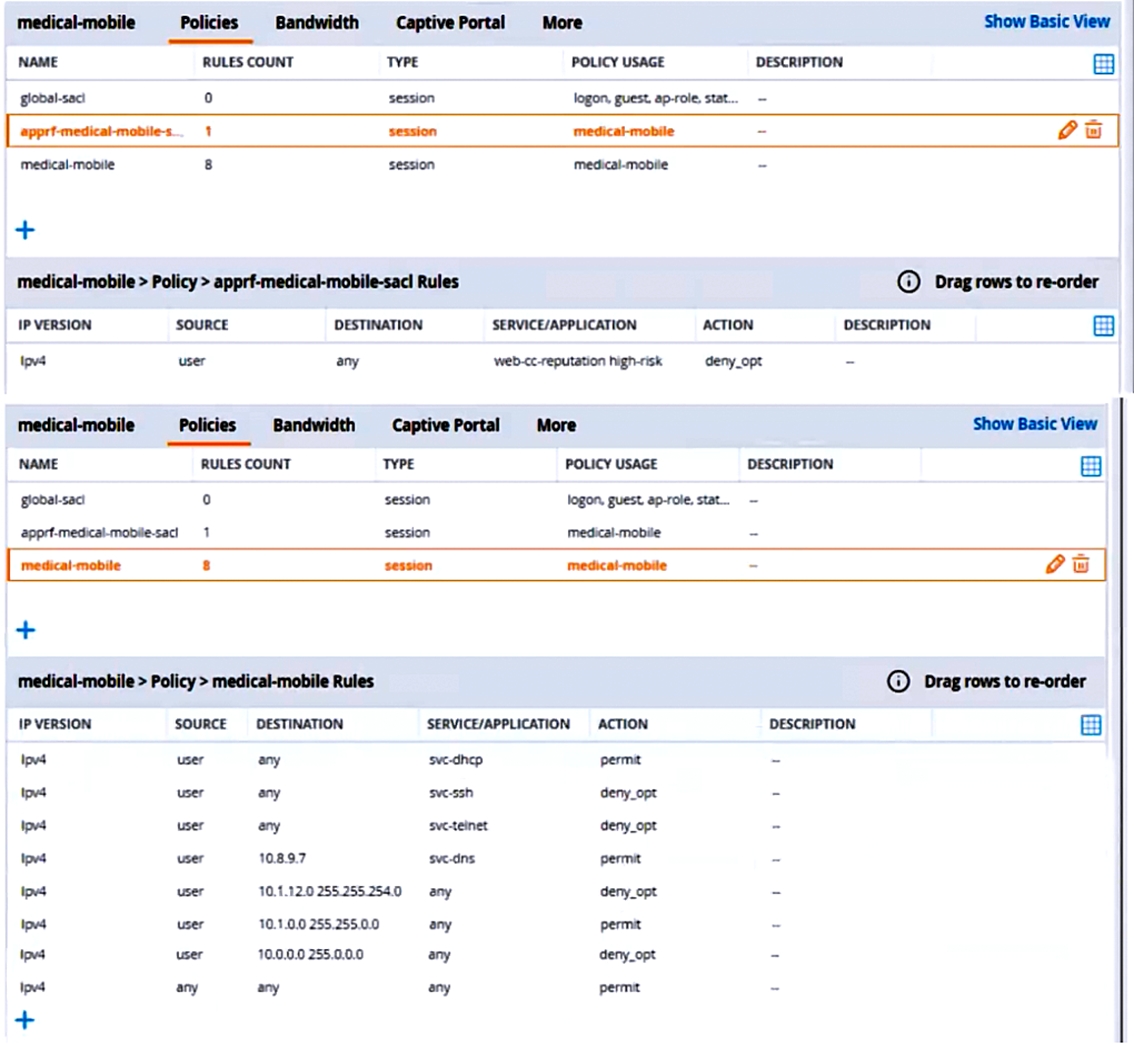

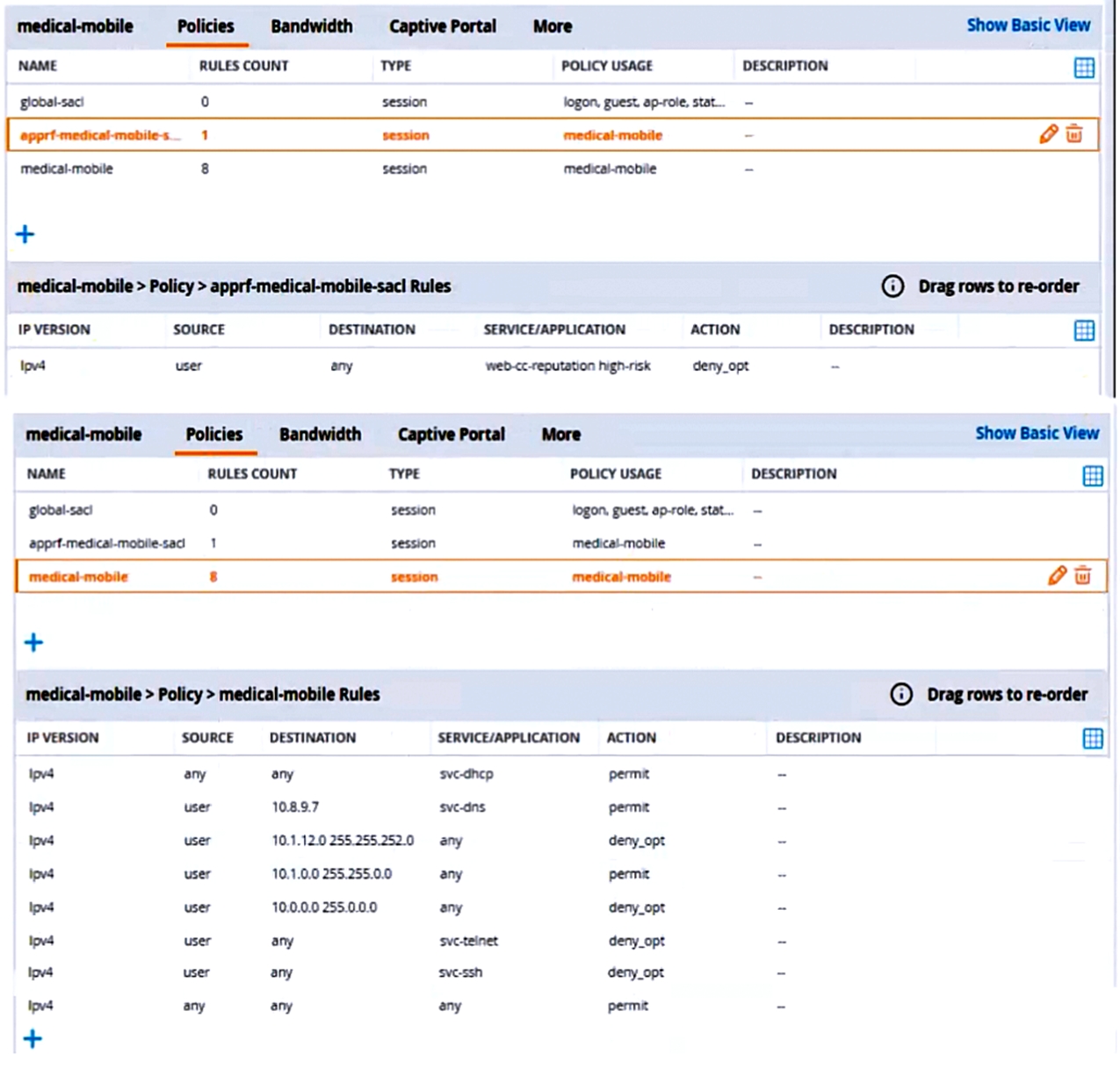

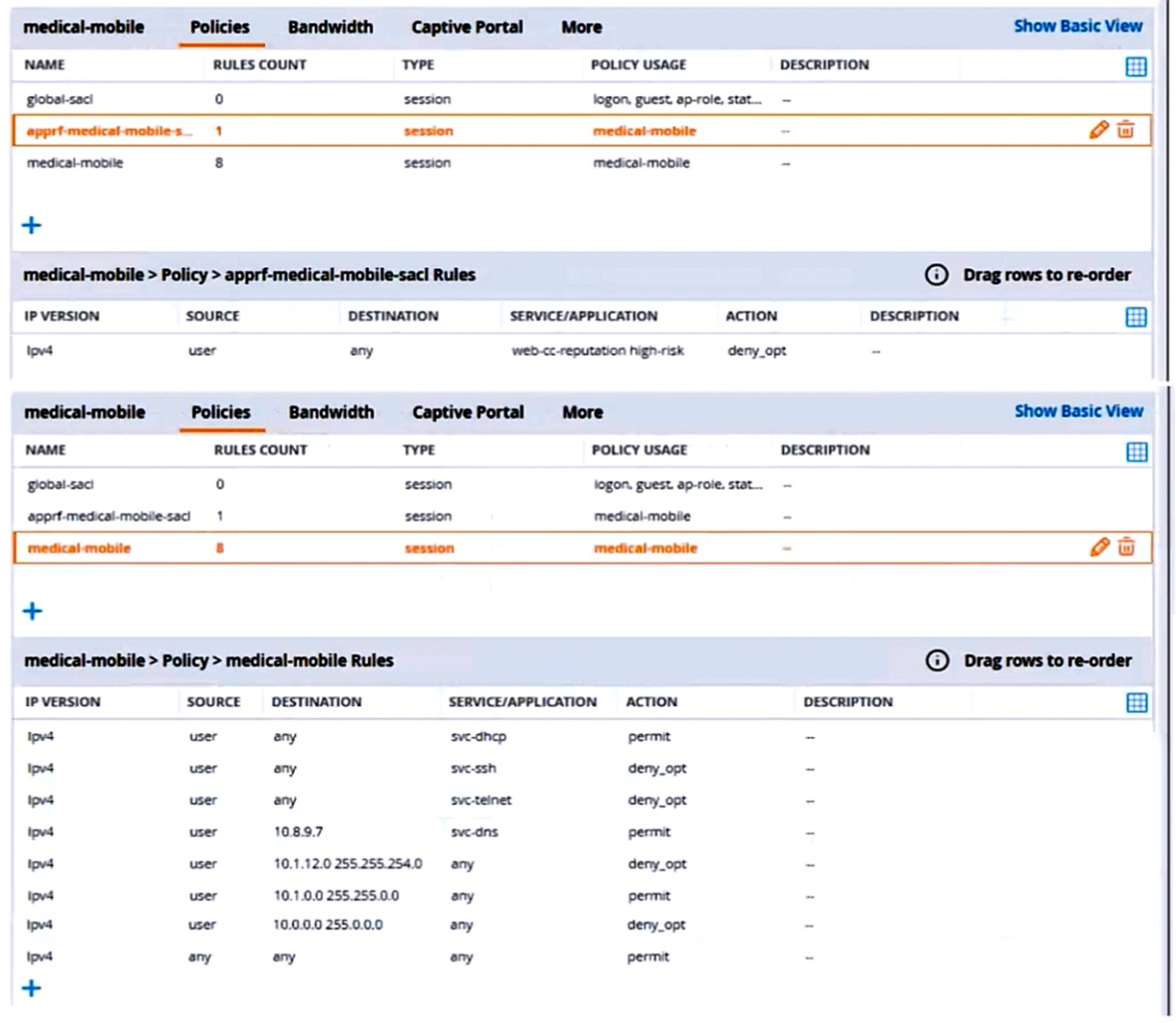

The scenario requires that the clients in the “medical-mobile” role are denied access to the 10.1.12.0/22 subnet, which is a range of IP addresses from 10.1.12.0 to 10.1.15.255. However, the current configuration in rule 5 has a subnet mask of 255.255.240.0, which means that it matches any IP address from 10.1.0.0 to 10.1.15.255. This is too broad and would deny access to other subnets in the 10.1.0.0/16 range that should be permitted according to the scenario. Therefore, the subnet mask in rule 5 should be changed to 255.255.252.0, which would match only the IP addresses from 10.1.12.0 to 10.1.15.255 and deny access to them as required by the scenario.1

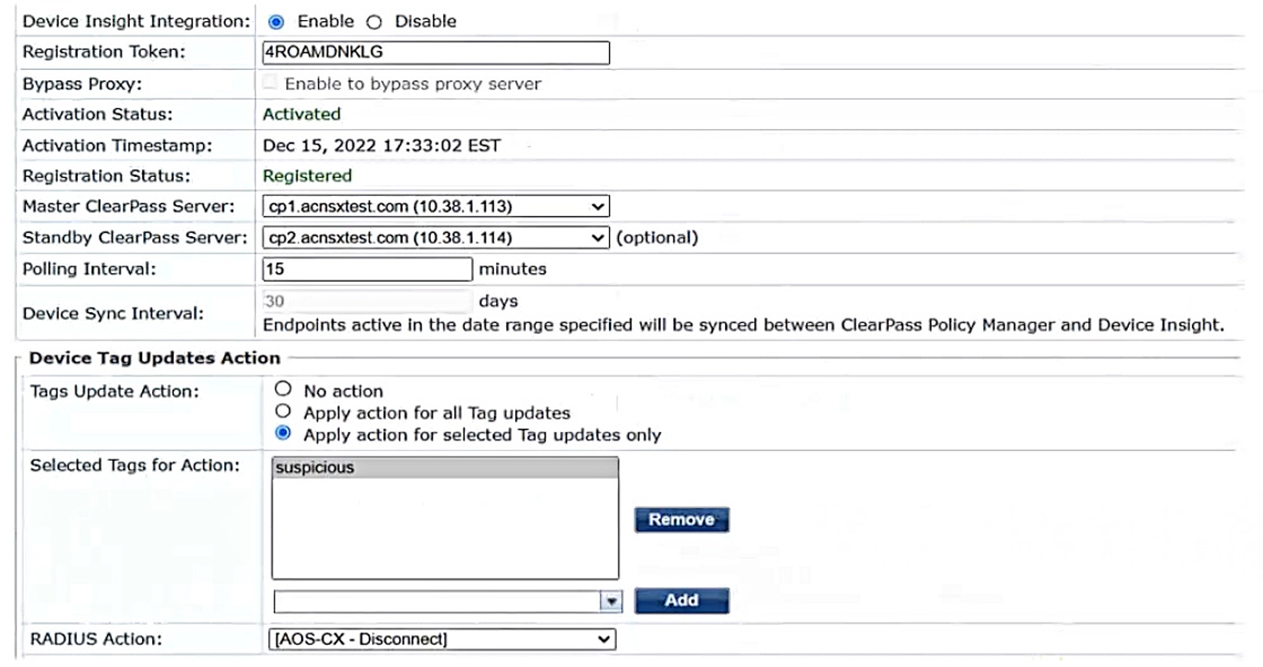

According to the ClearPass Policy Manager User Guide1, the tag shown in the exhibit is a Device Insight tag, which is used to classify and identify devices based on their behavior and characteristics. Device Insight tags can be used as conditions in enforcement policies to apply different actions or roles to devices based on their tags. However, in order to ensure that devices are reclassified and receive the correct treatment based on their tags, profiling must be enabled in each service that uses one of these enforcement profiles. Profiling is a feature that allows ClearPass to dynamically discover and profile devices on the network, and update their attributes and tags accordingly. Profiling also allows ClearPass to send RADIUS Change of Authorization (CoA) messages to the network access servers (NASes) that control the access of the devices, and instruct them to reauthenticate or terminate the sessions of the devices that have changed their tags. The profiling action must be set to the correct one for the NASes using that service, as different NASes may support different types of CoA messages. Therefore, option C is the correct answer.

To configure CPPM to collect information from Intune on demand during the authentication process, you need to use the Intune extension for ClearPass. This extension allows ClearPass to query Intune for device compliance and configuration information using the Intune API. To use this extension, you need to register an app in Azure AD and grant it the required permissions to access Intune1

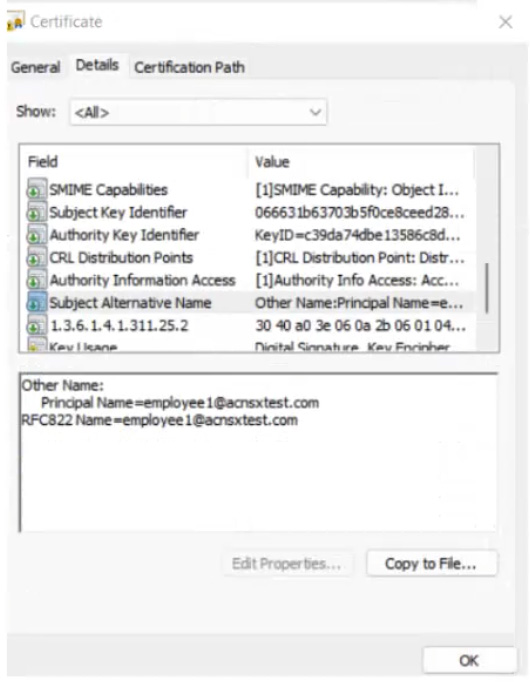

The Intune extension uses the device ID as the key to query Intune for device information. The device ID is a unique identifier that is assigned by Intune to each enrolled device. The device ID can be obtained from the client certificate that is used for EAP-TLS authentication. Therefore, the certificates issued to clients must include the Intune ID in the subject name, so that ClearPass can extract it and use it to query Intune2

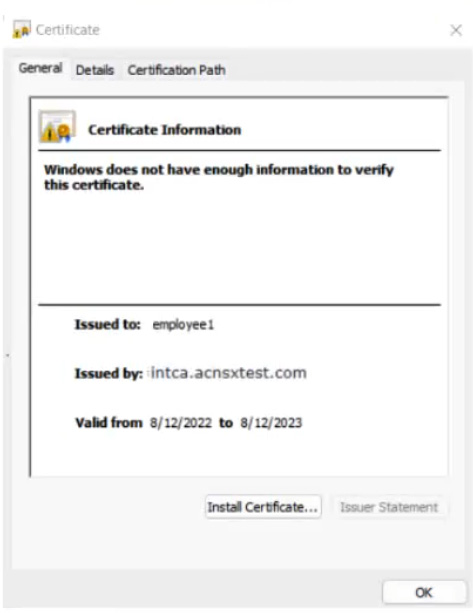

The certificates issued to clients do not need to be issued by a well-known, trusted CA, as long as ClearPass trusts the CA that issued them. The certificates do not need to include the client MAC address in the subject name, as this is not relevant for querying Intune. The certificates do not need to be issued by a ClearPass Onboard CA, as this is not a requirement for using the Intune extension.

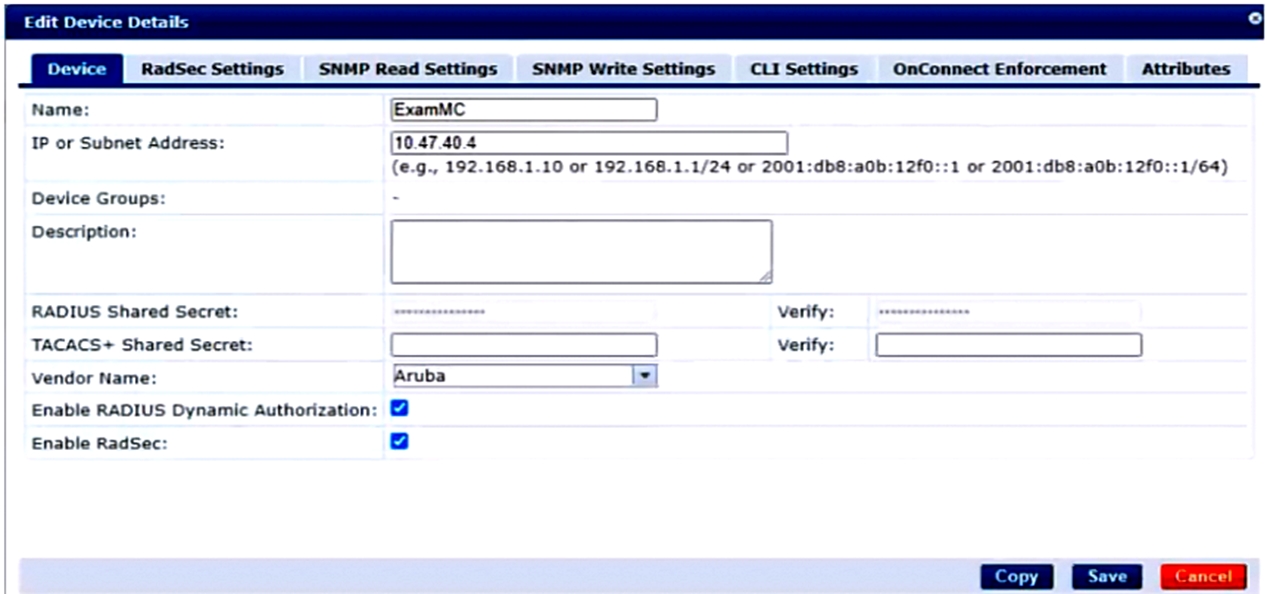

Dynamic authorization is a feature that allows CPPM to send change of authorization (CoA) or disconnect messages to the MC to modify or terminate a user session based on certain conditions or events 1. Dynamic authorization uses the RFC 3576 protocol, which is an extension of the RADIUS protocol 2.

To enable dynamic authorization on the MC, you need to configure the IP address and UDP port of the CPPM server as the RFC 3576 server on the MC 3. The default UDP port for RFC 3576 is 3799, but it can be changed on the CPPM server . The MC and CPPM must use the same UDP port for dynamic authorization to work properly 3.

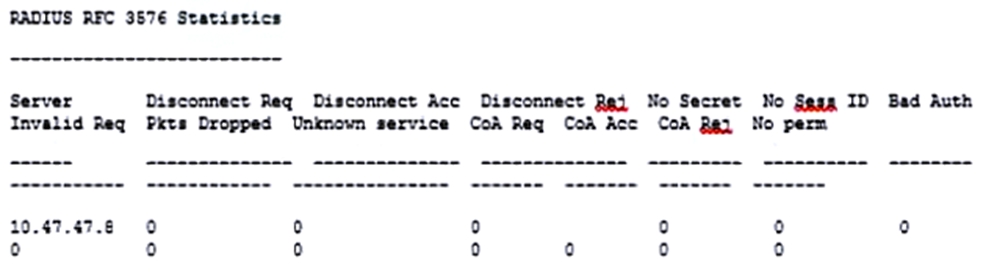

In this scenario, the MC is configured with the IP address of the CPPM server (10.47.47.8) as the RFC 3576 server, but it is using the default UDP port of 3799. However, according to the exhibit, the CPPM server is using a different UDP port of 1700 for dynamic authorization . This mismatch causes the CoA requests from CPPM to fail on the MC, as shown by the statistics .

To fix this issue, you need to change the UDP port in the MCs’ RFC 3576 server config to match the UDP port used by CPPM, which is 1700 in this case. Alternatively, you can change the UDP port in CPPM to match the default UDP port of 3799 on the MC. Either way, you need to ensure that both devices use the same UDP port for dynamic authorization 3 .
