Physical layer connectivity for Junos devices involves a variety of media types, with fiber-optic cabling being the standard for high-speed, long-distance, or high-density uplink requirements. Two of the most prevalent connector types used in these environments are the LC (Lucent Connector) and the SC (Subscriber Connector) .

The LC connector is a small-form-factor (SFF) connector that uses a 1.25 mm ferrule. Due to its compact size and " push-and-latch " mechanism, it is the primary connector type found on SFP, SFP+, and XFP transceivers used in Juniper EX, MX, and QFX series hardware. Its high-density design allows for more ports in a limited space on a line card or chassis. The SC connector , often referred to as a " square connector, " utilizes a larger 2.5 mm ferrule and a " push-pull " snapping mechanism. While it was highly common in older legacy hardware and fiber patch panels, it has largely been superseded by the LC in modern data center and enterprise switching environments.

In contrast, the RJ-45 is a standard copper Ethernet connector (typically used with Category 5e/6 cables), and the BNC (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. As a Senior Architect, distinguishing between these physical interfaces is critical when specifying the correct Small Form-factor Pluggable (SFP) modules and patch cables required to bring a Junos interface into an operational up/up state.

In the IPv4 addressing architecture, a /24 prefix length (standard Class C subnet mask of 255.255.255.0) signifies that the first 24 bits of the 32-bit address are reserved for the network portion, leaving 8 bits for the host portion. To calculate the total number of available IP addresses within this range, the formula $2^n$ is applied, where $n$ represents the number of host bits. For a /24 mask, $2^8$ results in 256 total addresses.

However, standard networking conventions—which Junos OS adheres to for interface configuration and routing—require the reservation of two specific addresses within any given subnet. The first address in the range is the network address (where all host bits are 0), used to identify the subnet itself in the routing table. The last address in the range is the directed broadcast address (where all host bits are 1), utilized to communicate with all hosts on that segment simultaneously. Therefore, the number of " usable " hosts that can be assigned to device interfaces, such as ge-0/0/0.0 or a workstation, is calculated as $2^n - 2$. In this instance, $256 - 2 = 254$. Understanding this calculation is fundamental for an architect when performing IP address management (IPAM) and ensuring that the Packet Forwarding Engine is configured with valid, assignable host addresses within a defined broadcast domain.

In the Junos OS architecture, interfaces are strictly divided into physical and logical components. The physical interface represents the actual hardware port (e.g., ge-0/0/0), while logical units (e.g., ge-0/0/0.0) define the protocol-specific parameters and logical segmentation required for traffic processing. A fundamental characteristic of this model is that a single physical interface can host multiple logical units. This is a mandatory requirement for technologies such as 802.1Q VLAN tagging, where each logical unit corresponds to a different VLAN ID on the same physical link, allowing for efficient micro-segmentation of traffic.

Furthermore, Junos OS allows logical units to have multiple IP addresses assigned to them within the same address family or across different families (such as inet and inet6). This flexibility enables a single logical interface to reside on multiple subnets simultaneously, which is essential for complex routing scenarios, multi-homing, or transitional dual-stack environments. It is a common misconception that logical units are reserved for management; in reality, every physical interface must have at least one logical unit (typically unit 0) configured for the device to process any transit or local traffic. Understanding the hierarchical relationship between the physical port and its logical subdivisions is critical for successful interface management and protocol deployment on Junos platforms. Reference: Junos OS Fundamentals, Interface Naming and Hierarchy.

==========

The Packet Forwarding Engine (PFE) represents the data plane of a Junos device, responsible for the high-speed processing and movement of packets through the system. Its primary role is to forward transit traffic—data that enters one interface and exits another—at wire speed using specialized hardware such as Application-Specific Integrated Circuits (ASICs). To accomplish this, the PFE utilizes a local copy of the Forwarding Information Base (FIB) provided by the Routing Engine, ensuring that forwarding decisions are made locally without requiring the main CPU ' s intervention for every packet.

In addition to pure forwarding, the PFE is the functional component that implements and executes firewall filters and policing. Because firewall filters must be applied to transit traffic at line rate to prevent bottlenecks, the PFE evaluates incoming and outgoing packets against configured filter terms in hardware. This ensures that security policies and traffic shaping are applied with minimal latency. It is critical to note that the PFE does not maintain the master routing table (RIB) or perform route selection; those " intelligent " control plane functions are strictly the domain of the Routing Engine. By offloading the repetitive tasks of packet inspection and hardware forwarding to the PFE, Junos OS maintains consistent performance even under heavy traffic loads or complex security configurations. Reference: Junos OS Fundamentals, Packet Forwarding Engine Architecture.

==========

The Juniper MX204 is a fixed-configuration router that utilizes a specific hierarchical naming convention for its physical interfaces: type-fpc/pic/port. In the MX204 architecture, there is a single built-in Flexible PIC Concentrator (FPC), which is always designated as FPC 0 . This FPC is subdivided into two logical Physical Interface Cards (PICs): PIC 0 and PIC 1 .

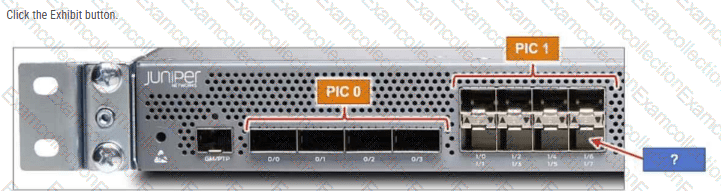

As shown in the exhibit, PIC 0 contains four high-speed ports (labeled 0/0 through 0/3) that typically support 40GbE or 100GbE speeds. PIC 1 contains eight ports (labeled 1/0 through 1/7) designed for 1GbE or 10GbE connectivity. These ports are arranged in a stacked, $2 \times 4$ grid. The labeling system on the chassis indicates the port numbers for each column. In the fourth column of the PIC 1 block, the top port is identified as 1/6 and the bottom port as 1/7 .

The blue arrow in the exhibit points directly to the bottom-right interface in the PIC 1 section. Correlating this physical location with the chassis labels confirms that the port number is 7. When combined with the FPC and PIC identifiers, the full interface name is xe-0/1/7 (assuming a 10GbE transceiver is installed). Understanding this physical-to-logical mapping is essential for accurate cabling and configuration within the Junos OS, ensuring that administrators apply the correct logical unit and protocol settings to the intended physical hardware.

Understanding the distinction between collision and broadcast domains is fundamental to Layer 2 and Layer 3 networking. In a modern Ethernet switching environment, a switch effectively eliminates collisions by creating a separate collision domain for each of its physical ports. This is achieved through micro-segmentation and the support of full-duplex communication, which allows for simultaneous transmission and reception of data on a per-port basis.

However, while a switch segments collision domains, it does not inherently segment broadcast domains. By default, all ports on a switch reside within the same broadcast domain, meaning that a broadcast frame (such as an ARP request) received on one port will be flooded to all other ports within that specific VLAN or bridge domain. Segmenting broadcast domains requires either the configuration of Virtual LANs (VLANs) or the use of a Layer 3 device like a router, which does not forward broadcast traffic by default between its interfaces. It is a common misconception that broadcast domains are absent in IPv6; while IPv6 utilizes multicast (via NDP) instead of traditional Layer 2 broadcasts, the concept of the " link-local " scope where these packets are distributed remains functionally equivalent to a broadcast domain. For the JNCIA-Junos standard, the core takeaway is that switches provide per-port collision isolation while maintaining a unified broadcast environment unless explicitly partitioned. Reference: Networking Fundamentals, Collision and Broadcast Domains.

==========

In large-scale Junos deployments, efficiency and flexibility are achieved through the use of configuration groups . When faced with a requirement like moving all 1-gigabit interfaces to jumbo frames—with the caveat that the exact MTU value (e.g., 4000 bytes) might change after testing—manually editing every interface is both tedious and prone to error.

By creating a configuration group under the [edit groups] hierarchy, you can define the MTU parameter once. You then use the apply-groups statement at the [edit interfaces] level or on specific interface ranges. This creates a " template " effect. The flexibility comes into play during the testing phase: if results indicate that a 9000-byte MTU is preferable to 4000 bytes, the architect only needs to modify the value in the group definition. The Junos OS inheritance mechanism automatically propagates this update to every interface associated with that group.

Applying MTU at the family level (Option B) is less efficient and doesn ' t handle the physical Layer 2 MTU requirements of jumbo frames as effectively. Path-MTU discovery (Option D) is a protocol-level function for avoiding fragmentation but does not configure the local interface ' s hardware capability to accept larger frames. Thus, groups represent the best practice for centralized, scalable management.

Securing the management plane is a core requirement for any Junos OS deployment. Secure Shell (SSH) is the industry-standard protocol used to provide encrypted, authenticated remote access to the Junos Command Line Interface (CLI). Unlike Telnet, which transmits both administrative credentials and command data in cleartext, SSH utilizes public-key cryptography to establish a secure tunnel, protecting the session from eavesdropping, man-in-the-middle attacks, and unauthorized interception.

In Junos OS, SSH is typically enabled within the [edit system services] hierarchy. Once active, it allows administrators to perform operational and configuration tasks with the assurance that their management traffic remains confidential. Beyond simple terminal access, SSH serves as the transport mechanism for other secure management functions, such as the NETCONF XML management protocol and Secure Copy (SCP) for file transfers. For high-security environments, Junos supports advanced SSH features including key-based authentication, strong cipher suites, and multi-factor authentication integration. Disabling insecure protocols like Telnet and FTP in favor of SSH and SFTP/SCP is a foundational best practice for hardening the Routing Engine against external threats.

The statement describing commit confirmed 5 is correct. In Junos OS, configuration changes are first made to a candidate configuration . They do not become the active operational configuration merely because they have been entered in configuration mode. A commit operation is required to validate and activate those changes.

The commit confirmed mechanism provides an important administrative safety feature. When the administrator enters:

commit confirmed 5

Junos OS activates the candidate configuration but requires confirmation within 5 minutes . If the configuration is not confirmed before the timer expires, Junos OS automatically rolls back to the previously committed configuration. Juniper explicitly documents that the optional number following commit confirmed specifies the confirmation period in minutes.

Option A is incorrect because operational mode is primarily used for monitoring, troubleshooting, maintenance, and operational commands rather than making persistent configuration changes. Option B is incorrect because configuration-mode edits remain candidate changes until committed. Option D is also incorrect: rollback 0 does not restore factory defaults . It loads the most recently committed configuration and effectively removes pending uncommitted modifications.

Study Guide Reference Topics: Configuration Basics — candidate versus active configuration, commit operations, confirmed commits, configuration rollback, and Junos CLI modes.

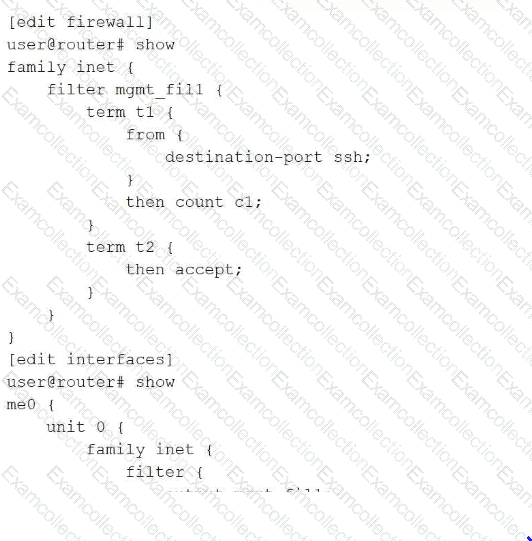

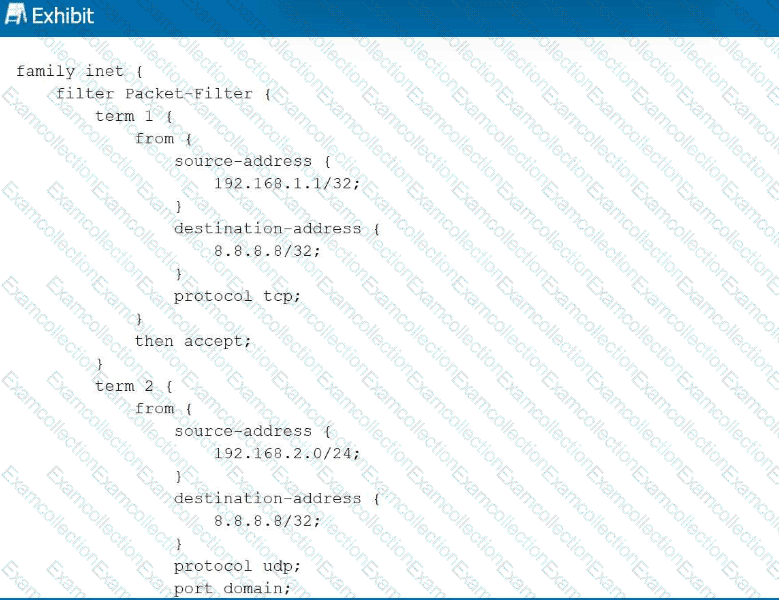

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface . The configuration shows the filter attached to me0 , which in Junos nomenclature represents the Management Ethernet port—a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface . In the provided snippet, term t1 specifically matches the destination-port ssh , and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

==========
