Juniper JN0-106 - Junos - Associate (JNCIA-Junos) Junos OS 21.2

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.

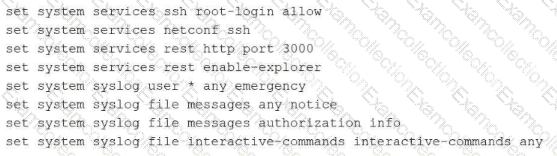

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

The fundamental architecture of Junos OS is built upon the clean separation of the Control Plane (Routing Engine or RE) and the Forwarding Plane (Packet Forwarding Engine or PFE). While these two components perform vastly different tasks, they must maintain a high-speed, reliable communication channel to synchronize the state of the device. This connection is achieved through an internal Ethernet link .

This internal link serves several critical functions. First, it allows the Routing Engine to " push " the distilled forwarding table (FIB) to the PFE, ensuring that the hardware knows exactly how to handle incoming transit traffic at wire speed. Second, it acts as a conduit for exception traffic . If the PFE receives a packet that it cannot handle alone—such as an OSPF hello, a BGP update, or an ICMP " Time Exceeded " message—it sends that packet over the internal Ethernet link to the RE for processing. This link is carefully policed by built-in rate limiters to ensure that a flood of transit-related exception traffic cannot overwhelm the Routing Engine ' s CPU, a mechanism known as control plane protection. By using a standard Ethernet-based internal fabric, Junos ensures a scalable and modular design where the RE can focus on complex protocol calculations while the PFE focuses on the heavy lifting of packet switching.

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

Junos OS routing policies are evaluated using a sequential, " first-match " logic. When a route is compared against a policy, the system evaluates the terms in the order they are defined. Once a route meets all the match criteria (the from statement) in a term, the router executes the associated action (the then statement).

If the action is a terminating action —such as accept or reject—the evaluation of that specific route for that specific policy ends immediately. In this scenario, since the route matched the first term and the action was accept, the route is successfully processed and the policy evaluation is complete. The system will not proceed to evaluate the second or third terms. This behavior is critical for network architects to understand when ordering terms; more specific " exceptions " must be placed at the top of the policy, while broader " catch-all " terms must be placed at the bottom. If the administrator wanted the evaluation to continue to the next term despite a match, they would need to explicitly include the next term action, which is a non-terminating action. Without it, a match on an accept action signifies the final decision for that route within that policy context.

Traceoptions represent an essential diagnostic facility within Junos OS, primarily used by network engineers for deep-level troubleshooting and protocol analysis. The fundamental purpose of configuring traceoption log files is to enable detailed debugging of specific protocols—such as BGP, OSPF, or IS-IS—or specific system processes like the Routing Protocol Process (rpd). When enabled, the system captures detailed information about the internal operations of the protocol, including the exchange of packets, state machine transitions, and error conditions, writing this data to a dedicated file in the /var/log directory.

Unlike standard system logging (syslog), which captures high-level events and warnings, traceoptions provide a granular, " behind-the-scenes " view of how a protocol is interacting with its neighbors. This is particularly useful for identifying the root cause of complex adjacency issues or route instability that standard show commands may not reveal. However, because tracing can be resource-intensive, it is typically configured with specific flags to limit the output to relevant events and is disabled once the troubleshooting task is complete. Traceoptions do not serve to optimize routing automatically , nor are they intended for permanent compliance storage or simple bandwidth monitoring. Instead, they remain the premier tool for clinical debugging and protocol verification within the Junos environment. Reference: Operational Monitoring and Maintenance, Troubleshooting Tools and Traceoptions.

==========

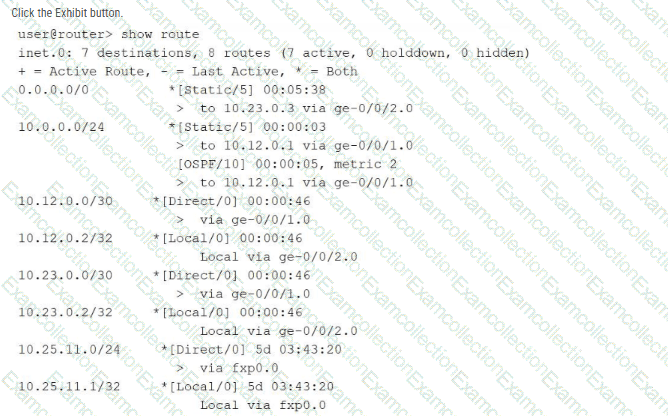

In the Junos OS architecture, the routing table often receives prefix information from various sources, including direct connections, static configurations, and multiple dynamic interior and exterior gateway protocols. Route preference, frequently referred to as administrative distance in other vendor environments, serves as the primary tie-breaking mechanism used by the Routing Engine to select a single " active " route when multiple entries for the exact same destination prefix exist from different protocol sources. Each routing source is assigned a default numerical value, where a lower numerical value indicates a more preferred or " trustworthy " source. For instance, a direct route typically carries a preference of 0, while OSPF internal routes default to 10 and BGP routes default to 170.

The selection process evaluates these values; the route with the lowest preference is installed in the forwarding table and used for transit traffic. If preferences are equal, Junos secondary tie-breakers like local preference or metric are considered. Understanding this hierarchy is critical for traffic engineering and ensuring predictable routing behavior across the fabric. Modification of these default values via routing policy allows administrators to influence path selection without altering the underlying protocol metrics themselves.

In Junos OS configuration management, the rename and replace pattern commands serve distinct roles for modifying the candidate configuration. The rename command is used when an administrator needs to change the identifier of a specific, single configuration object—such as changing an interface name or a policy-term name—while keeping the underlying properties of that object intact. In contrast, the replace pattern command is a powerful utility designed for bulk modifications across the configuration hierarchy. It utilizes string matching or regular expressions to find every occurrence of a specific text string and substitute it with another.

This is particularly useful in scenarios involving mass updates, such as migrating an entire subnet across multiple interface descriptions, firewall filters, and routing policy terms simultaneously. While rename acts locally on a specific path, replace pattern can be applied globally from the root of the configuration or constrained to a specific sub-hierarchy. As a Senior Architect, it is critical to understand that replace pattern does not just change names; it can modify any part of the statement text, making it an essential tool for efficient large-scale configuration refactoring without the need for manual, line-by-line edits. Reference: Configuration Basics, Modifying Configuration, Command Line Editing.

IPv6 introduces several fundamental shifts in networking architecture compared to its predecessor, IPv4. The most prominent characteristic is the address length; IPv6 utilizes a 128-bit address space, represented in hexadecimal notation across eight groups of 16 bits. This massive expansion from IPv4 ' s 32-bit limit was designed to ensure long-term address availability for the global internet and the growing ecosystem of connected devices.

Another defining characteristic of IPv6 is the concept of address scope, particularly regarding link-local addresses . Any IPv6 address beginning with the fe80::/10 prefix is classified as link-local. These addresses are automatically configured on every IPv6-enabled interface and are strictly not routable beyond the local physical or logical link segment. They are essential for local link operations such as neighbor discovery and routing protocol adjacency formation.

Architecturally, IPv6 also improves performance by streamlining the packet header. Unlike IPv4, the IPv6 header does not include a checksum, as modern link-layer (Layer 2) and transport-layer (Layer 4) protocols perform their own error checking, making a redundant header checksum unnecessary at the network layer. Additionally, IPv6 replaces the broadcast-based Address Resolution Protocol (ARP) with the multicast-based Neighbor Discovery Protocol (NDP). Understanding these core traits—massive address length and non-routable link-local scoping—is critical for managing modern Junos-based network infrastructures.
