Juniper JN0-106 - Junos - Associate (JNCIA-Junos) Junos OS 21.2

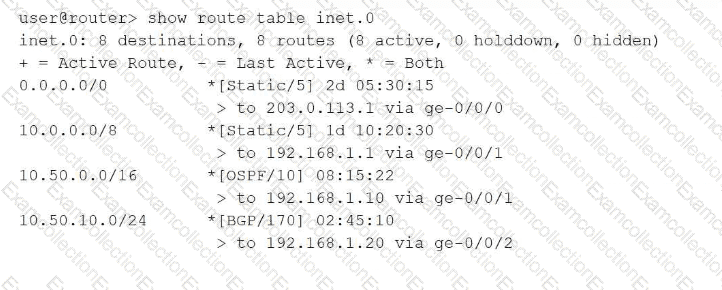

In Junos OS, the Routing Information Base (RIB) selection process follows a strict hierarchy where the Longest Prefix Match (LPM) is the absolute primary tie-breaker. When a packet is destined for 10.50.10.55 , the Routing Engine searches the inet.0 table for all matching entries. In this exhibit, four routes match: the default route ( 0.0.0.0/0 ), a general static route ( 10.0.0.0/8 ), an OSPF route ( 10.50.0.0/16 ), and a BGP route ( 10.50.10.0/24 ).

The LPM rule dictates that the router must select the most specific route available, which is defined as the entry with the highest number of matching bits in the subnet mask. The 10.50.10.0/24 route matches 24 bits of the destination address, making it more specific than the 16-bit, 8-bit, or 0-bit alternatives. It is critical to understand that route preference (e.g., Static at 5, OSPF at 10, or BGP at 170) is only evaluated if there are multiple paths to the exact same prefix and length. Because these prefixes vary in length, the length takes precedence over the protocol preference. Therefore, the BGP-learned route via 192.168.1.20 is selected as the active path, ensuring traffic follows the most granular routing information provided to the device. Reference: Routing Fundamentals, Routing Table Selection, Longest Prefix Match.

==========

Determining the appropriate subnet mask for a specific host requirement is a core task in designing Junos-based network infrastructures. The number of usable hosts in an IPv4 subnet is calculated using the formula $2^n - 2$, where $n$ represents the number of host bits remaining after the network prefix. In this scenario, the requirement is to support 50 hosts within a single broadcast domain.

Evaluating the options:

A /29 mask provides 3 host bits ($2^3 - 2 = 6$ hosts), which is insufficient.

A /28 mask provides 4 host bits ($2^4 - 2 = 14$ hosts), which is insufficient.

A /27 mask provides 5 host bits ($2^5 - 2 = 30$ hosts), which still fails to meet the 50-host threshold.

A /26 mask provides 6 host bits. Applying the formula: $2^6 - 2 = 64 - 2 = 62$ usable host addresses.

Since a /26 mask provides 62 usable addresses, it is the smallest standard subnet mask that fully satisfies the requirement of 50 hosts. Using a /26 mask allows for the 50 required hosts while providing a small buffer for future growth (12 additional addresses) without wasting the excessive address space associated with a /25 or /24 mask. This efficient allocation of address space is a best practice for maintaining scalable and organized routing tables on Juniper devices.

IPv6 introduces several fundamental shifts in networking architecture compared to its predecessor, IPv4. The most prominent characteristic is the address length; IPv6 utilizes a 128-bit address space, represented in hexadecimal notation across eight groups of 16 bits. This massive expansion from IPv4 ' s 32-bit limit was designed to ensure long-term address availability for the global internet and the growing ecosystem of connected devices.

Another defining characteristic of IPv6 is the concept of address scope, particularly regarding link-local addresses . Any IPv6 address beginning with the fe80::/10 prefix is classified as link-local. These addresses are automatically configured on every IPv6-enabled interface and are strictly not routable beyond the local physical or logical link segment. They are essential for local link operations such as neighbor discovery and routing protocol adjacency formation.

Architecturally, IPv6 also improves performance by streamlining the packet header. Unlike IPv4, the IPv6 header does not include a checksum, as modern link-layer (Layer 2) and transport-layer (Layer 4) protocols perform their own error checking, making a redundant header checksum unnecessary at the network layer. Additionally, IPv6 replaces the broadcast-based Address Resolution Protocol (ARP) with the multicast-based Neighbor Discovery Protocol (NDP). Understanding these core traits—massive address length and non-routable link-local scoping—is critical for managing modern Junos-based network infrastructures.

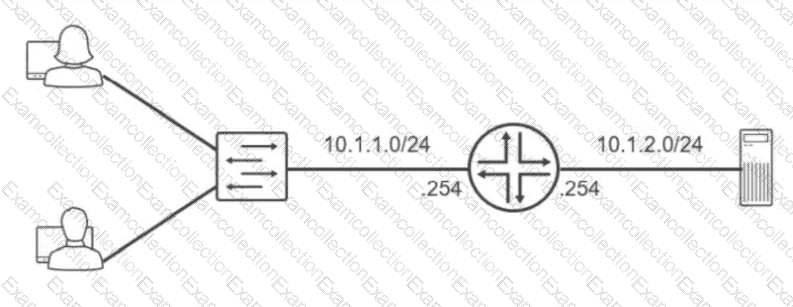

The network topology illustrates two distinct IP subnets, 10.1.1.0/24 and 10.1.2.0/24 , separated by a Layer 3 router. For hosts on the first subnet to communicate with the server on the second subnet, an intermediary device must perform inter-subnet routing. The router acts as the exit point for each local segment, utilizing its interfaces assigned with the .254 host address as the logical path to external networks.

The fundamental requirement for this communication is the configuration of a default gateway on all end-nodes. When the users (on 10.1.1.0/24 ) attempt to send data to the server (on 10.1.2.0/24 ), their local TCP/IP stack recognizes the destination is not on the local wire. Without a defined default gateway, the hosts would simply drop the traffic as unroutable. By setting the default gateway to 10.1.1.254 for users and 10.1.2.254 for the server, the hosts are instructed to forward all off-net traffic to the router. The router then consults its routing table—which contains these directly connected routes—and forwards the packets to the appropriate egress interface. While VLAN tagging or routing protocols could exist in more complex environments, the primary necessity for basic reachability between these two specific segments is a correctly configured gateway on the terminal devices. Reference: Networking Fundamentals, IP Routing Basics, Default Gateway Configuration.

==========

Junos OS provides robust automation features for configuration management, specifically through the system archival utility. When an administrator needs to ensure that every successful configuration change is mirrored to an off-box repository for disaster recovery or auditing, the transfer-on-commit statement is the appropriate tool. This command instructs the Junos device to initiate an automated upload process immediately following the validation and activation of a commit command.

To fully implement this, the administrator must also define the archive-sites, which specify the destination URIs (using protocols such as FTP, SCP, or HTTP) and the necessary credentials for the external server. While transfer-interval can be used to back up configurations on a chronological schedule (e.g., every 60 minutes), transfer-on-commit is superior for tracking specific change events as they happen. This ensures that the external backup is always synchronized with the current active configuration on the device. Once configured, the device handles the background transfer, allowing the administrator to maintain a historical record of configuration states without manual intervention, which is essential for large-scale operational environments.

For managing high volumes of administrative users, Junos OS supports externalizing the authentication, authorization, and accounting (AAA) process. The two primary industry-standard protocols supported for this purpose are RADIUS (Remote Authentication Dial-In User Service) and TACACS+ (Terminal Access Controller Access-Control System Plus).

Using these protocols allows an architect to maintain a centralized user database on an external server (like Cisco ACS, FreeRADIUS, or Microsoft NPS) rather than configuring every individual user account locally on every Junos device. When a user attempts to log in via SSH or the console, the Junos device acts as a client, forwarding the credentials to the remote server. RADIUS is often preferred for its broad compatibility and efficiency, while TACACS+ is frequently chosen for its ability to separate authentication from authorization and its support for granular command-level accounting. SHA (Secure Hash Algorithm) is a cryptographic hash function used within these processes but is not an authentication protocol itself. Similarly, IPsec is a suite for securing IP communications (VPNs) and is unrelated to the administrative login AAA sequence.

In the Junos OS architecture, maintaining a reliable recovery point is a critical post-installation task. While the system automatically archives previous configurations as " rollback " files every time a commit is performed, these files are transient and can eventually be rotated out of the default 50-file history as new changes are made. To ensure a permanent and reliable recovery state, a Senior Architect should manually create a rescue configuration .

The rescue configuration is a specifically designated file used to restore a device to a known-working state if it becomes unreachable or the configuration becomes corrupted. Unlike standard rollbacks, the rescue configuration is only created or updated when an administrator explicitly issues the operational mode command request system configuration rescue save. This ensures that even if several subsequent commits flush the desired initial state from the standard rollback archive, the " safe harbor " configuration remains intact on the storage media. This state can then be re-activated via the rollback rescue command in configuration mode followed by a commit. Setting a rescue configuration after the initial setup is a foundational best practice for disaster recovery and operational stability, providing a " last resort " configuration that is immune to the automated rotation of the commit history.

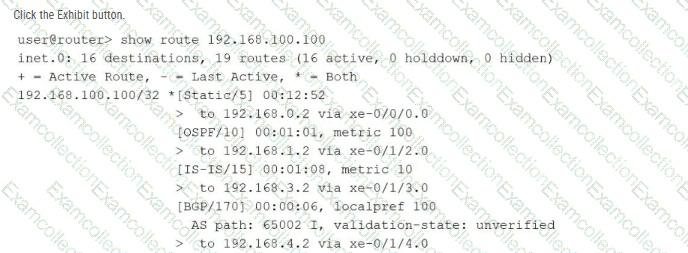

In the Junos OS architecture, the Routing Engine (RE) manages path selection by evaluating multiple potential routes to a specific destination found within the Routing Information Base (RIB). When multiple routing sources (such as static configuration, OSPF, IS-IS, and BGP) provide information for the exact same destination prefix—in this case, 192.168.100.100/32 —the device utilizes route preference as the primary tie-breaker to determine which entry becomes the " active " route.

The provided exhibit displays the default preference values for each protocol: Static is 5 , OSPF is 10 , IS-IS is 15 , and BGP is 170 . Junos OS follows a " lower is better " logic for preference; therefore, the Static route is selected as the most trustworthy path. In the command output, the active route is explicitly identified by the asterisk (*) and plus sign (+) symbols located next to the [Static/5] entry. Looking at the specific next-hop information for this active static route, the output indicates the traffic is sent to 192.168.0.2 via xe-0/0/0.0 . Consequently, the Packet Forwarding Engine (PFE) will install this specific path into the forwarding table, causing all traffic destined for 192.168.100.100 to be egressed over the xe-0/0/0.0 interface.

Root password recovery in Junos OS is a critical administrative procedure designed to regain access to the management plane when the root credentials are lost. This process is fundamentally tied to the physical security of the device, as it requires two specific conditions that cannot be met over a standard network connection. First, the administrator must have direct console access to the device. Because the recovery process involves interrupting the Junos boot sequence before the operating system kernel and its associated security services (such as SSH) are fully initialized, it must be performed through the serial management port.

Second, a system reboot is mandatory. The recovery mechanism is triggered by interrupting the boot loader (typically the " Loader " or " U-Boot " stage) by pressing the Space bar or a specific key sequence during power-on. This allows the administrator to enter " single-user mode " or boot into a " recovery " state. Once in this restricted environment, the device mounts its internal storage in a way that permits the modification of the root authentication parameters without requiring the existing password. This workflow intentionally bypasses the standard authentication database to restore management control while preserving the rest of the device configuration. This procedure underscores the importance of securing physical access to the chassis, as anyone with console access and the ability to cycle power can eventually gain root-level authority over the system.
