An aggregate route is a summarized route that is created by combining multiple specific routes into a single, broader route. In Junos OS, when an aggregate route is configured, its default next hop is set toreject.

Step-by-Step Explanation:

Aggregate Route:Aggregate routes are used to reduce the size of routing tables by representing a collection of more specific routes with a single summary route. They help improve routing efficiency and scalability, especially in large networks.

Default Next Hop Behavior:

When you configure an aggregate route in Junos OS, it has arejectnext hop by default.

Therejectnext hop means that if a packet matches the aggregate route but there is no more specific route in the routing table for that destination, the packet will be discarded, and an ICMP "destination unreachable" message is sent to the source.

This behavior helps to prevent routing loops and ensures that traffic isn't forwarded to destinations for which there is no valid route.

Modifying Next Hop:If needed, the next hop behavior of an aggregate route can be changed todiscard(which silently drops the packet) or to another specific next hop. However, by default, the next hop is set toreject.

Juniper Reference:

Junos Command: set routing-options aggregate route reject to configure an aggregate route with a reject next hop.

Verification: Use show route to verify the presence and behavior of aggregate routes.

MACsec (Media Access Control Security)provides data confidentiality, integrity, and origin authenticity at Layer 2, protecting against several types of threats.

Step-by-Step Breakdown:

Man-in-the-Middle Attack Protection:MACsec encrypts traffic at Layer 2, preventingman-in-the-middle attackswhere an attacker intercepts and manipulates traffic between two communicating devices. Since the data is encrypted, any intercepted packets are unreadable.

Protection Against Playback Attacks:MACsec also protects againstplayback attacksby using sequence numbers and timestamps to ensure that old, replayed packets are not accepted by the receiver.

Juniper Reference:

MACsec Configuration: Juniper devices support MACsec for securing Layer 2 communications, ensuring protection against replay and man-in-the-middle attacks in sensitive environments.

InOSPF (Open Shortest Path First), areas are used to segment a network into smaller, more manageable pieces to improve scalability. By dividing a network into areas, OSPF can reduce the size of thelink-state database (LSDB), which helps routers process updates more efficiently.

Step-by-Step Breakdown:

Purpose of OSPF Areas:OSPF areas allow for hierarchical routing within the OSPF domain. Routers in the same area have identical LSDBs, but routers in different areas do not exchange full link-state information. Instead, they exchange summarized routes, which reduces the LSDB size and CPU/memory usage.

Benefits:Reducing the LSDB size improves scalability and ensures faster convergence in larger networks. Area 0 is the backbone area, and all other areas must connect to it, forming a hierarchical structure.

Juniper Reference:

OSPF Configuration: Areas in OSPF are configured to optimize network performance by limiting the scope of link-state advertisements (LSAs) to within an area.

To configureaggregated Ethernet (AE) interfaceson a Junos device, the configuration is done under the[edit chassis]hierarchy.

Step-by-Step Breakdown:

Chassis Configuration:Thechassisconfiguration is responsible for enabling the hardware to supportLink Aggregation Groups (LAGs), allowing multiple physical interfaces to be bundled into a single logical interface for load balancing and redundancy.

Command Example:

set chassis aggregated-devices ethernet device-count

This command enables a specific number of aggregated Ethernet interfaces on the device.

Juniper Reference:

LAG Configuration in Junos: Thechassishierarchy is used to allocate and manage hardware resources for aggregated Ethernet interfaces in Juniper devices.

Bidirectional Forwarding Detection (BFD)is a network protocol used to detect failures in the network path between two devices quickly.

Step-by-Step Breakdown:

Path Failure Detection:BFD provides a low-overhead mechanism for detecting failures in forwarding paths across Layer 3 networks. It is much faster than traditional routing protocol timers and can detect failures within milliseconds.

BFD in Routing:BFD can be integrated with routing protocols like OSPF, BGP, or IS-IS to trigger a faster convergence when a network path goes down.

Juniper Reference:

BFD Configuration: Juniper devices use BFD to monitor network paths and ensure fast failure detection, enhancing network resilience.

In athree-stage IP fabric(also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric isonly two hops away.

Step-by-Step Breakdown:

Three-Stage IP Fabric:

Leaf Layer: Leaf switches connect directly to servers and edge devices.

Spine Layer: Spine switches provide connectivity between leaf switches but do not connect to each other directly.

Two-Hop Communication:In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops:

Ingress leaf → Spine → Egress leaf.

Benefits:This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.

Juniper Reference:

IP Fabric Architecture: This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper's QFX and EX switches in data centers.

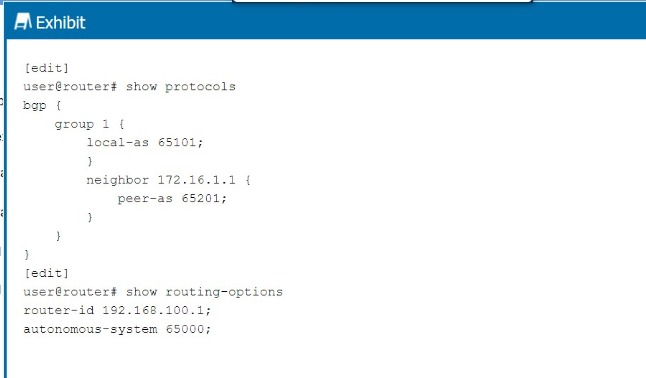

In the exhibit, BGP is configured withlocal AS 65101and a neighbor at172.16.1.1inpeer AS 65201. This setup involves two different Autonomous Systems (AS), indicating anExternal BGP (EBGP)configuration.

Step-by-Step Breakdown:

EBGP vs. IBGP:

EBGPis used between routers in different ASes. In this case, the local AS is65101and the peer AS is65201, meaning the BGP session isEBGP.

IBGPis used between routers within the same AS, which is not applicable here as the AS numbers are different.

BGP Group Configuration:

The configuration does not require a type external parameter because Junos OSautomatically recognizes the session asEBGPwhen the local and peer AS numbers are different.

The BGP session will operate as EBGP, and the configuration will commit successfully.

Juniper Reference:

BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

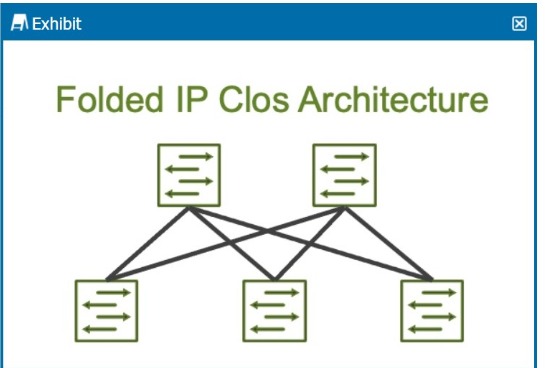

The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

In Junos OS,direct routesare the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have apreference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos,direct routesare always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.
