Thesource MAC addressin the Ethernet header is used to populate thebridging table(also called the MAC address table) on a switch. When a frame arrives at a switch, the switch examines the source MAC address and records it along with the ingress port in its MAC address table.

Step-by-Step Breakdown:

Learning Process:When an Ethernet frame arrives on a switch port, the switch looks at thesource MAC addressand adds this MAC address to the MAC table along with the port it was received on. This process is calledMAC learning.

Purpose:The switch uses this information to determine the correct port to send frames destined for that MAC address in future transmissions, thus ensuring efficient Layer 2 forwarding.

Juniper Reference:

Ethernet Switching: Juniper switches use source MAC addresses to build and maintain the MAC address table, which is essential for Layer 2 switching.

Bidirectional Forwarding Detection (BFD)is a protocol used to detect faults in the forwarding path between two routers. It provides rapid failure detection, enhancing the performance of routing protocols like OSPF, BGP, and IS-IS.

Step-by-Step Breakdown:

Per Interface Configuration:BFD can be configured on aper-interfacebasis within the protocol stanza (e.g., OSPF, BGP). This allows granular control over where BFD is enabled and the failure detection intervals for specific interfaces.

Minimum Interval and Multiplier:BFD uses aminimum interval(the time between BFD control packets) and amultiplier(the number of missed packets before the path is declared down). The combination of these two defines the detection time for failures.

Juniper Reference:

BFD Configuration: In Juniper, BFD is configurable within routing protocol stanzas, with the failure detection mechanism always based on minimum intervals and multipliers.

When creating anIP fabric underlayusingOSPFas the routing protocol, consistentinterface speedsare important to ensure optimal traffic distribution and utilization of all links.

Step-by-Step Breakdown:

OSPF and Interface Speeds:OSPF calculates the cost of a link based on its bandwidth. The default cost calculation in OSPF is:

A black text on a white background Description automatically generated

If interface speeds vary significantly, OSPF may choose paths with lower cost (higher bandwidth), resulting in some links being underutilized.

Equal Utilization:To ensure that all links are equally utilized in an IP fabric, it is recommended to maintain uniform interface speeds across the fabric. This ensures balanced load sharing across all available paths.

Juniper Reference:

IP Fabric with OSPF: Juniper recommends consistent interface speeds to maintain even traffic distribution and optimal link utilization in IP fabric underlay designs.

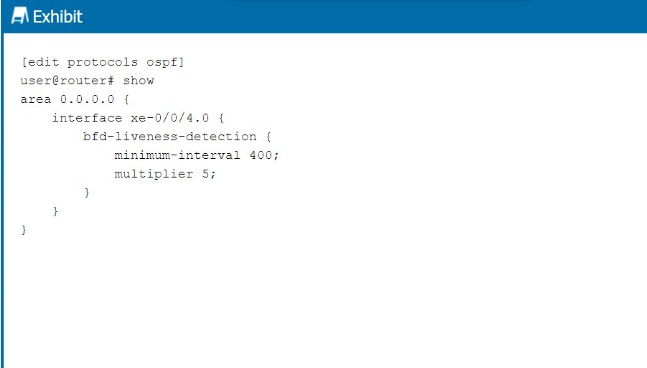

The exhibit shows the configuration ofBidirectional Forwarding Detection (BFD)for OSPF on interface xe-0/0/4.0, with the following parameters:

minimum-interval: 400 milliseconds

multiplier: 5

Step-by-Step Breakdown:

BFD Liveness Detection:BFD is used to detect link failures at sub-second intervals, providing faster convergence times for routing protocols like OSPF. Theminimum-intervalis the time between BFD control packets (in milliseconds), and themultiplierindicates how many missed BFD packets trigger a failure.

Calculating Failure Detection Time:The failure detection interval is calculated as:

Failure Interval=minimum-interval×multiplier\text{Failure Interval} = \text{minimum-interval} \times \text{multiplier}Failure Interval=minimum-interval×multiplier

In this case:

400 milliseconds×5=2000 milliseconds(2seconds)400 \, \text{milliseconds} \times 5 = 2000 \, \text{milliseconds} (2 seconds)400milliseconds×5=2000milliseconds(2seconds)

Conclusion:If no BFD control packets are received within2000 milliseconds (2 seconds), the interface will be considered down, triggering OSPF to recalculate routes.

Juniper Reference:

BFD Configuration: BFD parameters such as minimum-interval and multiplier are used to fine-tune the failure detection time for faster convergence.

Inlegacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

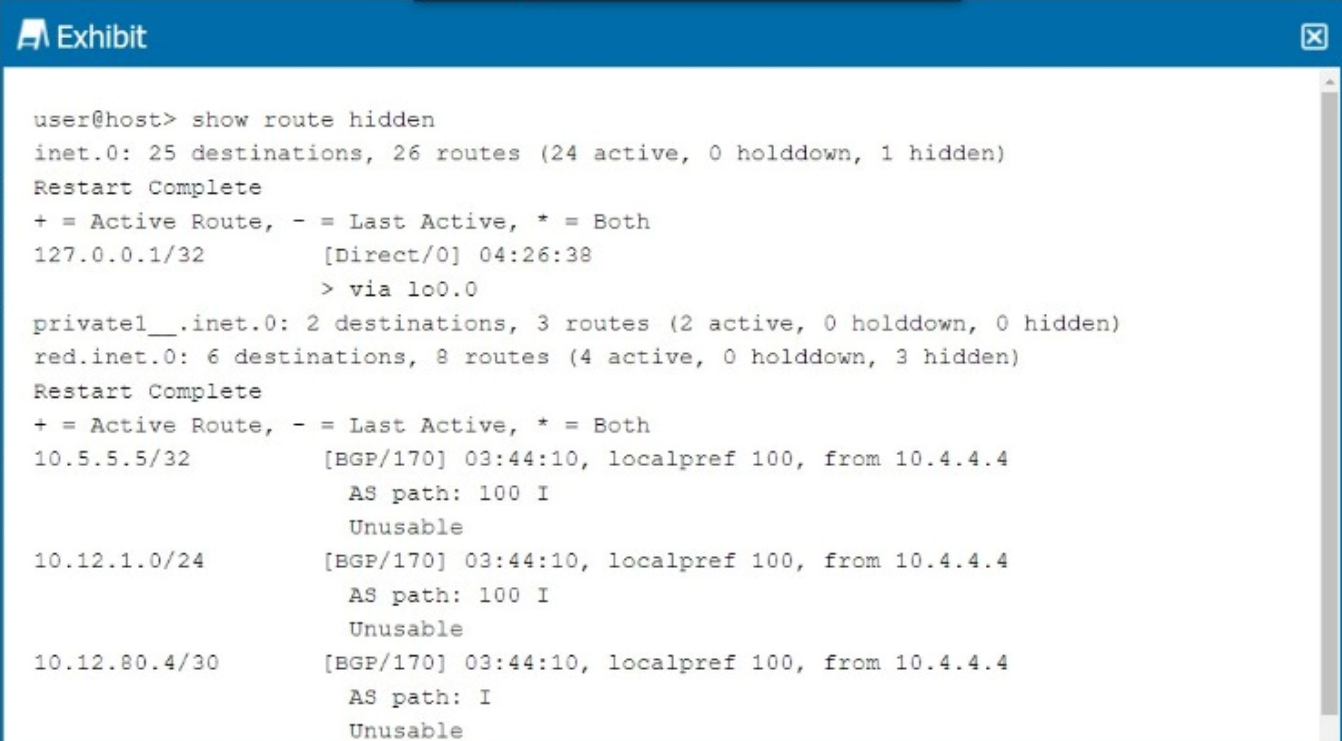

In Junos OS, routing information is stored in different routing tables depending on the protocol and address family. For IPv6 addresses, the routing table used isinet6.0.

Step-by-Step Explanation:

Routing Tables in Junos:

inet.0: This is the primary routing table for IPv4 unicast routes.

inet6.0: This is the primary routing table for IPv6 unicast routes.

inet.3: This routing table is used for MPLS-related routing.

Other routing tables, like inet.1, inet.2, are used for multicast and other specific purposes.

inet6.0 Routing Table:When IPv6 is enabled on a Juniper router, all the IPv6 routes are stored in theinet6.0table. This includes both direct routes (connected networks) and learned routes (from dynamic routing protocols like OSPFv3, BGP, etc.).

Verification:To view IPv6 routes, the command show route table inet6.0 is used. This will display the contents of the IPv6 routing table, showing the network prefixes, next-hop addresses, and protocol information for each route.

Juniper Reference:

Junos Command: Use show route table inet6.0 to check IPv6 routing entries.

IPv6 Routing: Ensure that the IPv6 protocol is enabled on interfaces and that routingprotocols like OSPFv3 or BGP are properly configured for IPv6 traffic handling.

EVPN-VXLANis an overlay technology used in data center networks to extend Layer 2 services over a Layer 3 network.

Step-by-Step Breakdown:

BGP Control Plane:BGP (Border Gateway Protocol)is used as the control plane for EVPN-VXLAN. BGP advertises MAC addresses and IP address reachability information across the VXLAN network, enabling efficient multi-tenant Layer 2 connectivity over a Layer 3 infrastructure.

Encapsulation:VXLAN (Virtual Extensible LAN)encapsulates Layer 2 frames into Layer 3 packets. This encapsulation allows Layer 2 traffic to be transported across a Layer 3 network, effectively creating a tunnel for Ethernet frames.

Juniper Reference:

EVPN-VXLAN Configuration: Juniper supports EVPN-VXLAN with BGP as the control plane, allowing scalable Layer 2 connectivity over a routed infrastructure in modern data centers.

In Junos, thedefault export policyforOSPFis toreject all routesfrom being exported.

Step-by-Step Breakdown:

Default Export Policy:By default,OSPFin Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a customexport policythat explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

Each port on a modernswitchcreates a separatecollision domain. This allows multiple devices to communicate simultaneously without collisions on different ports.

Step-by-Step Breakdown:

Collision Domain:

Acollision domainis a network segment where data packets can collide if two devices send packets simultaneously.

On a switch, each port creates aseparate collision domain, so collisions only occur if two devices connected to the same port (through a hub, for instance) try to send data at the same time.

Switches vs Hubs:Unlike hubs, which have one large collision domain, switches isolate collisions to individual ports, improving performance.

Juniper Reference:

Switch Port Behavior: In Juniper switches, each port operates in its own collision domain, enhancing network efficiency by reducing the chances of packet collisions.
