Juniper JN0-281 - Data Center Associate (JNCIA-DC)

Aggregate routes and generated routes are used to create summarized routes in Junos, but they behave differently in terms of forwarding.

Step-by-Step Breakdown:

Aggregate Routes:

An aggregate route summarizes a set of more specific routes, but it does not have a direct forwarding next hop. Instead, it points to the more specific routes for actual packet forwarding.

Generated Routes:

A generated route also summarizes specific routes, but it has a forwarding next hop that is determined based on the availability of contributing routes. The generated route can be used to directly forward traffic.

Juniper Reference:

Aggregate and Generated Routes: In Junos, aggregate routes rely on more specific routes for forwarding, while generated routes can forward traffic directly based on their next-hop information.

On Junos switching platforms used in data centers, a VLAN is a Layer 2 broadcast domain. To make a VLAN functional for user traffic, you define the VLAN with a name and typically a VLAN ID, and you associate Layer 2 interfaces with that VLAN so frames arriving on those interfaces are placed into the correct broadcast domain. Without interface membership, the VLAN exists as configuration but does not carry endpoint traffic because no ports participate in it. This is why assigning a VLAN name or ID and associating Layer 2 interfaces to the VLAN is a correct requirement.

Trunk mode interfaces are designed to carry multiple VLANs over a single physical link using 802.1Q tagging. In a data center, trunks are common on leaf-to-spine uplinks, switch-to-switch connections, and server connections where the host or hypervisor tags multiple VLANs. Therefore, assigning one or more VLANs to a trunk port is correct.

An IRB interface is not required for every VLAN. IRB is only needed when the VLAN requires Layer 3 gateway functionality, such as inter-VLAN routing or default gateway services for that subnet. Pure Layer 2 VLANs do not need IRB. Also, an access mode interface is intended to belong to a single VLAN and typically carries untagged traffic, so assigning multiple VLANs to an access mode interface is not correct in standard Ethernet switching behavior.

A Layer 2 switch builds its Ethernet switching table through a learning process based on the source MAC addresses of incoming frames. When a frame arrives on an interface within a VLAN or bridge domain, the switch examines the source MAC address and associates it with the ingress interface and VLAN context. If the MAC address is new, the switch creates a new entry; if it already exists but is seen on a different interface, the switch updates the entry to reflect the new location. This dynamic learning is fundamental to efficient unicast forwarding and is why option A is correct.

Once the switch has learned MAC-to-port mappings, it can forward subsequent frames destined to those MAC addresses as known unicast out the specific egress interface rather than flooding them. If the destination MAC is unknown, the switch typically floods the frame within the VLAN or bridge domain to discover the correct destination. When the destination replies, the switch learns that MAC as a source, completing the learning cycle.

Spanning Tree Protocol does not provide a MAC table and there is no concept of downloading an Ethernet switching table from a root bridge. STP’s role is loop prevention and topology control at Layer 2, not MAC learning distribution. Firewall filters can enforce policy but do not create the switching table. Recording destination MAC addresses would not correctly learn endpoint locations because the destination can be unknown when the first frames are sent; source learning is reliable because every received frame carries the sender’s MAC address.

In Junos Ethernet switching, a VLAN is a Layer 2 broadcast domain and can include any set of switch ports that you assign to it. There is no generic rule that limits a VLAN to only half of a switch’s physical ports. Practically, a single VLAN can include all physical ports on the switch if that is how the environment is designed, for example in a flat Layer 2 segment for a specific purpose or during a migration. This makes statement C correct.

For interface mode behavior, access mode is the default expectation for endpoint-facing Layer 2 ports where traffic is normally untagged. In Junos, when an interface is configured for Ethernet switching and no explicit trunk configuration is applied, the operational intent aligns with access behavior: the port is associated with a single VLAN and forwards frames as untagged on the wire. Trunk mode must be explicitly configured when the link needs to carry multiple VLANs using 802.1Q tagging, such as switch-to-switch uplinks or server connections that tag multiple VLANs. Therefore, statement D is correct and statement A is incorrect because trunk mode is not the default behavior.

This distinction is important in data center operations because misidentifying an access port as a trunk can lead to dropped traffic, VLAN mismatch, or unexpected flooding behavior.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/bridging-and-vlans.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/task/interfaces-configuring-ethernet-switching-access.html

In Junos OSPF, the passive setting is used when you want the prefix on an interface to be advertised into OSPF, but you do not want the interface to form OSPF neighbor adjacencies or send OSPF Hello packets. This is a common data center requirement for server-facing, management, or loopback-related interfaces where you want the subnet to be reachable through the routing domain, but there is no OSPF-capable neighbor on that link. By making the interface passive, the router still includes the connected network in OSPF as an internal route, so other routers learn how to reach that subnet. At the same time, the interface does not participate in adjacency formation, which reduces unnecessary protocol chatter and eliminates the risk of accidentally forming neighbors on an untrusted or unintended segment.

The other options do not meet the requirement. Interface-type changes the OSPF network type behavior, such as broadcast or point-to-point, but it does not stop adjacency formation while still advertising the network. Strict-bfd relates to failure detection behavior when BFD is used with routing protocols and does not control whether OSPF forms neighbors. Link-protection is related to fast reroute and protection mechanisms, not suppressing OSPF adjacency on an interface.

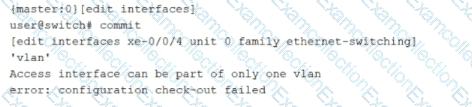

The commit error indicates that the interface is being treated as an access port while the configuration attempts to associate it with more than one VLAN. In Junos Ethernet switching, an access mode interface represents a single untagged VLAN membership. Because access ports accept and transmit frames without 802.1Q tags, the switch must map all ingress untagged traffic to exactly one VLAN. For that reason, Junos enforces the rule that an access interface can be part of only one VLAN, and it rejects configurations that try to add multiple VLAN members under access mode.

There are two valid ways to resolve this, depending on the intended design. First, if the port truly connects to a single endpoint that should live in only one broadcast domain, configure the interface as a member of only one VLAN. This aligns with access port semantics and eliminates the conflict that causes the commit to fail.

Second, if the endpoint or downstream device needs to carry multiple VLANs over the same physical link, change the interface to trunk mode. A trunk port is designed to transport multiple VLANs using 802.1Q tagging, so multiple VLAN members are valid and expected. In data center environments, trunking is common for server virtualization hosts, appliance uplinks, and switch-to-switch links.

Connecting the interface to the network does not affect configuration validation, and logical unit numbering is unrelated to VLAN membership rules for access ports.

To confirm that your router is sending a specific route to a particular BGP neighbor, you must inspect the outbound advertisements toward that neighbor. In Junos, the command that shows routes being advertised to a peer is show route advertising-protocol bgp with the neighbor address specified. Adding 0.0.0.0 to the command filters the output to the default route, making it the most direct way to validate that the default route is actually being exported to peer 10.100.25.6. This is especially important in data center deployments where default route advertisement is often controlled by policy, conditional origination, or specific export terms, and where you want to verify the real operational result rather than just configuration intent.

The receive-protocol variant shows what you are learning from that neighbor, not what you are sending to it. The show route protocol bgp 0.0.0.0 command only confirms that the default route exists in your local routing table as a BGP-learned route, which does not prove it is being exported to the neighbor. The show route protocol static 0.0.0.0 command would confirm the presence of a static default route locally, but again it does not confirm that it is being advertised over BGP. Therefore, the outbound advertisement command is the correct verification method.

A data center underlay IP fabric is a routed leaf-spine network designed to provide scalable Layer 3 connectivity between all fabric nodes. A key property of these fabrics is that there are multiple equal-cost paths between any two endpoints, typically across multiple spine devices. Equal-Cost Multi-Path load balancing is used to distribute traffic across those parallel paths. The routing table installs multiple next hops for the same destination prefix, and the forwarding plane selects an egress link per flow using a hash, which keeps packets in-order within a flow while using the fabric’s aggregate bandwidth. This makes statement B correct.

Because the underlay is routed, loop avoidance is handled by the routing protocol and the fundamental properties of IP forwarding, not by spanning tree. Routing protocols compute a loop-free forwarding topology and use mechanisms like shortest-path calculation and next-hop selection so that even when multiple paths exist, traffic is forwarded along valid loop-free routes. This makes statement C correct. Statement D is incorrect because spanning tree is a Layer 2 loop prevention mechanism and is not required or desired in a routed underlay fabric. Statement A is also incorrect because traffic distribution depends on ECMP and forwarding behavior, not on all devices being the same hardware model. Mixed platforms can interoperate as long as the design accounts for capacity, features, and consistent routing behavior.

Qualified next hop is the Junos mechanism that lets you configure more than one next hop for the same static route and control which one is preferred. This is most commonly used to build primary and backup forwarding behavior with deterministic selection. You configure a primary next hop and then add one or more qualified next hops with a different preference value. The route installs the best, lowest preference next hop as active, while keeping the alternate next hop available as standby. If the primary next hop becomes unusable, Junos can switch to the qualified next hop so traffic continues to flow.

This approach is widely used in data center edge and services routing, for example toward management networks, service appliances, or external gateways where you want a static default or summary route with predictable failover. It is not the same as resolving a non-directly-connected next hop. That scenario is handled by recursive resolution behavior, not by qualification. Qualified next hop also does not depend on any specific routing protocol, and it is not limited to link-state environments.

Finally, qualified next hop does not rely on sending pings to test reachability. Health tracking can be achieved through other mechanisms such as interface state, next hop resolution changes, or integration with failure detection features, but the qualified next hop feature itself is about preference-ranked redundancy for static routes.
