Juniper JN0-336 - Security, Specialist (JNCIS-SEC)

The correct answers are A, C, and E. Junos Space Security Director supports policy hierarchy and policy management at device, group, and global/all-devices levels. A device policy is created for a specific device and is used when a unique firewall policy must be pushed to one SRX Series Firewall. A group policy is shared across multiple devices and is used when the same policy configuration must be applied consistently to a set of managed firewalls. Juniper’s Security Director documentation explicitly describes device policy and group policy behavior, including the fact that device-specific policies are evaluated within the broader policy-ordering model.

The third correct policy type is global, often represented in Security Director workflows as all-devices/global policy behavior. Juniper Security Director product material describes granular control over global, group, and device-level firewall policies, which maps directly to the options in this question. Option B, local, is not the Security Director policy type being tested; local configuration may exist on an SRX, but it is not one of the Security Director policy hierarchy types listed here. Option D, universal, is also not a Junos Space Security Director policy type. Reference topics: Security Director, global policy, group policy, device policy, firewall policy hierarchy, centralized SRX policy management.

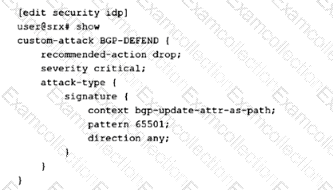

The correct answer is A. the action taken is defined in the IDP policy that includes this attack object. The exhibit defines a custom attack object named BGP-DEFEND under the security idp custom-attack hierarchy. The custom object includes metadata such as recommended-action drop, severity critical, and signature match conditions such as BGP update AS-path context and pattern 65501. However, an attack object by itself does not determine the final enforcement behavior. The attack object defines what to match; the IDP policy rule that references the object defines what action to take when that match occurs. Juniper describes attack objects as objects used inside IDP rules to identify malicious activity, while IDP rules include rule actions such as drop-packet, drop-connection, close-client, close-server, recommended, and others.

Option B is wrong because the firewall security policy enables IDP inspection by applying an IDP policy, but the IDP action is not selected directly by the normal security policy. Options C and D are too absolute. Even though the custom object shows recommended-action drop, that is only used if the IDP rule action invokes recommended behavior. Without seeing the IDP policy rule action, you cannot conclude reject or drop. Reference topics: IDP custom attack objects, IDP policy rule actions, recommended action, signature-based attack matching.

The correct answers are A and D. A mobile command center using a 5G ISP behind CGNAT is operating behind dynamic address translation. For IPsec to work reliably through NAT, the SRX must support NAT Traversal, which encapsulates IKE and ESP traffic in UDP/4500 after NAT is detected. Juniper states that NAT-T is used when NAT devices exist in the datapath and that NAT keepalives are required because NAT devices age out UDP translations. Juniper’s Security Director VPN workflow also specifically says to enable NAT-T when the dynamic endpoint is behind a NAT device.

DPD is also required because mobile and carrier-grade NAT connections can disappear, roam, or become stale without a clean tunnel teardown. Juniper defines Dead Peer Detection as the method used by IPsec peers to verify whether the remote peer is still present and responsive by sending encrypted IKE notification payloads and waiting for acknowledgements. Option B is not the best answer because IKEv1 aggressive mode is weaker and does not provide identity protection; Juniper also notes that aggressive mode applies only to IKEv1. Option C is invalid because IKEv2 aggressive mode does not exist. Reference topics: IPsec VPN, NAT-T, CGNAT, dynamic endpoints, DPD, IKE peer availability.

The correct answers are A, D, and E. In IPsec VPN terminology, DES, 3DES, and AES are encryption algorithms used to provide confidentiality for protected IP traffic. Juniper’s IPsec material identifies AES, DES, and Triple DES/3DES as IPsec encryption standards, while separating them from authentication hash algorithms such as MD5, SHA-1, and SHA-2. This distinction matters heavily in JNCIS-SEC because IPsec proposals contain different cryptographic functions: encryption protects packet confidentiality, while authentication/hash algorithms validate integrity and origin.

Option B, SHA-1, is incorrect because SHA-1 is a hashing/authentication algorithm, not an encryption algorithm. It produces a message digest used for integrity checking and authentication, commonly as an HMAC variant. Option C, MD5, is also incorrect for the same reason: MD5 is a message-digest algorithm used for authentication/integrity, not for encrypting payload data. AES is the modern preferred encryption family because it is cryptographically stronger than DES and 3DES at comparable key strengths, while DES and 3DES remain historically recognized IPsec encryption algorithms. Reference topics: IPsec VPN, IPsec proposals, encryption algorithms, authentication algorithms, DES, 3DES, AES, SHA, and MD5.

The correct answers are B and C. Juniper IDP uses attack objects as match conditions inside IDP policy rules. Juniper states that IDP attack objects represent known and unknown attacks and that the predefined attack object database is periodically updated by Juniper Networks. The main IDP attack object types include signature attack objects, protocol anomaly attack objects, and compound attack objects.

Option C is correct because signature attack objects detect known attacks using stateful attack signatures. Juniper defines a signature as a pattern that exists within a specific section of an attack and includes protocol, service, direction, flow, and context information to reduce false positives.

Option B is correct because protocol anomaly attack objects detect abnormal protocol behavior. Juniper explains that protocol anomaly objects identify unusual or ambiguous traffic that violates protocol specifications, RFCs, or common RFC extensions.

Option A is wrong because “statistic-based” is not one of the IDP attack object database types being tested here. Option D is wrong because “vector-based” is not a Juniper IDP attack object type. Reference topics: IDP, attack object database, signature-based attack objects, protocol anomaly attack objects, predefined attack objects.

The correct answers are C and D. Once the SSL proxy profile already exists, the SRX still needs a security policy that matches the SSL/TLS traffic and applies the SSL proxy profile as an application service. Juniper’s SSL proxy configuration procedure explicitly shows creating the security policy match criteria and then applying the SSL proxy profile with then permit application-services ssl-proxy profile-name. It also states that SSL forward and reverse proxy require the profile to be configured at the firewall rule level.

Option D is correct because SSL proxy is not an end goal by itself; it decrypts SSL/TLS traffic so Layer 7 security services can inspect it. Juniper states that decrypted SSL traffic is available for security services and provides examples where the SSL proxy profile and a Content Security/UTM policy are both attached to the same security policy. Option A is wrong because host-inbound-traffic HTTPS controls HTTPS access to the SRX itself, not transit SSL proxy inspection. Option B is wrong because SSL proxy profiles are not referenced under a security zone for this function; they are applied under the matching security policy. Reference topics: SSL Proxy, SSL proxy profile, security policy application-services, Layer 7 inspection, UTM/IDP/ATP integration.

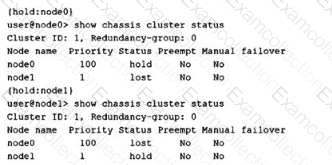

The correct answer is C. fxp0 or fxp1 on either device has an existing configuration. The exhibit shows each node reporting itself in hold state and the peer as lost under redundancy group 0. Juniper’s chassis cluster troubleshooting documentation shows this same hold/lost symptom and states that when a node is in hold, it is not ready to operate in a chassis cluster. For branch SRX devices, when cluster mode is enabled, specific physical interfaces are automatically converted into fxp0 for out-of-band management and fxp1 for the HA control link. These interfaces cannot retain normal transit or standalone interface configuration. If the ports that become fxp0 or fxp1 already have configuration, the cluster can enter the hold/lost condition shown in the exhibit.

Option A is wrong because the output does not indicate a Junos version mismatch. Option B is wrong because hardware mismatch is not the symptom being shown. Option D is too specific: a factory-default configuration can cause this problem because it may include configuration on interfaces that become fxp0/fxp1, but the exhibit does not prove specifically that node1 alone is running factory-default configuration. The tested issue is the existing configuration on the interfaces reserved for chassis-cluster management/control. Reference topics: HA Clustering, chassis cluster hold/lost state, fxp0, fxp1, branch SRX cluster initialization.

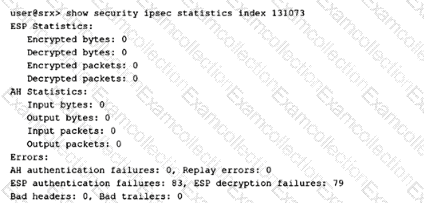

The correct answers are C and D. The exhibit shows ESP encrypted bytes = 0, ESP decrypted bytes = 0, encrypted packets = 0, and decrypted packets = 0. That means no traffic is successfully passing through the IPsec tunnel. Juniper’s show security ipsec statistics command displays ESP encrypted/decrypted packet and byte counters, so zero values on these counters indicate that the tunnel is not successfully carrying protected ESP traffic.

Option C is also correct because the output shows ESP authentication failures and ESP decryption failures. Since ESP is the IPsec protocol responsible for encrypted payload handling, failures in ESP authentication/decryption point to an ESP/IPsec Phase 2 mismatch or incorrect configuration, such as mismatched authentication algorithm, encryption algorithm, keys, proposal parameters, or incompatible negotiated SA settings. Juniper’s IPsec overview explains that Phase 2 negotiates the IPsec SA used to authenticate traffic flowing through the tunnel, so ESP-related failures belong to the IPsec/ESP configuration path rather than AH.

Option A is wrong because the AH counters and AH authentication failures are zero; the evidence is not pointing to AH. Option B is unsupported because the output does not show peer reboot behavior. Reference topics: IPsec VPN, ESP statistics, Phase 2/IPsec SA negotiation, ESP authentication failures, ESP decryption failures.

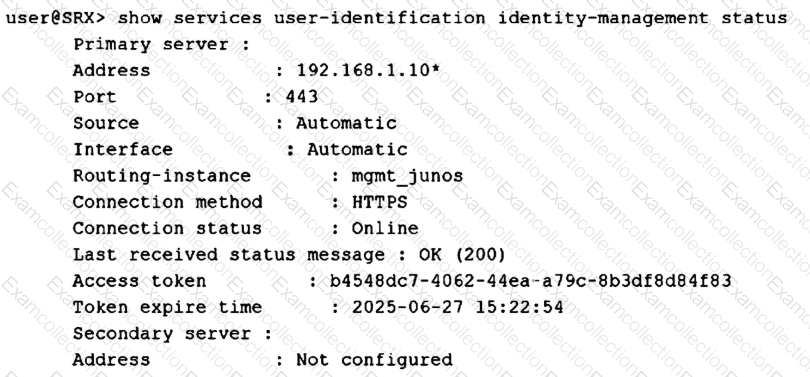

The correct answers are B and D. The command output is from the SRX Series device: show services user-identification identity-management status. Under Primary server, the exhibit shows Address: 192.168.1.10, Port: 443, Connection method: HTTPS, and Connection status: Online. In Juniper Identity Management Service integration, the SRX is the client that connects to the configured primary JIMS server. Juniper’s configuration workflow specifically describes configuring “the IP address of the primary JIMS server” under services user-identification identity-management connection primary address, and the verification output shows that primary server address with its connection status.

Option A is wrong because 192.168.1.10 is listed under Primary server, not as the local SRX address. Option C is also wrong because this SRX command verifies the SRX-to-JIMS identity-management connection, not the backend JIMS-to-domain-controller connection. Domain controller reachability would be validated from JIMS or through JIMS-specific status/monitoring, not by this SRX-side output. The displayed Online state and OK (200) status confirm that the SRX successfully reached the JIMS HTTPS service and received a valid response. Juniper examples use the same status command to validate that the SRX identity-management connection to JIMS is online.

Reference topics: Identity-Aware Security Policies, Juniper Identity Management Service, SRX-to-JIMS connectivity, identity-management status verification.
