In the context of theLabel Distribution Protocol (LDP), the method by which a router advertises labels to its neighbors is defined by itsLabel Advertisement Mode. According to Juniper Networks documentation and industry standards (RFC 5036), there are two primary modes:Downstream Unsolicited (DU)andDownstream on Demand (DoD).

InDownstream Unsolicited (DU)mode, which is the default behavior for Junos OS and most service provider implementations, an LSR (Label Switching Router) does not wait for a specific request from its neighbors. Instead, as soon as the LSR learns a prefix through its Interior Gateway Protocol (IGP) and establishes an LDP session, it automatically generates a label for that prefix and advertises it to all of its LDP peers. This explains the scenario where labels appear for every loopback address in the IGP as soon as LDP is enabled. DU mode is highly efficient for fast convergence because the labels are already present in the neighbors' databases before they are even needed for traffic forwarding.

By contrast,Downstream on Demand (DoD)requires a router to explicitly request a label for a specific prefix from its next-hop neighbor.Ordered Control (Option B)andIndependent Controlrefer to thetimingof label creation (whether a router waits for the next-hop to provide a label before creating its own), whileConservative Retention (Option A)refers to how a router stores labels it receives but doesn't currently use for forwarding. In the Junos default environment, LDP utilizesDownstream Unsolicitedadvertisement combined withOrdered ControlandLiberal Retentionto ensure a robust and rapidly converging MPLS control plane.

In OSPF networks, when multiple routers are connected to a shared multi-access broadcast segment (like an Ethernet switch), they undergo an election process to select aDesignated Router (DR)and aBackup Designated Router (BDR). This mechanism is essential for reducing the number of adjacencies and limiting the volume of Link State Advertisement (LSA) flooding on the segment.

The OSPF election process follows a strict hierarchy based on the following criteria:

Interface Priority:The router with the highest OSPF interface priority is elected as the DR. The router with the second-highest priority becomes the BDR. In Junos, the default priority is 128, but it can be manually configured between 0 and 255.

Router ID:If there is a tie in priority, the router with the numerically highest Router ID (RID) wins the election.

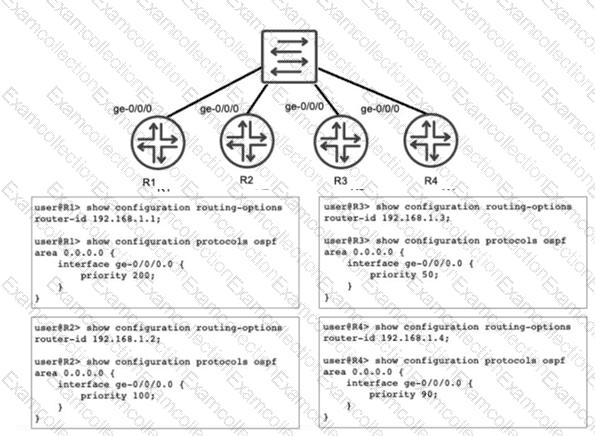

Analyzing the configuration provided in the exhibit:

R1:Priority 200, Router-ID 192.168.1.1

R2:Priority 100, Router-ID 192.168.1.2

R3:Priority 50, Router-ID 192.168.1.3

R4:Priority 90, Router-ID 192.168.1.4

Comparing the priority values,R1 has the highest priority (200)and therefore becomes theDR. The next highest priority value among the remaining routers is100, which belongs to R2, making it theBDR. Although R4 has a higher Router ID than R2, the priority value is evaluated first and takes precedence.

Since all routers came online within a short window (one minute), they participate in the same election cycle, ensuring the configured priorities dictate the outcome rather than "first-come, first-served" preemption behavior common in OSPF once a DR is already established.

TheHello packetis the most basic, yet most vital, component of the OSPF protocol. It serves as the primary mechanism for neighbor discovery, parameter negotiation, and "keepalive" functionality. Per Juniper Networks' routing documentation, OSPF routers use the Hello protocol to dynamically discover other OSPF-enabled routers on their directly connected segments.

When OSPF is enabled on a Junos interface, the router begins multicasting Hello packets (typically to the224.0.0.5"All OSPF Routers" address). This initiates the neighbor relationship. For two routers to move beyond theInitstate and become neighbors, they must agree on several critical parameters contained within the Hello packet:

Area ID:Routers must be in the same OSPF area.

Authentication:Passwords or keys must match.

Timers:The Hello and Dead intervals must be identical.

Options:Such as Stub area flags.

Beyond the initial "initiation," the Hello packet is used tomaintainthe relationship. By continuously sending these packets at a fixed interval (the Hello interval), a router signals to its peers that it is still functional. If a router stops receiving Hello packets from a neighbor for a duration exceeding theDead Interval, it declares the neighbor "down," flushes the associated LSAs from the database, and triggers a new SPF calculation.

Furthermore, on multi-access networks like Ethernet, the Hello packet is the vehicle for the election of theDesignated Router (DR)andBackup Designated Router (BDR). By exchanging priority values and Router IDs within the Hello packets, the segment can elect a central point of contact to minimize the number of adjacencies required on the wire.

In Juniper Networks Junos OS, a "hidden" route in the BGP table typically signifies that the router has received the prefix but cannot install it into the active routing table because theBGP next hop is unreachable. This is a common occurrence in service provider environments when transitioning betweenExternal BGP (EBGP)andInternal BGP (IBGP).

According to Juniper technical documentation, when an EBGP speaker (R1) advertises a prefix to its peer (R2), it sets the next hop to its own interface IP address ($172.16.10.1$). By default, when R2 re-advertises that prefix to its IBGP peer (R3), itpreserves the original EBGP next-hop address. Unless R3 has a specific route in its Interior Gateway Protocol (IGP) or a static route to reach the $172.16.10.1$ subnet, it will mark the route as unusable (hidden).

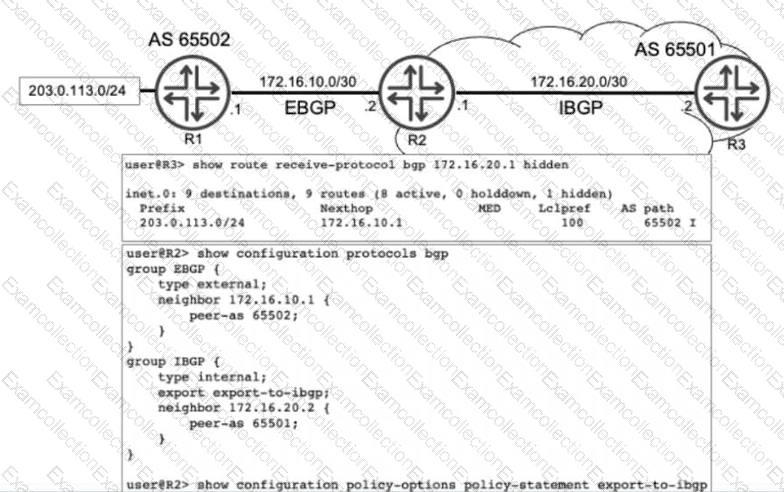

In the exhibit, the show route output onR3explicitly shows the nexthop for $203.0.113.0/24$ as $172.16.10.1$. Since this route is marked "hidden," we can conclude R3 does not know how to reach R2's external peering link. To resolve this, the network administrator must modify the next-hop attribute before the route is sent to R3.

By adding the statementset policy-options policy-statement export-to-ibgp then next-hop self(Option B) on routerR2, R2 will replace the external next-hop ($172.16.10.1$) with its own internal peering address ($172.16.20.1$) before advertising the route to R3. Because R3 already has a direct or IGP connection to R2's internal address, it will successfully resolve the next hop, and the route will transition from "hidden" to "active."

Option A is unnecessary because the route is already being exported; Option C is redundant as the policy is already applied to the IBGP group; and Option D changes path preference but does not solve the underlying reachability problem.

In a Juniper Networks environment, when a router receives multiple BGP paths for the same destination prefix, it utilizes theBGP Path Selection Algorithmto determine the single "best" path to install in the routing table and advertise to other peers. This selection process follows a strict hierarchy of attributes.

According to Juniper Networks technical documentation, the very first attribute evaluated by the BGP process (after ensuring the next hop is reachable) is theLocal Preference. Local preference is a well-known discretionary attribute used to communicate a preference for a specific exit point from the local Autonomous System (AS). A higher local preference value is always preferred over a lower one.

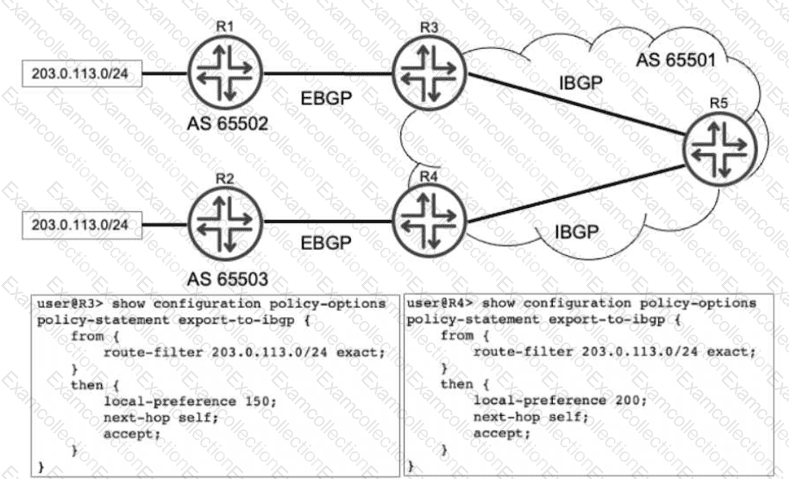

Analyzing the exhibit:

R3receives the prefix from R1 and applies an export policy to its IBGP session that sets thelocal preference to 150.

R4receives the same prefix from R2 and applies an export policy to its IBGP session that sets thelocal preference to 200.

R5receives both of these IBGP updates from R3 and R4.

When R5 runs the best-path algorithm for the 203.0.113.0/24 prefix, it compares the local preference values. Since the path from R4 has a local preference of 200 and the path from R3 has a local preference of 150, R5 immediately selects the path fromR4as the best route. Because BGP is designed to prevent loops and maintain a consistent view, only this single best path is installed as the active route in R5's routing table (inet.0). Options B and D are incorrect because they imply multiple paths are installed for forwarding, which only occurs if specific multipath load-balancing is configured, which is not indicated here.

In theIS-IS (Intermediate System to Intermediate System)protocol as implemented in Junos OS, the output of operational commands uses specific numerical representations to denote the hierarchy levels of a neighbor adjacency. Understanding these values is crucial for troubleshooting peering relationships in a multi-level IS-IS network.

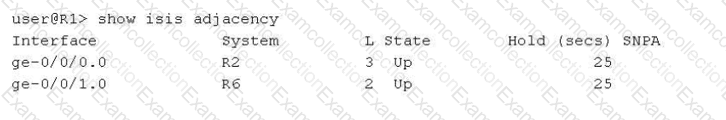

According to Juniper Networks technical documentation, the show isis adjacency command displays the status of the neighbors. The "L" column indicates the level of the adjacency:

Level 1:Indicates the adjacency is strictly for intra-area routing.

Level 2:Indicates the adjacency is strictly for backbone/inter-area routing.

Level 3:This is ashorthand representationused by Junos to indicate that a single adjacency has been established forboth Level 1 and Level 2 simultaneously.

The critical distinction in this question lies in the interface type. On abroadcast interface(such as standard Ethernet), IS-IS typically establishes and maintains separate adjacencies for Level 1 and Level 2. In the CLI output for a broadcast link, you would generally see two separate lines for the same neighbor—one for Level 1 and one for Level 2.

However, on apoint-to-point (P2P)interface, IS-IS can negotiate both levels within a single adjacency. When this occurs, Junos consolidates the output into a single entry and usesLevel 3to signify that the adjacency is functional for both levels. Since the exhibit shows ge-0/0/0.0 as Level 3, it confirms that the link is configured with a point-to-point encapsulation (either natively or via the interface-type p2p command) and is acting as a Level 1/2 adjacency.

Option B is incorrect as the number "3" refers to protocol levels, not the count of neighbors. Option C is a reference to data center architectures that does not influence IS-IS level nomenclature. Option D is incorrect because, as noted, broadcast interfaces display these levels separately rather than using the Level 3 shorthand.

When implementingMultiprotocol BGP (MP-BGP)for IPv6, several architectural constants remain consistent with the original BGP design, while others have evolved to accommodate larger network scales.

Router ID (Option C):

A critical point in Juniper's Service Provider documentation is that theBGP Router IDremains a32-bit value, even when the protocol is carrying 128-bit IPv6 prefixes. The Router ID is typically represented in dotted-quad notation (e.g., 192.168.1.1). In an IPv6-only environment, a Juniper router cannot automatically derive this ID from an interface address, so it must be manually defined under [edit routing-options]. This 32-bit ID is essential for BGP tie-breaking and loop prevention within the AS.

Autonomous System Number (Option D):

TheAutonomous System Number (ASN)was originally a 16-bit value (0 to 65535). However, to address the exhaustion of available ASNs, the standard was extended to32-bit ASNs(documented in RFC 6793). In Junos OS, you can configure BGP using either the older 16-bit format or the newer 32-bit format (often represented in "asplain" or "asdot" notation). While the question mentions a 64-bit value, there is currently no standard for a 64-bit ASN in BGP; the transition from 16-bit to 32-bit satisfies current global scalability needs. Therefore, Option D is the most accurate within the context of current networking standards, as it acknowledges the coexistence of different ASN lengths.

In the IS-IS protocol,TLVs (Type, Length, Value)are the fundamental building blocks used to carry information withinLink-State PDUs (LSPs). Unlike some other protocols that have a fixed, rigid packet format, IS-IS was designed from the ground up to be modular and extensible. This extensibility is achieved through the use of TLVs, which allow the protocol to carry different types of data without requiring changes to the core protocol state machine.

According to Juniper Networks technical documentation,TLVs allow flexible encoding of routing information (Option C). Each TLV specifies the "Type" of information it carries (such as neighbor information or IP reachability), the "Length" of that information, and the "Value" (the actual data). This architecture is what allowed IS-IS to easily support IPv6 by simply adding new TLVs (like TLV 236 for IPv6 reachability) without redesigning the protocol. It also supports Traffic Engineering (TE) extensions used in MPLS environments by adding TLVs that describe link bandwidth and administrative groups.

Furthermore, a singleLSP can contain multiple TLVs (Option D). When a Juniper router generates an LSP, it packs all the necessary information—such as the router's area addresses, its neighbors, and its local interface prefixes—into various TLVs and places them into a single PDU. If the amount of information exceeds the Maximum Transmission Unit (MTU) of the interface, the router will generate additional LSPs (fragmented LSPs) to carry the remaining TLVs.

Options A and B are incorrect because restricting an LSP to a single TLV would make the protocol incredibly inefficient, and the very nature of IS-IS is its ability to support multiple network layer protocols (not just IPv4) through its agnostic TLV-based transport.

In Junos OS, the Routing Engine maintains several different tables to manage various types of reachability and forwarding information. When a router is running MPLS, it must track both IP routes and label-to-label mappings.

Thempls.0table is the primary repository for theLabel Information Base (LIB)and theLabel Forwarding Information Base (LFIB). According to Juniper Networks documentation, mpls.0 is used by transit and egress routers to perform label lookups. When a labeled packet arrives at an interface, the router looks at the top label and references the mpls.0 table to determine the next action. This table stores the mapping of incoming labels to their corresponding operations:Pop(remove the label),Swap(replace the label), orPush(add an additional label).

It is crucial to understand the roles of the other tables to avoid confusion:

inet.0 (Option D):This is the default unicast routing table for IPv4, used for standard IP-to-IP forwarding.

inet.3 (Option C):This is theMPLS Path Table. It stores the egress loopback addresses of LSPs and is used by BGP for next-hop resolution to determine if a destination can be reached via an MPLS tunnel. While inet.3 knowsaboutLSPs, the actual label-switching instructions reside in mpls.0.

inet6.0 (Option A):This is the default unicast routing table for IPv6.

Therefore, for the specific purpose of storing the label base used for transit switching operations,mpls.0is the correct and only table used in the Junos architecture.
