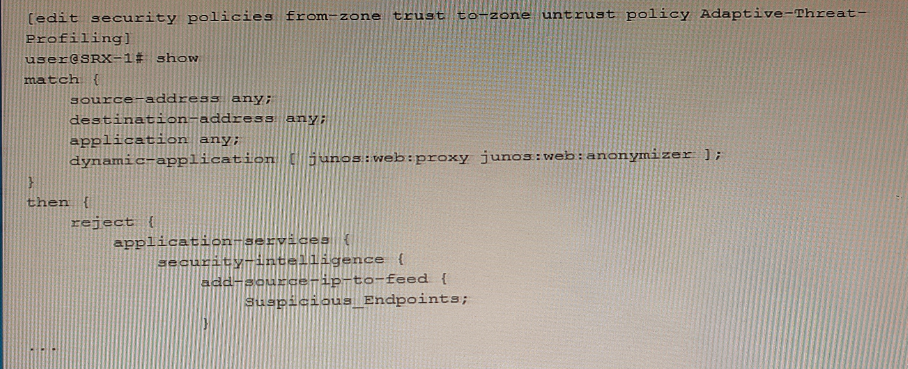

The suspicious_Endpoints feed is a dynamic address group that is created by Juniper ATP Cloud based on the IoT device discovery and policy enforcement feature. This feature allows the SRX Series device to send IoT traffic to Juniper ATP Cloud for analysis and classification. Juniper ATP Cloud then creates a threat feed that contains the IP addresses of the suspicious IoT devices and sends it back to the SRX Series device. The SRX Series device can then use this feed to create and enforce security policies for the IoT traffic. The suspicious_Endpoints feed is usable by any SRX Series device that is a part of the same realm as SRX-1, because the feed is shared among the devices that belong to the same Juniper ATP Cloud realm. Juniper ATP Cloud automatically creates the suspicious_Endpoints feed after you commit the security policy that references the feed, because the feed is dynamically generated based on the IoT traffic analysis. You do not need to manually create the feed in the Juniper ATP Cloud interface. References:

Example- Configure IoT Device Discovery and Policy Enforcement

Juniper Advanced Threat Prevention Cloud Policy Overview

To find an infected host and where the attack came from using the Juniper ATP Cloud, you need to use the Hosts and Threat Sources monitor workspaces. The other options are incorrect because:

B. The File Scanning monitor workspace shows the files that have been scanned by the Juniper ATP Cloud and their verdicts (clean, malicious, or unknown). It does not show the infected hosts or the attack sources1.

D. The Encrypted Traffic monitor workspace shows the encrypted traffic that has been decrypted by the Juniper ATP Cloud and the certificates that have been used. It does not show the infected hosts or the attack sources2.

Therefore, the correct answer is A and C. You need to use the Hosts and Threat Sources monitor workspaces to find an infected host and where the attack came from using the Juniper ATP Cloud. To do so, you need to perform the following steps:

For Hosts, you need to access the Hosts monitor workspace in the Juniper ATP Cloud WebUI by selecting Monitor > Hosts. You can see the list of hosts that have been detected by the Juniper ATP Cloud and their risk scores, infection levels, and threat categories. You can filter the hosts by various criteria, such as IP address, hostname, domain, or threat category. You can also drill down into each host to see the details of the files, applications, and incidents associated with the host. You can identify the infected host by looking for the host with the highest risk score, infection level, or threat category3.

For Threat Sources, you need to access the Threat Sources monitor workspace in the Juniper ATP Cloud WebUI by selecting Monitor > Threat Sources. You can see the list of threat sources that have been detected by the Juniper ATP Cloud and their risk scores, threat categories, and geolocations. You can filter the threat sources by various criteria, such as IP address, domain, or threat category. You can also drill down into each threat source to see the details of the files, applications, and incidents associated with the threat source. You can identify the attack source by looking for the threat source with the highest risk score, threat category, or geolocation that matches the infected host.

References:

File Scanning

Encrypted Traffic

Hosts

[Threat Sources]

https://kb.juniper.net/InfoCenter/index?page=content &id=KB30443&cat=SRX_SERIES&actp=LIST

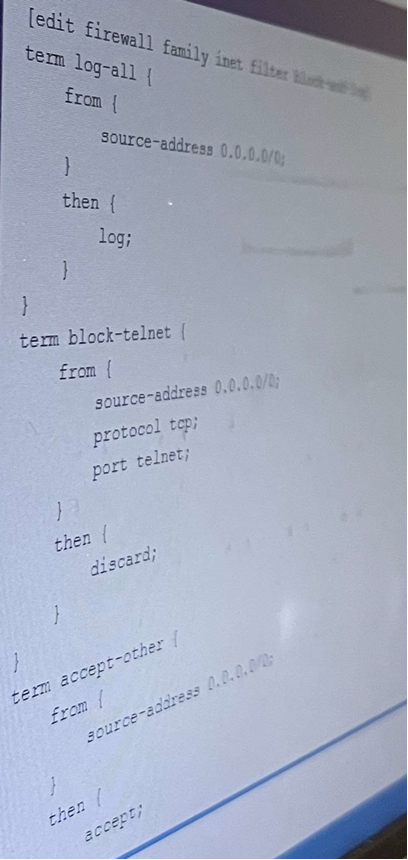

To modify the configuration to fulfill the requirements, you need to modify the log-all term to add the next term action. The other options are incorrect because:

B. Deleting the log-all term would prevent logging all traffic, which is one of the requirements. The log-all term matches all traffic from any source address and logs it to the system log file1.

C. Adding a term before the log-all term that blocks Telnet would also prevent logging all traffic, because the log-all term would never be reached. The firewall filter evaluates the terms in sequential order and applies the first matching term. If a term before the log-all term blocks Telnet, then the log-all term would not match any traffic and no logging would occur2.

D. Applying a firewall filter to the loopback interface that blocks Telnet traffic would not block inbound Telnet traffic on interface ge-0/0/3, which is another requirement. The loopback interface is a logical interface that is always up and reachable. It is used for routing and management purposes, not for filtering traffic on physical interfaces3.

Therefore, the correct answer is A. You need to modify the log-all term to add the next term action. The next term action instructs the firewall filter to continue evaluating the subsequent terms after matching the current term. This way, the log-all term would log all traffic and then proceed to the block-telnet term, which would block only inbound Telnet traffic on interface ge-0/0/34. To modify the log-all term to add the next term action, you need to perform the following steps:

Enter the configuration mode: user@host> configure

Navigate to the firewall filter hierarchy: user@host# edit firewall family inet filter block-telnet

Add the next term action to the log-all term: user@host# set term log-all then next term

Commit the changes: user@host# commit

References:

log (Firewall Filter Action)

Firewall Filter Configuration Overview

loopback (Interfaces)

next term (Firewall Filter Action)

In transparent mode, all interfaces involved are configured with the bridge protocol family. This allows the SRX device to act as a bridge between the interfaces and forward traffic transparently without any modification. The bridge interfaces can be configured to forward traffic based on layer 2 headers, such as MAC addresses, without the need for routing or IP addressing.

According to the Juniper documentation, the best VPN type for connecting two remote sites to the corporate headquarters site while ensuring that all traffic is secured and sent directly between sites is IPsec ADVPN. ADVPN stands for Auto Discovery VPN, which is a feature that allows the SRX Series devices to dynamically establish IPsec tunnels between remote sites without requiring a full mesh configuration1. IPsec ADVPN uses NHRP (Next Hop Resolution Protocol) to discover the optimal path between two remote sites and create a shortcut tunnel that bypasses the hub device2. This reduces the latency and bandwidth consumption of the traffic and improves the performance and scalability of the VPN.

To configure IPsec ADVPN on the SRX Series devices, the following steps are required:

Configure the hub device as an NHRP server and assign it a unique NHRP network ID and a public IP address3.

Configure the spoke devices as NHRP clients and register them with the hub device using the same NHRP network ID and the hub’s public IP address3.

Configure the IPsec VPN parameters on the hub and spoke devices, such as the IKE and IPsec proposals, policies, and gateways4.

Configure the routing protocols on the hub and spoke devices, such as OSPF or BGP, to advertise the routes between the sites.

Once the IPsec ADVPN is configured, the hub and spoke devices will establish IPsec tunnels with each other and exchange NHRP information. When a spoke device needs to send traffic to another spoke device, it will send an NHRP resolution request to the hub device, which will reply with the public IP address of the destination spoke device. The source spoke device will then initiate a shortcut IPsec tunnel with the destination spoke device and send the traffic directly to it2.

The following VPN types are not suitable for this scenario:

Hub-and-spoke IPsec VPN: This type of VPN requires that all traffic between the remote sites go through the hub device, which adds latency and consumes bandwidth. It also does not scale well as the number of remote sites increases.

Layer 2 VPN: This type of VPN allows the remote sites to extend their Layer 2 networks over a Layer 3 network, such as the internet. It is typically used for data center interconnection or service provider networks. However, it does not provide any security or encryption for the traffic, and it may not be compatible with the existing network infrastructure.

Full mesh Layer 3 VPN with EBGP: This type of VPN allows the remote sites to exchange Layer 3 routing information over a Layer 3 network, such as the internet, using EBGP (External Border Gateway Protocol). It is typically used for enterprise networks or service provider networks. However, it requires that each remote site has a unique AS (Autonomous System) number and a public IP address, and that each remote site establishes a BGP session with every other remote site. This can be complex and cumbersome to configure and maintain, and it may not provide any security or encryption for the traffic.

References: 1: Auto Discovery VPN Overview 2: Understanding Auto Discovery VPN 3: Configuring NHRP on the Hub and Spoke Devices 4: Configuring IPsec VPN on the Hub and Spoke Devices : [Configuring Routing Protocols on the Hub and Spoke Devices] : [Hub-and-Spoke VPNs Overview] : [Layer 2 VPNs Feature Guide for Security Devices] : [Layer 3 VPNs Feature Guide for Security Devices]

To control access to network resources based on the identity of an authenticated device on the SRX Series firewalls, you need to perform the following steps:

A. Configure an end-user-profile that characterizes a device or set of devices. An end-user-profile is a device identity profile that contains a collection of attributes that are characteristics of a specific group of devices, or of a specific device, depending on the attributes configured in the profile. The end-user-profile must contain a domain name and at least one value in each attribute. The attributes include device-identity, device-category, device-vendor, device-type, device-os, and device-os-version1. You can configure an end-user-profile by using the Junos Space Security Director or the CLI2.

C. Reference the end-user-profile in the security policy. A security policy is a rule that defines the action to be taken for the traffic that matches the specified criteria, such as source and destination addresses, zones, protocols, ports, and applications. You can reference the end-user-profile in the source-end-user-profile field of the security policy to identify the traffic source based on the device from which the traffic issued. The SRX Series device matches the IP address of the device to the end-user-profile and applies the security policy accordingly3. You can reference the end-user-profile in the security policy by using the Junos Space Security Director or the CLI4.

E. Configure the authentication source to be used to authenticate the device. An authentication source is a system that provides the device identity information to the SRX Series device. The authentication source can be Microsoft Windows Active Directory or a third-party network access control (NAC) system. You need to configure the authentication source to be used to authenticate the device and to send the device identity information to the SRX Series device. The SRX Series device stores the device identity information in the device identity authentication table5. You can configure the authentication source by using the Junos Space Security Director or the CLI6.

The other options are incorrect because:

B. Referencing the end-user-profile in the security zone is not a valid step to control access to network resources based on the identity of an authenticated device. A security zone is a logical grouping of interfaces that have similar security requirements. You can reference the user role in the security zone to identify the user who is accessing the network resources, but not the end-user-profile7.

D. Applying the end-user-profile at the interface connecting the devices is also not a valid step to control access to network resources based on the identity of an authenticated device. You cannot apply the end-user-profile at the interface level, but only at the security policy level. The end-user-profile is not a firewall filter or a security policy, but a device identity profile that is referenced in the security policy1.

References:

End User Profile Overview

Creating an End User Profile

source-end-user-profile

Creating Firewall Policy Rules

Understanding the Device Identity Authentication Table and Its Entries

Configuring the Authentication Source for Device Identity

user-role

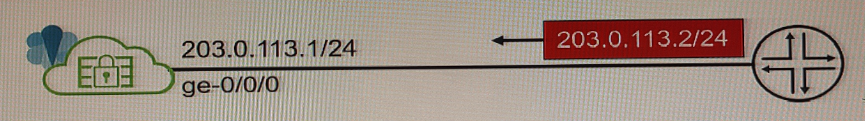

Proxy ARP is a technique used by routers to answer ARP requests on one network segment on behalf of hosts on another network segment. This is useful in situations where a host on one network segment needs to communicate with a host on another network segment, but the two hosts are not directly connected. In this case, the router acts as a proxy, answering ARP requests on behalf of the other host. In the exhibit, the vSRX device is configured to use a pool of addresses that are in the same subnet as the external interface ge-0/0/0 for source NAT. This means that the vSRX device will translate the source IP address of the internal hosts to one of the addresses in the pool before sending the packets to the external network. However, the external hosts will not know how to reach the NATed addresses, since they are not directly connected to the vSRX device. They will send ARP requests for the NATed addresses, expecting to receive a MAC address from the vSRX device. If proxy ARP is not enabled on the vSRX device, it will not respond to these ARP requests, since it does not have the NATed addresses configured on its interface. The ARP requests will time out and the packets will be dropped by the external hosts or the service provider router. To solve this problem, proxy ARP must be enabled on the vSRX device for the NATed addresses. This will allow the vSRX device to respond to the ARP requests from the external hosts, providing its own MAC address as the destination. The external hosts will then send the packets to the vSRX device, which will reverse the NAT and forward the packets to the internal hosts. References:

Configuring Proxy ARP (CLI Procedure)

[SRX] When and how to configure Proxy ARP (https://supportportal.juniper.net/s/article/SRX-Dynamic-VPN-scenario-for-configuring-Proxy-ARP-on-SRX?language=en_US)

https://www.juniper.net/us/en/local/pdf/app-notes/3500202-en.pdf

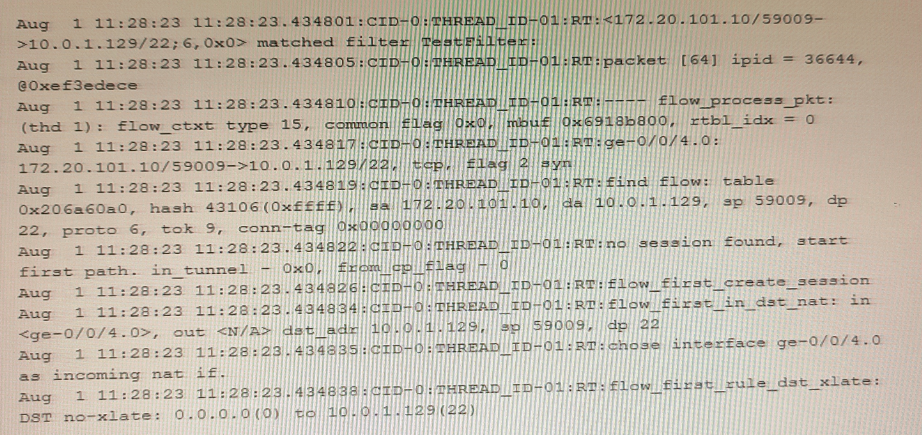

According to the security flow trace shown in the exhibit, which is a snippet of a packet capture on an SRX Series device, the two statements that are correct are:

This packet arrived on interface ge-0/0/4.0. This is indicated by the line In: 10.0.1.129/22 -> 10.0.1.129/3382;1,0x0, which shows that the ingress interface of the packet is ge-0/0/4.0, as the interface name is prefixed to the source and destination IP addresses and ports of the packet1.

An existing session is found in the table. This is indicated by the line Found: session id 0x12. sess tok 28685, which shows that the packet matches an existing session in the session table with the session ID 0x12 and the session token 286852.

The following statements are incorrect or not supported by the output:

Destination NAT occurs. This is not supported by the output, as there is no indication of destination NAT being applied to the packet. The destination IP address of the packet is 10.0.1.129, which is the same as the destination IP address of the original packet. If destination NAT was applied, the destination IP address of the packet would be different from the destination IP address of the original packet.

The capture is a packet from the source address 172.20.101.10 destined to 10.0.1.129. This is false, as the output shows that the source address of the packet is 10.0.1.129, not 172.20.101.10. The source IP address of the packet is prefixed to the ingress interface name ge-0/0/4.0.

References: 1: Understanding Security Flow Trace 2: show security flow session - Technical Documentation - Support - Juniper Networks
