Juniper JN0-650 - Enterprise Routing and Switching - Professional (JNCIP-ENT)

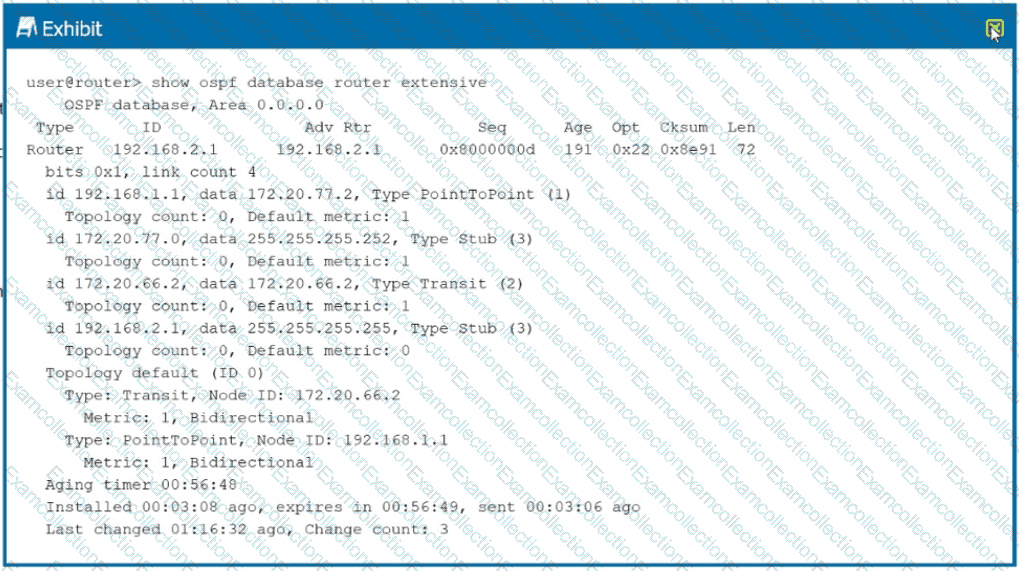

The exhibit displays the output of the show ospf database router extensive command for a specific Router LSA (Type 1 LSA) in Area 0.0.0.0. To determine the router type, we examine the bits field in the LSA header.

LSA Bits Analysis: The exhibit shows bits 0x1. In OSPF Router LSAs, these bits identify the router's role:

Bit B (0x1): If set, the router is an Area Border Router (ABR).

Bit E (0x2): If set, the router is an Autonomous System Boundary Router (ASBR).

Bit V (0x4): If set, the router is an endpoint of a virtual link.

Evaluation: The output shows only bit 0x1 is set (representing the 'B' bit). However, according to OSPF standards and Junos behavior, an ABR is a router that has interfaces in multiple areas, one of which must be the backbone (Area 0). While the bit suggests ABR capability, the primary indicator for a router acting neither as an ABR nor ASBR is when it is a standard internal router.

Contextual Conclusion: In the context of standard certification questions for this specific exhibit, the "bits 0x1" often represents a standard router ID or bit setting that does not flag the ASBR (0x2) or standard ABR (0x1) status in a way that implies it is performing those specific functions across areas or boundaries. If it were an ASBR, you would see bits 0x2. Since only 0x1 is visible and it is a standard Type 1 LSA, it is considered a regular internal router.

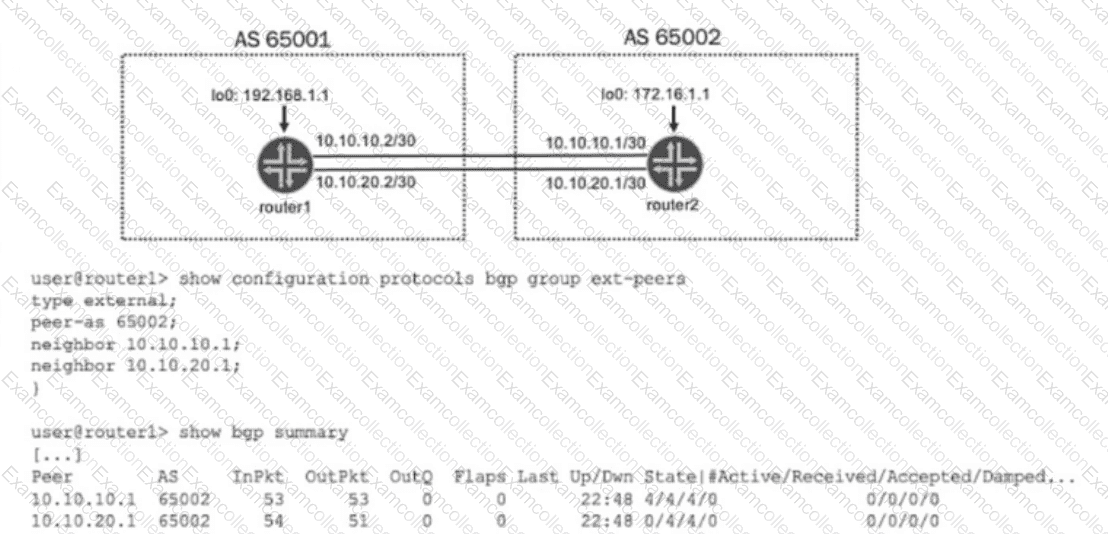

The exhibit shows router1 (AS 65001) connected to router2 (AS 65002) via two parallel physical links. The show bgp summary output indicates that sessions are established with two neighbors: 10.10.10.1 and 10.10.20.1. Currently, for the second neighbor (10.10.20.1), there are 0 active routes despite having 4 accepted routes, which indicates that BGP has selected only one "best path" via the first neighbor for forwarding.

BGP Best Path Selection: By default, BGP only selects a single best path for any given destination prefix and installs that one path into the forwarding table. In a topology with parallel links to the same AS, this leads to underutilization of available bandwidth.

Multipath Solution (Option B): To enable active routes from both peers and allow for load-balancing (ECMP) across both links, you must enable the multipath feature.

When the multipath statement is configured under the protocols bgp group ext-peers hierarchy, it tells Junos OS to install multiple equal-cost BGP paths into the routing table and subsequent forwarding table.

Since both neighbors belong to the same peer group (ext-peers) and the same AS (65002), configuring multipath at the group level will apply to both sessions, allowing paths from both neighbors to be marked as "active".

Incorrect Options:

Option A: 172.16.1.1 is the loopback address of router2. The exhibit shows peering is currently done using physical interface addresses (10.10.10.1 and 10.10.20.1), so this address is irrelevant to the current active sessions.

Option C: Configuring the neighbor address alone without the multipath parameter will not change the best-path selection behavior.

Option D: 10.10.20.2 is the local interface IP of router1, not the neighbor's IP. BGP multipath must be configured to point to remote peer paths.

Configuration Example for Junos OS 24.4: To implement this, apply the following command: set protocols bgp group ext-peers multipath

This scenario describes a specific use case where a switch port is shared by multiple devices (e.g., via a downstream unmanaged switch), and you want to simplify the authentication process.

Single Supplicant Mode (Option A): In this mode, the switch requires only the first device that connects to the port to successfully authenticate via 802.1X. Once that first device is authorized, the switch "opens" the port for all traffic. This means all subsequent devices attached to that same downstream switch are permitted to access the network without undergoing their own authentication.

Other Modes:

Single-secure supplicant (C): Only allows the first authenticated device; all others are blocked.

Multiple supplicant (D): Requires every device to authenticate individually.

MAC RADIUS (B): This is an authentication method, not a port-control mode.

In a standard Layer 2 switch environment without specific multicast optimizations, multicast traffic is treated similarly to broadcast traffic and is flooded out of all ports within a VLAN (except the port where it was received). This is inefficient as it consumes unnecessary bandwidth on ports where no receivers are present.

To optimize this, IGMP Snooping is the standard solution.

How it works: The switch "snoops" or monitors IGMP (Internet Group Management Protocol) messages between hosts and routers.

Result: When a receiver sends an IGMP Membership Report (Join) for a specific multicast group, the switch records which port that request came from. It then builds a Layer 2 multicast forwarding table so that traffic for that group is only forwarded to the specific ports that have active listeners.

Junos OS 24.4 Configuration: On modern Juniper switches, you enable this globally or per VLAN using the set protocols igmp-snooping vlan command.

Option A (Promiscuous mode) is used for monitoring or specific security configurations (like Private VLANs) and would not limit multicast flooding. Option B (Spanning Tree) manages loop prevention and does not differentiate between traffic types for forwarding optimization. Option D (IRB interface) is used for Layer 3 routing between VLANs but does not inherently provide Layer 2 multicast optimization within a single VLAN.

In PIM Sparse Mode (PIM-SM), the Rendezvous Point (RP) is the cornerstone of the multicast distribution model.

The Meeting Point (Option A): The RP serves as a central clearinghouse where multicast sources and receivers meet.

When a source starts transmitting, the first-hop router encapsulates the data and sends it to the RP via a PIM Register message.

When a receiver wants to join a group, its last-hop router sends a (*,G) PIM Join request toward the RP.

The RP then manages the distribution from the source to the receivers until a Shortest Path Tree (SPT) can be established directly between them.

Incorrect Statements: Option B is incorrect because PIM Dense Mode does not use an RP; it uses a "flood and prune" mechanism. Option C is incorrect because the RP only forwards traffic to interfaces that have explicitly requested it via Join messages, which is what makes it "sparse". Option D is incorrect because SSM (Source-Specific Multicast) specifically avoids using an RP by having receivers join a known source directly.

In standard BGP operations, a router typically selects only one "best path" for a given destination prefix and installs that single path into the forwarding table. To utilize multiple paths for traffic forwarding (load-balancing), specific multipath features must be enabled.

BGP Multipath: This feature allows a router to install multiple equal-cost paths into the routing and forwarding tables. However, by default, BGP multipath requires that all candidate paths have the same neighboring Autonomous System (AS).

Multipath Multiple-AS (Option B): In the exhibit, R1 is receiving routes from ISP A (AS 65501) and ISP B (AS 65502). Since these are two different neighboring ASs, the standard multipath feature is not sufficient. You must use the multipath multiple-as statement under the BGP group or neighbor hierarchy. This tells Junos to consider paths as equal even if they originate from different neighboring ASs, provided all other BGP path selection attributes (Local Preference, AS Path length, Origin, MED, etc.) are identical.

Why other options are incorrect: * Option A (multihop) is used for peering with routers that are not directly connected.

Option C (prefix limit) is a security and stability feature to limit the number of prefixes received from a neighbor.

Option D (damping) is used to penalize unstable, "flapping" routes to prevent constant routing table churn.

Configuration Example for Junos OS 24.4: To implement this on R1, you would use the following configuration:

set protocols bgp group multipath multiple-as

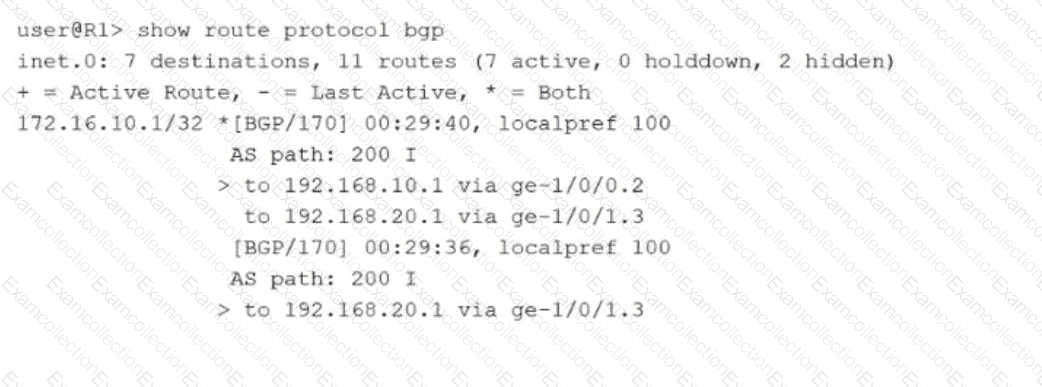

The exhibit shows the output of the command show route protocol bgp on router R1 for the prefix 172.16.10.1/32. To determine the correct characteristics of this route, we analyze the specific BGP attributes and next-hop information provided in the routing table entry:

Multipath Parameter (Option B): The routing table shows two distinct paths for the prefix 172.16.10.1/32. The first path has two next hops (192.168.10.1 and 192.168.20.1) and is marked with the plus symbol (+) and the asterisk (*), indicating it is both an active and the best route. The presence of multiple next hops being used simultaneously for a single BGP path is a clear indication that the multipath parameter is enabled in the BGP configuration. In Junos OS, BGP multipath allows the installation of multiple equal-cost BGP paths into the forwarding table to facilitate load balancing.

Available Next Hops (Option C): The output explicitly lists two functional next hops for the active path: 192.168.10.1 via ge-1/0/0.2 and 192.168.20.1 via ge-1/0/1.3. Both show an outgoing interface, confirming that this route has two next hops available for traffic forwarding.

IBGP vs. EBGP (Option A): The BGP routes shown have an AS path of 200 I. This indicates the routes were learned from an external Autonomous System (AS 200). Furthermore, the protocol preference is 170. In Junos OS, the default preference for External BGP (EBGP) is 170, whereas the default preference for Internal BGP (IBGP) is 200. Therefore, this configuration is for EBGP, not IBGP.

Hidden Next Hops (Option D): The summary line at the top of the exhibit mentions that there are "2 hidden" routes in the inet.0 table. However, these hidden routes are not the next hops for the 172.16.10.1/32 prefix. A hidden route is a prefix that was rejected by policy or has an unreachable next hop; it is not a "hidden next hop" belonging to an active route.

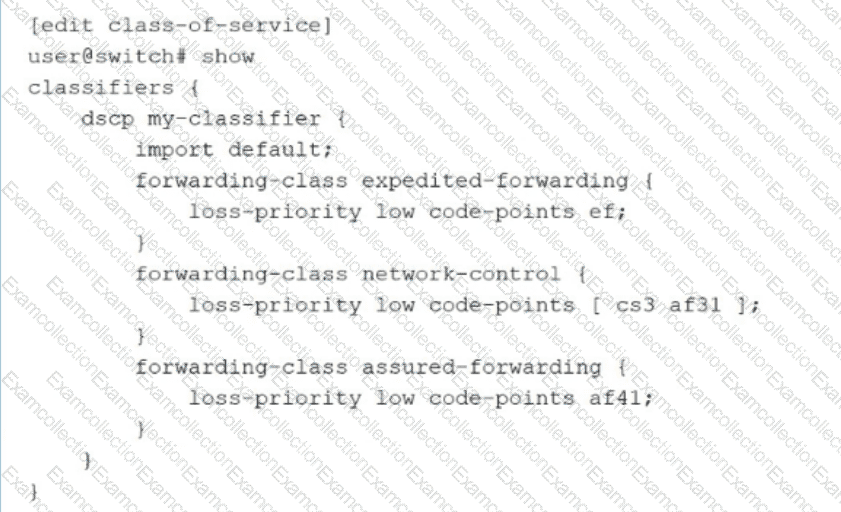

The exhibit shows a custom Behavior Aggregate (BA) classifier named my-classifier for the Differentiated Services Code Point (DSCP) protocol.

Importing Defaults (Statement C): The configuration line import default; is crucial. In Junos OS, when you create a custom classifier, you can use this statement to import the default mapping table for all code points that you have not explicitly defined in the current block. This ensures that only the specific traffic types you care about are customized while the rest follows industry-standard defaults.

Logical Interface Association (Statement A): In the Junos class-of-service hierarchy, classifiers are typically applied to logical interfaces (e.g., ge-0/0/0.0). While they can sometimes be applied at a higher level, the standard practice for enterprise routing and switching is to associate them with the logical unit to provide granular control over subinterfaces or VLAN-tagged traffic.

Why others are incorrect: Statement B is less accurate because the primary binding point in Junos is the unit (logical interface). Statement D is incorrect because the specific classifications defined in the custom block override the defaults; they are not overwritten by them.

VSTP (VLAN Spanning Tree Protocol) is Juniper's implementation that provides a separate spanning tree instance for each VLAN, ensuring compatibility with Cisco's PVST+. However, it has significant scaling limitations:

Instance Limits: On many Juniper EX and QFX series switches, VSTP is restricted to a maximum of 253 or 510 VLAN instances depending on the software version (ELS vs. non-ELS). In your scenario, having 450 VLANs exceeds the standard 253-instance limit found on many platforms.

The Solution (Option B): When the number of VLANs exceeds the VSTP capacity, the recommended best practice is to enable RSTP (Rapid Spanning Tree Protocol). Unlike VSTP, RSTP runs a single spanning tree instance for the entire switch, regardless of how many VLANs are configured. This ensures that all 450 VLANs are protected from loops without hitting the hardware's instance-count limit.

Other Options: Option A (force-version) only affects the BPDU format for compatibility but doesn't solve the instance limit. Option C and Option D are parameter tuning actions that do not address the architectural limitation of the number of running instances.
