Juniper JN0-650 - Enterprise Routing and Switching - Professional (JNCIP-ENT)

The exhibit illustrates an EVPN-VXLAN fabric using multi-homing. Server1 is dual-homed to Leaf1 and Leaf2 using an Ethernet Segment Identifier (ESI) in an active-active or active-standby configuration. Server2 is single-homed to Leaf3.

In EVPN environments, specific mechanisms are used to prevent loops and duplicate traffic when dealing with Broadcast, Unknown Unicast, and Multicast (BUM) traffic:

Broadcast Propagation (Option A): When Server2 (connected to Leaf3) generates a broadcast frame, Leaf3 encapsulates this traffic into a VXLAN tunnel and forwards it to all other VTEPs (Virtual Tunnel End Points) that participate in that specific Virtual Network Instance (VNI). Therefore, both Leaf1 and Leaf2 will receive the broadcast frame from the core fabric.

Designated Forwarder (DF) Election (Option C): To prevent a multi-homed device (like Server1) from receiving duplicate copies of the same broadcast frame from multiple leaf switches, EVPN utilizes a Designated Forwarder (DF). For a given ESI, only one leaf switch is elected as the DF.

The exhibit explicitly states that Leaf2 is the Designated Forwarder.

According to the Junos EVPN implementation, only the DF is responsible for decapsulating BUM traffic received from the core and forwarding it to the local access segment.

While Leaf1 receives the frame (Option A), it will see that it is not the DF for that segment and will drop the frame rather than forwarding it to Server1. This ensures Server1 receives exactly one copy of the broadcast, delivered by Leaf2.

Option B is incorrect because in a standard ingress replication or multicast-based underlay, all VTEPs in the VNI receive the broadcast.

Option D is incorrect because Leaf1 is the non-designated forwarder (non-DF) for this segment and is prohibited from forwarding BUM traffic to the ESI.

In Junos OS, particularly in BGP-based environments like EVPN-VXLAN or MPLS, the router often needs to perform a recursive lookup to resolve the BGP next-hop of a route.

Next-Hop Resolution (Option C): When an EVPN route (found in default-switch.evpn.0) is received, the protocol next-hop is typically the loopback IP of the remote VTEP. To actually forward traffic, the switch must know how to reach that loopback IP.

The inet.3 table is the default table in Junos used to store egress interface information for BGP next-hops.

While inet.0 handles standard unicast routing, inet.3 is specifically consulted for resolving the path toward BGP peers. In an EVPN context, this ensures that the VXLAN tunnel endpoint is reachable and properly resolved through the underlay.

Other Tables: * inet.2 (Option A) is used for Multicast RPF checks.

default-switch.evpn.0 (Option B) stores the EVPN routes themselves (MAC/IP), but it is the source of the lookup, not the table where the recursive resolution occurs.

vxlan.inet (Option D) is an internal table used to track active VXLAN tunnels but is not the primary table for recursive BGP next-hop validation.

In an EVPN-VXLAN architecture, the network is divided into two distinct planes: the Underlay and the Overlay.

Underlay (IP Fabric): The underlay's only job is to provide IP reachability between the loopback addresses of all VTEPs (Virtual Tunnel Endpoints). This is typically achieved using OSPF, IS-IS, or EBGP.

Overlay (EVPN Control Plane): The overlay is responsible for carrying Layer 2 MAC and Layer 3 IP reachability information between switches. EVPN signaling is the standard mechanism for this task.

Protocol Choice (Option D): EVPN uses MP-BGP (Multiprotocol BGP) as its control plane protocol. On Juniper EX Series and QFX Series switches, the most scalable and recommended design for the overlay is EBGP (External BGP).

In a 3-stage or 5-stage Clos architecture, EBGP is used in the overlay to exchange EVPN routes (Route Types 1-5) between Leaf and Spine switches.

EBGP simplifies configuration by avoiding the need for Route Reflectors (required for IBGP) and provides better control over route propagation through BGP community and policy management.

Incorrect Options:

Options A and B refer to the underlay protocols. While they provide the path for the VXLAN tunnels, they do not handle the EVPN signaling itself.

Option C (MPLS) is a different transport technology. While EVPN can run over MPLS (EVPN-MPLS), campus designs on EX series devices specifically use VXLAN as the data plane, making EBGP the standard signaling protocol for the EVPN-VXLAN overlay.

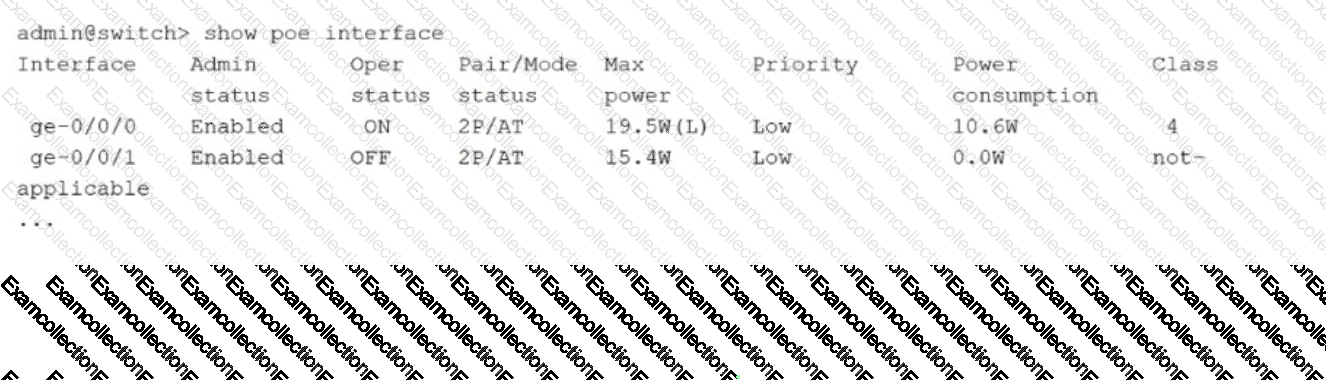

The exhibit shows the output of the show poe interface command on a Juniper switch.

VTEP Power Capabilities (Statement D): The exhibit shows the Pair/Mode as 2P/AT, which refers to the IEEE 802.3at (PoE+) standard. Under this standard, a switch can supply up to 30 W of power per port to attached devices (PDs). * Dynamic Learning (Statement C): Looking at the Max power column for port ge-0/0/0, it shows 19.5W(L). The (L) indicator signifies that the power has been dynamically learned (negotiated) via LLDP or hardware classification, rather than being statically configured by an administrator. Additionally, it has identified the device as Class 4, which is a standard dynamic classification for PoE+ devices.

Why others are incorrect: Statement A (60 W) refers to the 802.3bt (PoE++) standard, which is not indicated here. Statement B is incorrect because the "(L)" confirms the configuration is not static.

When a peer incorrectly floods your router with an excessive number of routes, it can exhaust system resources and crash the routing engine.

Prefix-Limit (Option B): The prefix-limit (or accepted-prefix-limit) parameter is the primary defense against such "route leaks".

You can set a maximum threshold for the number of prefixes allowed from a specific BGP neighbor or group.

When the limit is reached, Junos can be configured to either just log a warning or tear down the BGP session entirely (using the teardown keyword) to protect the router.

This prevents the "hundreds of thousand routes" from ever being fully processed or installed into the main routing table.

Damping (Option A): Damping is used to suppress unstable, "flapping" routes, but it does not limit the total volume of stable routes received.

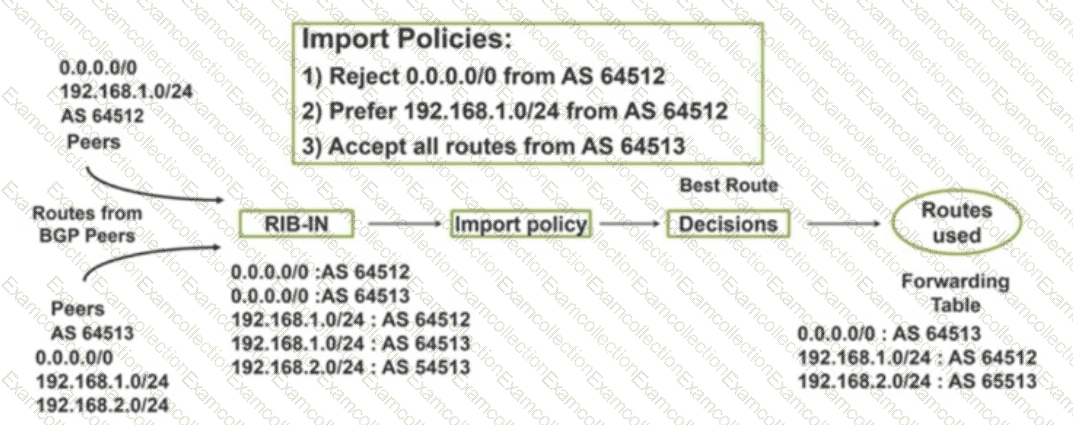

The exhibit shows a BGP routing process where an Import Policy is being applied to routes received in the RIB-IN. Specifically, Policy 1 states: "Reject 0.0.0.0/0 from AS 64512."

In Junos OS, when a routing policy rejects a route, that route is not placed in the main routing table (inet.0) for active use. Instead, it becomes a hidden route. To verify that a specific peer is actually sending a route that is subsequently being rejected by your policy, you must use specific diagnostic commands:

Understanding "Hidden" Routes: When a BGP route is received but fails to meet policy requirements (or has an unreachable next-hop), Junos keeps it in the BGP RIB-IN but marks it as "hidden." It will not appear in a standard show route command.

Command Logic (Option D): The command show route receive-protocol bgp hidden allows an administrator to view all routes received from a specific neighbor, including those that were rejected by import policies.

show route receive-protocol bgp : Shows only the routes that passed the import policy and were accepted into the table. Since the 0.0.0.0/0 route from AS 64512 is explicitly rejected in the exhibit, it would not show up here.

Adding the hidden keyword is the essential step to see the rejected default route and verify that AS 64512 is indeed sending it before the policy drops it.

Other Options:

Option A is incorrect because it only shows accepted routes.

Option B and C are used to filter the existing active routing table based on gateway or next-hop attributes, but they cannot show routes that have been rejected and excluded from that table.

EVPN Route Type 5 (IP Prefix Route) is used to advertise IP prefixes (subnets) between broadcast domains or between VRFs in an EVPN fabric.

IP-VRF-to-IP-VRF (Statement C): In an EVPN-VXLAN architecture, Type 5 routes are primarily used for Layer 3 connectivity. They allow different IP-VRFs on different VTEPs to exchange prefix information directly. This model is widely referred to as IP-VRF-to-IP-VRF routing because it enables inter-subnet routing at the leaf layer without requiring Layer 2 MAC learning for those specific prefixes.

Overlay Next Hop (Statement B): For a PE router to reach a prefix advertised via a Type 5 route, it must resolve the overlay next hop. This next hop is typically the loopback IP address of the originating VTEP, which the receiving router uses to build the VXLAN tunnel.

Why others are incorrect: Statement A is incorrect because Type 7 routes are used for IGMP/MLD join synchronization. Statement D is incorrect because Type 5 routes advertise IP prefixes, not MAC addresses; MAC extended communities are associated with Type 2 routes.

Private VLANs (PVLANs) provide Layer 2 isolation between ports within the same broadcast domain. When a PVLAN spans multiple switches, a special type of trunk configuration is required to maintain the isolation and community logic across the inter-switch links.

Isolated VLAN Trunking (Option D): To extend an isolated VLAN across multiple switches, you must configure the trunk port on each switch to allow the isolated VLAN ID. In Junos OS, this is specifically achieved by configuring the interface as a trunk and associating it with the primary VLAN and the specific isolated VLAN. The correct syntax for enabling this inter-switch communication is to configure trunk ports that recognize the isolated VLAN tag (e.g., set interfaces unit 0 family ethernet-switching vlan members [ primary-vlan isolated-vlan ]).

Forwarding Rules: Traffic from an isolated port on Switch A must reach a promiscuous port (often on Switch B) to exit the PVLAN. The inter-switch trunk carries this traffic using the secondary (isolated) VLAN ID, ensuring that it remains isolated from other host ports on the remote switch.

Option A (inter-switch-link): In standard Junos switching, the inter-switch-link statement is used in Virtual Chassis or specific fabric designs, but for standard PVLAN extension, standard 802.1Q trunking with secondary VLAN IDs is the mechanism used.

Options B and C: These describe specific port roles (isolated vs. community) rather than the method used to enable trunking between switches.

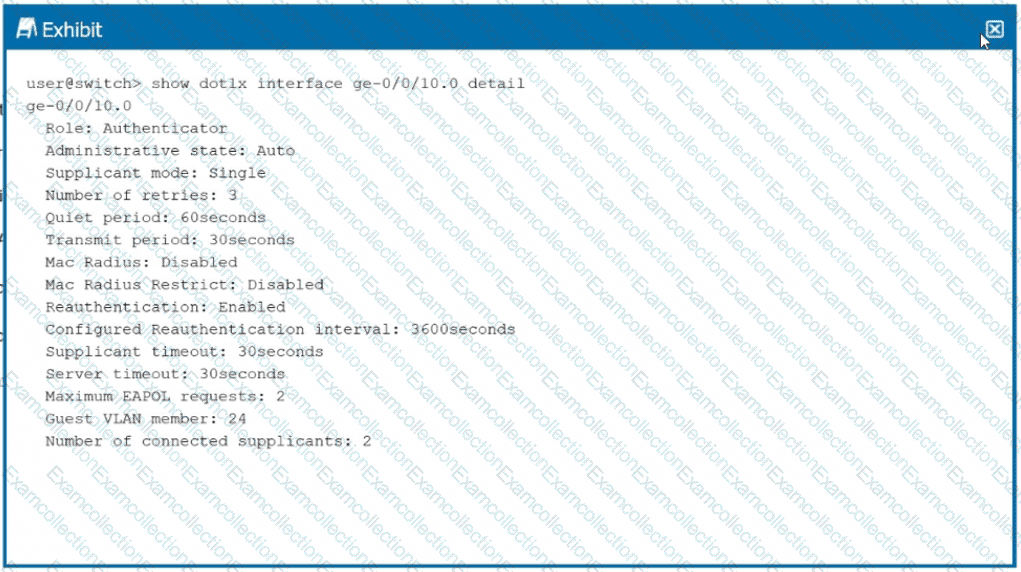

In Junos OS, the supplicant-mode configuration under protocols dot1x determines how the switch handles multiple MAC addresses on a single physical port. According to the exhibit, the current mode is set to Single, and the Number of connected supplicants is 2. This indicates that the port is currently allowing multiple devices, which contradicts the goal of limiting access to only one device at a time.

Here is the breakdown of why Option C is the correct solution based on Juniper’s standard behavior:

Supplicant Mode: Single (Current State): In this mode, the first device to authenticate opens the port for all subsequent devices. As long as the first device remains authenticated, other devices can send traffic through the port without individual authentication. This is why the exhibit shows 2 connected supplicants despite the mode being "Single."

Supplicant Mode: Single-Secure (The Solution): This mode strictly limits the port to only one MAC address. Once a device successfully authenticates via 802.1X, the switch drops any traffic coming from any other MAC address on that port. If the authenticated device logs off or the session times out, the port becomes available for a new device, but never more than one simultaneously. * Supplicant Mode: Multiple (Option B): This mode allows multiple supplicants to authenticate individually. Each MAC address must go through its own authentication process. This would allow more than one device, which is the opposite of the user's requirement.

MAC RADIUS Restrict (Option A): This feature is used to force MAC-based authentication and does not inherently limit the number of devices to one in the same way that changing the supplicant mode does.

Maximum EAPOL requests (Option D): This parameter defines how many times the switch will send an EAP-Request/Identity frame to a supplicant before giving up. Changing this to 1 does not restrict the number of devices allowed on the port; it only changes the retry logic for a single authentication attempt.

Configuration Example for Junos OS 24.4: To implement this change, you would use the following command: set protocols dot1x edit interface ge-0/0/10.0 supplicant-mode single-secure
