Salesforce MuleSoft-Integration-Architect-I - Salesforce Certified MuleSoft Integration Architect 1 (SP25) Exam

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

MuleSoft Anypoint MQ Documentation

Cloud vs. On-Premises Messaging Solutions

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

In a typical REST request, the order of interaction is:

API Client: The client initiates the request to access data or functionality exposed by the API.

API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.

API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

Explanation

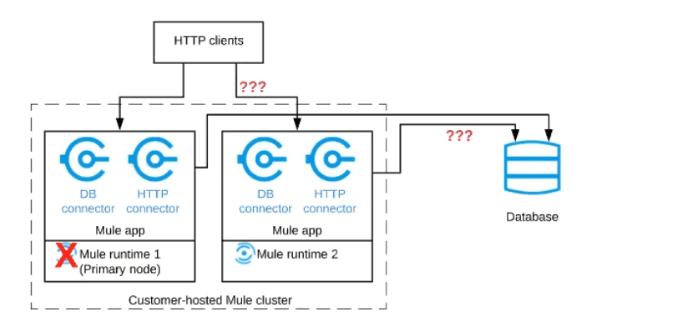

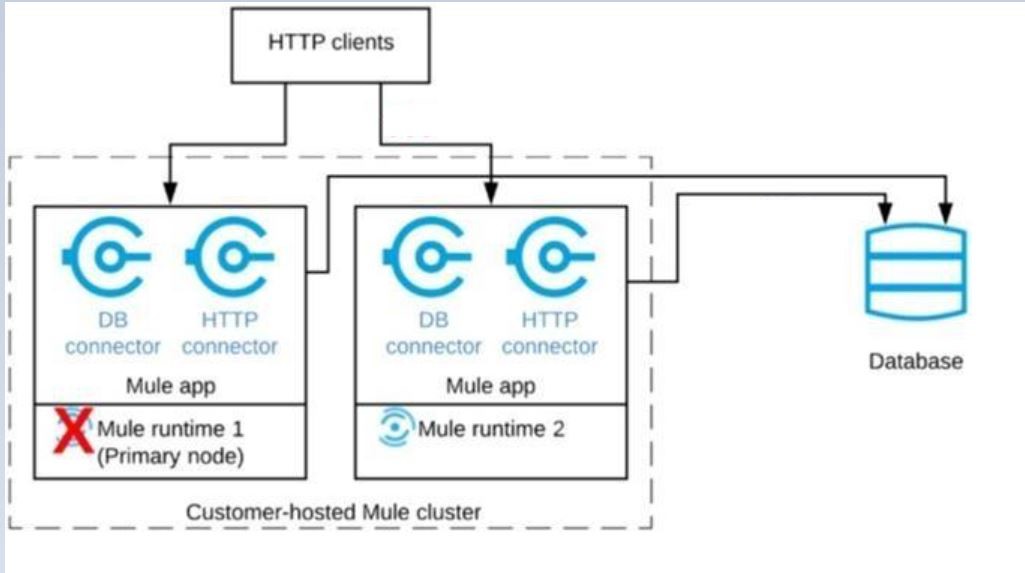

Correct answer is Database polling continues Only HTTP requests sent to the remaining node continue to be accepted. Explanation : Architecture descripted in the question could be described as follows.When node 1 is down , DB polling will still continue via node 2 . Also requests which are coming directly to node 2 will also be accepted and processed in BAU fashion. Only thing that wont work is when requests are sent to Node 1 HTTP connector. The flaw with this architecture is HTTP clients are sending HTTP requests directly to individual cluster nodes. By default, clustering Mule runtime engines ensures high system availability. If a Mule runtime engine node becomes unavailable due to failure or planned downtime, another node in the cluster can assume the workload and continue to process existing events and messages

Diagram Description automatically generated

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

Explanation

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

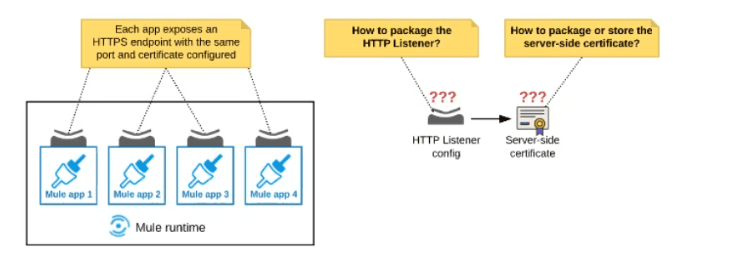

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

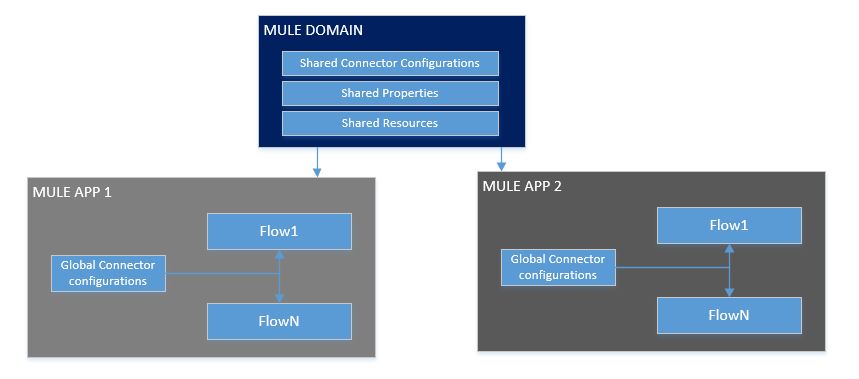

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Explanation

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP • For zero downtime deployment, each worker in CloudHub needs additional IP addresses • A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) • The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 • The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

Requirement Analysis: The organization needs to send email alerts to the internal operations team whenever a policy applied to an API instance is deleted in the CloudHub runtime plane.

Solution: The most effective approach is to implement a new Mule application that uses the Audit Log REST API to detect when a policy is deleted and then sends an email using the SMTP connector.

Implementation Steps:

Access Audit Logs:

Use the Anypoint Platform's Audit Log REST API to monitor and detect policy deletion events.

Example of accessing the Audit Log REST API:

GET /accounts/api/v2/organizations/{orgId}/audit-logs

This endpoint will provide logs, including events related to policy deletions.

Create Email Notification Application:

Create a Mule application that periodically polls the Audit Log REST API to check for policy deletion events.

Use the SMTP connector to send email notifications to the operations team.

Example Mule flow:

Policy deletion detected: #[payload]

Scheduler: Configures the application to check the audit logs at regular intervals (e.g., every minute).

HTTP Request: Makes a GET request to the Audit Log REST API to fetch the logs.

Choice Router: Checks if the payload contains a policy deletion event.

SMTP Connector: Sends an email to the operations team with details about the policy deletion.

Advantages:

Automation: Automates the detection of policy deletions and the notification process, reducing manual monitoring efforts.

Timeliness: Ensures the operations team is promptly informed of any policy deletions, enabling them to take immediate action if necessary.

References

MuleSoft Documentation on Audit Log REST API

MuleSoft Documentation on SMTP Connector

MuleSoft Documentation on MuleSoft Scheduler Component
