Salesforce MuleSoft-Platform-Architect-I - Salesforce Certified MuleSoft Platform Architect 1 Exam (SP25)

Explanation

Correct Answer: Create API Notebooks and Include them in the relevant Anypoint exchange entries

*****************************************

>> API Notebooks are the one on Anypoint Platform that enable us to provide code-centric API documentation

Explanation

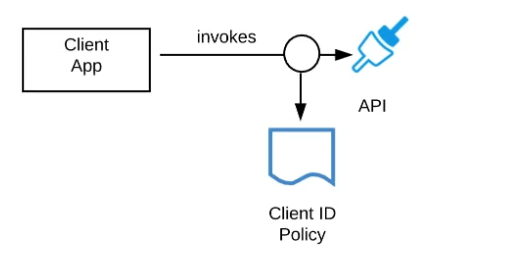

Correct Answer: The client ID and secret obtained from Anypoint Exchange for the API instance in the STAGING environment

*****************************************

>> We CANNOT use the client ID and secret of Anypoint Platform account or any individual environments for accessing the APIs

>> As the type of policy that is enforced on the API in question is "Client ID Enforcment Policy", OAuth token based access won't work.

Right way to access the API is to use the client ID and secret obtained from Anypoint Exchange for the API instance in a particular environment we want to work on.

References:

Managing API instance Contracts on API Manager

https://docs.mulesoft.com/api-manager/1.x/request-access-to-api-task

https://docs.mulesoft.com/exchange/to-request-access

https://docs.mulesoft.com/api-manager/2.x/policy-mule3-clie nt-id-based-policies

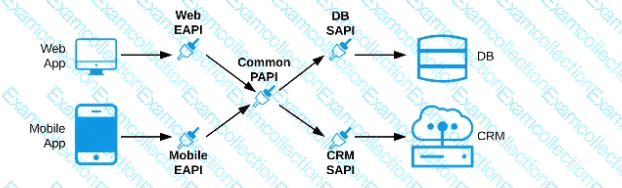

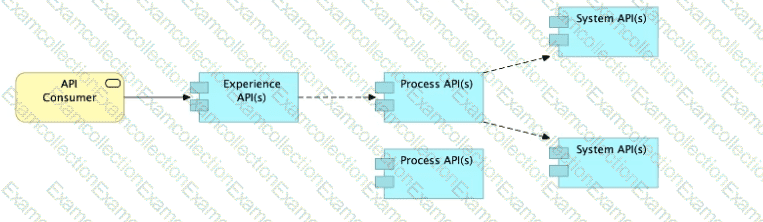

Role of Process API in API-led Connectivity:

In MuleSoft’s API-led connectivity approach, a Process API is used to coordinate, aggregate, and orchestrate data from various System APIs. It is primarily responsible for implementing business logic that spans multiple backend systems or entities, transforming and combining data as needed to support business processes.

Process APIs are not directly exposed to end-user clients; rather, they work between System APIs and Experience APIs, providing business logic and orchestration capabilities.

Evaluating the Options:

Option A: Process APIs are not typically responsible for large data dumps or data synchronization. That function would be handled by a System API or a specialized batch process.

Option B: Managing direct, secure communication between back-end systems and end-user clients is typically the role of Experience APIs rather than Process APIs.

Option C (Correct Answer): Process APIs are designed to coordinate and orchestrate calls to multiple other APIs in the network, which supports the automation of business processes.

Option D: Securing and managing communication with end-user clients is typically the role of Experience APIs, not Process APIs.

Conclusion:

Option C is the correct answer, as the main role of a Process API is to coordinate and orchestrate interactions between other APIs, enabling business processes to function seamlessly across multiple systems.

Refer to MuleSoft's API-led connectivity documentation for further explanation of the roles and responsibilities of Process APIs in an application network.

Default Alert Capabilities in Anypoint Platform:

Anypoint Platform provides out-of-the-box alerting capabilities for monitoring API invocation conditions, including setting thresholds for the number of invocations.

Alerts can be configured for conditions such as high or low traffic (invocations exceeding or falling below a defined threshold).

Evaluating the Options:

Option A: Anypoint Platform does not provide direct alerting based on DNS records.

Option B: Anypoint Platform does not provide default alerts based on whether invocations use TLS/SSL; this would require custom configuration.

Option C: Geolocation-based alerting is not natively supported in Anypoint Platform.

Option D (Correct Answer): Alerts based on API invocation thresholds (e.g., invocations falling below a set threshold) are supported and can be configured as part of the default Anypoint alerting functionality.

Conclusion:

Option D is correct, as Anypoint Platform allows configuring alerts based on the number of API invocations falling below or exceeding a threshold.

Refer to MuleSoft's documentation on Anypoint Monitoring and alert configurations for more details.

Explanation

Correct Answer: IP whitelist

*****************************************

>> OAuth 2.0 access token and Client ID enforcement policies are VERY common to apply on Experience APIs as API consumers need to register and access the APIs using one of these mechanisms

>> JSON threat protection is also VERY common policy to apply on Experience APIs to prevent bad or suspicious payloads hitting the API implementations.

>> IP whitelisting policy is usually very common in Process and System APIs to only whitelist the IP range inside the local VPC. But also applied occassionally on some experience APIs where the End User/ API Consumers are FIXED.

>> When we know the API consumers upfront who are going to access certain Experience APIs, then we can request for static IPs from such consumers and whitelist them to prevent anyone else hitting the API.

However, the experience API given in the question/ scenario is intended to work with a consumer mobile phone or tablet application. Which means, there is no way we can know all possible IPs that are to be whitelisted as mobile phones and tablets can so many in number and any device in the city/state/country/globe.

So, It is very LEAST LIKELY to apply IP Whitelisting on such Experience APIs whose consumers are typically Mobile Phones or Tablets.

To achieve the goal of exposing financial data to a new mobile application while following MuleSoft’s best practices, the company should follow an API-led connectivity approach. This approach ensures minimal disruption to existing clients, maximizes reusability, and respects the separation of concerns across API layers.

Explanation of Solution:

Experience APIs for Client-Specific Requirements:

Create two new Experience APIs (EAPI-1 and EAPI-2) for the mobile application, tailored to meet the specific data and format requirements of the mobile application. These APIs encapsulate the client-specific needs and provide a custom interface without impacting other clients.

Process API Layer for Data Transformation:

By adding Mobile PAPI-2, we allow the mobile application to access the required subset of data, formatted according to the mobile application’s requirements. This approach ensures that data transformation and aggregation are handled in the Process layer, maintaining consistency and reusability across different applications.

Reuse of System APIs:

Both the new Mobile PAPI-2 and existing PAPI-1 access data from System APIs (SAPI-1 and SAPI-2), which continue to expose data from each legacy system in a consistent, reusable manner. This avoids duplicating logic and ensures that data access remains centralized and manageable.

Why Option A is Correct:

Option A aligns with MuleSoft’s best practices by isolating client-specific requirements in the Experience layer, utilizing Process APIs for data orchestration and transformation, and maintaining reusable System APIs for backend access.

This approach also ensures that the current API clients are not impacted, as new clients (e.g., the mobile app) interact with newly defined Experience APIs without modifying the existing API setup.

Explanation of Incorrect Options:

Option B: This option seems similar but lacks clarity on the separation of mobile-specific requirements and does not explicitly mention data transformation, which is essential in this scenario.

Option C: Creating a single mobile Experience API that exposes a subset of PAPI endpoints directly adds unnecessary complexity and may violate the separation of concerns, as transformation logic should not be in the Experience layer.

Option D: Deploying a new PAPI and using an API Proxy to redirect existing endpoints would add unnecessary complexity, disrupt the current API clients, and increase maintenance efforts.

ReferencesFor additional guidance, refer to MuleSoft documentation on API-led connectivity best practices and best practices for structuring Experience, Process, and System APIs​​.

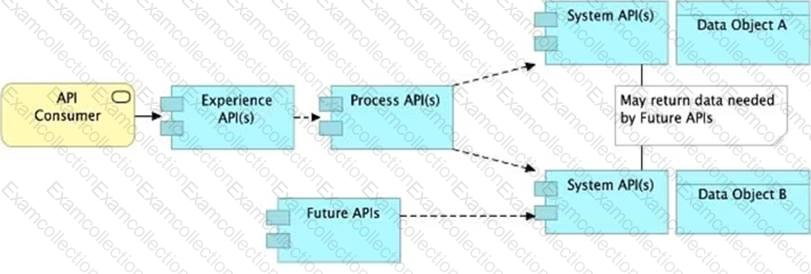

In the API-led connectivity approach, APIs are categorized into Experience, Process, and System layers:

Enterprise Data Model Scope:

The Enterprise Data Model (EDM) generally supports System APIs and some Process APIs by defining standard data structures used across the organization. Experience APIs, however, are tailored to specific applications or interfaces and are less likely to be served directly by the EDM, as they may require customized data representations to meet the unique needs of each user interface.

Why Option C is Correct:

The Mobile Account Management EAPI serves mobile-specific needs and often requires data formatted differently from the standardized data models. Thus, it would be outside the direct scope of the EDM and might employ custom mappings to fit mobile application requirements.

Explanation of Incorrect Options:

Option A (Customer SAPI), Option B (Customer Lookup PAPI), and Option D (Service SAPI) would typically align with the EDM as they are closer to the core data and services the EDM supports.

ReferencesFor additional guidance, review MuleSoft's best practices on API-led connectivity and data modeling​.

Correct Answer: Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.

*****************************************

>> SLA tiers will come into play whenever any limits to be imposed on APIs based on client type

MUnit is MuleSoft’s testing framework for creating and running automated tests within Anypoint Studio. It is specifically designed for unit testing Mule applications and is best suited when testing doesn’t require understanding the inner workings or implementation details of the components being tested.

Ideal Use Cases for MUnit:

MUnit is optimal when testing individual flows, functions, or components in isolation. This type of testing focuses on verifying the behavior of each unit without needing to understand the complete system.

Since unit tests do not require external integrations or dependencies to be live, mocking is commonly used in MUnit to simulate the behavior of external services and APIs.

Why Option B is Correct:

Option B aligns with the concept of unit testing, where the emphasis is on testing functionality rather than system integration. Integration tests, on the other hand, would require implementation knowledge and live endpoints, making them unsuitable for MUnit’s scope.

Explanation of Incorrect Options:

Option A (read-only interactions) and Option C (no mocking) do not suit MUnit’s typical testing environment as MUnit is designed with mocking capabilities to simulate dependencies.

Option D (SoapUI-based tests) suggests an external testing tool, while MUnit is specific to MuleSoft.

ReferencesFor more on MUnit best practices, refer to MuleSoft’s MUnit documentation​.
