Netapp NS0-194 - NetApp Certified Support Engineer (NCSE)

FabricPool is the ONTAP technology used to provide a cloud-based capacity tier from an AFF system. FabricPool combines a high-performance local tier, such as an AFF aggregate, with an object-storage cloud tier so that inactive data can be tiered according to policy. Flash Pool is a hybrid aggregate technology that uses SSDs as cache in FAS systems; it does not provide cloud object tiering. NetApp HCI is an infrastructure platform and not an ONTAP aggregate tiering feature. Flash Cache is controller-side caching and does not create a cloud capacity tier. The scenario explicitly says the customer has an AFF platform and wants object storage for cloud capacity. That is the defining use case for FabricPool. A support engineer should map the terms performance tier, capacity tier, cold data, and object storage directly to FabricPool. References/topics: ONTAP FabricPool, AFF aggregates, cloud capacity tier, object storage tiering, and inactive data movement.

Aggregate relocation enables nondisruptive hardware maintenance during an ONTAP upgrade or controller maintenance activity. ARL moves aggregate ownership between HA partners so that storage resources remain available while a node is serviced or upgraded. FlexVol and FlexGroup are volume types and do not provide the controller-level maintenance mechanism required in the scenario. RAID-TEC protects against multiple disk failures, but it does not move aggregates away from a controller for nondisruptive maintenance. The key support concept is that ONTAP nondisruptive operations rely on HA takeover/giveback and aggregate relocation to keep data online while hardware or software work occurs. For an upgrade from an older release to a later release, ARL is central when the process requires controller reboot or hardware service without forcing client downtime. This is why ARL is repeatedly tested in support exams: it is the operational bridge between hardware service and continuous data availability. References/topics: ONTAP nondisruptive upgrade, aggregate relocation, HA pair maintenance, controller availability, and upgrade readiness.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

Different IPspaces are required when tenants must use separate network environments for data service and SnapMirror protection. An IPspace creates an independent network routing domain in ONTAP, allowing overlapping or isolated network configurations for different tenants. VLANs can segment traffic inside a network design, but they do not provide the same independent routing-domain separation that multi-tenancy requires in this scenario. A shared network infrastructure is not required when ONTAP is configured for tenant isolation. The idea that each node can communicate with only one tenant is incorrect because ONTAP nodes can host LIFs in multiple IPspaces, subject to proper design. The support engineer should choose IPspaces whenever the requirement is true tenant network separation, independent routing, or duplicate address support. That separation is especially important when tenants require independent routing tables, separate LIF placement, or overlapping address plans. References/topics: ONTAP IPspaces, multi-tenancy, SVM network isolation, SnapMirror tenant separation, and routing-domain design.

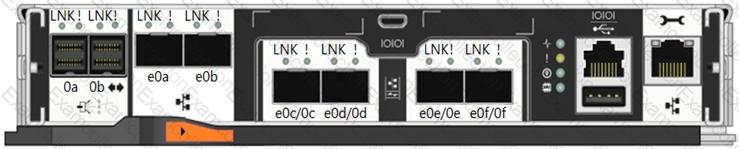

The e0c/0c port is the CNA port in the AFF A200 exhibit. A converged network adapter can operate in Ethernet mode, where it is labeled with an e-prefix, or in Fibre Channel target/initiator mode, where the corresponding identity may appear with a numeric port naming convention. On the AFF A200, the shared port labeling such as e0c/0c indicates a converged adapter identity. The option showing only e0a is a standard Ethernet-style port designation, and 0a is a Fibre Channel-style designation without the combined CNA label shown in the diagram. The visual clue is the dual-purpose label that combines Ethernet and FC naming in one port callout. For NCSE hardware questions, port nomenclature matters because replacement, cabling, protocol personality, and adapter configuration all depend on identifying the port type correctly. References/topics: AFF A200 onboard ports, CNA port labeling, Ethernet/FC personality, platform cabling, and controller port identification.

SVM disaster recovery is the appropriate NetApp technology because the requirement includes replicating selected volumes and the SVM network configuration to another data center. SnapMirror Synchronous protects individual volumes synchronously but does not replicate the broader SVM configuration as the scenario requires. MetroCluster provides site-level high availability and disaster recovery but is not the selected technology for replicating a subset of volumes plus SVM configuration to another site. SVM peering is only a prerequisite relationship that allows replication; it is not the replication and recovery solution by itself. SVM DR uses SnapMirror to replicate SVM configuration and data so that the destination SVM can be activated during a disaster. Support engineers should recognize phrases such as network configuration, SVM identity, and multiple volumes as indicators of SVM DR rather than single-volume SnapMirror. References/topics: SVM disaster recovery, SnapMirror SVM replication, network configuration replication, DR activation, and multi-volume data protection.

Active IQ Cluster Viewer details can be downloaded in PDF, CSV, and XLS formats. These formats support the common operational needs of support and account teams: PDF for fixed presentation and case documentation, CSV for raw data extraction and analysis, and XLS for spreadsheet-based review or customer reporting. DOC is not a standard export format for structured cluster inventory or health data, and HTML is a display format rather than one of the listed downloadable detail formats in this context. Active IQ is used to analyze AutoSupport telemetry, identify risks, display system health, and provide support-relevant inventory and recommendations. Export formats matter because engineers frequently attach evidence to cases, share inventory with customers, or perform offline review. The correct selections are the formats that preserve report data in portable or analyzable files. References/topics: Active IQ Cluster Viewer, report export, PDF/CSV/XLS downloads, AutoSupport telemetry review, and support documentation.

On AFF systems, compaction, deduplication, and compression are enabled by default as core storage efficiency features. AFF platforms are designed around flash media and ONTAP inline efficiencies, so ONTAP applies these efficiencies automatically to reduce physical space consumption while preserving performance. Reallocation is not a default data-reduction technology in this context; it is associated with layout optimization and is not part of the standard AFF default efficiency set. Encryption may be enabled in some environments depending on configuration, NVE, NAE, or self-encrypting drives, but it is a security feature rather than a default space efficiency feature. The correct choices are the technologies that reduce physical storage footprint inside ONTAP volumes and aggregates on AFF. A support engineer should distinguish default AFF efficiency behavior from optional security and layout functions. References/topics: AFF storage efficiency defaults, inline deduplication, inline compression, data compaction, and ONTAP capacity efficiency.
