Fortinet NSE4_FGT_AD-7.6 - Fortinet NSE 4 - FortiOS 7.6 Administrator

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A. Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C. A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B. The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D. Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.

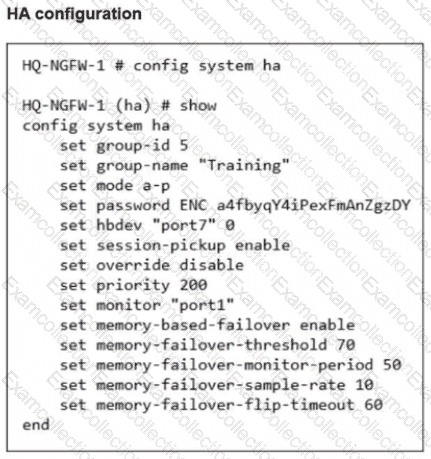

From the HA configuration shown for HQ-NGFW-1:

set memory-based-failover enable

set memory-failover-threshold 70

set memory-failover-monitor-period 50

set memory-failover-sample-rate 10

set memory-failover-flip-timeout 60

set override disable

set priority 200

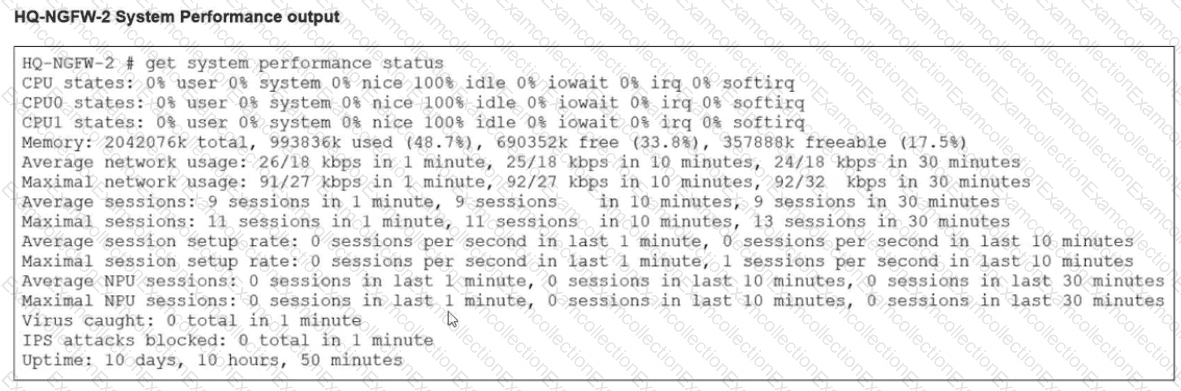

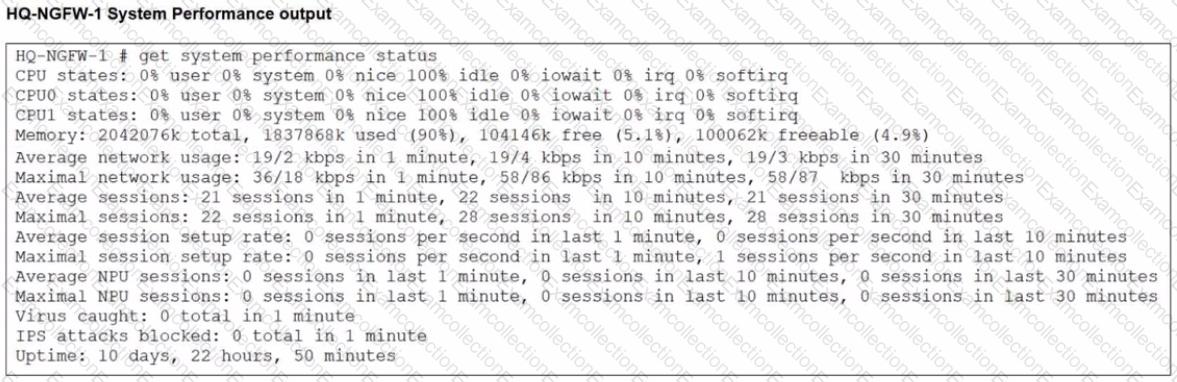

From the performance status outputs:

HQ-NGFW-1 memory used is 90% (well above the configured threshold of 70%)

HQ-NGFW-2 memory used is about 48.7% (well below the threshold)

What happens in FortiOS 7.6 with memory-based failover

When memory-based failover is enabled, FortiGate monitors memory utilization. If the unit’s memory usage stays above the configured memory-failover-threshold for the configured memory-failover-monitor-period, the cluster triggers a failover away from the unit under memory pressure.

Threshold = 70%

HQ-NGFW-1 is at 90%, so it violates the threshold.

Monitor period = 50 seconds.

The administrator observed for 55 seconds, which is longer than 50 seconds, so the condition is met for long enough to trigger failover.

The memory-failover-flip-timeout 60 is used to prevent rapid back-and-forth role changes (flapping) after a failover decision; it does not prevent the initial failover from occurring once the threshold breach persists for the monitor period.

“The only security features you can apply using SSL certificate inspection mode are web filtering and application control... Note that while offering some level of security, certificate inspection does not allow FortiGate to inspect the flow of encrypted data.”

“To perform SSL inspection on traffic flowing through the FortiGate device, you must allow the traffic with a firewall policy and apply an SSL inspection profile to the policy... For antivirus or IPS control, you should use a deep-inspection profile.”

“When you use deep inspection, FortiGate impersonates the recipient of the originating SSL session, and then decrypts and inspects the content to find threats and block them. It then re-encrypts the content and sends it to the real recipient.”

Technical Deep Dive:

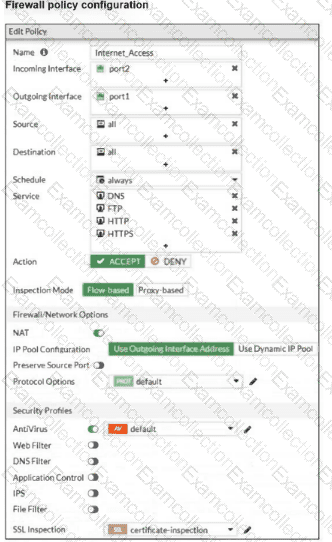

The exhibit shows that the policy is allowing HTTPS and the SSL/SSH inspection profile is certificate-inspection , not deep-inspection . That is the key issue. With certificate inspection, FortiGate can inspect only SSL metadata such as the certificate and SNI/hostname context; it cannot decrypt the HTTPS payload itself. Because EICAR is detected by antivirus through payload inspection, FortiGate must see the file contents. Without deep SSL inspection, the antivirus engine never gets the decrypted payload, so the file can pass even though the antivirus profile is attached.

Option A is incorrect because FortiGate firewall policies often use ACCEPT + security profile enforcement ; the session can still be blocked by antivirus after policy match. Option B is incorrect because web filter is not required for antivirus detection. Option C is incorrect because the real requirement is deep SSL inspection , not specifically proxy-based mode; full SSL inspection is the deciding factor here.

In practice, to block EICAR over HTTPS, you would apply a deep-inspection SSL profile to the policy, for example:

config firewall policy

edit < policy-id >

set inspection-mode flow

set av-profile " default "

set ssl-ssh-profile " deep-inspection "

next

end

On real hardware, this also matters for performance design. Simple firewall/NAT sessions are often NP fast-pathed, but once you enable deep SSL inspection and content scanning, traffic is typically handed to CPU/WAD/content-inspection path for decryption and scanning, so throughput is lower than certificate-inspection or no-inspection.

“When using FortiGuard servers for DNS, FortiOS uses DNS over TLS (DoT) by default to secure the DNS traffic. New FortiGuard DNS servers have been added as primary and secondary servers.”

Technical Deep Dive:

The correct answer is C. It uses DNS over TLS .

This is a direct default-behavior question. If you configure FortiGuard servers as DNS servers and do not change anything else, FortiGate uses DoT rather than plain DNS. That means the DNS session is encrypted, which protects DNS queries from simple interception or tampering on the path.

Why the other options are wrong:

A is standard clear-text DNS behavior, not the FortiGuard DNS default stated in the guide.

B is incorrect because the guide specifically says DNS over TLS , not DNS over HTTPS.

D is incorrect; the guide does not describe UDP 8888 as the default transport for this DNS use case.

Operationally, this matters because FortiGate relies on DNS not only for client-facing services, but also for resolving objects and securely reaching cloud-based services. Using DoT improves confidentiality for those DNS lookups.

“Authentication-wise, both versions support PSK and certificate signature . Although only IKEv1 supports XAuth ...”

“Now, you will learn about the Authentication section in phase 1 configuration:

• Method: FortiGate supports two authentication methods: Pre-shared Key and Signature. When you select Pre-shared Key, you must configure both peers with the same pre-shared key. When you select Signature, phase 1 authentication is based on digital certificate signatures.”

“The purpose of phase 1 is to authenticate peers and set up a secure channel... To authenticate each other, the peers use two methods: pre-shared key or digital signature . You can also enable an additional authentication method, XAuth, to enhance authentication. ”

“A common use of the IPsec wizard is for configuring a remote access VPN for FortiClient users. The wizard enables IKE mode config, XAuth , and other appropriate settings for FortiClient users.”

Technical Deep Dive:

The correct answers are C and D .

D is correct because FortiGate supports the two primary IKEv1 authentication methods: pre-shared key and certificate signature . That is explicitly stated in the study guide.

C is also correct because FortiGate supports XAuth with IKEv1 as an additional authentication mechanism. In practice, XAuth is used to request extra user credentials such as a username and password , especially in remote-access VPN deployments such as FortiClient.

Why the other options are incorrect:

A is incorrect because when using Signature , certificate-based authentication is in use. The study guide states that digital signature validation depends on the relevant certificates and CA trust chain being present. It is not a certificate-free method.

B is incorrect because “fewer packets are exchanged” is a characteristic of aggressive mode , not XAuth. XAuth enhances authentication; it is not the feature that makes IKE negotiation faster.

So the two supported IKEv1 authentication features are:

Extended authentication (XAuth) to request the remote peer to provide a username and password

Pre-shared key and certificate signature as authentication methods

“By default, you can select only a single interface as the incoming interface and a single interface as the outgoing interface. This is because the option to select multiple interfaces, or any interface in a firewall policy, is disabled on the GUI. However, you can enable the Multiple Interface Policies option on the Feature Visibility page to disable the single interface restriction.”

“You can also specify multiple interfaces, or use the any option, if you configure a firewall policy on the CLI, regardless of the default GUI setting.”

Technical Deep Dive:

The correct answer is D .

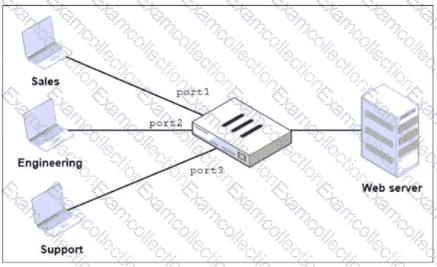

The policies are identical except for the incoming interface : one is for Sales and one is for Engineering . FortiGate GUI policy creation normally restricts you to one incoming interface per policy. To consolidate both into a single GUI policy, the administrator must enable Multiple Interface Policies so both port1 and port2 can be selected in the same rule.

Why the others are wrong:

A is not enough, because policy matching also includes the incoming interface , not just the source subnets.

B changes the network design and is unnecessary.

C would work too broadly by matching traffic from any interface, which is not the intended controlled consolidation.

A matching CLI-style concept would be:

config firewall policy

edit < id >

set srcintf " port1 " " port2 "

set dstintf " < server-interface > "

set srcaddr " Sales_Subnet " " Engineering_Subnet "

set dstaddr " < web-server > "

set service " HTTP " " HTTPS "

set action accept

next

end

That preserves a single policy while still being specific about which interfaces are allowed.

“IKE uses UDP port 500. If NAT-T is enabled in a NAT scenario, IKE uses UDP port 4500.”

“IKEv2 provides a simpler operation, which is the result of using a single exchange mode and requiring less messages to bring up the tunnel.”

For the specific workaround asked in this question, Fortinet’s official documentation states that for an IP-level VPN, SSL VPN tunnel mode is useful to avoid issues caused by intermediate devices such as “ESP packets being blocked,” “UDP ports 500 or 4500 being blocked,” and “fragments being dropped, causing IKE negotiation that uses large certificates to fail if the peer does not support IKE fragmentation.” ( Fortinet Document Library )

Fortinet’s official documentation also states: “The ip-fragmentation command controls packet fragmentation before IPsec encapsulation, which can benefit packet loss in some environments.” ( Fortinet Document Library )

Technical Deep Dive:

The correct answers are A and B .

A is correct because SSL VPN tunnel mode can bypass the classic IPsec transport problems caused by intermediate devices filtering ESP or blocking UDP 500/4500 . Fortinet explicitly documents this as a practical workaround. ( Fortinet Document Library )

B is correct because enabling fragmentation helps when IKE negotiation uses large certificates and fragments are being dropped in transit. Fortinet documents this exact failure scenario and the related fragmentation control. ( Fortinet Document Library )

Why the others are not correct:

C is not the key fix. Hub-and-spoke is a topology choice, not the actual mechanism that solves blocked ESP or UDP 500/4500.

D is not sufficient for this problem. IKEv2 uses fewer messages, but it still relies on IPsec/IKE transport and does not itself solve intermediate devices blocking ESP or UDP 500/4500. The source PDF mentions simpler operation, not blocked-port avoidance.

So, the two effective fixes are:

Use SSL VPN tunnel mode

Enable fragmentation

“When you create a new entry to add signatures or filters, you can select the action by clicking Action.”

“When you enable Packet logging , FortiGate stores a local copy of the packet that matches the signature . This enhances the view of erroneous or suspicious packets.”

“You can configure IP exemptions on individual signatures only .”

Technical Deep Dive:

The correct answer is C .

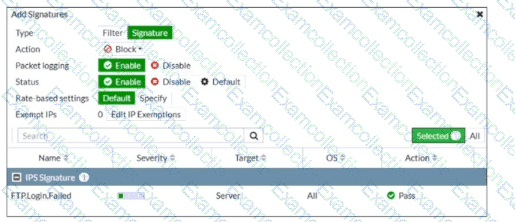

The exhibit shows an IPS entry being added with:

Type = Signature

Action = Block

Packet logging = Enable

Rate-based settings = Default

The most certain conclusion from that configuration is that packet logging is enabled , and the study guide explicitly states that this causes FortiGate to store a local copy of the matching packet .

Why the others are wrong:

A is wrong because the exhibit shows Rate-based settings = Default , not a custom threshold.

B is wrong because the configured action is Block , not allow/monitor.

D is wrong because the entry type is Signature , meaning an individual signature is being added, not a signature group.

A useful operational note: packet logging is powerful for IPS investigation and false-positive analysis, but it consumes more storage and processing resources. It should be enabled selectively on signatures where deeper forensic visibility is needed.
