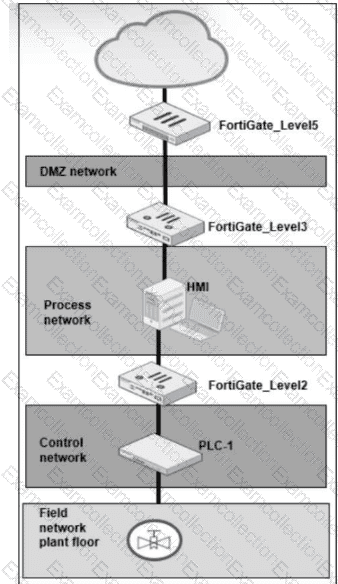

The correct answers are B. IPS on FortiGate_Level5 and C. Virtual patching on FortiGate_Level2 .

The study guide explains that “the first line of defense is securing the IT side of your network” and that FortiGate should be placed to protect ICS environments and stop threats from propagating from IT into OT. It also states that IPS improves OT security because “today’s threat landscape requires IPS to block a wider range of threats and improve OT security” and that in IPS mode, vulnerable devices are protected . This makes FortiGate_Level5 , at the upper boundary near the DMZ and external connectivity, the correct place to implement IPS as a primary protection control.

The study guide also states in the Purdue model section that “Level 2 consists of the processes and programs that control the PLCs, RTUs, and IEDs found at Level 1” and that “it is necessary to segment, or even microsegment, these servers with firewall segmentation, along with policies that include application control and virtual patching.” In addition, the virtual patching section says “Virtual patching protects OT devices that have not yet been updated against vulnerability exploits” and applies when traffic related to the vulnerable device reaches the firewall policy. Since FortiGate_Level2 sits between the process network and the control network, it is the right enforcement point for virtual patching to protect the PLC-side assets.

Option A is not one of the best answers because offline IDS only detects and logs attacks; the guide says “no traffic flows through FortiGate” in offline IDS mode, whereas IPS can actually block threats. Option D is also not the best answer because OT signatures are enabled within the IPS framework, but the stronger control explicitly described for this design is to deploy IPS at the upper boundary and virtual patching closer to vulnerable OT devices .

The correct answers are C and D .

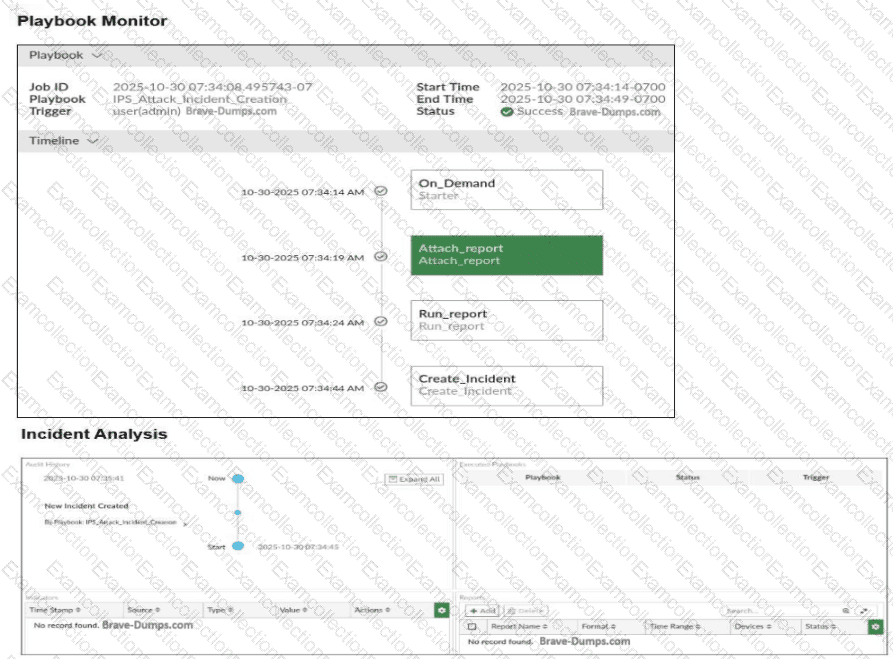

Option D is correct because the Playbook Monitor clearly shows the starter as On_Demand and the trigger as user(admin) . The study guide states that “ON_DEMAND: The playbook runs when an administrator manually starts it” and also notes that to run it manually, you select the playbook and click Run . This exactly matches the exhibit, so the playbook was manually triggered.

Option C is also correct. The study guide explains that “tasks run one after another” and that “if needed, the output of one task can be used by the tasks that follow it.” It also gives an example where workflow logic matters, such as creating an incident and then attaching details to it. In the exhibit, the sequence shown is Attach_report , then Run_report , then Create_Incident , while the incident analysis shows no report attached . Since the report must exist and the incident must already be available before it can be attached properly, the task order is wrong and must be reordered.

Option B is incorrect because the monitor shows multiple tasks completed successfully, not only Create_Incident . Option A is not the best answer because the main problem demonstrated by the exhibits is not simply waiting time, but the incorrect workflow order. The playbook completed successfully, yet the report is still not attached, which indicates a design issue in the task sequence rather than just a delay.

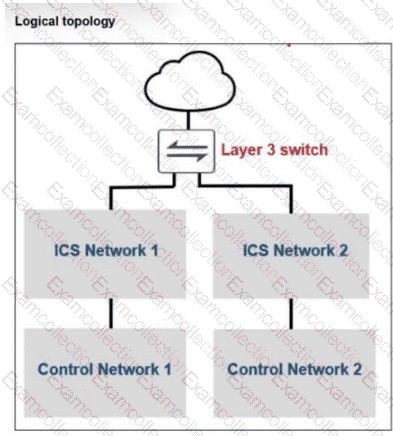

The correct answer is D. You can configure forward domain IDs for each network . The study guide explains that in FortiGate transparent mode, “all interfaces belong to the same broadcast domain, even interfaces with different VLAN IDs” and then states that you should “use this command to subdivide into multiple broadcast domains” with set forward-domain < domain_ID > . It further explains that “interfaces with the same domain ID belong to the same broadcast domain” and “traffic arriving on one interface is broadcast only to interfaces in the same forward domain ID.” This is exactly the mechanism used to separate one internal network from another and improve segmentation.

The other options do not match this requirement. Universal ZTNA is described as controlling user access to applications , not segmenting two internal OT networks. An explicit software switch is for controlling intra-switch or intra-VLAN traffic inside the same software switch broadcast domain, which is more aligned with microsegmentation than separating two routed internal networks. One traffic VDOM does not create segmentation by itself; segmentation with VDOMs requires multiple VDOMs, not one. Therefore, the best choice for segmenting network 1 and network 2 in this scenario is to assign separate forward domain IDs .
