Fortinet NSE7_PBC-7.2 - Fortinet NSE 7 Public Cloud Security 7.2 (FCSS)

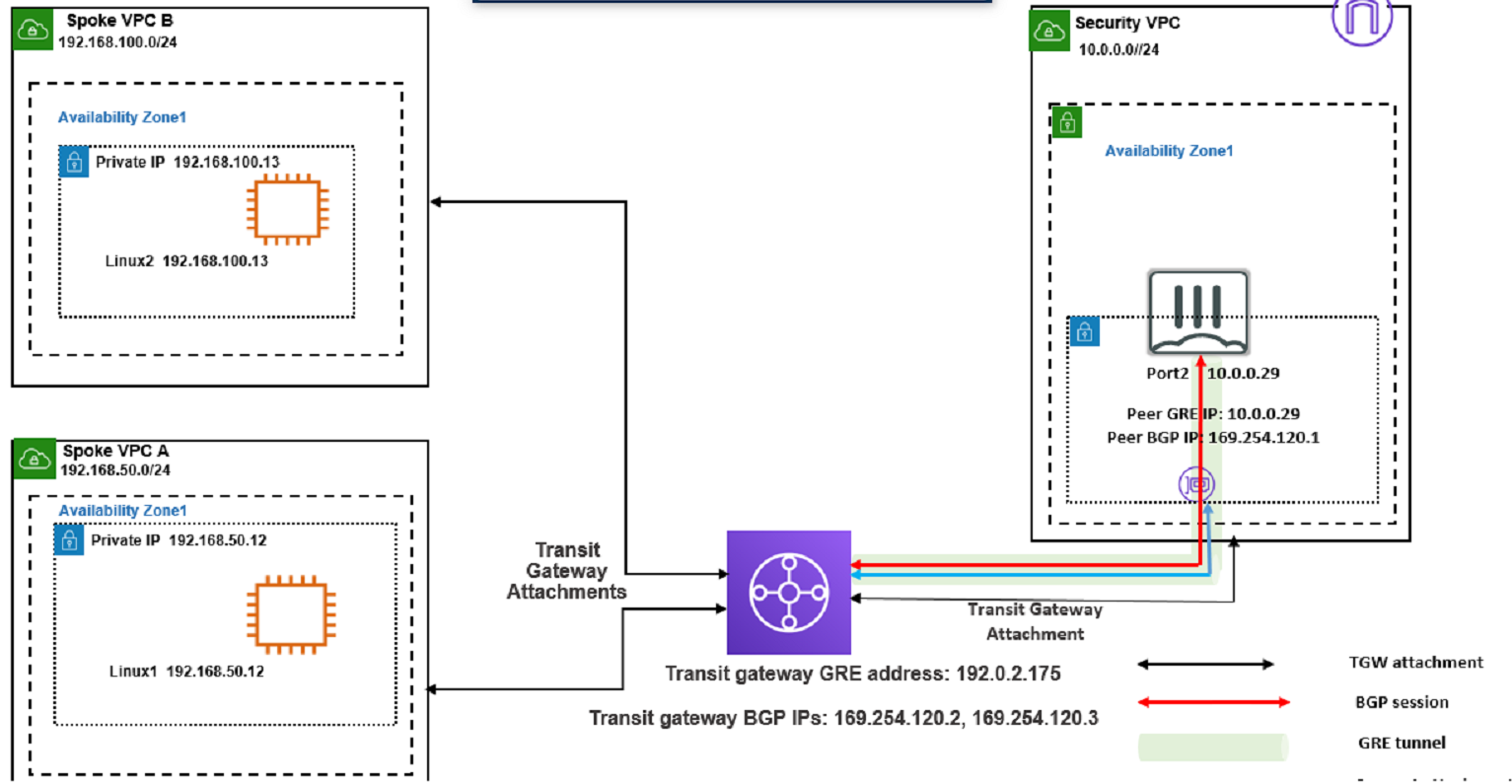

This is because the Linux1 EC2 instance is not accessible directly from the internet using its public IP address in AWS.

An internet gateway is a horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. Without an internet gateway, the Linux1 EC2 instance cannot receive or send traffic to or from the internet, even if it has a public IP address assigned to it.

To fix this issue, you need to attach an internet gateway to the Spoke VPC A and configure a route table that directs internet-bound traffic to the internet gateway. You also need to ensure that the Linux1 EC2 instance has a security group that allows inbound and outbound traffic on the desired ports.

[Internet Gateways - Amazon Virtual Private Cloud] : [Attach an Internet Gateway to Your VPC - Amazon Virtual Private Cloud] : [Security Groups for Your VPC - Amazon Virtual Private Cloud]

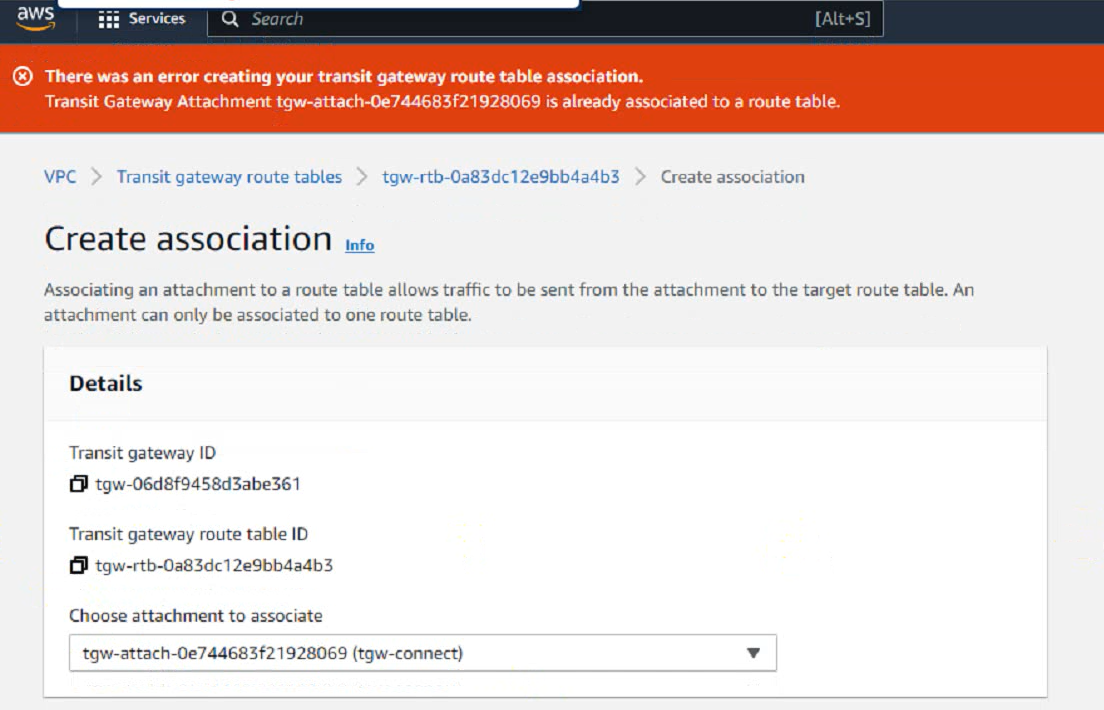

The error message indicates that the Connect attachment is already associated with another transit gateway route table. You cannot associate the same attachment with more than one route table. However, you can propagate the same attachment to multiple route tables. Therefore, to fulfill your requirement of configuring a second route table for east-west traffic inspection between two VPCs, you need to create a propagation with the Connect attachment in the second route table. This will allow the second route table to learn the routes from the Connect attachment and forward the traffic to the security VPC1. You also need to associate the second route table with the Transport attachment, which is the transit gateway attachment for the security VPC1.

References:

Transit gateway route tables - Amazon VPC | AWS Documentation

Getting started with transit gateways - Amazon VPC | AWS Documentation

Configuring TGW route tables | FortiGate Public Cloud 7.4.0 | Fortinet Document Library

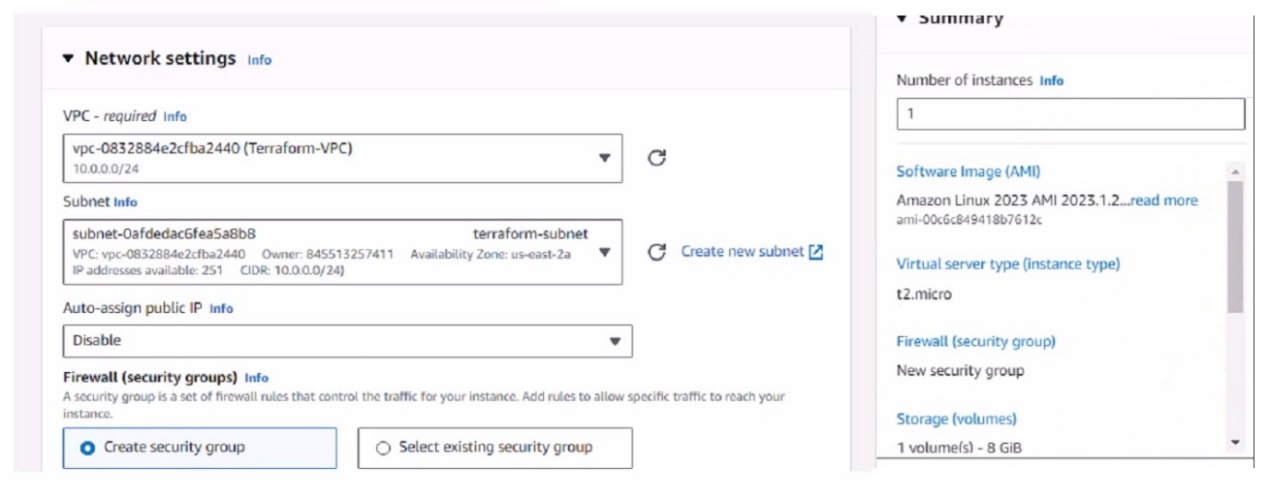

The next step the administrator must take to access the Linux EC2 instance from the internet is:

D. Allocate an Elastic IP address and assign it to the instance.

Elastic IP (EIP) Requirement: By default, when an EC2 instance is launched in AWS, it receives a public IP address from Amazon's pool, which is not static. This IP address can change, for example, if the instance is stopped and started again. To have a static IP address, you need to allocate an Elastic IP (EIP), which is a persistent public IP address, and then associate it with the instance.

Public Accessibility: Without an Elastic IP, the instance may not be accessible over the internet after a reboot or stop/start sequence. Assigning an Elastic IP ensures the instance can be accessed consistently using the same IP address.

References: The AWS documentation on EC2 instances details the process and need for Elastic IPs to ensure consistent internet access to instances.

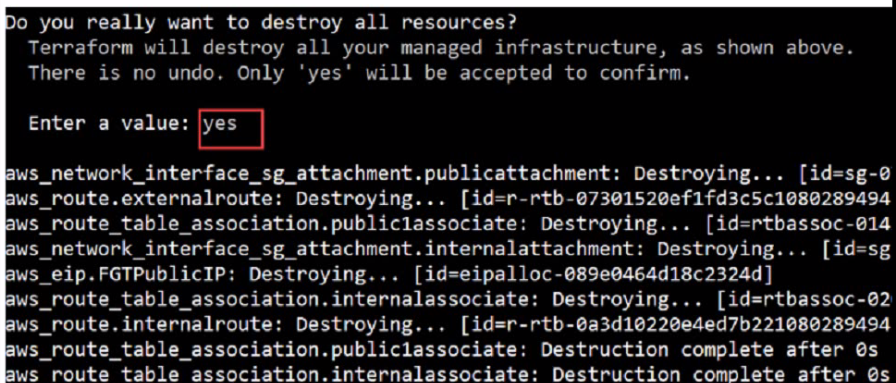

Confirming to delete all the resources in Terraform will have the following impact:

D. It destroys all the resources in the state file.

Terraform State File Role: The terraform.tfstate file contains a real-time mapping of the resources that Terraform manages, including their current configuration and relationships. This file tracks the actual state of resources provisioned by Terraform.

Impact of Destruction: When Terraform prompts for confirmation to destroy resources, and 'yes' is entered, Terraform reads the state file and systematically removes all the resources that are managed as part of that state. This is not limited to a specific .tfvars file, IAM user, or resource group—it is a global action that affects all resources tracked by the state file associated with the current Terraform workspace and configuration.

References: The function of the terraform.tfstate file and the impact of resource destruction are detailed in Terraform's official documentation. This behavior is fundamental to how Terraform manages infrastructure as code.

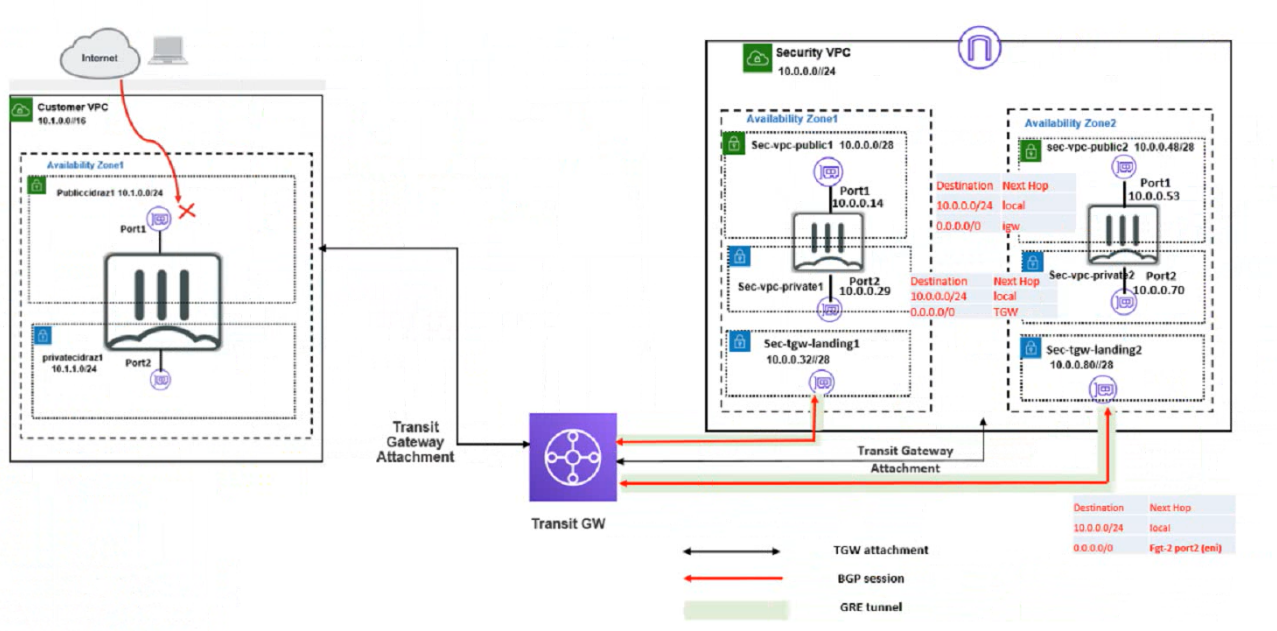

B. Add route destination 0.0.0.0/0 to target the transit gateway. This will ensure that the Customer VPC FortiGate VM sends all the outbound internet traffic through the Security VPC, where it can be inspected by the Security VPC FortiGate VMs1. The transit gateway is a network device that connects multiple VPCs and on-premises networks in a hub-and-spoke model2. D. Deploy an internet gateway, associate an EIP in the private subnet, edit route tables, and add a new route destination 0.0.0.0/0 to the target internet gateway. This will allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, by creating a public route for the private subnet where the FortiGate VM is located3. An internet gateway is a service that enables communication between your VPC and the internet4. An EIP is a public IPv4 address that you can allocate to your AWS account and associate with your resources. E. Deploy an internet gateway, associate an EIP in the public subnet, and attach the internet gateway to the Customer VPC. This will also allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, by creating a public route for the public subnet where the FortiGate VM is located3. This is an alternative solution to option D, depending on which subnet you want to use for the FortiGate VM.

The other options are incorrect because:

Adding a route with your local internet public IP address as the destination and target transit gateway will not allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, because it will only apply to traffic coming from your specific IP address, not from any other source on the internet1. Moreover, it will not ensure that the outbound internet traffic goes through the Security VPC, because it will only apply to traffic going to your specific IP address, not to any other destination on the internet1.

Adding a route with your local internet public IP address as the destination and target internet gateway will not allow inbound HTTPS access to the Customer VPC FortiGate VM from the internet, because it will bypass the Security VPC and send the traffic directly to the Customer VPC1. Moreover, it will not ensure that the outbound internet traffic goes through the Security VPC, because it will only apply to traffic going to your specific IP address, not to any other destination on the internet1.

The statement that best describes the concept of immutable infrastructure in the context of automation is:

A. It is the practice of deploying a new server for every configuration change.

Immutable Infrastructure Concept: This approach to infrastructure management involves replacing servers or components entirely rather than making changes to existing configurations once they are deployed. When a change is needed, a new server instance is provisioned with the desired configuration and the old one is decommissioned after the new one is successfully deployed and tested.

Benefits: Immutable infrastructure minimizes the risks associated with in-place updates, such as inconsistencies or failures due to configuration drift. It enhances reliability and predictability by ensuring that the deployed environment matches exactly what was tested in staging. This practice is particularly aligned with modern deployment strategies like blue/green or canary deployments.

References: The concept of immutable infrastructure is widely discussed in DevOps and cloud computing literature as a method to increase consistency and fault tolerance in automated environments.
